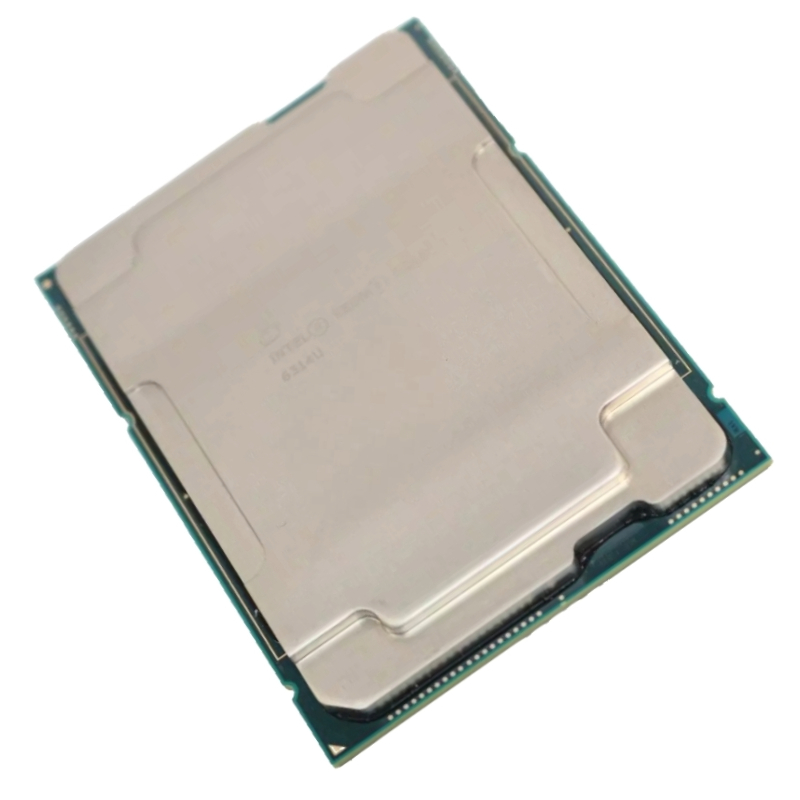

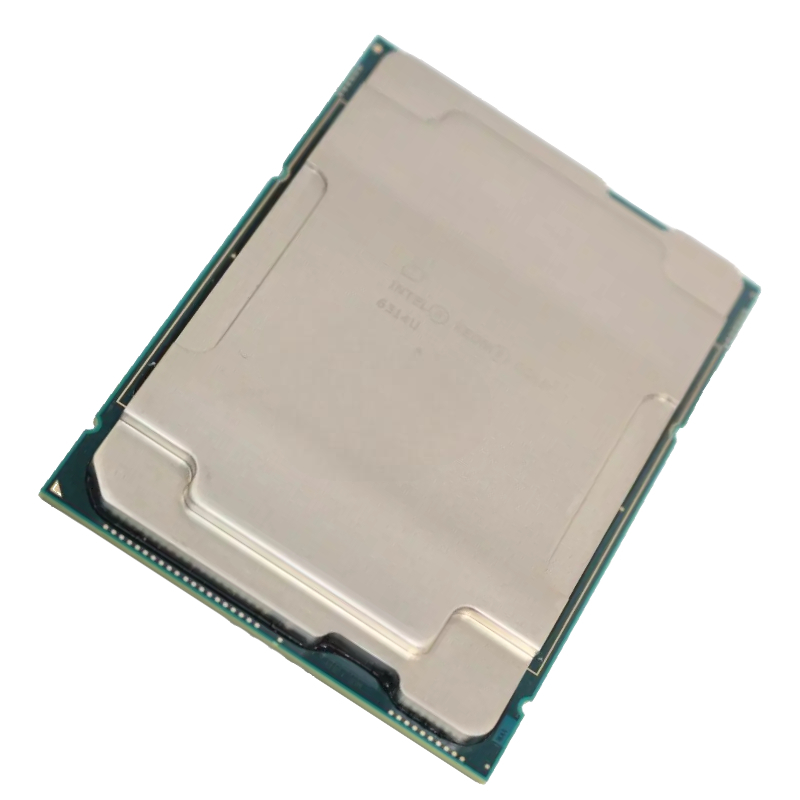

Intel Xeon Gold 32 Core Processor 6314u 2.30GHz 48MB Cache SRKHL

General Product Information

The Intel Xeon Gold 6314U, with part number SRKHL, is a high-performance server processor designed for demanding computing environments. Part of the 3rd Generation Intel Xeon Scalable family, this processor is built on the Ice Lake architecture and offers advanced features to enhance processing power and efficiency in data centers and enterprise settings.

Intel Xeon Gold 6314U Processor Overview

Product Information

• Manufacturer: Intel
• Part Number: SRKHL
• Processor Series: 3rd Gen Intel Xeon Scalable (Gold 6300 Series)
• Processor Codename: Ice Lake
• Socket Type: FCLGA4189
• Heatsink and Accessories: Not included

Performance Specifications

• Base CPU Frequency: 2.30 GHz
• Max Turbo Frequency: 3.40 GHz
• Core Count: 32 cores
• Thread Count: 64 threads
• Cache Size: 48 MB
• Lithography: 10 nm
• Thermal Design Power (TDP): 205 W

Memory Specifications

• Maximum Memory Size: Up to 6 TB (6,000 GB)
• Supported Memory Types: DDR4
• Maximum Memory Speeds: 3200 MHz
• Number of Memory Channels: 8
• ECC Memory Support: Yes
• Intel Optane DC Persistent Memory Support: Yes

Expansion and Scalability

• Scalability: Supports 1S only
• PCI Express Revision: 4.0
• Maximum Number of PCI Lanes: 64

Advanced Technologies

• Intel Speed Select Technology - Core Power: Yes
• Intel Speed Select Technology - Turbo Frequency: Yes
• Intel Deep Learning Boost (Intel DL Boost): Yes
• Intel Resource Director Technology (Intel RDT): Yes
• Intel Speed Shift Technology: Yes
• Intel Turbo Boost Technology 2.0: Yes
• Intel Hyper-Threading Technology: Yes
• Intel Virtualization Technology (VT-x): Yes
• Intel Virtualization Technology for Direct I/O (VT-d): Yes
• Intel VT-x with Extended Page Tables (EPT): Yes
• Intel Transactional Synchronization Extensions (Intel TSX): Yes
• Intel 64: Yes
• Instruction Set Extensions: Intel SSE4.2, Intel AVX, Intel AVX2, Intel AVX-512
• Number of AVX-512 FMA Units: 2
• Intel Volume Management Device (VMD): Yes

Security and Reliability Features

• Intel Advanced Encryption Standard AES New Instructions: Yes
• Intel Software Guard Extensions (Intel SGX): Yes with Intel SPS
• Intel Trusted Execution Technology: Yes
• Execute Disable Bit: Yes
• Mode-Based Execute Control (MBE): Yes
• Intel Total Memory Encryption: Yes
• Intel Platform Firmware Resilience Support: Yes
• Maximum Enclave Page Cache (EPC) Size for Intel SGX: 64 GB
• Intel Crypto Acceleration: Yes

Performance Specifications

The Intel Xeon Gold 6314U processor is engineered for exceptional performance in high-demand applications. It is optimized for enterprise servers, data centers, and advanced workstations, providing robust capabilities across various computing tasks.

Applications and Use Cases

The Intel Xeon Gold 6314U is well-suited for various demanding applications across different environments, providing the processing power and features needed to handle complex workloads efficiently.

Enterprise Servers

This processor excels in enterprise server environments, offering the power needed for large-scale applications and data processing tasks. Its 32-core architecture and substantial cache capacity enable it to manage demanding workloads effectively, making it ideal for mission-critical applications and services.

Data Centers

In data centers, the Xeon Gold 6314U provides exceptional performance for handling large volumes of data and supporting high-performance applications. Its advanced features and scalability options contribute to efficient data management and reduced operational costs, making it a valuable asset for data center operators.

High-Performance Workstations

For high-performance workstations used in fields such as scientific research, engineering, and design, the Xeon Gold 6314U delivers the necessary processing power to handle resource-intensive tasks smoothly. Its multi-core configuration and high cache size support the efficient operation of demanding software applications and simulations.

Virtualization

The processor's high core count and substantial cache make it well-suited for virtualization environments. It effectively manages multiple virtual machines, ensuring optimal performance and responsiveness for each instance. This capability is particularly useful for running virtualized applications and workloads in a consolidated environment.

Installation and Maintenance

Proper installation and maintenance are crucial for ensuring optimal performance and longevity of the Intel Xeon Gold 6314U processor. Follow these guidelines to achieve the best results.

Socket Installation

• Installation: The processor should be installed into an FCLGA4189 socket on a compatible motherboard. Ensure the socket and motherboard are compatible with the Xeon Gold 6314U to avoid installation issues.
• Compatibility: Verify that the motherboard and cooling solutions are compatible with the processor to ensure proper operation and performance.

Cooling Solutions

• TDP Considerations: Given the 205 W TDP of the Xeon Gold 6314U, it is essential to use a suitable cooling solution to maintain optimal temperature and prevent overheating.
• Heatsink and Fan: Utilize an appropriate heatsink and fan assembly to ensure effective heat dissipation and maintain system stability.

System Compatibility

• Power Supply: Ensure that the system's power supply is capable of supporting the Xeon Gold 6314U and any additional components.
• Motherboard and Cooling: Confirm that the motherboard and cooling solutions are compatible with the processor to avoid potential issues.
