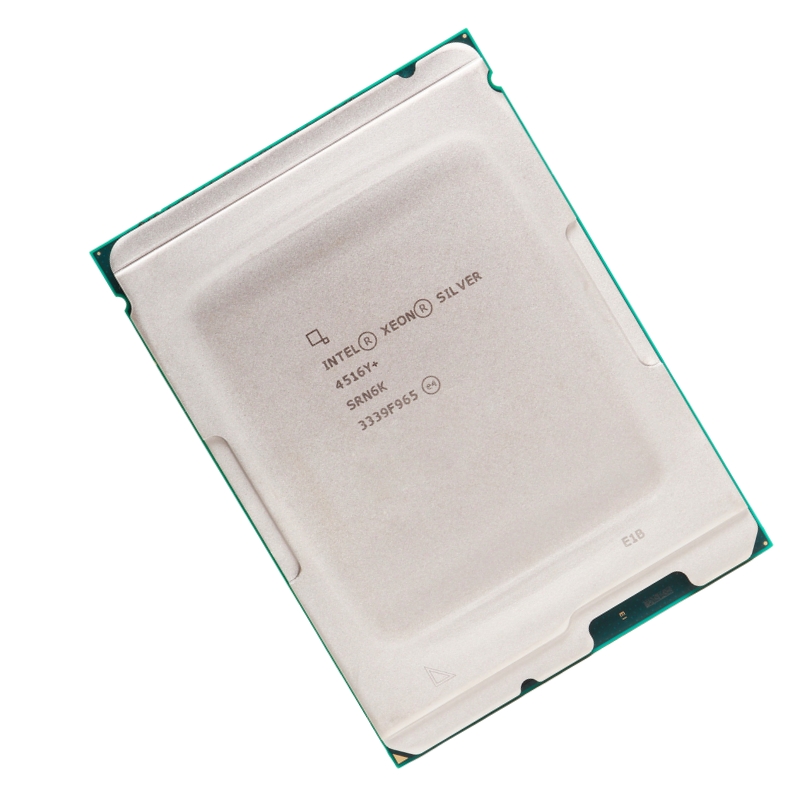

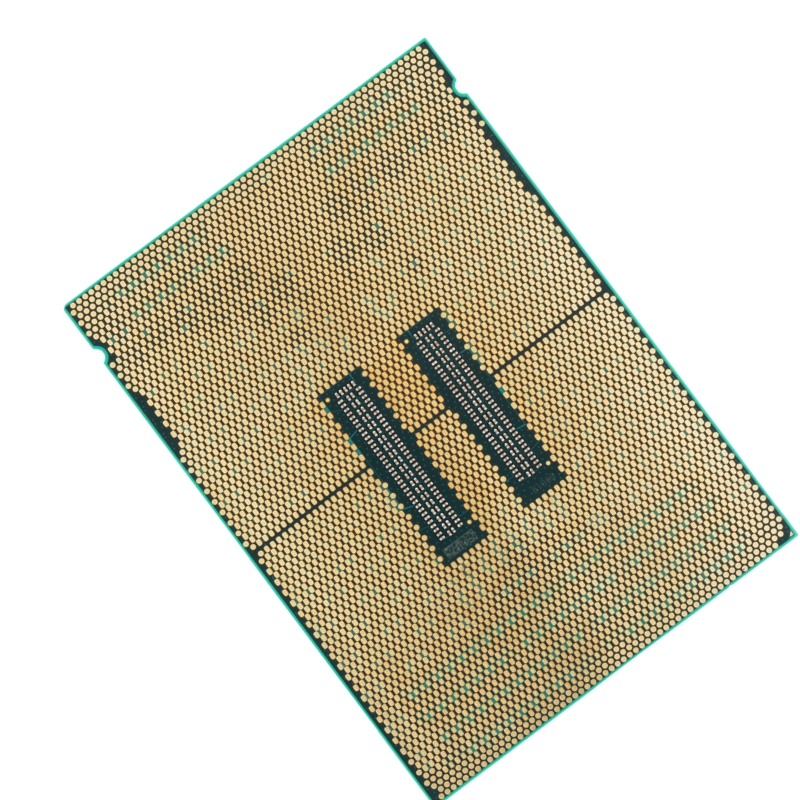

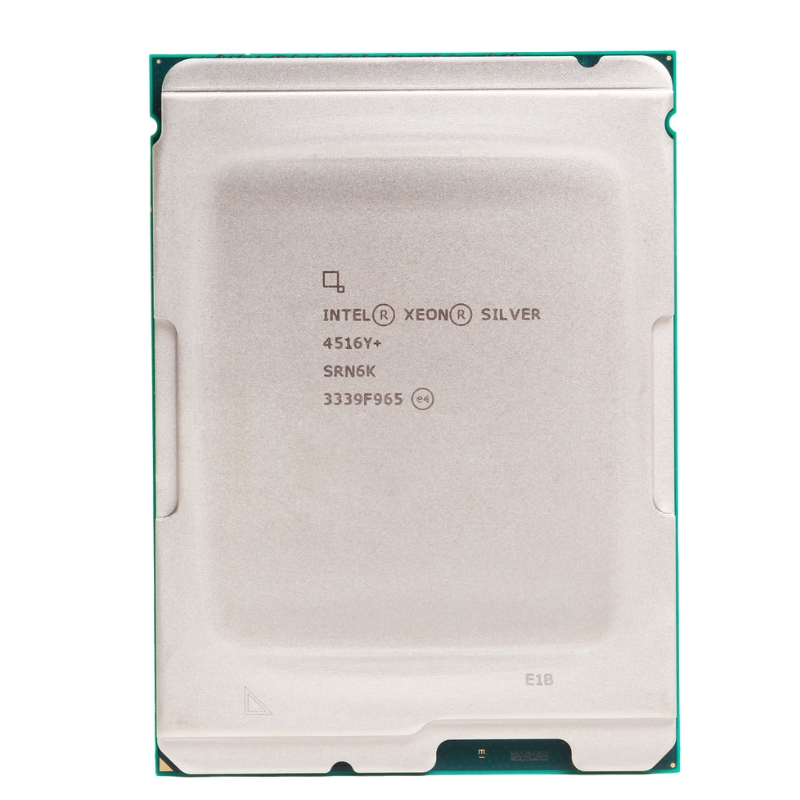

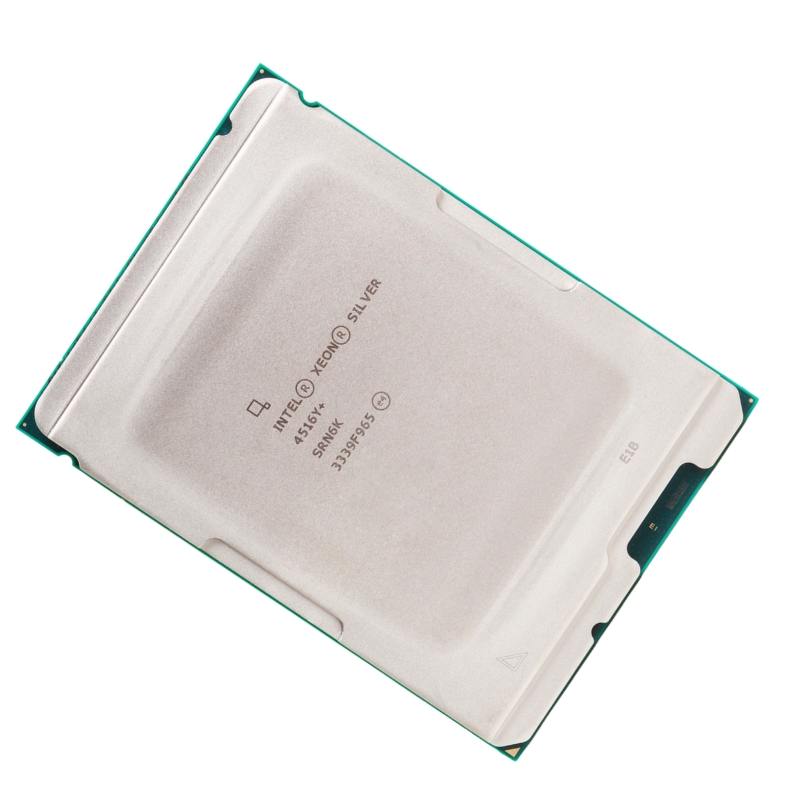

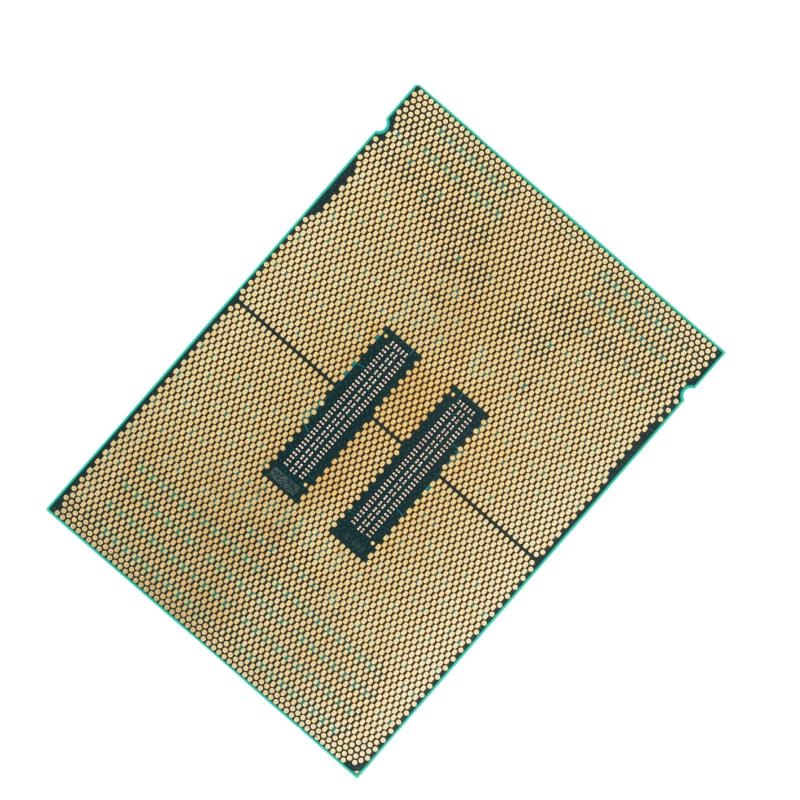

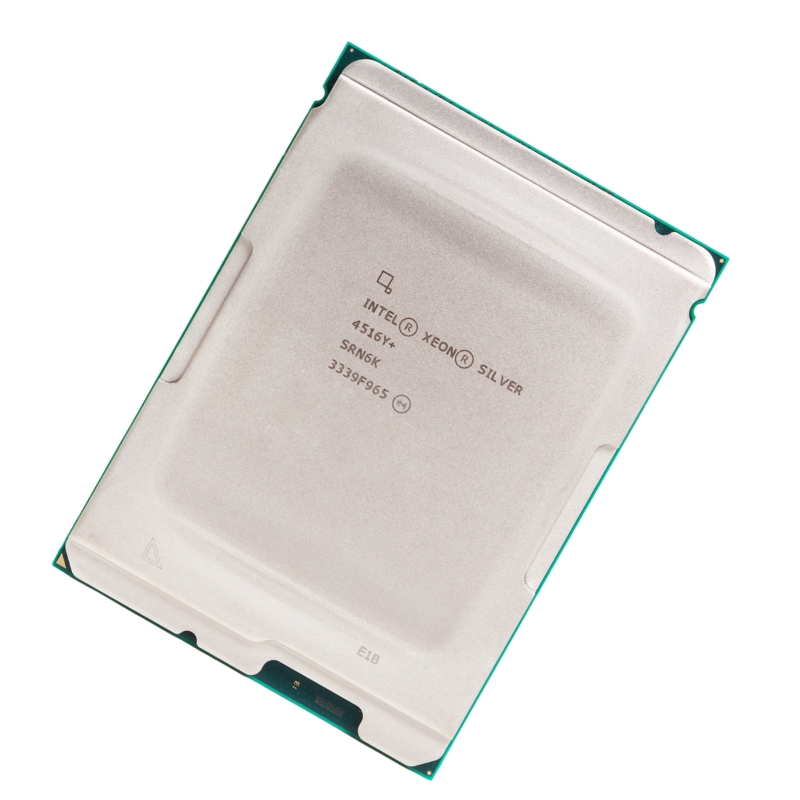

Intel Xeon Silver 4516Y+ 24-Core CPU - SRN6K

Product Overview of Intel Xeon Silver 4516Y+ Processor

Essential Product Information

• Type: Server-grade Processor
• Manufacturer: Intel Corporation
• Part Number: SRN6K
• Model: Intel Xeon Silver 4516Y+
• Process Technology: Intel 7

Technical Specifications

Core and Performance Details

• Total Cores: 24
• Base Frequency: 2.2 GHz
• Max Turbo Frequency: Up to 3.7 GHz
• Processor UPI Speed: 16 GT/s with 2 UPI links
• Thermal Design Power (TDP): 185W

Instruction Set and Extensions

• 64-bit Instruction Set
• Supports Intel® AMX, SSE4.2, AVX, AVX2, and AVX-512

Smart Cache

• Cache Capacity: 45 MB

Memory Capabilities

Maximum Supported Memory

• Capacity: Up to 4TB, depending on memory type
• Memory Type: DDR5, supporting speeds up to 4400 MT/s (1DPC & 2DPC)
• Memory Channels: 8 channels
• ECC Memory Support: Yes

CPU Specifications

Intel Speed Select Technology (Intel® SST)

• Configuration 4516Y+ (0): 24 active cores, 2.2 GHz, 185W TDP
• Configuration 4516Y+ (1): 20 active cores, 2.1 GHz, 165W TDP
• Configuration 4516Y+ (2): 12 active cores, 2.5 GHz, 150W TDP

Scalability and PCI Express Support

• Scalability: 2-socket compatibility
• PCI Express Revision: 5.0
• PCI Express Lanes: Maximum of 80 lanes

Packaging and Design

Socket and Package Specifications

• Supported Socket: FCLGA4677
• Package Size: 77.5mm x 56.5mm
• Thermal Thresholds: Max DTS of 90°C, TCASE of 81°C

Advanced Intel Technologies

Virtualization and Security Features

• Intel Virtualization Technology: VT-x, VT-d, and EPT
• Security Enhancements: Intel OS Guard, Boot Guard, Trusted Execution Technology
• Data Protection: Intel AES New Instructions, Crypto Acceleration, Control-Flow Enforcement Technology

Reliability and Availability Enhancements

• Intel Total Memory Encryption: Supports multi-key encryption
• Intel Software Guard Extensions (SGX): With SPS for secure enclaves up to 64GB
• Intel QuickAssist Technology (QAT): Provides efficient data compression and encryption

Performance-Enhancing Technologies

Intel On Demand and Dynamic Load Balancer

• Supports Intel On Demand upgrades for increased performance
• Integrated with Intel Dynamic Load Balancer for optimized workloads

Acceleration and Analytics

• Intel Data Streaming Accelerator: Enhances data movement efficiency
• Intel In-Memory Analytics Accelerator: For intensive data processing

Intel Resource Director Technology

• Offers advanced resource management for better workload efficiency

Power and Frequency Adjustments

• Supports Intel Speed Select Technology for flexible performance profiles
• Includes Intel Speed Shift Technology for quick response to power demands

Core Count: 24

Improved Performance and Multitasking

The Intel Xeon Silver 4516Y+ CPU boasts an impressive core count of 24, making it an ideal choice for users who require high-performance computing. With this many cores, the CPU can handle multiple tasks simultaneously, resulting in improved overall performance. Whether you are running complex simulations, rendering graphics, or performing data-intensive tasks, the abundance of cores ensures that your system can handle it all without any lag or slowdowns.

Enhanced Processing Power

Each core in the Intel Xeon Silver 4516Y+ CPU operates independently, allowing for efficient parallel processing. This means that the CPU can execute multiple instructions simultaneously, leading to faster computations and reduced processing time. Whether you are a professional content creator, a data scientist, or a gamer, the increased processing power provided by the 24 cores will significantly enhance your productivity and overall user experience.

Optimized Resource Allocation

With 24 cores at its disposal, the Intel Xeon Silver 4516Y+ CPU excels at resource allocation. It intelligently distributes the workload across all cores, ensuring that each task receives the necessary processing power. This prevents any single core from becoming overloaded and maximizes the utilization of available resources. As a result, you can expect improved efficiency and reduced latency in your applications and workflows.

Seamless Multithreading

Multithreading is a technique used to improve performance by dividing a program into smaller threads that can be executed concurrently. The Intel Xeon Silver 4516Y+ CPU's 24 cores not only offer ample resources for multithreading but also support Intel Hyper-Threading technology. This technology allows each physical core to handle two threads simultaneously, effectively doubling the number of available threads. With this capability, your applications can take full advantage of multithreading, resulting in faster and more responsive performance.

Workstation-Class Performance

The 24-core configuration of the Intel Xeon Silver 4516Y+ CPU is typically found in high-end workstations used by professionals in fields such as engineering, animation, and scientific research. By incorporating this CPU into your system, you can enjoy workstation-class performance without the need for a dedicated workstation. Whether you are running resource-intensive software or working on complex projects, the 24 cores ensure that your system can handle demanding tasks with ease.

Importance of 24 Cores

The importance of the 24 cores in the Intel Xeon Silver 4516Y+ CPU cannot be overstated. In today's fast-paced digital world, where tasks are becoming increasingly complex and data-intensive, having a high core count is essential. The 24 cores provide the necessary firepower to tackle demanding workloads, ensuring smooth multitasking and improved overall system performance. Whether you are a professional seeking to optimize your productivity or an enthusiast looking for unmatched processing power, the 24 cores of this CPU deliver exceptional benefits.

SKU: SRN6K

Easy Identification and Tracking

The SKU (Stock Keeping Unit) of a product is a unique identifier that allows for easy identification and tracking. The Intel Xeon Silver 4516Y+ CPU features the SKU SRN6K, which simplifies inventory management and ensures accurate product identification. Whether you are a system builder or an IT professional responsible for managing large-scale deployments, having a distinct SKU like SRN6K enables seamless tracking and organization of your CPU inventory.

Efficient Order Processing

The SKU SRN6K associated with the Intel Xeon Silver 4516Y+ CPU streamlines the order processing workflow. When placing an order for this CPU, simply providing the SKU to the supplier or retailer ensures that you receive the correct product without any confusion or mix-ups. This saves valuable time and eliminates the possibility of receiving an incorrect or incompatible CPU variant. The efficient order processing made possible by the SKU SRN6K allows you to focus on other critical aspects of your projects or business.

Quick Product Comparison

With a unique SKU like SRN6K, users can easily compare the Intel Xeon Silver 4516Y+ CPU with other models or variants. By referencing the SKU, you can quickly identify the specific features and specifications of this CPU, ensuring that it meets your requirements. Whether you are comparing performance metrics, power consumption, or compatibility with your existing system, having a distinct SKU simplifies the process and enables informed decision-making.

Warranty and Support Management

The SKU SRN6K plays a crucial role in warranty and support management. When registering your Intel Xeon Silver 4516Y+ CPU for warranty purposes or seeking technical support, providing the SKU ensures accurate identification of your specific product. This expedites the process and enables prompt assistance, reducing downtime and ensuring a smooth user experience. The easy association between the SKU SRN6K and warranty/support services simplifies administrative tasks, allowing you to focus on utilizing your CPU to its full potential.

Product Differentiation

In a market flooded with various CPU models and configurations, having a unique SKU like SRN6K helps differentiate the Intel Xeon Silver 4516Y+ CPU from its counterparts. This distinct identifier allows users to quickly identify and choose this specific model among numerous alternatives. Whether you are a system builder or an end-user, having a recognizable SKU simplifies product selection and ensures that you are purchasing the desired CPU variant with confidence.

Importance of SKU SRN6K

The SKU SRN6K associated with the Intel Xeon Silver 4516Y+ CPU offers several key benefits. From easy identification and tracking to efficient order processing and warranty/support management, this SKU simplifies various aspects of the user experience. Additionally, the SKU facilitates quick product comparisons and aids in product differentiation. By leveraging the unique identifier SRN6K, users can streamline their workflows, make informed decisions, and confidently integrate the Intel Xeon Silver 4516Y+ CPU into their systems.
