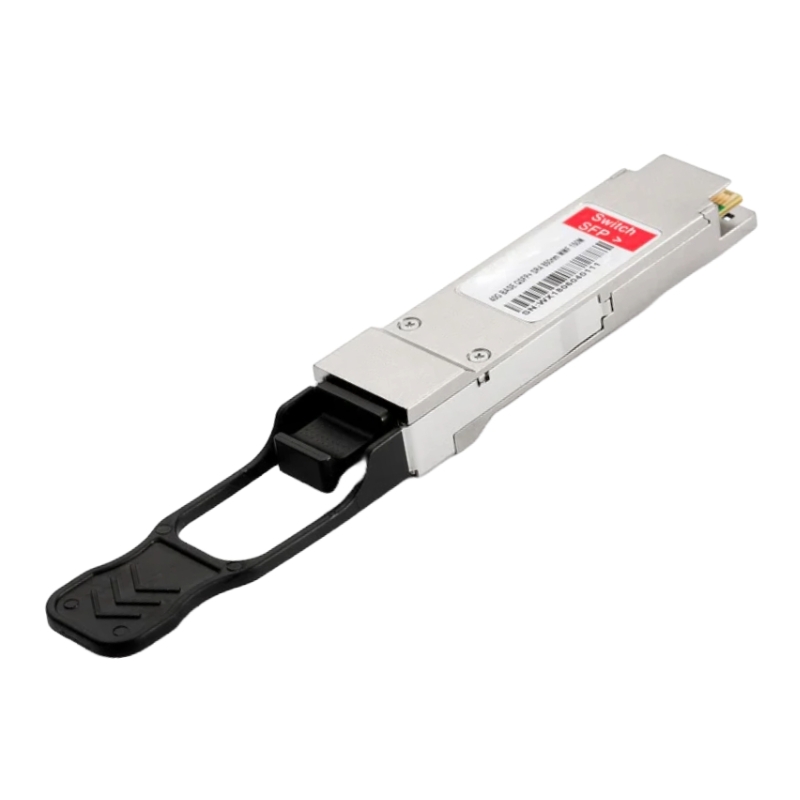

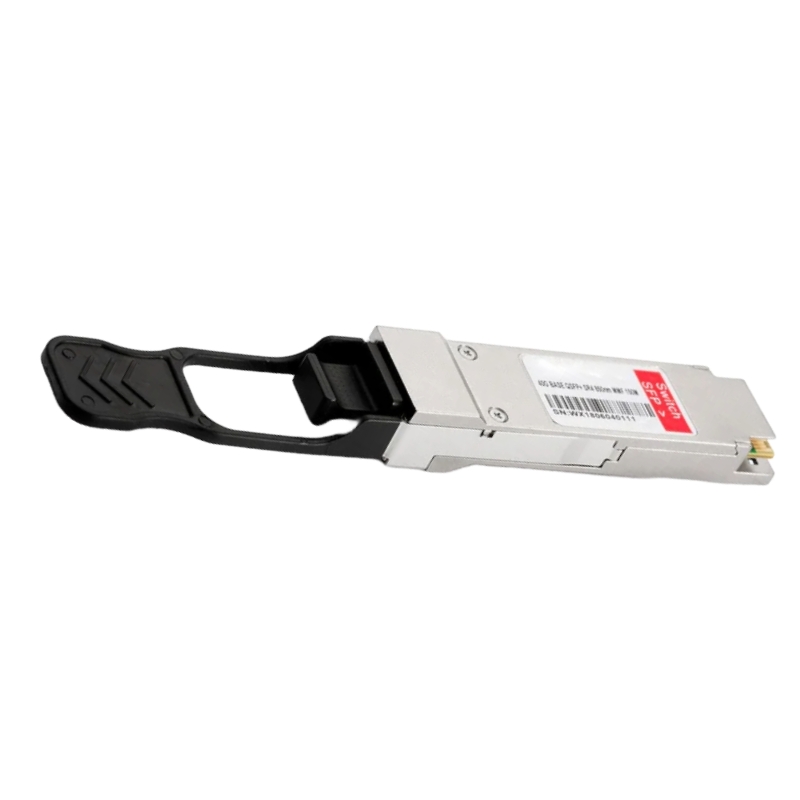

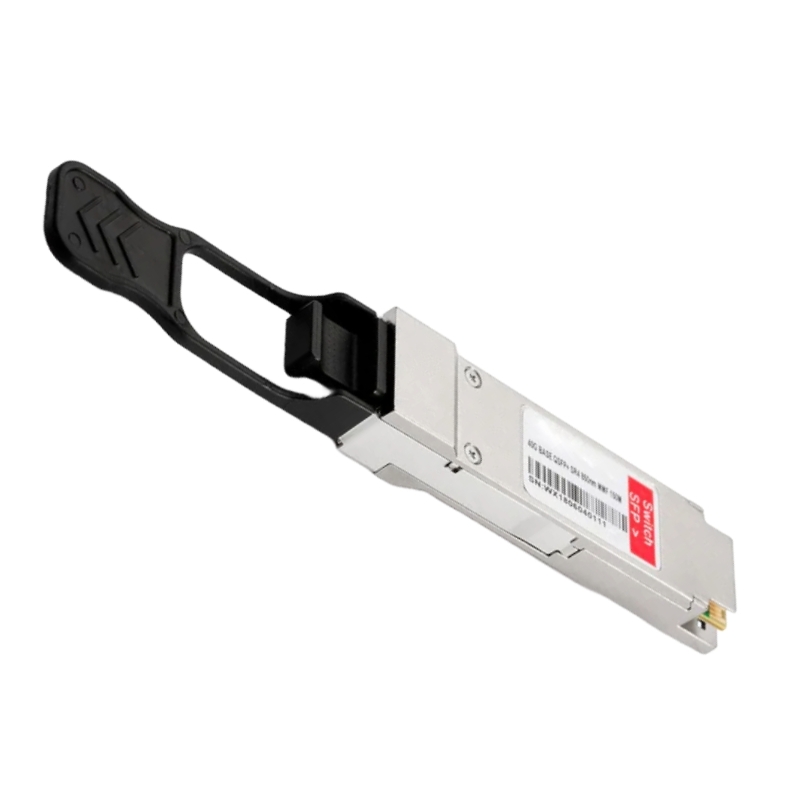

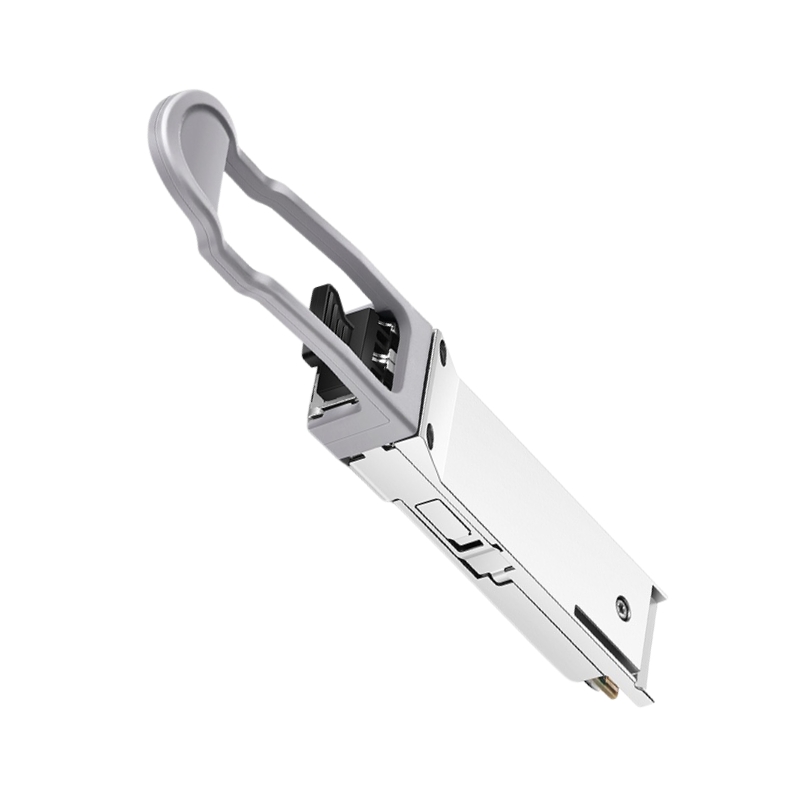

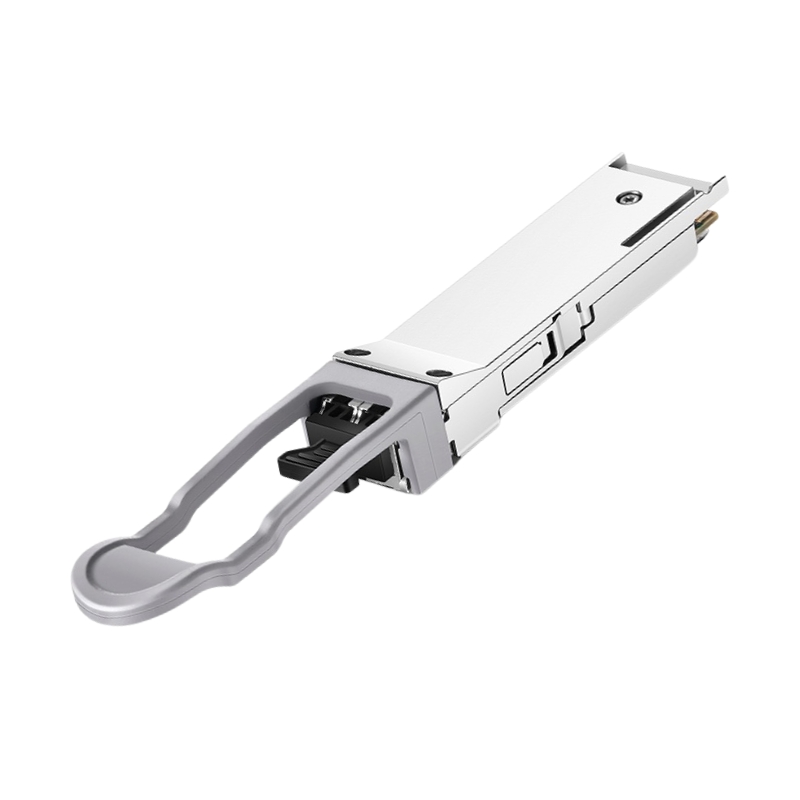

JNP-QSFPP-40G-BXSR 40GBASE-BXSR OM3 100m 850nm Optical Transceiver - Juniper Networks

Product Overview Of JNP-QSFPP-40G-BXSR

• Type: 40GBASE-BXSR Optical Transceiver
• Transceiver Class: QSFP+
• Maximum Transmission Distance: 100 meters over OM3 multimode fiber
• Operating Wavelengths: 850 nm and 900 nm
• Connector Type: Duplex LC

Technical Specifications

• Speed: 40 Gigabit Ethernet
• Breakout Capability: Not Supported
• Product Category: Optical Transceiver
• Monitoring Features: Yes, including Digital Optical Monitoring

Optical Characteristics

Transmission and Reception

• Transmitter Wavelengths:
  • Wavelength 1: 832 nm to 868 nm
  • Wavelength 2: 882 nm to 918 nm
• Receiver Wavelengths:
  • Wavelength 1: 832 nm to 868 nm
  • Wavelength 2: 882 nm to 918 nm
• Maximum Rms Spectral Width: 0.59 nm
• Output Power per Lane:
  • Minimum: -4.0 dBm
  • Maximum: 5.0 dBm
• Receiver Sensitivity:
  • For Center Wavelength 1 at 850 nm: -7.1 dBm
  • For Center Wavelength 2 at 900 nm: -7.7 dBm
• Stressed Receiver Sensitivity: -3.83 dBm

Standards Compliance

Ethernet/OTN Standards

• Compliant with IEEE 802.3-2015 XLPI Electrical Specification
• MSA Compliance: SFF-8436

Cable Specifications

Cable Type and Characteristics

• Cable Type: Multimode Fiber (MMF)
• Core Size/Cladding: 50/125 micrometers
• Fiber Grades Supported: OM3, OM4
• Effective Modal Bandwidth:
  • OM3: 2000 MHz x km
  • OM4: 4700 MHz x km
• Maximum Transmission Distances:
  • OM3: 100 meters
  • OM4: 150 meters

Performance Metrics

• Signaling Rate per Lane: 20.625 Gbd
• Power Consumption: Maximum of 3.5 W
• Operating Temperature Range: 0°C to 70°C
• Storage Temperature Range: -40°C to 85°C

Physical Attributes

Weight and Dimensions

• Weight: Approximately 100 grams
• Dimensions (H x W x D): 13.5 mm x 18.4 mm x 72.4 mm

Juniper Networks JNP-QSFPP-40G-BXSR 40GBASE-BXSR OM3 100m 850nm Optical Transceiver - JNP-QSFPP-40G-BXSR

Distance: 100m

The Importance of Distance in Networking

In the world of networking, distance plays a crucial role in determining the effectiveness and efficiency of data transmission. The ability to transmit data over long distances is essential for businesses and organizations that rely heavily on network connectivity to carry out their day-to-day operations. This is where the Juniper Networks JNP-QSFPP-40G-BXSR 40GBASE-BXSR comes into play, offering an impressive distance capability of 100m.

Benefits of a Long Distance Capability

Having a transceiver with a 100m distance capability brings several benefits to the table. Let's take a closer look at some of them:

1. Enhanced Flexibility

With a 100m distance capability, this optical transceiver allows for greater flexibility in designing and implementing network infrastructures. It enables network architects to connect devices and equipment across larger physical areas without the need for additional infrastructure investments. This flexibility is particularly valuable in scenarios where running new cables or extending existing ones can be challenging or costly.

2. Scalability and Future-Proofing

Networks are constantly evolving and growing to accommodate expanding user demands and technological advancements. By utilizing a transceiver with a long distance capability, businesses can future-proof their network infrastructure. They can easily scale up their network without worrying about limitations imposed by shorter distance transceivers, ensuring their network can handle future growth and technological upgrades.

3. Improved Connectivity Across Multiple Locations

For organizations with multiple locations or branch offices, a 100m distance capability is essential in maintaining seamless connectivity. It allows for efficient data transmission across different sites, ensuring smooth collaboration and communication between teams regardless of their physical location. This feature becomes even more critical in today's remote work environment, where reliable and fast connectivity is vital for remote teams to stay connected and productive.

Importance of 100m Distance Capability in Specific Use Cases

Data Centers

Data centers are the backbone of modern businesses, housing critical infrastructure and serving as the central hub for data storage, processing, and distribution. In these high-density environments, having a transceiver with a 100m distance capability is paramount. It allows for seamless connectivity between servers, switches, and storage devices, ensuring efficient data transfer within the data center while maintaining optimal performance.

Large Enterprises

Large enterprises often have sprawling campuses and multiple office buildings spread across different locations. To keep their operations running smoothly, they require a robust network infrastructure that can connect these various sites seamlessly. With the Juniper Networks JNP-QSFPP-40G-BXSR 40GBASE-BXSR's 100m distance capability, large enterprises can establish reliable connections between buildings, enabling efficient communication and data transfer between different departments or teams.

Cloud Service Providers

Cloud service providers are responsible for delivering on-demand computing resources and services to their customers. As the demand for cloud-based solutions continues to rise, these providers must ensure their network infrastructure can handle the ever-increasing workload. The 100m distance capability of the JNP-QSFPP-40G-BXSR allows cloud service providers to establish highly reliable and efficient connections within their data centers, facilitating the smooth delivery of services to their customers.

Wavelength: 850nm

The Significance of Wavelength in Networking

Wavelength is a crucial factor when it comes to optical transceivers as it determines the type of fiber optic cables that can be used and the reach of the transmission. The Juniper Networks JNP-QSFPP-40G-BXSR 40GBASE-BXSR operates at a wavelength of 850nm, which offers numerous benefits and is highly significant in modern networking.

Benefits of 850nm Wavelength

1. Compatibility with Multimode Fiber

One of the key advantages of the 850nm wavelength is its compatibility with multimode fiber optic cables. Multimode fiber is widely used in short-range applications such as data centers, campuses, and local area networks. By operating at 850nm, the JNP-QSFPP-40G-BXSR seamlessly integrates with existing multimode fiber infrastructure, eliminating the need for costly cable replacements or upgrades.

2. High Data Transmission Rates

The 850nm wavelength allows for high data transmission rates, making it ideal for bandwidth-intensive applications. With the JNP-QSFPP-40G-BXSR operating at this wavelength, businesses can achieve faster data transfer speeds, enabling them to handle large volumes of data more efficiently. This is particularly important in scenarios where real-time data processing and transmission are critical, such as video streaming, cloud computing, and big data analytics.

3. Cost-Effectiveness

Choosing an optical transceiver that operates at the 850nm wavelength offers a cost-effective solution for short-range applications. Multimode fiber optic cables are generally more affordable than their single-mode counterparts. By utilizing the JNP-QSFPP-40G-BXSR with its 850nm wavelength, businesses can leverage the cost advantages of multimode fiber without compromising on performance or reliability.

Importance of 850nm Wavelength in Specific Use Cases

Data Centers

Data centers require high-speed and reliable connections to handle the massive amount of data processed within their facilities. The 850nm wavelength is a popular choice for data centers due to its compatibility with multimode fiber and its ability to support high data transmission rates. By utilizing the JNP-QSFPP-40G-BXSR with its 850nm wavelength, data centers can ensure efficient data transfer between servers, switches, and storage devices.

Local Area Networks (LANs)

Local Area Networks connect devices within a limited geographical area, such as an office building or campus. These networks often rely on multimode fiber optic cables due to their cost-effectiveness and ability to support short-range connections. By incorporating the 850nm wavelength transceiver like the JNP-QSFPP-40G-BXSR, LANs can achieve faster and reliable connectivity, enabling smooth communication and data transfer between devices within the network.

Video Streaming and Broadcasting

The 850nm wavelength is particularly crucial in video streaming and broadcasting applications. These industries require high-bandwidth connections to transmit large amounts of video data in real-time. By utilizing transceivers operating at 850nm, video streaming platforms and broadcasters can ensure smooth and uninterrupted video transmission, delivering an optimal viewing experience to their audience.

Description: Optical Transceiver

The Role of Optical Transceivers in Networking

Optical transceivers play a vital role in modern networking by enabling the conversion between electrical signals used by network equipment and optical signals used for long-range data transmission over fiber optic cables. The Juniper Networks JNP-QSFPP-40G-BXSR 40GBASE-BXSR is an optical transceiver that offers numerous benefits and is highly significant in today's network infrastructures.

Benefits of Optical Transceivers

1. Versatility and Compatibility

Optical transceivers are designed to be versatile and compatible with a wide range of network equipment. They can be easily integrated into routers, switches, and other network devices, making them an essential component in building a reliable and efficient network infrastructure. The JNP-QSFPP-40G-BXSR, as an optical transceiver, ensures seamless compatibility with Juniper Networks' equipment, providing users with a hassle-free installation experience.

2. Efficient Data Transmission

By converting electrical signals into optical signals, optical transceivers enable efficient data transmission over fiber optic cables. Fiber optics offer several advantages over traditional copper cabling, including higher bandwidth capacity, longer transmission distances, and immunity to electromagnetic interference. The JNP-QSFPP-40G-BXSR ensures optimal data transmission quality, minimizing signal loss and maintaining data integrity throughout the network.

3. Scalability and Bandwidth Expansion

As the demand for higher bandwidth continues to grow, optical transceivers offer a scalable solution to meet these requirements. The JNP-QSFPP-40G-BXSR supports 40GBASE-BXSR technology, providing users with ample bandwidth for their network needs. This scalability allows businesses to accommodate increasing data traffic without the need for significant infrastructure upgrades or replacements.

Importance of Optical Transceivers in Specific Use Cases

Data Centers

Data centers serve as the backbone of modern businesses, housing critical infrastructure and supporting various applications and services. Optical transceivers are essential in data centers as they enable high-speed and reliable data transmission between servers, switches, and storage devices. By incorporating the JNP-QSFPP-40G-BXSR into their data center infrastructure, businesses can ensure optimal performance and minimize latency issues.

Telecommunications

Telecommunication networks rely heavily on optical transceivers to carry out voice and data communication over long distances. The JNP-QSFPP-40G-BXSR's optical transceiver capabilities make it suitable for telecommunications applications, ensuring stable and efficient connections between network nodes. Whether it's transmitting voice calls, video conferencing, or data transfer, this optical transceiver plays a crucial role in maintaining reliable telecommunications services.

Internet Service Providers (ISPs)

ISPs are responsible for providing internet connectivity to homes and businesses. Optical transceivers are a vital component in ISP networks as they enable high-speed data transmission over fiber optic infrastructure. By utilizing the JNP-QSFPP-40G-BXSR's optical transceiver, ISPs can offer their customers fast and reliable internet connections, meeting the increasing demands for bandwidth-intensive activities such as streaming, gaming, and cloud services.

In conclusion, the Juniper Networks JNP-QSFPP-40G-BXSR 40GBASE-BXSR offers impressive features that are essential for modern networking requirements. Its 100m distance capability provides enhanced flexibility, scalability, and improved connectivity across multiple locations. The 850nm wavelength ensures compatibility with multimode fiber and high data transmission rates, making it suitable for various applications. As an optical transceiver, it offers versatility, efficient data transmission, and scalability, making it an essential component in building reliable network infrastructures. Whether it's in data centers, large enterprises, or telecommunication networks, the JNP-QSFPP-40G-BXSR proves to be a valuable asset for businesses aiming to achieve optimal network performance and connectivity.
