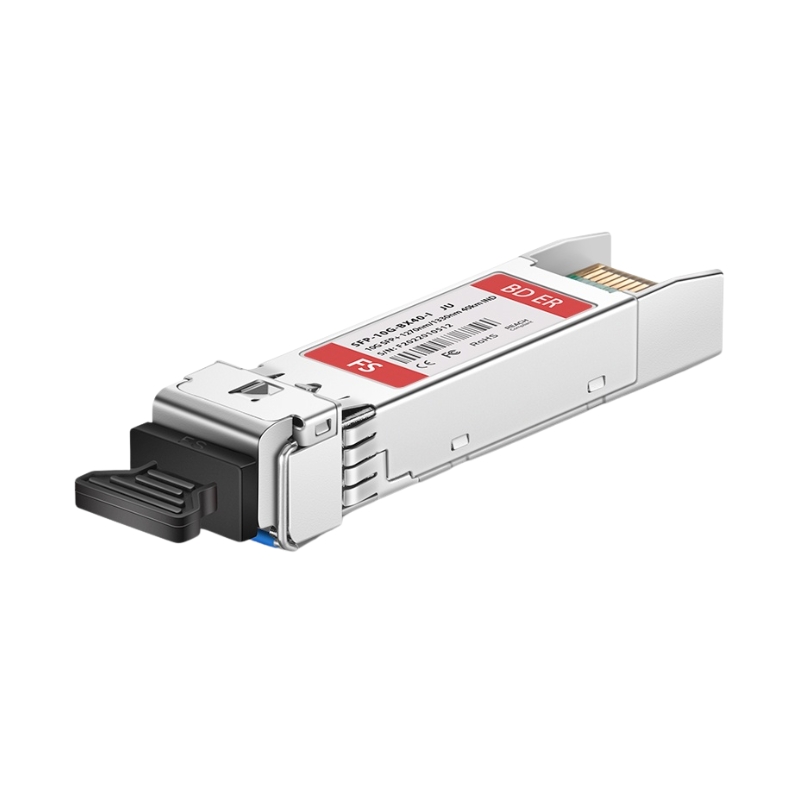

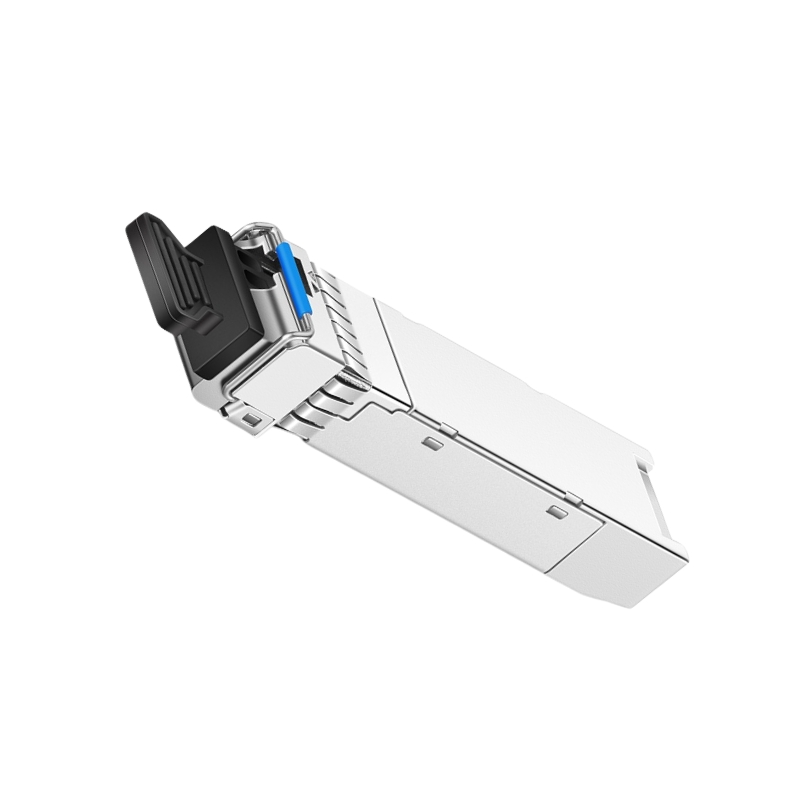

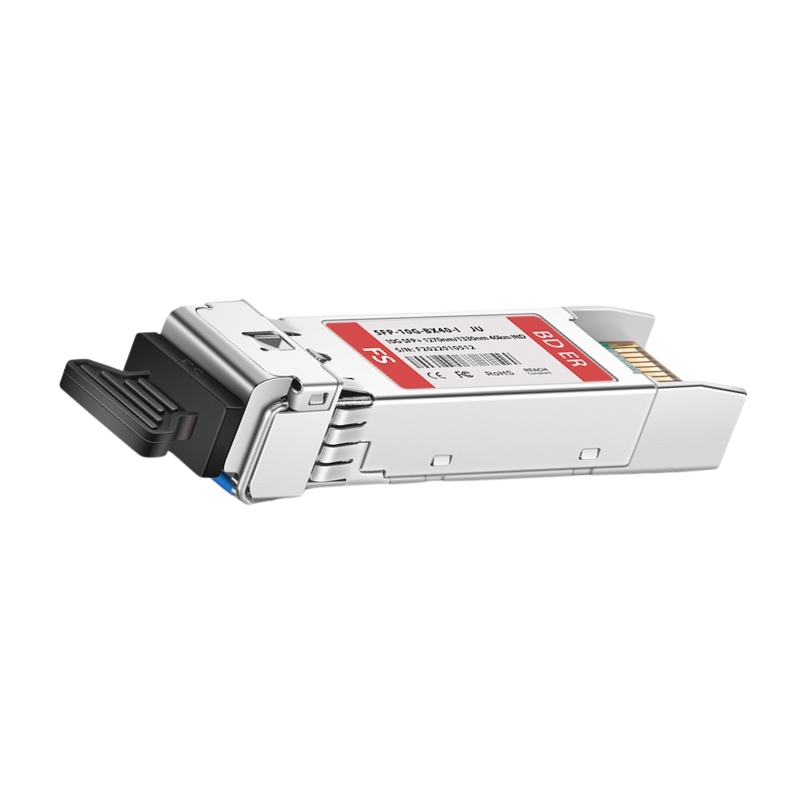

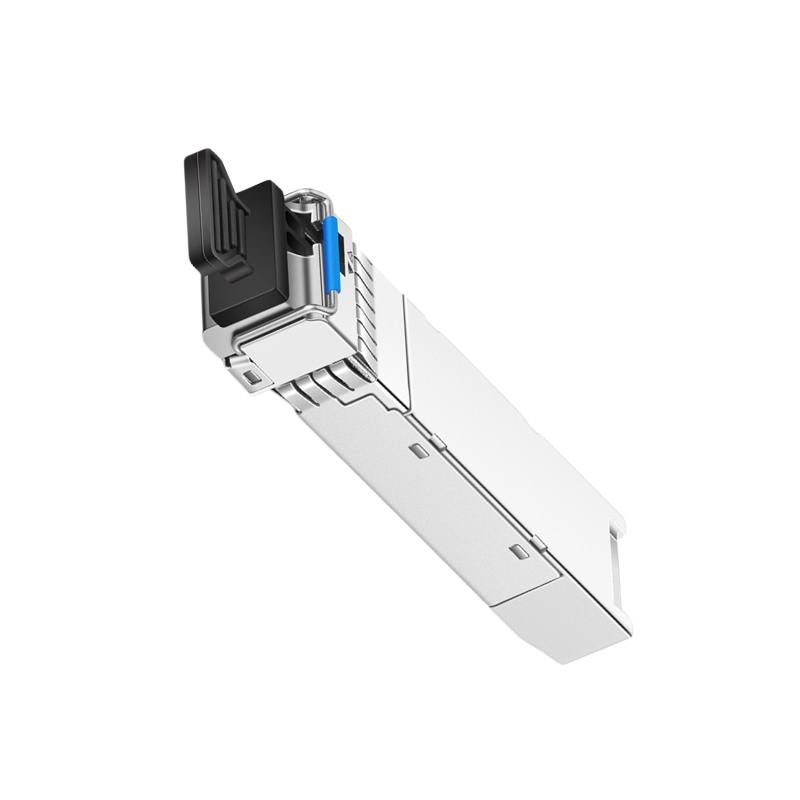

Juniper Networks JNP-SFP-10G-BX40U 10GbE BiDi Tx 1270 nm Rx 1330 nm SMF Optical Transceiver

Juniper Networks Optical Transceiver

The JNP-SFP-10G-BX40U is engineered to deliver consistent 10Gbps performance with a transmission range of up to 40 kilometers. Its compact SFP+ form factor allows seamless integration into compatible Juniper networking equipment while reducing fiber infrastructure costs through BiDi technology. With Digital Diagnostic Monitoring (DDM) support and low power consumption, this optical module ensures efficient operation and simplified network monitoring.

General Information

• Manufacturer: Juniper Networks
• Prat Number: JNP-SFP-10G-BX40U
• Device Type: Optical Transceiver

Technical Specifications

• Form Factor: SFP+
• Maximum Data Rate: 10Gbps
• Transmit Wavelength: 1270nm
• Receive Wavelength: 1330nm
• Maximum Reach: 40km
• Fiber Type: OS2 Single-Mode Fiber (SMF)
• Connector Type: LC Simplex

Transmitter and Receiver Specifications

• Transmitter Technology: DFB Laser
• Receiver Technology: PIN Photodiode
• Transmit Power: 1 to 5dBm
• Receiver Sensitivity: Less than -15dBm
• Modulation Format: NRZ
• Bit Error Rate (BER): 1E-12

Supported Networking Standards

• 10 Gigabit Ethernet (10GbE)
• Fast Ethernet
• Gigabit Fibre Channel
• MSA (Multi-Source Agreement) Compliant
• SFF-8472 Digital Diagnostics Standard

Juniper Networks JNP-SFP-10G-BX40U Transceiver Overview

The Juniper Networks JNP-SFP-10G-BX40U 10GbE BiDi Tx 1270 nm Rx 1330 nm SMF Optical Transceiver is a high-performance networking component designed to deliver reliable and efficient connectivity in enterprise and service provider environments. This optical transceiver is part of the BiDi (Bidirectional) family, which allows transmission and reception of data over a single strand of single-mode fiber (SMF). By utilizing different wavelengths for transmit and receive functions, it reduces fiber usage and optimizes infrastructure costs while maintaining exceptional performance.

Transmission and Reception

The transceiver operates with a transmit wavelength of 1270 nm and a receive wavelength of 1330 nm. This wavelength pairing is specifically engineered to support bidirectional communication over a single fiber strand, ensuring that data flows seamlessly in both directions without interference. The 10GbE capability ensures high-speed data transfer, making it suitable for demanding applications such as data centers, cloud computing, and enterprise networking.

Form Factor and Compatibility

The JNP-SFP-10G-BX40U is built in the Small Form-factor Pluggable Plus (SFP+) design, which is compact and hot-swappable. This allows network administrators to easily integrate or replace transceivers without disrupting ongoing operations. It is compatible with Juniper switches, routers, and other networking equipment that support SFP+ modules, ensuring seamless integration into existing infrastructures.

Distance and Fiber Type

Designed for single-mode fiber (SMF), the transceiver supports transmission distances up to 40 kilometers. This makes it ideal for metropolitan area networks (MANs), campus backbones, and long-haul connections where extended reach is essential. The use of SMF ensures low attenuation and high signal integrity across long distances.

Data Center Connectivity

In modern data centers, bandwidth demands are constantly increasing due to virtualization, cloud services, and big data analytics. The JNP-SFP-10G-BX40U provides the high-speed connectivity required to support these workloads. Its BiDi technology reduces fiber requirements, which is particularly beneficial in dense data center environments where cabling complexity can be a challenge.

Enterprise Networking

Enterprises rely on robust networking solutions to ensure seamless communication between departments, branches, and remote offices. The JNP-SFP-10G-BX40U enables enterprises to build scalable and cost-effective networks by reducing fiber usage while maintaining high-speed connectivity. It supports mission-critical applications such as VoIP, video conferencing, and ERP systems.

Service Provider Infrastructure

Service providers require reliable and scalable solutions to deliver high-speed internet and communication services to customers. The JNP-SFP-10G-BX40U is well-suited for metro Ethernet, FTTH (Fiber to the Home), and backbone networks. Its ability to transmit over 40 km ensures that service providers can extend their reach without compromising performance.

Reduced Fiber Usage

Traditional optical transceivers require two fiber strands for bidirectional communication—one for transmitting and one for receiving. BiDi technology, however, enables both functions over a single strand by using different wavelengths. This reduces fiber usage by half, leading to significant cost savings in cabling and infrastructure.

Simplified Cabling

By reducing the number of fiber strands required, BiDi transceivers simplify cabling management. This is particularly beneficial in environments with high port density, such as data centers and large enterprise networks. Simplified cabling reduces installation time, minimizes errors, and enhances overall network reliability.

High-Speed Data Transfer

With support for 10GbE, the JNP-SFP-10G-BX40U ensures that data-intensive applications run smoothly. Whether it is large file transfers, real-time video streaming, or cloud-based workloads, the transceiver delivers consistent performance with minimal latency.

Juniper Quality Assurance

Juniper Networks is renowned for its commitment to quality and reliability. The JNP-SFP-10G-BX40U undergoes rigorous testing to ensure compliance with industry standards and compatibility with Juniper equipment. This guarantees that customers receive a product that delivers consistent performance and durability.

Deployment Scenarios

Universities, corporate campuses, and research institutions often require high-speed connectivity across multiple buildings. The JNP-SFP-10G-BX40U enables seamless communication between different parts of the campus, supporting applications such as e-learning, collaborative research, and administrative systems.

Metropolitan Area Networks

In metropolitan areas, service providers and enterprises need reliable connectivity across cities. The 40 km reach of the JNP-SFP-10G-BX40U makes it ideal for MAN deployments, ensuring that data flows efficiently between different locations.

Cloud and Virtualization Environments

Cloud computing and virtualization demand high bandwidth and low latency. The JNP-SFP-10G-BX40U supports these requirements, enabling organizations to build scalable cloud infrastructures and virtualized environments that deliver optimal performance.

Future-Proof Networking with JNP-SFP-10G-BX40U

As organizations grow, their networking needs evolve. The JNP-SFP-10G-BX40U provides scalability by supporting high-speed connectivity and reducing fiber requirements. This allows organizations to expand their networks without significant infrastructure changes.

Energy Efficiency

Modern networking solutions must balance performance with energy efficiency. The JNP-SFP-10G-BX40U is designed to consume minimal power while delivering maximum output, contributing to sustainable IT practices and reducing operational costs.

Compatibility with Emerging Technologies

As new technologies such as 5G, IoT, and AI-driven applications emerge, the demand for high-speed and reliable connectivity will continue to grow. The JNP-SFP-10G-BX40U is well-positioned to support these technologies, ensuring that organizations remain competitive in the digital era.

SFP+ Optical Transceivers

The JNP-SFP-10G-BX40U belongs to the SFP+ optical transceiver category, which is widely used for 10GbE applications. SFP+ modules are compact, hot-swappable, and versatile, making them a preferred choice for modern networking environments. They support a wide range of applications, from data centers to enterprise networks, and offer flexibility in deployment.

BiDi Transceivers

BiDi transceivers represent a significant advancement in optical networking. By enabling bidirectional communication over a single fiber strand, they reduce infrastructure costs and simplify cabling. The JNP-SFP-10G-BX40U exemplifies the benefits of BiDi technology, delivering high-speed connectivity with reduced fiber usage.
