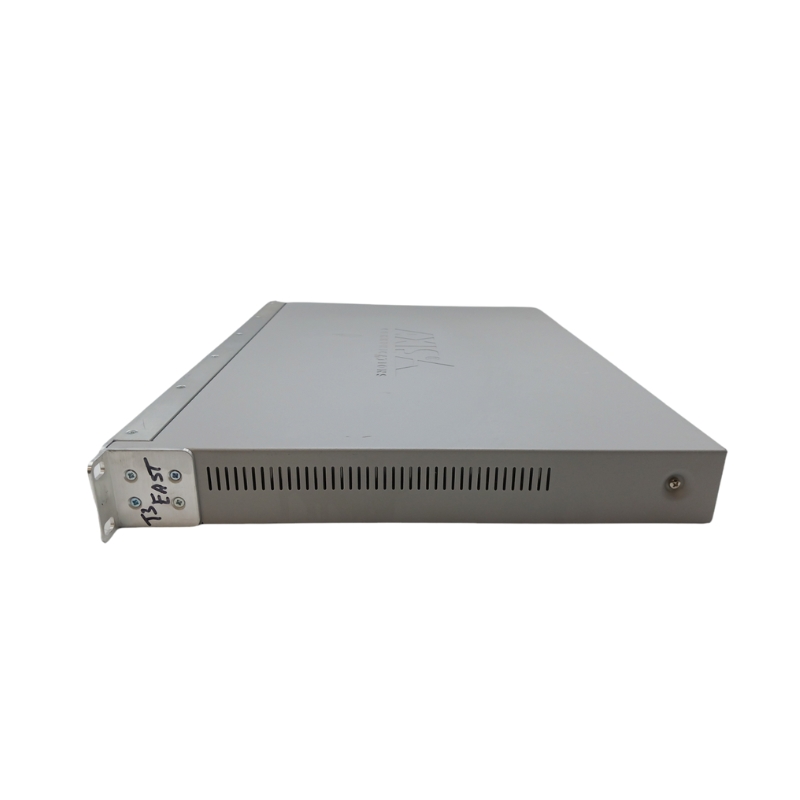

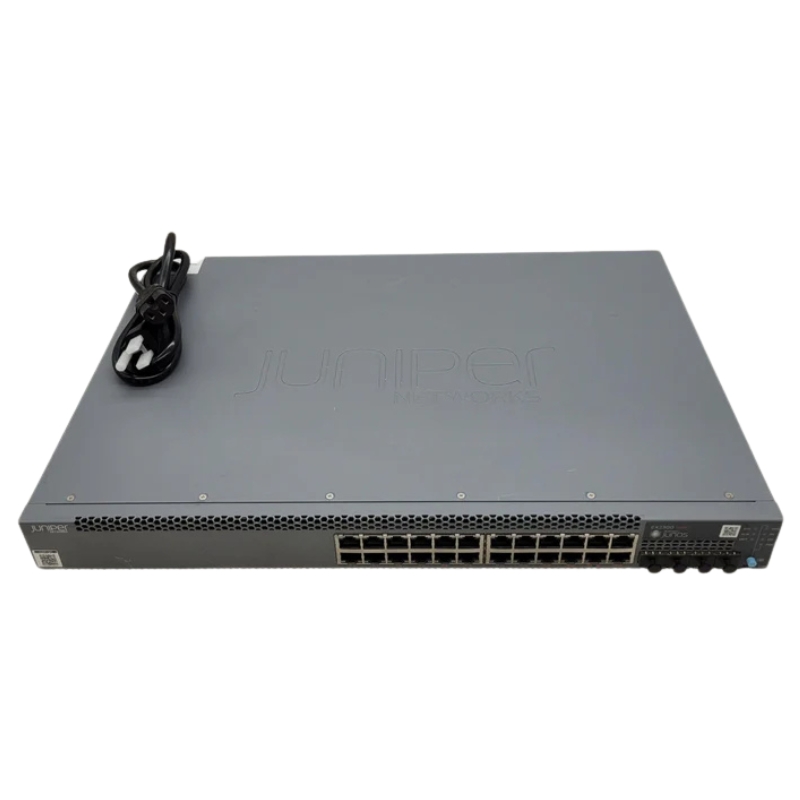

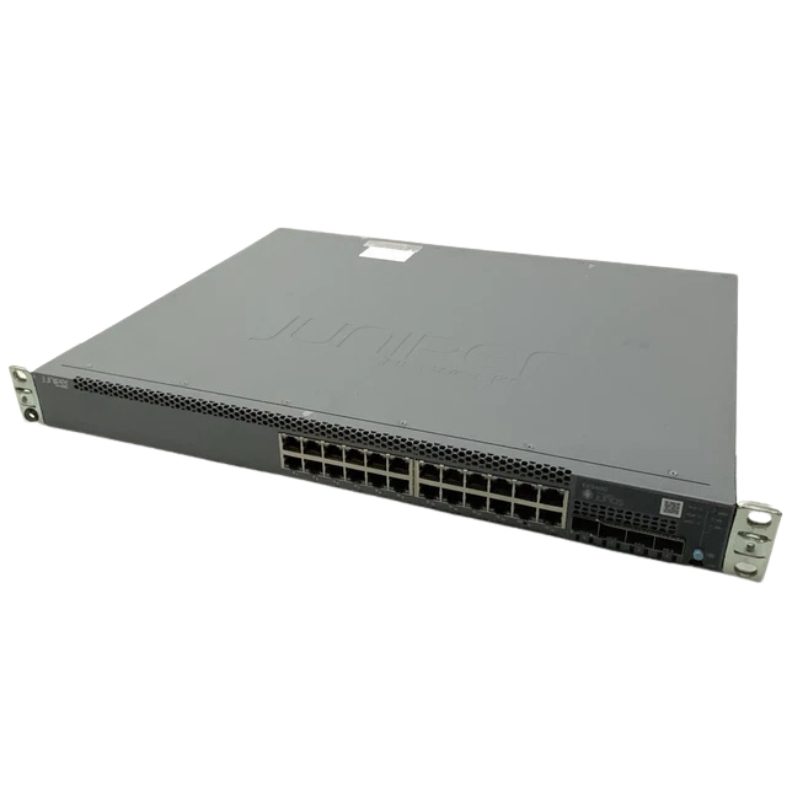

Juniper EX2300-24T 24-Port Ethernet Rack-Mountable Switch

Number of Ports

The Juniper EX2300-24T Rack-Mountable Switch is equipped with 24 ports, making it an ideal choice for small to medium-sized businesses that require a reliable and high-performance network solution. These 24 ports offer numerous benefits and play a crucial role in supporting the connectivity needs of modern organizations.

General Overview of the Juniper EX2300-24T Switch

Manufacturer and Model

• Manufacturer: Juniper Networks
• Model Number: EX2300-24T
• Switch Type: 24-Port Switch

Technical Specifications

Device Characteristics

• Type: Layer 3 Managed Switch
• Mounting: Rack-Mountable, 1U Form Factor
• Subtype: Gigabit Ethernet

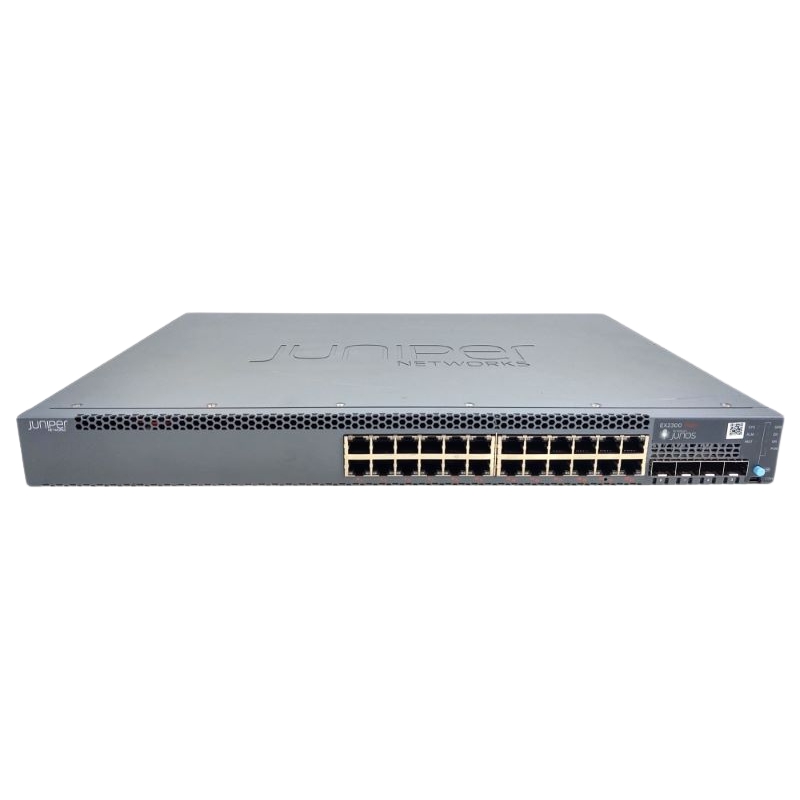

Port Configuration

• Ports: 24 x 10/100/1000 Mbps + 4 x Gigabit SFP / 10 Gigabit SFP+

Performance Metrics

• Switching Capacity: 128 Gbps
• Throughput: 95 Million Packets Per Second (Mpps)

Capacity and Limits

• ACL Entries: 1500
• Multiple Spanning Tree Protocol Instances: 64
• VLAN Spanning Tree Protocol Instances: 253
• ARP Entries: 1024
• IPv4 Routes (Unicast): 512
• IPv4 Hosts: 4096
• IPv4 Routes (Multicast): 2048
• Neighboring Networks Maximum: 750
• IPv6 Routes (Unicast): 128
• IPv6 Hosts: 2048
• IPv6 Routes (Multicast): 1024
• QoS Hardware Queues Per Port: 8
• Virtual Interfaces (VLANs): 4093
• Active VLANs: 2048
• LAG Groups: 128
• Maximum Member Ports Per LAG: 8

MAC Address Table and Frame Support

• MAC Address Table Size: 16,000 Entries
• Jumbo Frame Support: Up to 9216 Bytes

Routing and Management Protocols

• Supported Routing Protocols: RIP-1, RIP-2, OSPFv3, Static IPv4 Routing, Static IPv6 Routing, RIPng, CIDR
• Remote Management: SNMP v1, SNMP v2c, SNMP v3, RMON (1, 2, 3, 9), Telnet, HTTP, HTTPS, TFTP, SSH, CLI

Encryption and Authentication

• Encryption Methods: MD5, TLS, PEAP, TTLS
• Authentication Methods: RADIUS, TACACS+, Secure Shell V2 (SSH2), Extensible Authentication Protocol (EAP)

Compliance Standards

• IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1d, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1br

Hardware Specifications

• Processor: 1 x ARM, 1.25 GHz
• RAM: 2 GB
• Flash Memory: 2 GB

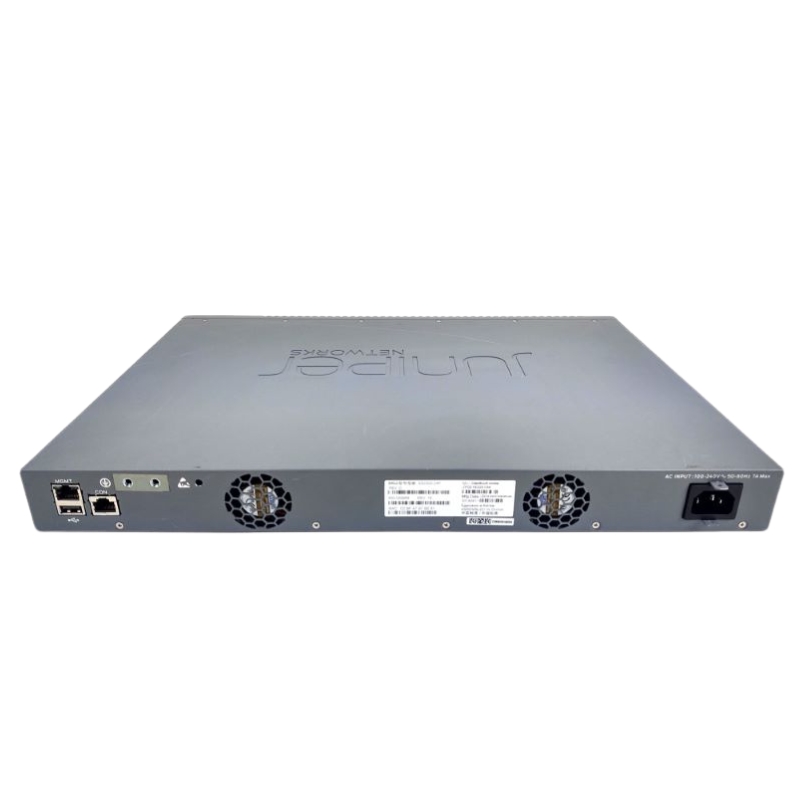

Expansion and Connectivity Options

• Interfaces:
  • 24 x 1000BASE-T - RJ-45
  • 4 x 10Gbit LAN - SFP+

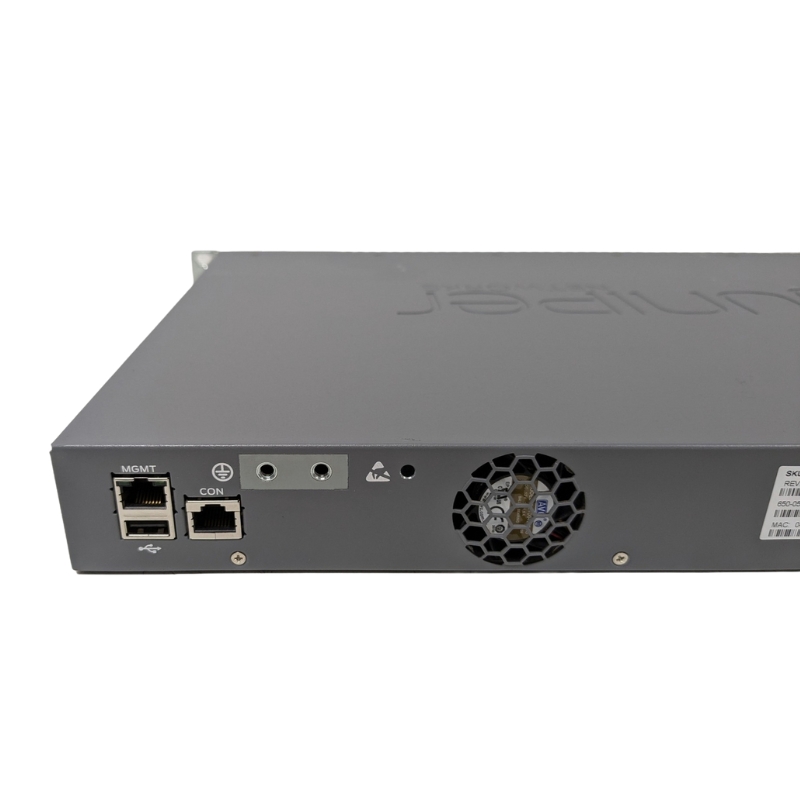

  • 1 x Serial - Management
  • 1 x 100BASE-TX - RJ-45 - Management

Power Consumption

• Power Supply: Internal Power Supply
• Operational Power Consumption: 55 Watts

Increased Connectivity

With 24 ports, the Juniper EX2300-24T enables businesses to connect multiple devices simultaneously. Whether it's computers, servers, printers, or other network-enabled devices, this switch provides ample connectivity options to accommodate the diverse needs of an organization. This increased connectivity helps to streamline operations by ensuring that all devices can communicate efficiently and seamlessly.

Furthermore, the abundance of ports allows for future growth and scalability. As businesses expand or add new devices to their network, the Juniper EX2300-24T can easily accommodate these changes without requiring additional hardware investments. This flexibility saves both time and money, making it a cost-effective solution for growing businesses.

Improved Network Performance

The 24 ports of the Juniper EX2300-24T also contribute to enhanced network performance. Each port supports high-speed Gigabit Ethernet connections, providing fast and reliable data transfer rates. This is particularly important in today's data-driven world, where businesses rely heavily on data-intensive applications and cloud services.

By having 24 ports with Gigabit Ethernet capabilities, organizations can ensure that their network operates at optimal speeds, minimizing latency and maximizing productivity. Users can enjoy faster file transfers, smoother video conferencing, and seamless access to cloud-based resources. This improved network performance translates into increased efficiency and better user experiences.

VLAN Support

The Juniper EX2300-24T also offers VLAN support on its 24 ports. VLANs, or Virtual Local Area Networks, provide enhanced network security and segmentation by allowing the creation of isolated network segments within a single physical network infrastructure.

With VLAN support, businesses can logically separate their network into different subnets, each with its own security policies and access controls. This segregation helps prevent unauthorized access to sensitive data and reduces the risk of network attacks. Additionally, VLANs enable efficient traffic management by isolating specific types of traffic, such as voice or video, to ensure optimal performance.

Link Aggregation

The 24 ports of the Juniper EX2300-24T switch also support link aggregation, also known as port trunking or bonding. Link aggregation combines multiple physical ports into a single logical link, increasing bandwidth and providing redundancy.

By utilizing link aggregation on the 24 ports, businesses can achieve higher throughput by distributing network traffic across multiple links. This not only improves network performance but also ensures that critical applications or services remain accessible even if one of the links fails. Link aggregation enhances overall network reliability and reduces downtime, making it an essential feature for businesses that require uninterrupted connectivity.

Power over Ethernet (PoE) Options

In addition to the 24 regular ports, the Juniper EX2300-24T offers optional Power over Ethernet (PoE) capabilities on select ports. PoE allows devices to receive both power and data through a single Ethernet cable, eliminating the need for separate power sources.

This feature is particularly useful for devices such as IP phones, wireless access points, and security cameras. With PoE support on select ports, businesses can simplify their infrastructure and reduce cable clutter. PoE also enables easier deployment of network devices in locations where power outlets may be limited or inaccessible.

Furthermore, the Juniper EX2300-24T provides advanced PoE features, such as PoE scheduling and power prioritization. These capabilities allow businesses to optimize power allocation and ensure critical devices receive sufficient power while efficiently managing their PoE resources.

In conclusion, the Juniper EX2300-24T Rack-Mountable Switch's 24 ports offer a multitude of benefits for businesses. The increased connectivity options, improved network performance, VLAN support, link aggregation capabilities, and optional PoE features make it a versatile and reliable solution for organizations of all sizes. With its comprehensive range of features, this switch empowers businesses to build a robust and scalable network infrastructure that meets their current and future needs.
