Juniper EX3300-24P 24-Port Network Switch with PoE

Ports

The Juniper EX3300-24P Network Switch is equipped with 24 ports, making it a versatile and reliable option for small to medium-sized businesses. These ports offer numerous benefits and play a crucial role in ensuring seamless connectivity and efficient network operations.

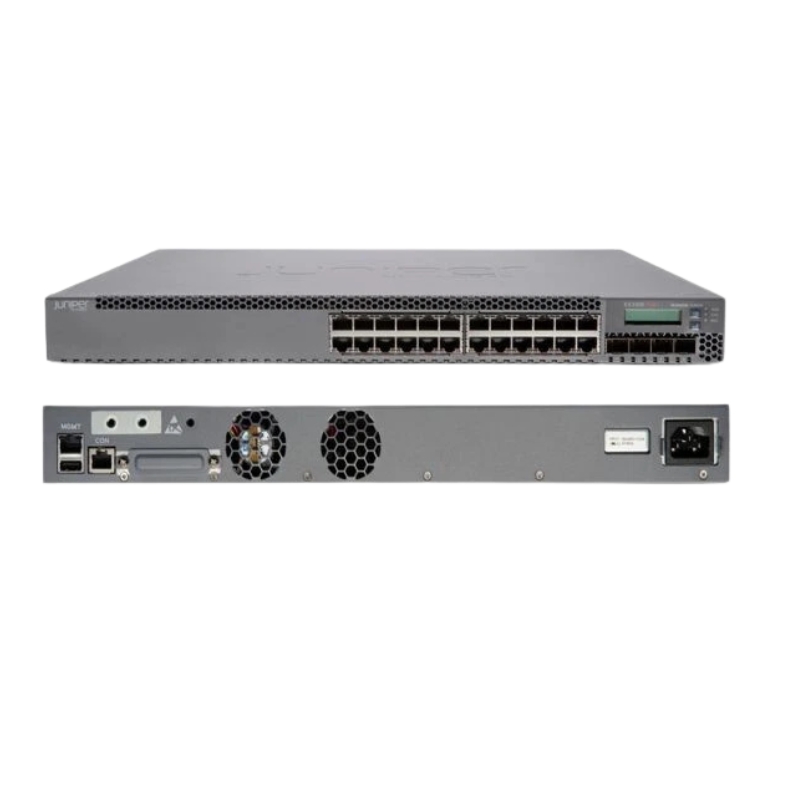

EX3300-24P Switch Overview

Device Specifications

• Type: 24-Port Stackable Switch
• Form Factor: Desktop, 1U Rackmount

Port Details

• Standard Ports: 24 x 10/100/1000 Mbps Ethernet
• Gigabit Ports: 4 x 10 Gigabit Ethernet / 1 Gigabit SFP+

Power Features

• Power Over Ethernet (PoE): Yes
• Power Consumption: 550 Watts
• Voltage Requirement: AC 120/230V

Performance Capabilities

Capacity

• Virtual Interfaces (VLANs): 4096
• IGMP Snooping Entries: 3000
• MAC Address Table Size: 16,000 Entries
• Jumbo Frame Support: Up to 9216 bytes
• Maximum Units in a Stack: 6

Routing and Management

• Routing Protocols: RIP-1, RIP-2, Static IPv4 Routing
• Remote Management: SNMP v1/v2c/v3, RMON (1, 2, 3, 9), Telnet, HTTP, TFTP, SSH, SSH-2
• Encryption: MD5, TLS, PEAP, TTLS
• Authentication: RADIUS, TACACS+, Secure Shell v2 (SSH2)

Advanced Features

• Flow Control
• PoE and PoE+
• BOOTP and RARP Support
• ARP and VLAN Support
• Auto-Uplink (Auto MDI/MDI-X)
• DOS Attack Prevention
• DiffServ Support
• Store and Forward Switching
• IPv6 Support
• SNTP Support
• Spanning Tree Protocol (STP) Support
• Rapid Spanning Tree Protocol (RSTP) Support
• VLAN Stacking
• Multiple Spanning Tree Protocol (MSTP) Support
• DHCP Snooping
• Quality of Service (QoS)
• DHCP Server
• Temperature Sensor
• Time Domain Reflectometry (TDR)
• Per-VLAN Spanning Tree Plus (PVST+)
• Link Aggregation Control Protocol (LACP)
• LLDP Support

Compliance and Standards

• IEEE 802.3, IEEE 802.3u, IEEE 802.3z
• IEEE 802.1d, IEEE 802.1q
• IEEE 802.3ab, IEEE 802.1p
• IEEE 802.3af, IEEE 802.3x
• IEEE 802.3ad (LACP), IEEE 802.1w
• IEEE 802.1x, IEEE 802.1s
• IEEE 802.1ab (LLDP), IEEE 802.3at

Hardware Specifications

• Processor: 1 GHz ARM
• RAM: 1 GB
• Flash Memory: 1 GB
• Status Indicators: LCD Display

Expansion and Connectivity

• Interfaces: 4 x SFP/SFP+, 24 x RJ-45 (10BASE-T/100BASE-TX/1000BASE-T) with PoE

Increased Connectivity

With 24 ports, this network switch provides an ample number of connections for various devices such as computers, printers, servers, and IP phones. This allows businesses to expand their network infrastructure without the need for additional switches, reducing costs and simplifying management.

Scalability

The ability to connect multiple devices simultaneously is essential for businesses that are constantly growing or experiencing periodic increases in network demand. The 24 ports on the Juniper EX3300-24P Network Switch offer scalability, allowing businesses to add or remove devices as needed without disrupting the network flow.

Flexibility

Each port on the Juniper EX3300-24P Network Switch is capable of supporting various types of connections, including Ethernet, Gigabit Ethernet, and Power over Ethernet (PoE). This flexibility ensures compatibility with a wide range of devices and enables businesses to adapt their network infrastructure to meet specific requirements.

Network Segmentation

The availability of 24 ports enables network administrators to implement effective network segmentation strategies. By dividing the network into smaller segments, businesses can enhance security, improve performance, and simplify troubleshooting. This feature is particularly beneficial for organizations that deal with sensitive data or have different departments with distinct network requirements.

Improved Performance

Having more ports on a network switch allows for increased bandwidth allocation to individual devices. With 24 ports on the Juniper EX3300-24P Network Switch, businesses can ensure optimal performance for each connected device, minimizing latency and providing a seamless user experience.

Redundancy and High Availability

The Juniper EX3300-24P Network Switch offers built-in redundancy features, allowing businesses to create highly available network environments. By connecting devices to multiple ports or utilizing link aggregation, businesses can ensure uninterrupted network connectivity even if a port or link fails. This redundancy is crucial for mission-critical applications and prevents costly downtime.

PoE

The Juniper EX3300-24P Network Switch boasts Power over Ethernet (PoE) capabilities, making it an ideal choice for businesses that require both data connectivity and power delivery to their network devices. The inclusion of PoE in this switch offers numerous benefits and simplifies network infrastructure management.

Power and Data Consolidation

With PoE support on all 24 ports, the Juniper EX3300-24P Network Switch eliminates the need for separate power sources for connected devices such as IP phones, wireless access points, and security cameras. This consolidation of power and data simplifies cable management, reduces clutter, and minimizes the risk of power outages caused by accidental disconnections.

Cost Savings

By utilizing PoE, businesses can significantly reduce installation costs associated with deploying network devices. Traditional setups often require the installation of separate power outlets near each device, which can be time-consuming and expensive. With the Juniper EX3300-24P Network Switch's PoE capabilities, businesses can eliminate these additional costs and streamline the deployment process.

Flexibility in Device Placement

The ability to deliver power through Ethernet cables provides flexibility in device placement. PoE-enabled devices can be installed in locations where power outlets are not easily accessible, such as ceilings, walls, or outdoor areas. This flexibility allows businesses to optimize their network infrastructure design without being limited by power availability.

Remote Power Management

The Juniper EX3300-24P Network Switch's PoE capabilities enable remote power management for connected devices. Network administrators can remotely monitor and control power usage, reset devices, or schedule power cycles. This feature simplifies maintenance tasks, reduces downtime, and improves overall network reliability.

Energy Efficiency

PoE technology incorporates intelligent power management, allowing devices to adjust their power consumption based on actual requirements. The Juniper EX3300-24P Network Switch supports PoE+, which provides higher power output compared to standard PoE. This energy-efficient approach not only reduces operational costs but also contributes to a greener environment by conserving energy.

Future-Proofing

As technology continues to evolve, the demand for PoE-enabled devices is expected to increase. By investing in a network switch with PoE capabilities like the Juniper EX3300-24P, businesses future-proof their network infrastructure and ensure compatibility with upcoming devices that rely on PoE for both data and power transmission.

In conclusion, the Juniper EX3300-24P Network Switch offers 24 ports and Power over Ethernet (PoE) capabilities, providing businesses with increased connectivity, scalability, flexibility, improved performance, redundancy, cost savings, and simplified management. These features make it an essential component for businesses of all sizes looking to enhance their network infrastructure.
