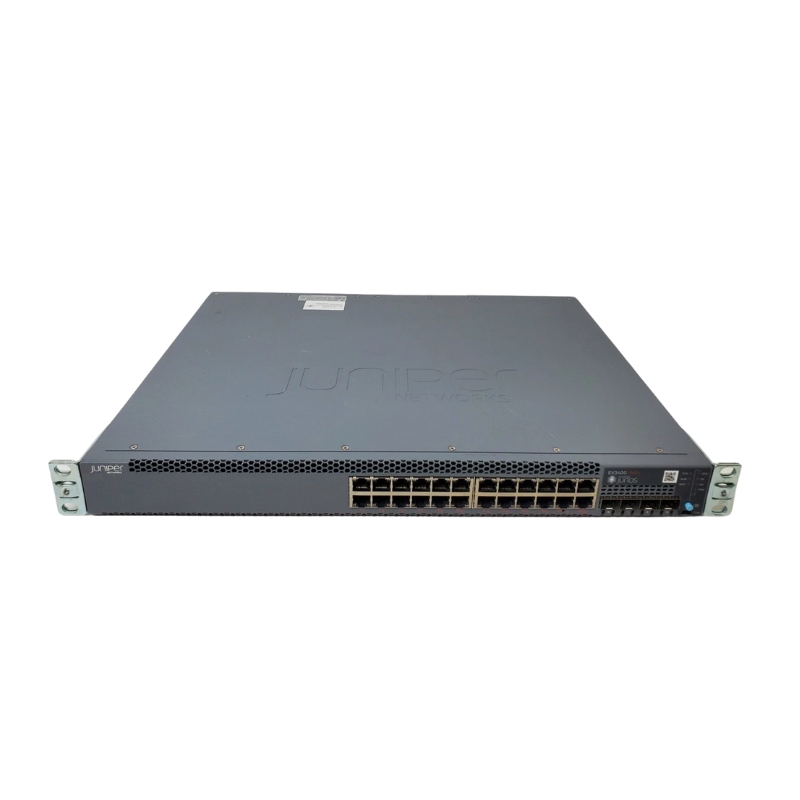

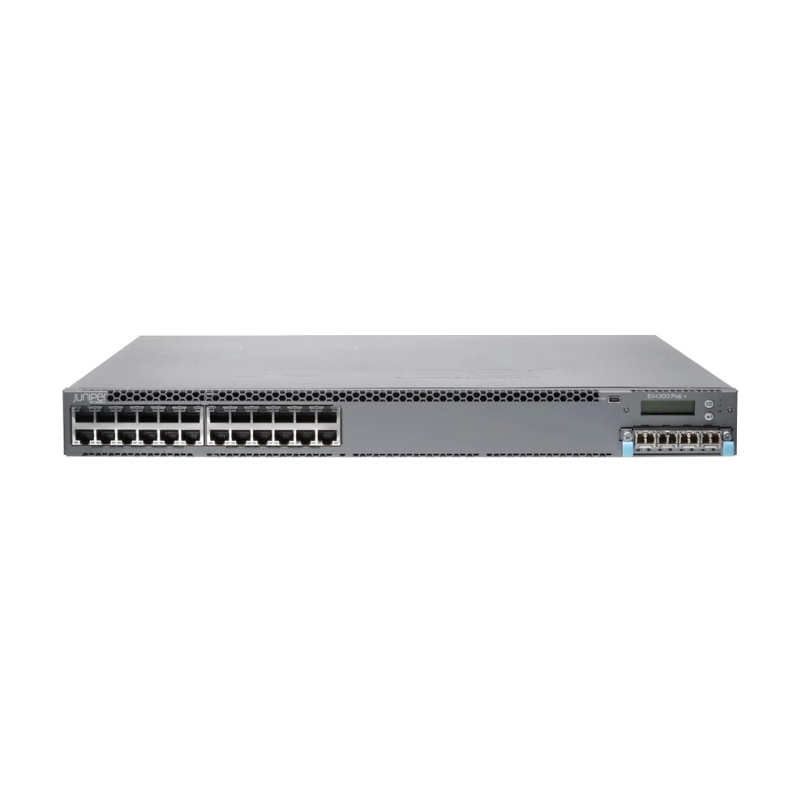

Juniper EX3400-24P Networking Stackable Switch, 24 Ports L3 Managed

Overview of the Juniper EX3400-24P Network Switch

General Specifications

• Manufacturer: Juniper
• Model Number: EX3400-24P
• Type: Network Switch
• Port Configuration: 24 Ports

Device Characteristics

Switch Type and Form Factor

• Device Type: Managed Layer 3 Switch

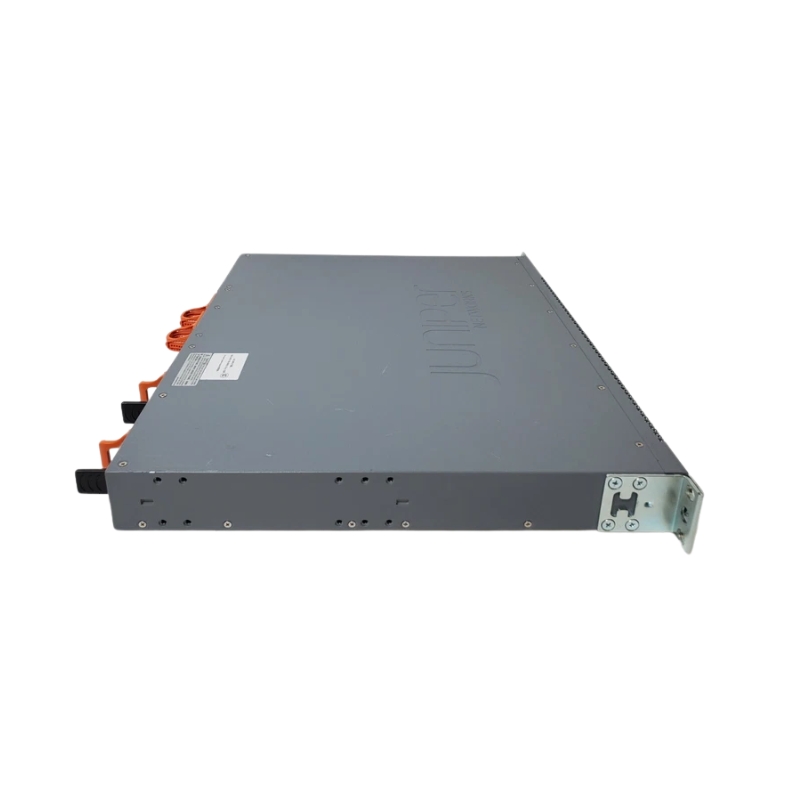

• Form Factor: Rack-Mountable 1U with Front-to-Back Airflow
• Stackable: Yes

Port Specifications

• Gigabit Ethernet Ports: 24 x 10/100/1000 (POE+)
• 10 Gigabit SFP+ Ports: 4
• 40 Gigabit QSFP+ Ports: 2

Performance Details

Switching Capacity and Throughput

• Switching Capacity: 288 Gbps (64-byte packets)
• Throughput: 214 Million Packets Per Second (Mpps)

VLAN and Spanning Tree Capabilities

• Virtual Interfaces (VLANs): 4093
• Multiple Spanning Tree Protocol Instances: 64
• VLAN Spanning Tree Protocol Instances: 510

Address and Routing Table

• ARP Entries: 8000
• IPv4 Hosts: 36,000
• IPv4 Routes (Multicast): 4000
• Maximum Neighboring Networks: 8000
• IPv6 Hosts: 18,000
• IPv6 Routes (Multicast): 2000
• ACL Entries: 1500
• LAG Groups: 128
• Maximum Member Ports Per LAG: 16
• QoS Hardware Queues Per Port: 12
• IGMP Snooping Entries: 100

Additional Features

• MAC Address Table Size: 32,000 Entries
• Jumbo Frame Support: 9216 Bytes

Management and Connectivity

Management Protocols

• SNMP (v1, v2c, v3)
• RMON (1, 2, 3, 9)
• Telnet
• HTTP/HTTPS
• TFTP
• SSH
• CLI

Expansion and Connectivity Options

• Interfaces:
  • 24 x 1000BASE-T RJ-45 POE+ (30W)
  • 2 x 40G QSFP+ for Uplink/Stacking
  • 4 x 10G SFP+ for Uplink/Stacking
  • 1 x Serial Management Port
  • 1 x 100BASE-TX RJ-45 Management Port

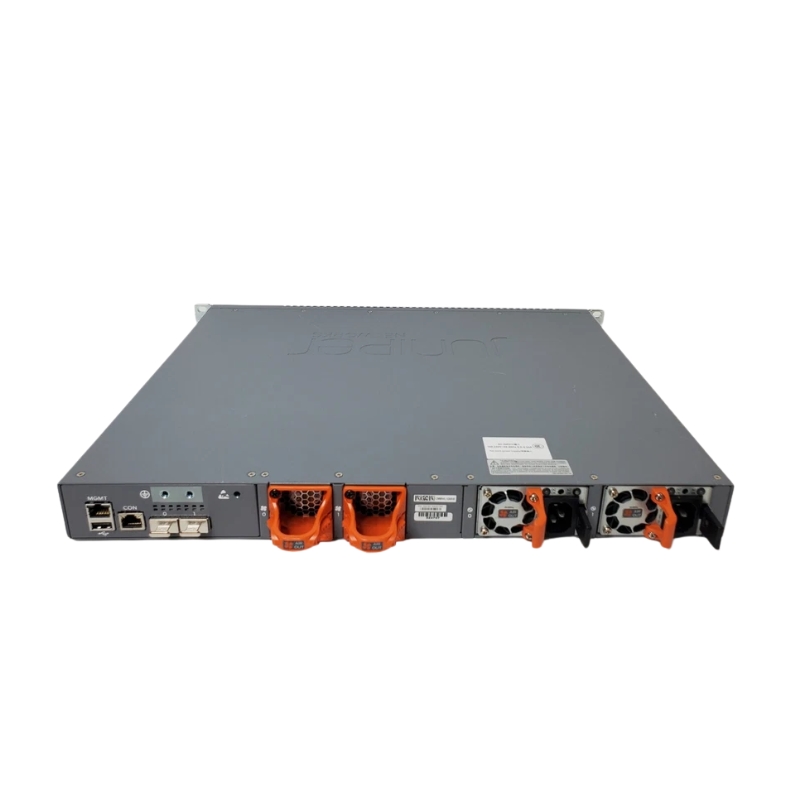

Power Specifications

Power Supply Details

• Power Device: Internal Hot-Plug Power Supply
• Installed Quantity: 1
• Maximum Supported Quantity: 2
• Power Redundancy: Optional
• Power Redundancy Scheme: 1+1 (with Optional Power Supply)
• Power Output: 600 Watts
• Voltage Required: AC 120/230 V

Ports

The Juniper EX3400-24P Networking Switch is equipped with 24 ports, making it an ideal choice for small to medium-sized businesses that require a reliable and scalable network infrastructure. These ports provide the means to connect various devices such as computers, printers, servers, and other networking equipment to the switch.

Increased Connectivity

With 24 ports, this networking switch offers ample connectivity options for businesses. Whether you need to connect a large number of devices in a single location or distribute them across multiple areas, the EX3400-24P has got you covered. The availability of numerous ports allows you to expand your network and accommodate future growth without the need for additional switches.

Flexibility in Network Design

The EX3400-24P's 24 ports enable flexible network design. You can create VLANs (Virtual Local Area Networks) to segregate network traffic, ensuring better security and performance. With this level of flexibility, you can easily manage and control the flow of data within your network, enhancing efficiency and reducing bottlenecks.

Improved Productivity

The abundance of ports on the EX3400-24P allows for improved productivity within your organization. Employees can connect their devices directly to the switch, resulting in faster data transfer speeds and reduced latency. This means that tasks such as transferring large files or accessing shared resources become quicker and more efficient, ultimately boosting overall productivity.

Management

One of the standout features of the Juniper EX3400-24P Networking Switch is its L3 managed capability. This management feature gives users enhanced control over their network infrastructure, providing a range of benefits for businesses of all sizes.

Centralized Network Control

With L3 managed functionality, the EX3400-24P allows for centralized network control. This means that network administrators can monitor and manage the switch from a single interface, simplifying the management process and reducing the need for manual configuration on individual devices. This centralized control not only saves time but also minimizes the chances of errors or misconfigurations, ensuring a more reliable and secure network.

Advanced Traffic Management

The L3 managed capability of the EX3400-24P enables advanced traffic management features. Administrators can prioritize certain types of network traffic, ensuring that critical applications and services receive the necessary bandwidth to operate efficiently. This level of control allows businesses to optimize their network performance, guaranteeing a seamless and uninterrupted experience for users.

Enhanced Security

By offering L3 managed functionality, the EX3400-24P provides enhanced security features. Administrators can implement access control policies, segmenting the network into different security zones. This allows for granular control over who can access specific resources or areas of the network, reducing the risk of unauthorized access and potential security breaches.

Stackable

The Juniper EX3400-24P Networking Switch is stackable, offering users increased scalability and simplified management options.

Scalability

Stackable switches provide a scalable solution for growing networks. With the EX3400-24P's stackable capability, businesses can easily expand their network infrastructure by adding additional switches to the stack. This allows for seamless growth without the need for complex reconfiguration or significant downtime.

Improved Resilience

Stacking switches also enhances network resilience. In a stacked configuration, multiple switches act as a single logical unit. This provides redundancy and failover capabilities, ensuring that if one switch fails, the others in the stack can continue to operate seamlessly. As a result, downtime is minimized, and businesses can maintain uninterrupted network connectivity.

Simplified Management

Stackable switches simplify network management. With a stacked configuration, administrators can manage multiple switches as a single entity. This means that configuration changes, firmware updates, and monitoring can be performed on the entire stack from a central location. This centralized management approach saves time and effort, streamlining network administration tasks.

In conclusion, the Juniper EX3400-24P Networking Switch offers a range of impressive features that make it an excellent choice for businesses looking to build a reliable and scalable network infrastructure. With 24 ports, users benefit from increased connectivity options and flexibility in network design. The L3 managed capability provides centralized control, advanced traffic management, and enhanced security. The stackable feature offers scalability, improved resilience, and simplified management. Overall, the EX3400-24P is a powerful networking switch that meets the demands of modern businesses.
