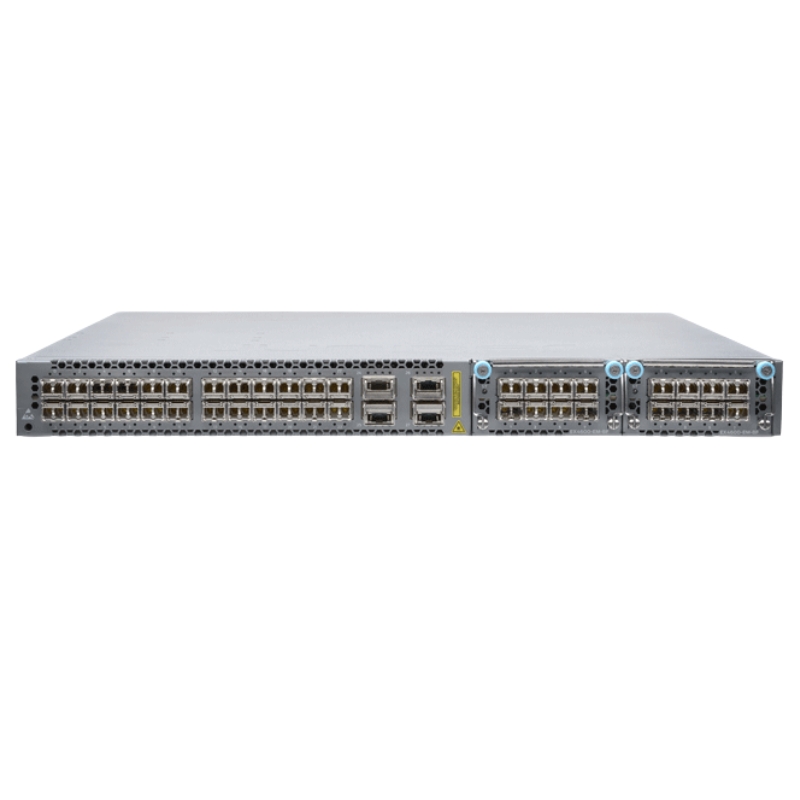

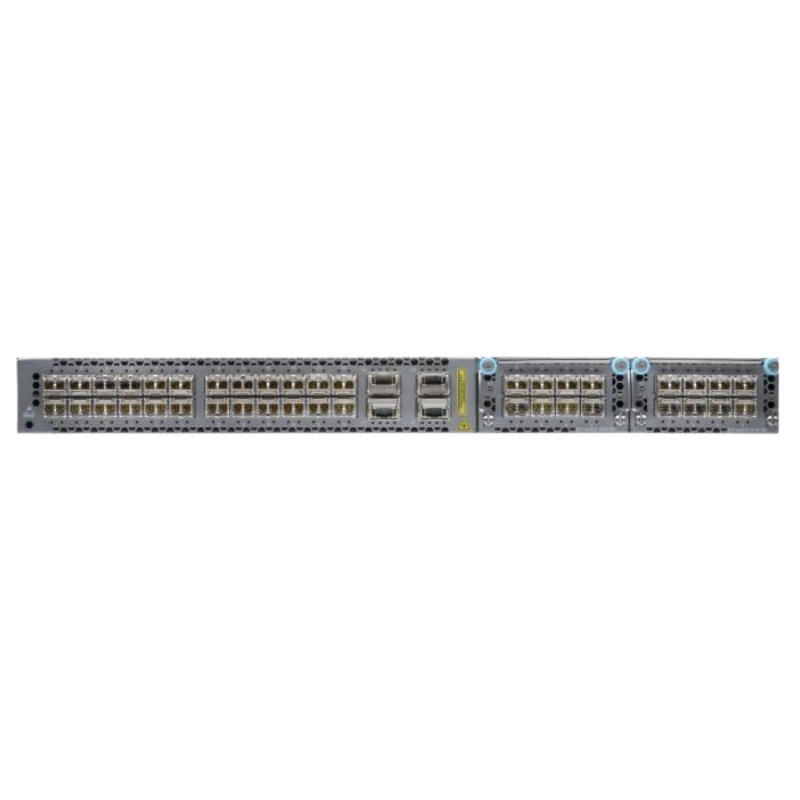

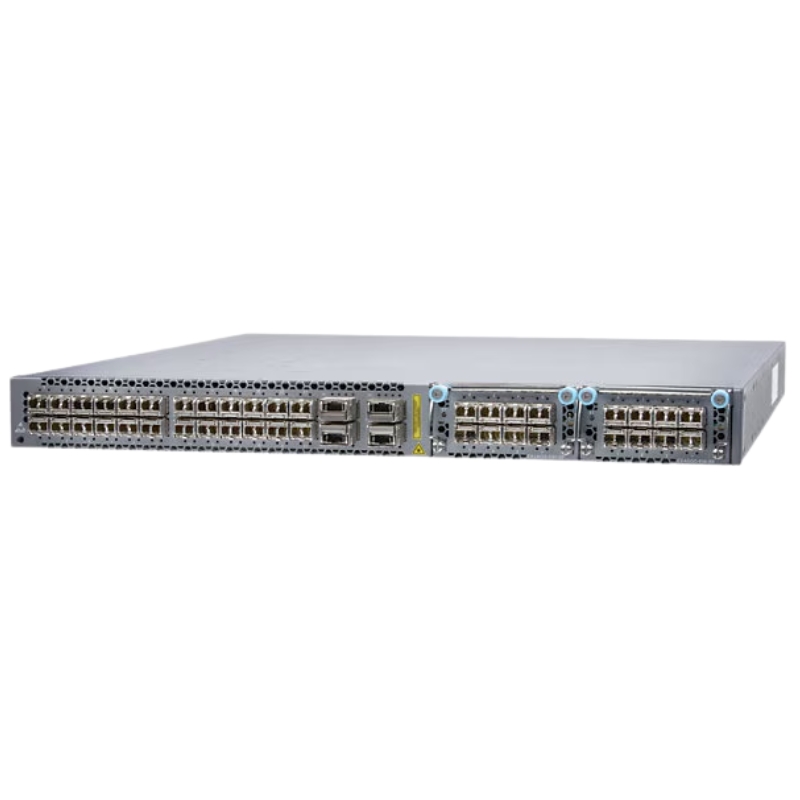

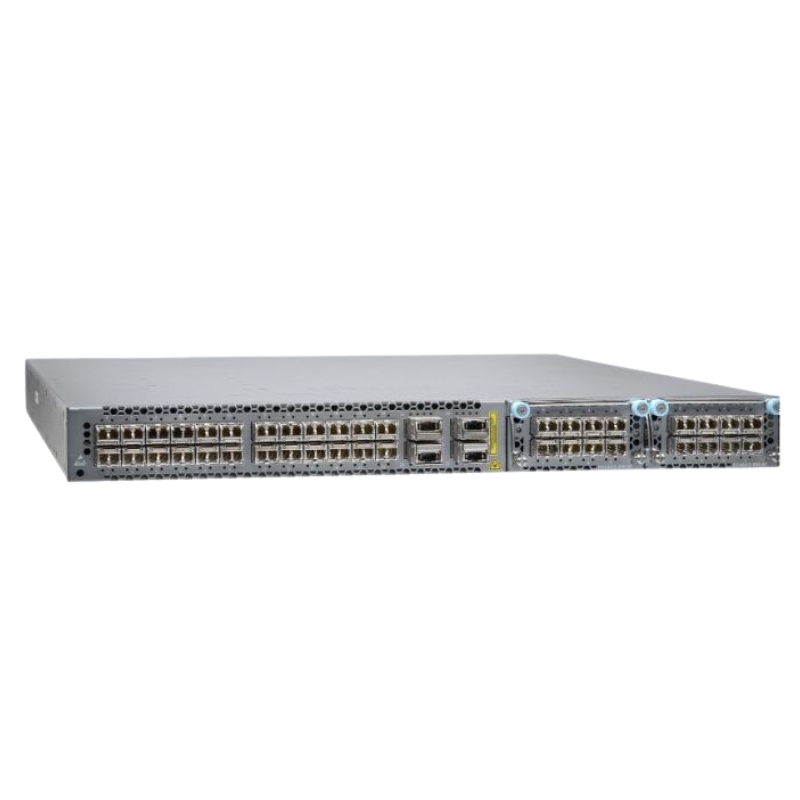

EX4600-40F-AFO Juniper EX Series EX4600 Managed L3 Switch

Juniper EX Series EX4600 L3 Switch

The Juniper EX4600-40F-AFO from the EX Series is a high-performance Managed Layer 3 Switch designed for enterprise-grade networking. This device delivers scalability, reliability, and advanced connectivity options for modern data centers and large-scale infrastructures.

General Details

• Brand: Juniper Networks
• Model Number: EX4600-40F-AFO
• Category: Managed L3 Switch

Technical Specifications

Network Connectivity

• 24 × 10 Gigabit Ethernet SFP+ ports
• 4 × 40 Gigabit Ethernet QSFP+ uplink interfaces

Management Interfaces

• 1 × RJ45 Serial Console
• 1 × Gigabit Ethernet RJ45 Management Port
• 1 × Gigabit SFP Management Port
• 1 × USB interface

Stacking & Expansion

• Virtual chassis ports supporting 40GbE and 10GbE connections
• 2 × Expansion slots (modules sold separately)
• Optional modules:
  • QFX-EM-4Q (4-port QSFP+)
  • EX4600-EM-8F (8-port SFP+/SFP)

Cooling & Airflow

• Front-to-Back airflow design
• 5 × QFX5100-FAN-AFO fan modules included

Power Supply

• 2 × JPSU-650W-AC-AFO AC power supplies included

Performance Metrics

Switching & Forwarding

• Switching capacity: 1.44 Tbps
• Forwarding rate: 1.07 Bpps

MAC Address Table

• Supports up to 288,000 MAC addresses

Juniper EX4600-40F-AFO 24x 10GbE SFP+ 4x Switch Overview

The Juniper EX4600-40F-AFO is a high-performance, enterprise-class switching platform engineered to deliver advanced Layer 2 and Layer 3 networking capabilities for modern data centers, aggregation layers, and campus core deployments. As part of the renowned EX Series from Juniper Networks, this model is specifically optimized for front-to-back airflow environments, making it an ideal choice for hot aisle and cold aisle data center designs. With 24 fixed 10GbE SFP+ ports and 4 high-speed 40GbE QSFP+ uplink ports, this switch provides exceptional scalability, bandwidth density, and operational efficiency for mission-critical infrastructures.

High-Density 10GbE Access with 40GbE Uplink Flexibility

The EX4600-40F-AFO delivers twenty-four 10 Gigabit Ethernet SFP+ ports that support fiber-based connectivity for servers, storage systems, and aggregation switches. These ports are designed to accommodate diverse optical modules and direct attach copper cables, ensuring compatibility with a wide range of enterprise and data center networking requirements. The inclusion of four 40GbE QSFP+ ports significantly enhances uplink capacity, enabling high-throughput connectivity to spine switches, core switches, or high-capacity aggregation layers.

Optimized Port Architecture for Modern Data Centers

Designed for virtualization-heavy environments and cloud architectures, the port configuration of this switch supports seamless east-west traffic flows. Virtual machines, hyper-converged infrastructure nodes, and high-performance computing clusters benefit from low-latency switching and wire-speed forwarding across all ports. The 40GbE uplinks can also be configured for breakout functionality, providing additional flexibility for scaling and network expansion strategies.

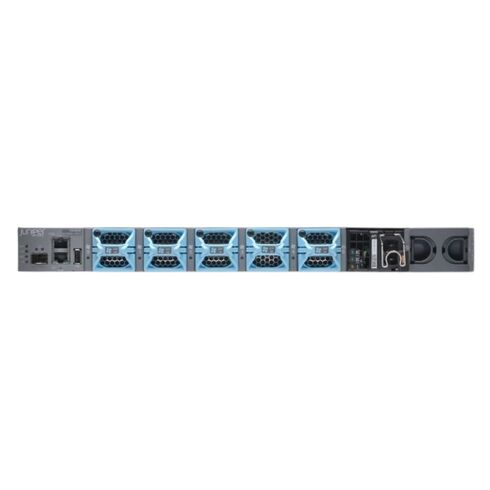

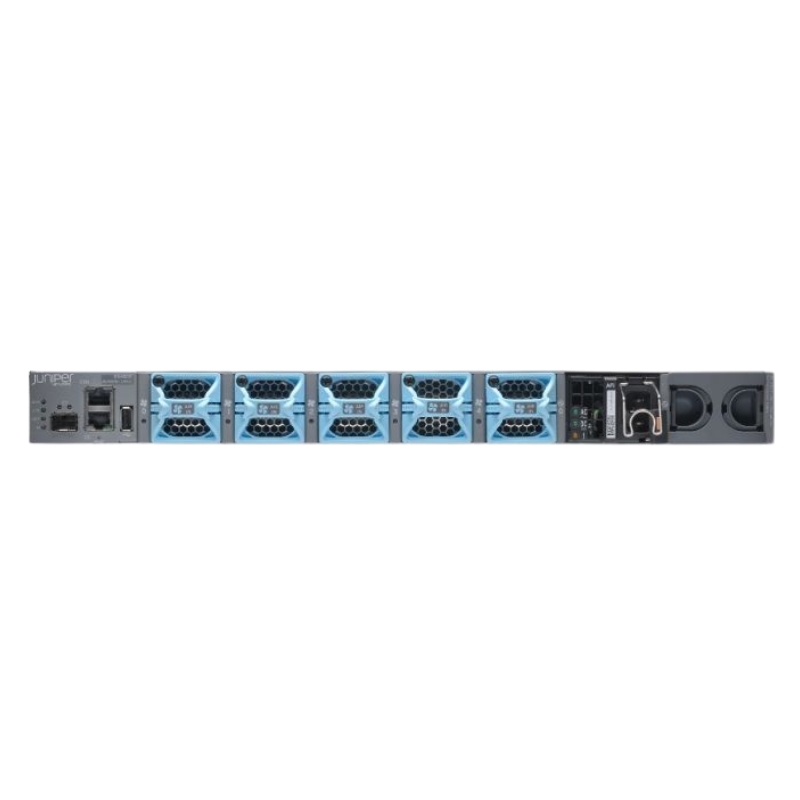

Front-to-Back Airflow Design for Efficient Cooling

The AFO variant, denoting front-to-back airflow, is engineered to align with standard hot aisle and cold aisle containment strategies in enterprise data centers. This airflow orientation improves thermal efficiency by directing cool air from the front of the chassis to the rear, expelling hot air in a controlled manner. Such a design reduces cooling costs and enhances overall system reliability, especially in high-density rack deployments.

Advanced Performance and Low Latency Switching

The EX4600-40F-AFO offers robust switching capacity and forwarding performance to support demanding workloads. Its hardware architecture ensures line-rate forwarding across all interfaces, maintaining consistent performance even during peak traffic loads. Enterprises deploying virtualization platforms, storage area networks over Ethernet, and high-speed database clusters will benefit from the deterministic performance characteristics of this switch.

Cut-Through Architecture for Minimal Delay

The low-latency switching capabilities make it suitable for latency-sensitive applications such as financial trading platforms, real-time analytics engines, and high-frequency data replication systems. The hardware-based forwarding engine processes packets efficiently, reducing jitter and maintaining consistent network responsiveness across all connected devices.

High Throughput for Aggregation and Core Layers

When deployed as a collapsed core or aggregation switch, the EX4600-40F-AFO provides the bandwidth required to handle aggregated traffic from multiple access switches. The 40GbE uplinks deliver significant headroom for scaling network throughput as user demand and application workloads increase over time.

Comprehensive Layer 2 and Layer 3 Capabilities

This Juniper EX Series switch supports a full suite of Layer 2 and Layer 3 protocols, making it suitable for both campus and data center networks. Advanced routing features, VLAN segmentation, and policy-based forwarding enable administrators to design highly efficient and secure network architectures.

Dynamic Routing and Enterprise Protocol Support

The switch supports industry-standard dynamic routing protocols, enabling seamless integration into existing enterprise networks. Its advanced routing capabilities allow for efficient traffic engineering, optimized path selection, and redundancy across multiple uplinks. This ensures high availability and minimizes downtime in mission-critical environments.

Virtual Chassis Technology for Scalability

Juniper’s Virtual Chassis technology allows multiple EX4600 switches to operate as a single logical device. This simplifies management, enhances scalability, and provides redundancy without complex configuration. Network administrators can scale horizontally by adding additional switches while maintaining centralized control and configuration consistency.

Software-Defined Networking and Automation

The EX4600-40F-AFO is powered by Junos OS, a robust and feature-rich operating system known for its reliability and consistency across Juniper platforms. Junos OS enables automation, programmability, and simplified network operations through standardized configuration models and APIs.

Security and Segmentation Features

Security is a critical requirement in enterprise and data center networks. The EX4600-40F-AFO incorporates comprehensive security mechanisms to safeguard network integrity and protect sensitive data. Integrated access control lists, port security features, and advanced filtering capabilities help mitigate unauthorized access and network threats.

Network Segmentation for Multi-Tenant Environments

With support for VLANs and advanced segmentation techniques, the switch enables secure multi-tenant deployments. Organizations operating private clouds or shared infrastructure environments can isolate traffic between departments, customers, or applications to ensure compliance and data protection.

Control Plane Protection and Resilience

Built-in control plane protection mechanisms defend against malicious traffic targeting routing and management processes. This ensures that essential network services remain operational even during adverse conditions or attempted attacks.

Data Center Deployment Scenarios

The EX4600-40F-AFO is suitable for a wide range of deployment scenarios, including top-of-rack switching, aggregation layers, campus core networks, and collapsed core architectures. Its high-density 10GbE access ports make it ideal for connecting servers in virtualization clusters, while the 40GbE uplinks provide the capacity required for spine connectivity.

Top-of-Rack Architecture

As a top-of-rack switch, it connects directly to servers within a rack, reducing cabling complexity and improving network efficiency. The front-to-back airflow design ensures compatibility with data center cooling standards, making it well-suited for high-density racks.

Aggregation and Core Deployments

In aggregation roles, the EX4600 consolidates traffic from multiple access switches before forwarding it to the core network. Its advanced routing capabilities allow it to function effectively as a campus core switch, supporting large-scale enterprise environments with thousands of users and devices.

Integration Within the Juniper Networking Ecosystem

As part of the EX Series portfolio from Juniper Networks, the EX4600-40F-AFO integrates seamlessly with other Juniper switching and routing platforms. Unified management tools and consistent operating system behavior simplify network operations across distributed enterprise environments.

Compatibility with Junos OS Features

The standardized architecture of Junos OS ensures consistent feature availability, configuration syntax, and upgrade processes. This reduces training requirements and operational complexity for IT teams managing large-scale Juniper deployments.

Future-Ready Infrastructure

The EX4600-40F-AFO provides a foundation for scalable, software-driven networking strategies. Its performance capabilities, combined with robust automation and security features, make it a strategic investment for organizations preparing for growth in cloud computing, virtualization, and digital transformation initiatives.
