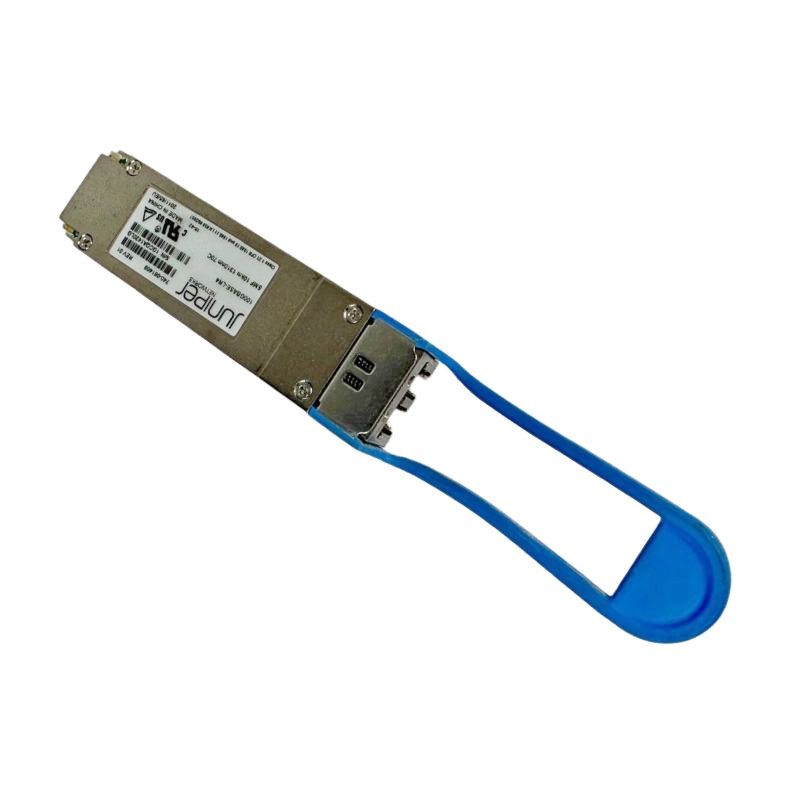

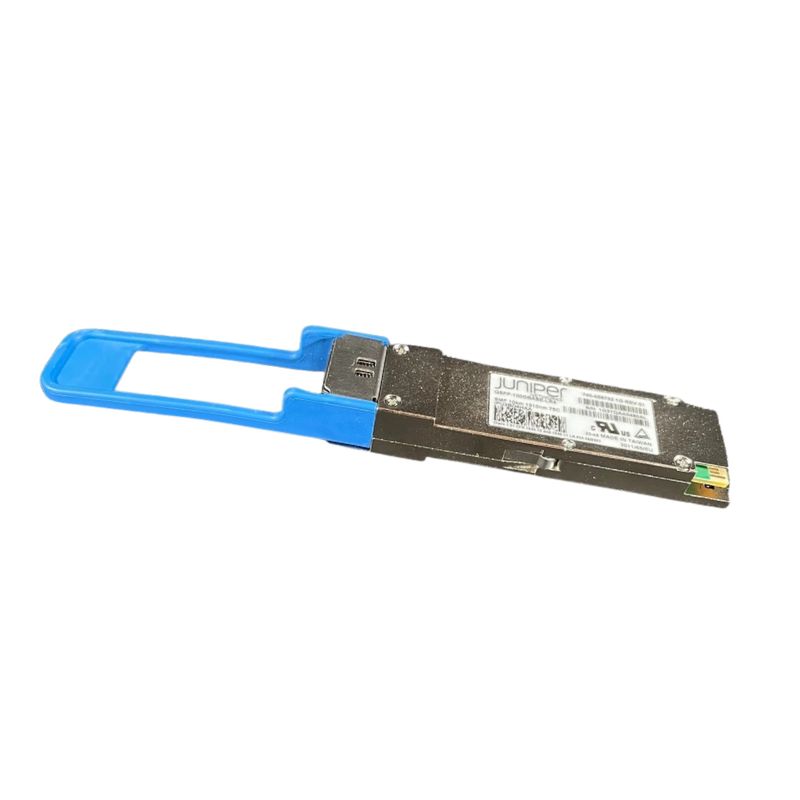

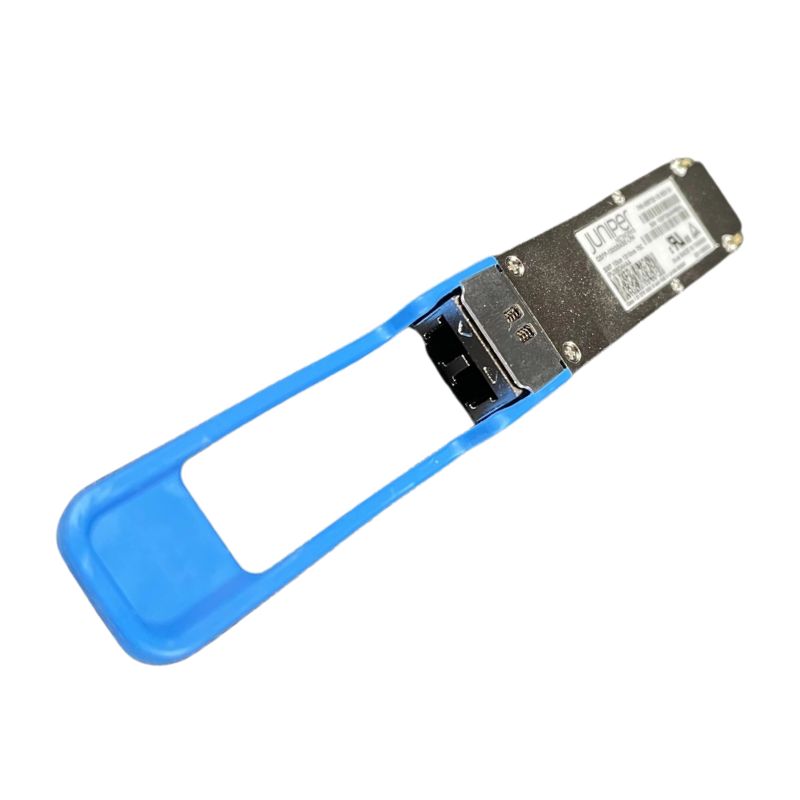

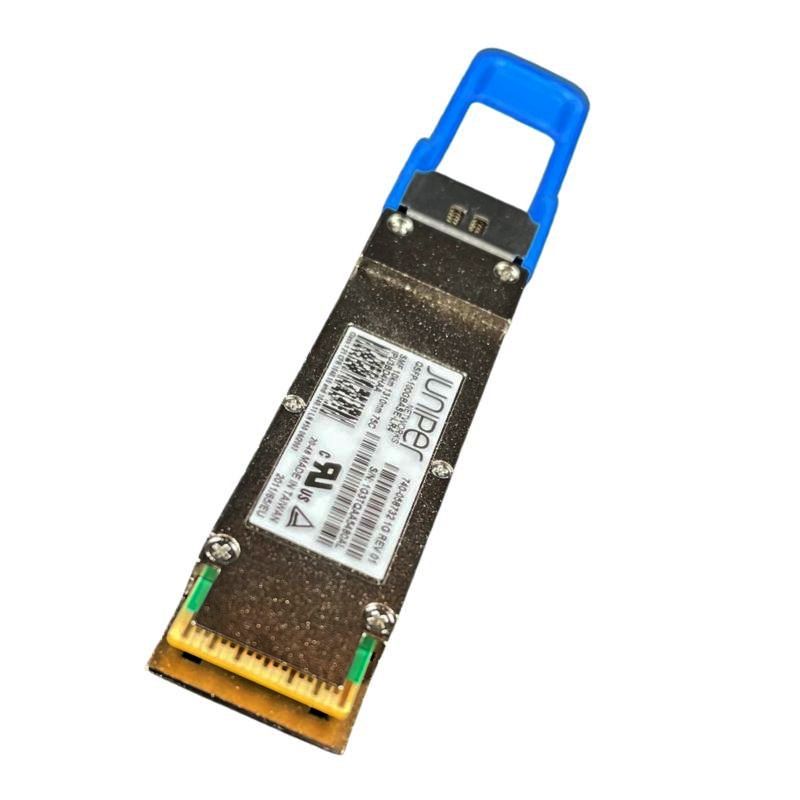

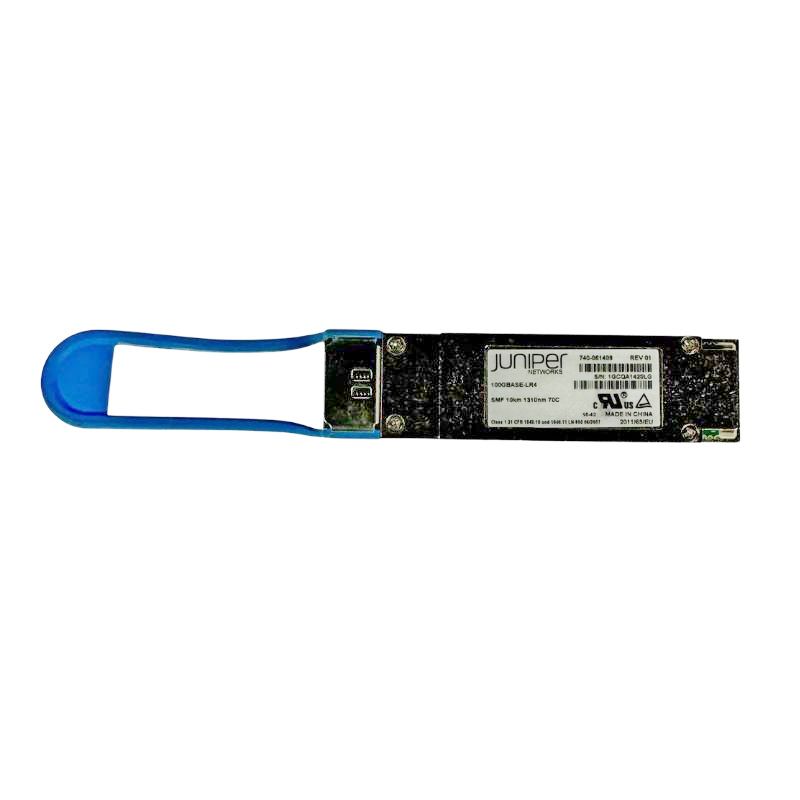

CFP-100GBASE-LR4 Juniper Networks 100GBPS Single-Mode Fiber Transceiver

The Juniper Networks CFP-100GBASE-LR4 100GBPS Transceiver

The Juniper Networks CFP-100GBASE-LR4 optical transceiver module is a high-performance 100GbE networking solution engineered for long-distance single-mode fiber communication. Designed for enterprise networks, hyperscale data centers, telecom environments, and cloud infrastructure, this CFP transceiver delivers reliable 100 Gigabit Ethernet connectivity with support for transmission distances up to 10 kilometers.

General Information

• Manufacturer: Juniper Networks
• Part Number: CFP-100GBASE-LR4
• Product Type: Optical Transceiver Module

Technical Specifications

• Interface: Single-Mode Fiber
• Network Technology: 100 Gigabit Ethernet
• Ethernet Standard: 100GBASE-LR4
• Breakout Capability: No
• Supported Fiber Type: Single-Mode Fiber (SMF)

Form Factor And Design

• Form Factor: CFP (C Form-Factor Pluggable)
• Module Type: Optical Transceiver
• Interface Design: Legacy High-Speed CFP Interface

Connector Information

• Connector Type: Duplex SC PC/UPC
• Alternative Interface Support: Duplex LC Connectivity

Optical Technology and Wavelength Information

Optical Grid Center Wavelengths

• 1295.56nm
• 1300.05nm
• 1304.58nm
• 1309.14nm

Operating Wavelength

• Primary Optical Wavelength: 1310nm

Highlights of Juniper Networks CFP-100GBASE-LR4 Transceiver

The Juniper Networks CFP-100GBASE-LR4 100Gbps optical transceiver module is engineered for high-performance data center, enterprise backbone, and carrier-grade telecommunications environments requiring ultra-fast long-distance optical connectivity over single-mode fiber infrastructure. Designed to support the 100GBASE-LR4 standard, this CFP form-factor module enables reliable high-bandwidth transmission up to 10 kilometers using 1310nm wavelength technology over LC duplex fiber connectors.

100GbBPS06-9 High-Speed Optical Transmission

The CFP-100GBASE-LR4 module supports a full 100Gbps aggregate data rate, making it suitable for backbone networking, data center interconnects, and high-capacity enterprise environments. It uses advanced optical multiplexing techniques to transmit data across four independent lanes, each operating at 25Gbps, which are combined to deliver a unified high-speed transmission channel. This architecture ensures stable data flow and minimizes signal degradation over long distances, making it ideal for scalable network infrastructures requiring high throughput and reliability.

Long Distance Data Center Interconnect

The 10-kilometer reach of the LR4 module enables seamless interconnection between geographically separated data centers and network aggregation points. This capability is essential for enterprises operating distributed IT environments where data replication, disaster recovery, and cloud synchronization require stable long-distance optical communication. The module ensures consistent performance across extended fiber runs, reducing latency and maintaining high-speed connectivity between critical infrastructure components.

Stable Signal Integrity

Maintaining signal integrity over long-distance fiber transmission is essential for preventing data loss and ensuring consistent performance in high-speed networks. The LR4 transceiver uses advanced optical signal processing to minimize attenuation and dispersion across single-mode fiber. This ensures that data packets are transmitted accurately and efficiently even at maximum supported distances. Stable signal integrity enhances overall network reliability and reduces the risk of transmission errors in enterprise environments.

1310nm Wavelength Optical Transmission

The CFP-100GBASE-LR4 module operates on the 1310nm wavelength spectrum, which is optimized for long-distance single-mode fiber transmission. This wavelength is widely used in high-capacity optical communication systems due to its low attenuation characteristics and superior performance over extended fiber distances. The use of 1310nm technology ensures that the module delivers consistent high-speed performance across 10km links while maintaining low signal degradation. This wavelength selection enhances compatibility with existing optical infrastructure and supports scalable deployment in enterprise and telecom environments.

Reduced Signal Loss Across Single-Mode Fiber

Signal loss is a critical challenge in optical networking, particularly in long-distance transmission environments. The 1310nm operating wavelength significantly reduces attenuation across single-mode fiber, allowing for more efficient data transmission over extended distances. This reduction in signal loss ensures that the module maintains high performance even in large-scale network deployments. It enhances reliability and minimizes the need for intermediate signal boosting equipment.

Dense Network Environments

Dense networking environments require consistent optical performance to support high volumes of simultaneous data transmission. The LR4 module ensures stable signal propagation even in complex fiber infrastructures with multiple connection points. This consistency improves overall network stability and ensures predictable performance in enterprise and telecom deployments. It is particularly beneficial in environments where uptime and reliability are critical.

CFP Form Factor Design for Enterprise

The CFP form factor is widely used in high-speed optical networking applications due to its robust design and support for high bandwidth transmission capabilities. The Juniper CFP-100GBASE-LR4 module adheres to industry standards, ensuring compatibility with a wide range of Juniper networking equipment and carrier-grade platforms. Its physical design supports efficient thermal management and stable optical performance under continuous operation. The CFP architecture is engineered for scalability and long-term deployment in enterprise and service provider networks.

High-Density Network Infrastructure

The CFP module is designed to integrate seamlessly into high-density networking environments where space optimization and performance efficiency are critical. It enables network operators to deploy multiple high-speed optical links within a compact infrastructure footprint. This supports scalable network expansion while maintaining consistent performance across all connected devices. The design ensures efficient utilization of rack space in data centers and telecom facilities.

Robust Mechanical and Thermal Design

The CFP-100GBASE-LR4 module features a robust mechanical structure designed to withstand continuous operation in demanding environments. Its thermal design ensures effective heat dissipation, maintaining stable operating temperatures even under high network loads. This improves long-term reliability and reduces the risk of performance degradation due to thermal stress. The module is engineered for durability in enterprise-grade deployments.

LC Duplex Connector Interface

The CFP-100GBASE-LR4 module utilizes LC duplex connectors, which are widely adopted in high-speed optical networking due to their compact size and reliable performance. These connectors provide secure fiber connections that minimize insertion loss and ensure stable signal transmission. The LC interface supports easy installation and maintenance, making it ideal for enterprise and data center environments where operational efficiency is critical. This connector type enhances compatibility with existing fiber optic infrastructure.

High-Speed Data Transmission

Low insertion loss is essential for maintaining signal strength in optical networks, especially in high-speed 100Gbps applications. The LC connector design ensures minimal signal loss during transmission, improving overall network efficiency. This enables consistent data flow across long distances without compromising performance. It enhances reliability and reduces the need for signal amplification.

Secure Fiber Connection Stability

Secure fiber connections are essential for maintaining uninterrupted communication in enterprise networks. The LC duplex interface provides a stable and reliable connection that minimizes the risk of disconnection or signal disruption. This ensures continuous data transmission even in high-vibration or high-density environments. Connection stability improves overall network resilience and performance consistency.

100GBASE-LR4 Standard Compliance

The CFP-100GBASE-LR4 module adheres to the IEEE 100GBASE-LR4 standard, ensuring compatibility and interoperability across a wide range of networking equipment. This compliance guarantees reliable performance in multi-vendor environments and supports seamless integration into existing network infrastructures. Standardized design ensures predictable behavior and stable communication across interconnected systems. This makes the module suitable for enterprise, cloud, and telecom deployments requiring consistent interoperability.

Seamless Integration

The module is specifically designed for compatibility with Juniper networking equipment, ensuring optimized performance and seamless integration. This allows enterprises to deploy high-speed optical links without compatibility concerns or configuration complexities. Integration with Juniper platforms enhances operational efficiency and simplifies network management. This ensures reliable deployment in enterprise-grade infrastructures.

Multi-Vendor Network

The 100GBASE-LR4 standard ensures that the module can operate across multi-vendor networking environments. This interoperability is critical for enterprises operating heterogeneous network infrastructures. It enables seamless communication between different networking devices while maintaining high-speed optical performance. Multi-vendor compatibility enhances flexibility in network design and deployment.

Standardized Optical Performance

Standard compliance ensures predictable optical performance across all deployments, reducing variability in network behavior. The LR4 module maintains consistent transmission quality across compliant networking systems. This enhances reliability and ensures stable communication in enterprise and telecom environments. Standardized performance improves overall network efficiency and operational stability.

Telecom Use Case Applications

The Juniper CFP-100GBASE-LR4 module is widely used in enterprise data centers, telecom backbone networks, cloud infrastructure environments, and high-performance computing systems. Its high-speed 100Gbps capability and long-distance reach make it ideal for interconnecting critical infrastructure components across distributed environments. The module supports scalable network expansion and ensures reliable data transmission in demanding operational scenarios. Its versatility makes it suitable for a wide range of high-performance networking applications.

Data Center Interconnect Solutions

The module is commonly deployed in data center interconnect (DCI) applications where high-speed communication between geographically separated facilities is required. It enables seamless data replication, backup synchronization, and workload distribution across multiple data centers. This ensures operational continuity and enhances disaster recovery capabilities. DCI applications benefit significantly from the module’s high bandwidth and long-distance transmission capabilities.

Cloud Infrastructure Networking

Cloud service providers rely on high-speed optical networking to support distributed computing workloads and large-scale virtualization environments. The LR4 module enhances cloud infrastructure performance by enabling fast and reliable communication between cloud nodes. This improves resource utilization and ensures efficient workload balancing across distributed systems. Cloud networking optimization enhances scalability and service reliability.

Telecom Backbone Network Deployment

Telecom operators utilize the CFP LR4 module in backbone network deployments to support high-capacity data transmission across metropolitan and regional networks. Its long-distance capability and stable performance make it ideal for supporting large-scale communication infrastructure. Telecom backbone applications benefit from its reliability and high bandwidth efficiency. This ensures consistent service delivery across wide-area networks.
