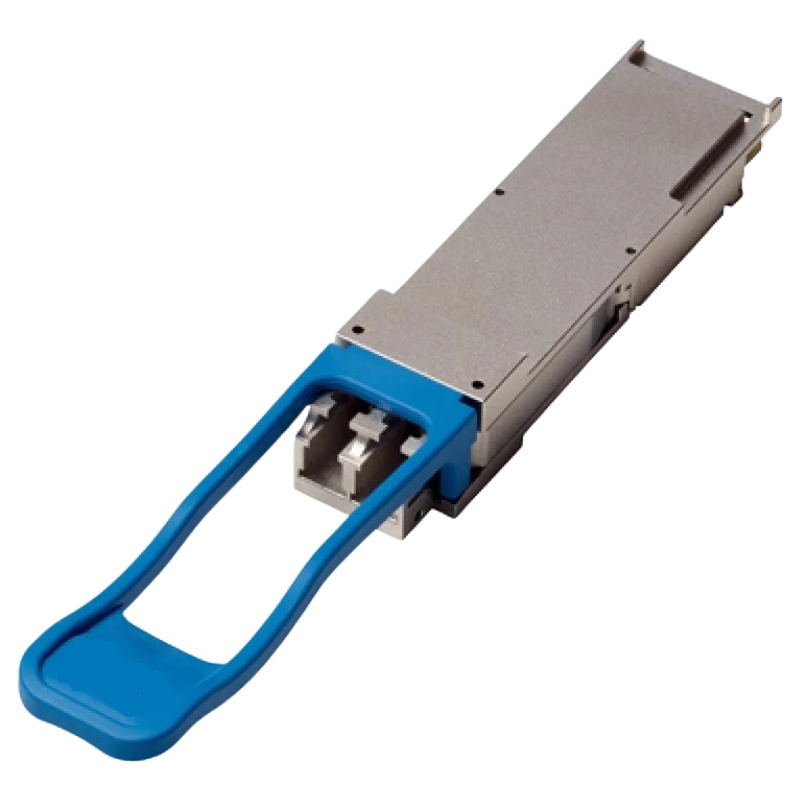

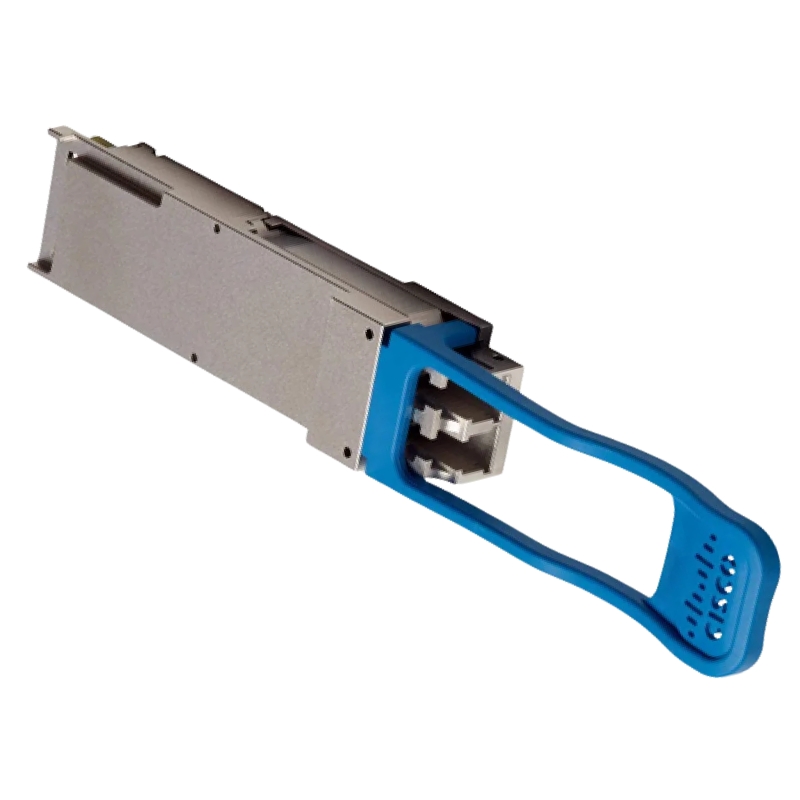

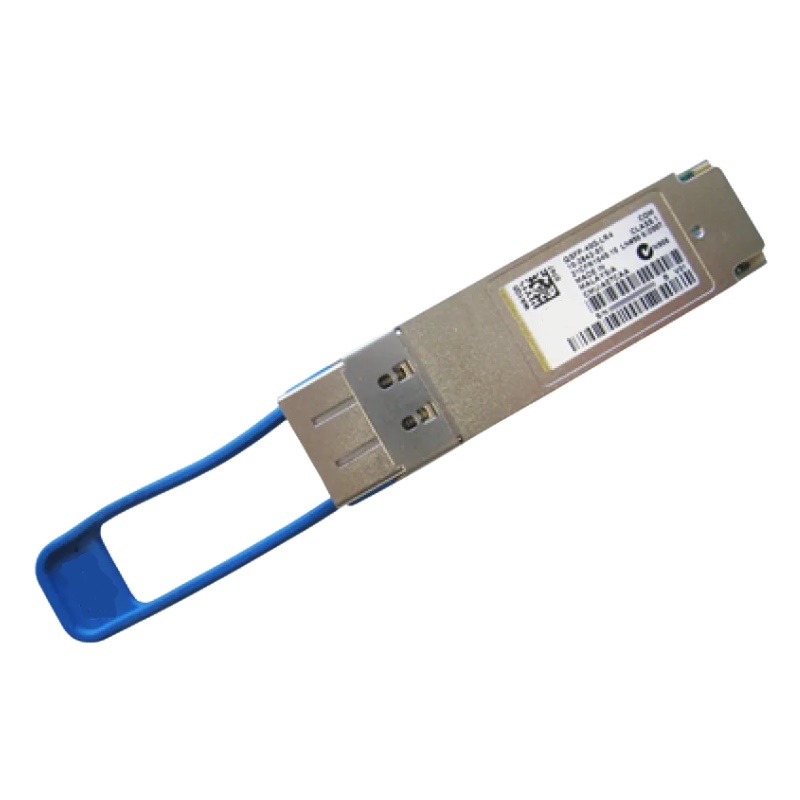

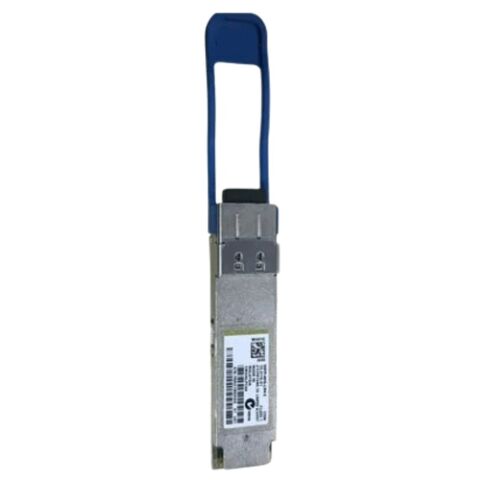

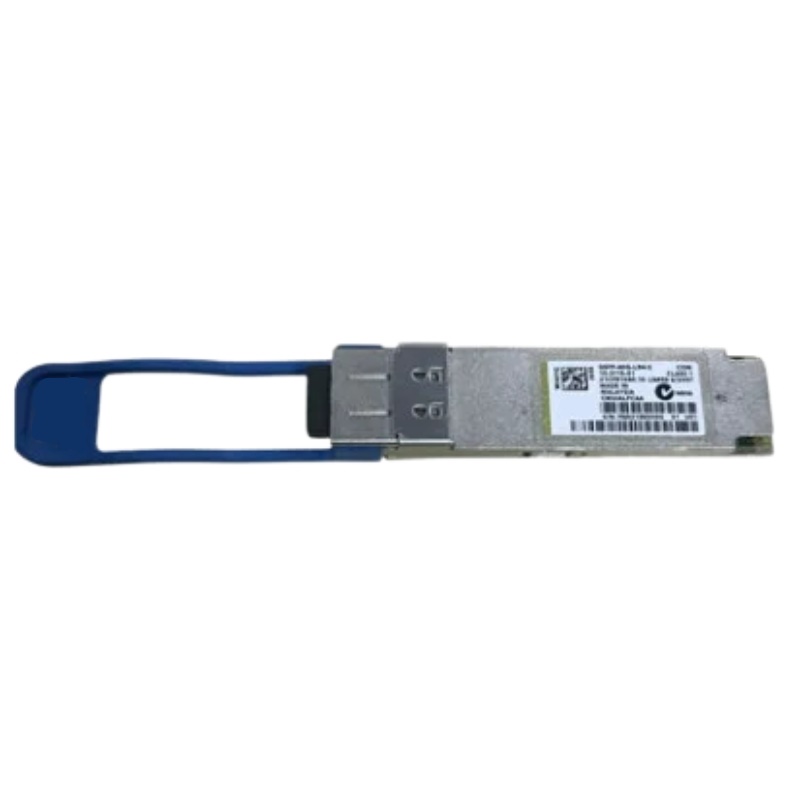

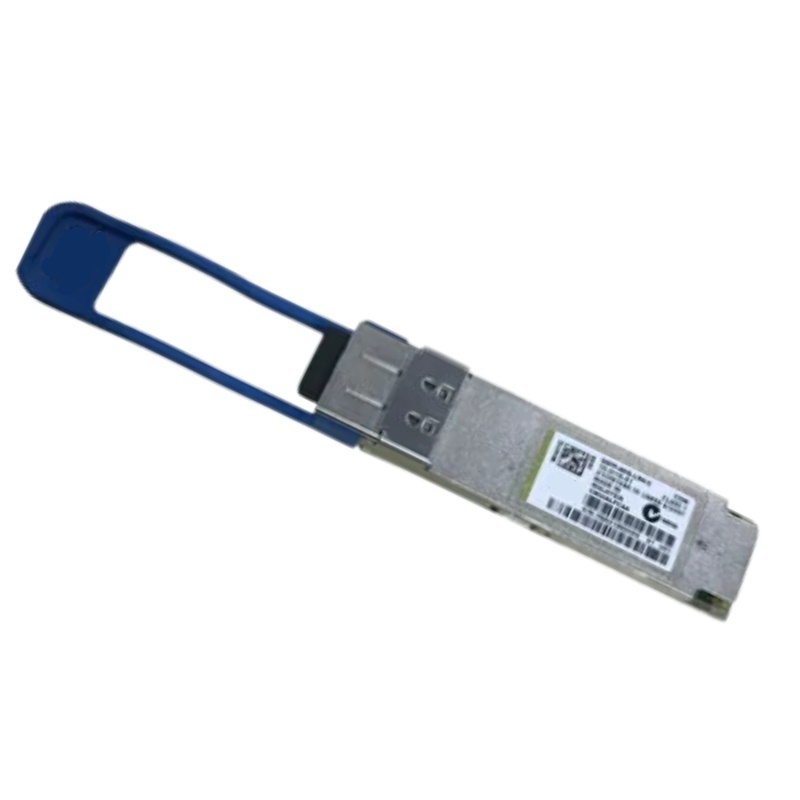

QDD-400G-LR4-10 Juniper SMF 10km Receptacle Transceiver

Juniper Networks SMF 10km Duplex Transceiver Overview

The Juniper Networks QDD-400G-LR4-10 SMF 10km Standard Temperature (0 through 70°C) Duplex LC/PC Receptacle Transceiver represents a high-performance 400 Gigabit Ethernet optical module engineered to meet the growing bandwidth demands of modern data centers, enterprise backbones, and service provider networks. Designed for long-range connectivity over single-mode fiber (SMF), this 400G QSFP-DD LR4 optical transceiver enables reliable transmission across distances up to 10 kilometers, ensuring stable and scalable network expansion without compromising signal integrity.

As digital transformation accelerates across industries, high-speed interconnect solutions have become critical infrastructure components. The Juniper Networks QDD-400G-LR4-10 transceiver is purpose-built for high-density 400G deployments, offering a duplex LC/PC optical interface and compliance with industry standards for interoperability and performance. Its standard temperature operating range of 0 to 70°C makes it suitable for controlled data center environments, enterprise core facilities, and telecom switching hubs.

High-Speed 400G Ethernet Connectivity

Optimized for 400 Gigabit Ethernet Infrastructure

The 400G optical transceiver category is central to next-generation networking architectures. The Juniper Networks QDD-400G-LR4-10 module supports 400 Gigabit Ethernet throughput using four wavelength channels, each operating at 100Gbps. This design leverages LAN-WDM technology to deliver aggregated bandwidth over a duplex single-mode fiber pair, maximizing fiber utilization while reducing cabling complexity.

By enabling 400G data rates within a compact QSFP-DD form factor, this optical module supports ultra-high-density switching platforms. Organizations deploying cloud computing clusters, hyperscale data centers, artificial intelligence workloads, and high-frequency trading networks benefit from the enhanced capacity and reduced latency provided by 400G connectivity.

Scalability for Hyperscale and Enterprise Deployments

High-bandwidth applications such as virtualization, container orchestration, big data analytics, and edge computing require scalable network infrastructure. The QDD-400G-LR4-10 optical module facilitates seamless scaling by supporting 10km transmission distances, enabling inter-building connections, metropolitan campus linking, and data center interconnect (DCI) deployments. This extended reach reduces the need for intermediate amplification or regeneration equipment, lowering infrastructure complexity and operational costs.

QSFP-DD Form Factor and Physical Interface Characteristics

QSFP-DD Architecture and Port Density Advantages

The QSFP-DD (Quad Small Form-Factor Pluggable Double Density) form factor doubles the electrical interface of traditional QSFP modules, enabling 8-lane electrical connectivity. This architecture supports 400G Ethernet speeds while maintaining backward compatibility with existing QSFP28 and QSFP+ ports in compatible platforms. Network architects benefit from increased port density without expanding rack footprint.

The compact footprint of the QDD-400G-LR4-10 allows high-port-count switches and routers to deliver significant aggregate throughput within standard rack units. This density is particularly advantageous for top-of-rack (ToR), spine-leaf, and core switching designs where maximizing bandwidth per rack is essential.

Duplex LC/PC Receptacle Interface

The module features a duplex LC/PC optical connector, a widely adopted industry standard for single-mode fiber connections. The LC/PC interface ensures precise alignment and low insertion loss, contributing to consistent optical performance over extended distances. Its compatibility with standard single-mode fiber patch cables simplifies installation and integration into existing structured cabling systems.

Signal Integrity and Optical Performance

Maintaining high signal quality across 10km distances requires advanced optical engineering. The QDD-400G-LR4-10 incorporates distributed feedback (DFB) lasers operating across four LAN-WDM wavelengths. These wavelengths are multiplexed and transmitted over a duplex fiber pair, ensuring minimal dispersion and reliable bit error rate performance. The result is stable high-speed transmission suitable for mission-critical applications.

Single-Mode Fiber Transmission Over 10 Kilometers

Advantages of Single-Mode Fiber (SMF)

Single-mode fiber is preferred for long-distance high-speed transmission due to its narrow core diameter and reduced modal dispersion. The QDD-400G-LR4-10 transceiver leverages SMF to achieve 10km reach while maintaining high data integrity. Compared to multimode fiber solutions, SMF offers superior bandwidth over longer spans, making it ideal for inter-campus connectivity and metropolitan deployments.

10km Reach for Data Center Interconnect

Data center interconnect scenarios often require reliable connectivity between geographically separated facilities. The 10km transmission capability of this 400G LR4 optical module allows enterprises and service providers to link primary and disaster recovery sites without additional signal boosting. This extended reach enhances business continuity strategies and ensures uninterrupted service delivery.

LAN-WDM Technology for Efficient Bandwidth Utilization

LAN-WDM technology combines multiple wavelengths within the 1310nm window to enable 400G transmission over a duplex fiber pair. This wavelength multiplexing technique optimizes fiber infrastructure and reduces the need for parallel fiber arrays, making deployment more cost-efficient while preserving performance standards.

Standard Temperature Operating Range and Environmental Suitability

0 to 70°C Operating Environment

The QDD-400G-LR4-10 transceiver operates within a standard temperature range of 0 through 70 degrees Celsius. This range aligns with typical data center and enterprise facility conditions where environmental controls maintain stable temperature and humidity levels. The standard temperature classification ensures consistent performance under normal operating conditions.

Reliability in Controlled Infrastructure Environments

Optical transceivers deployed in climate-controlled facilities benefit from predictable thermal behavior. By operating within the 0–70°C range, the module supports long-term reliability and reduces thermal stress on internal components. This reliability is crucial for core routing systems, spine switches, and aggregation platforms that handle continuous high-volume traffic.

Integration with Juniper Networking Platforms

Compatibility with High-Performance Switches and Routers

The QDD-400G-LR4-10 optical transceiver is engineered for seamless compatibility with supported Juniper networking platforms. Integration within high-performance switches and routers ensures optimal firmware-level recognition, digital diagnostics monitoring, and enhanced interoperability. Network administrators benefit from simplified provisioning and performance monitoring.

Digital Optical Monitoring (DOM) Capabilities

Digital optical monitoring enables real-time visibility into key parameters such as optical transmit power, receive power, temperature, voltage, and laser bias current. This diagnostic capability supports proactive network management by identifying potential issues before they impact service availability. Enhanced monitoring contributes to predictive maintenance strategies and improved operational efficiency.

Application Scenarios for 400G LR4 Optical Modules

Hyperscale Data Centers

Hyperscale cloud providers require scalable, high-bandwidth interconnect solutions to support massive east-west traffic flows. The QDD-400G-LR4-10 module enables spine-to-spine and spine-to-core connectivity with 400G throughput, reducing congestion and supporting high-density compute clusters.

Enterprise Core and Campus Networks

Large enterprises deploying high-speed core networks benefit from 400G uplinks that consolidate multiple lower-speed connections. By leveraging 10km reach over SMF, campus networks can connect distributed buildings and facilities while maintaining centralized data processing environments.

Telecommunications and Service Provider Infrastructure

Service providers expanding metro and regional networks rely on high-capacity optical modules to accommodate increasing subscriber demand. The 400G LR4 category supports aggregation layers and edge routing deployments, ensuring reliable bandwidth delivery across extended distances.

Standards Compliance and Interoperability

IEEE and Industry Standard Alignment

The QDD-400G-LR4-10 optical module adheres to relevant IEEE 400G Ethernet specifications and multi-source agreement standards for QSFP-DD form factors. Compliance ensures interoperability within standardized networking ecosystems, facilitating integration into structured cabling and switching infrastructures.

Future-Ready Networking Infrastructure

As 400G adoption continues to expand, deploying standards-compliant optical modules ensures long-term compatibility with evolving network architectures. Organizations investing in 400G LR4 transceivers establish a foundation for scalable growth and seamless migration to even higher-speed technologies as they become commercially viable.

Key Optimization in High-Bandwidth Architectures

Low Latency Transmission Characteristics

High-frequency trading platforms, distributed storage systems, and real-time analytics applications demand minimal latency. The optical architecture of the QDD-400G-LR4-10 ensures rapid signal propagation across 10km links, minimizing delay and supporting performance-sensitive workloads.

High Throughput for Data-Intensive Applications

Emerging technologies such as artificial intelligence training clusters, machine learning pipelines, and large-scale virtualization environments require robust network throughput. The 400G LR4 optical transceiver category addresses these needs by delivering high-capacity links that prevent bottlenecks and maintain consistent data flow between compute nodes and storage arrays.
