Overview of the Switch

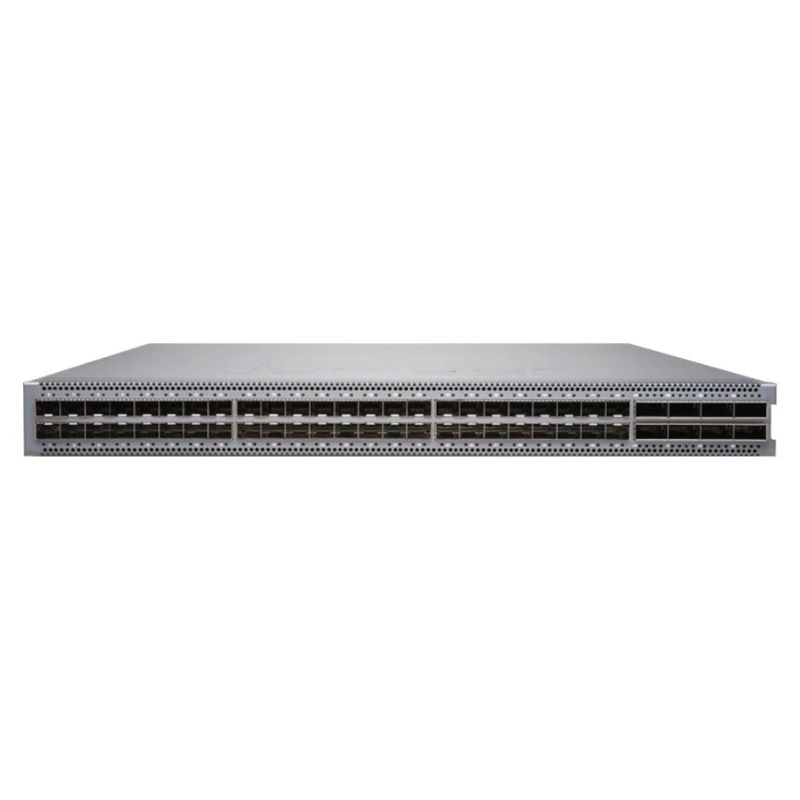

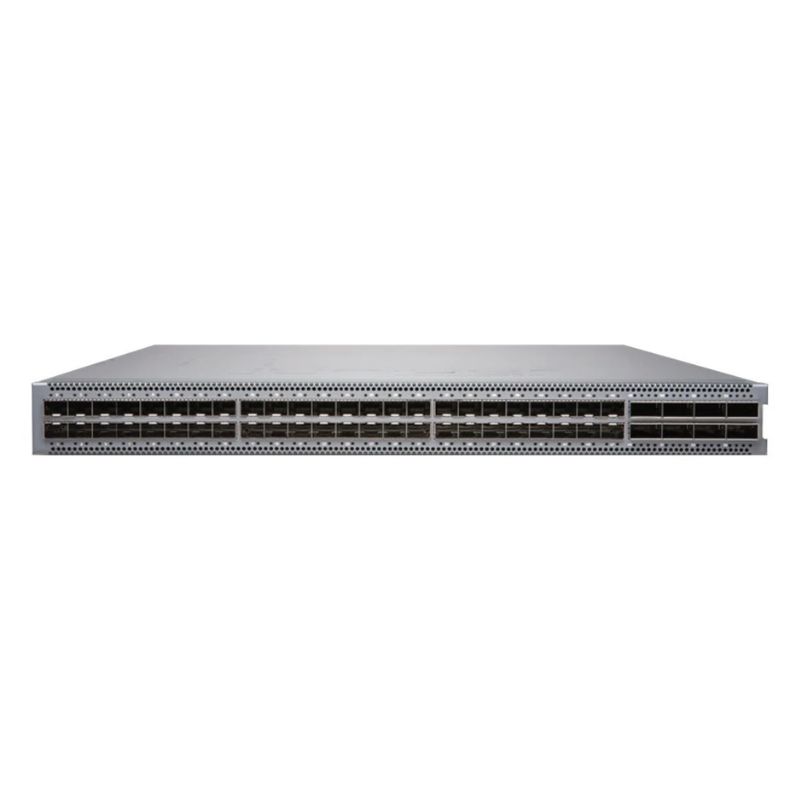

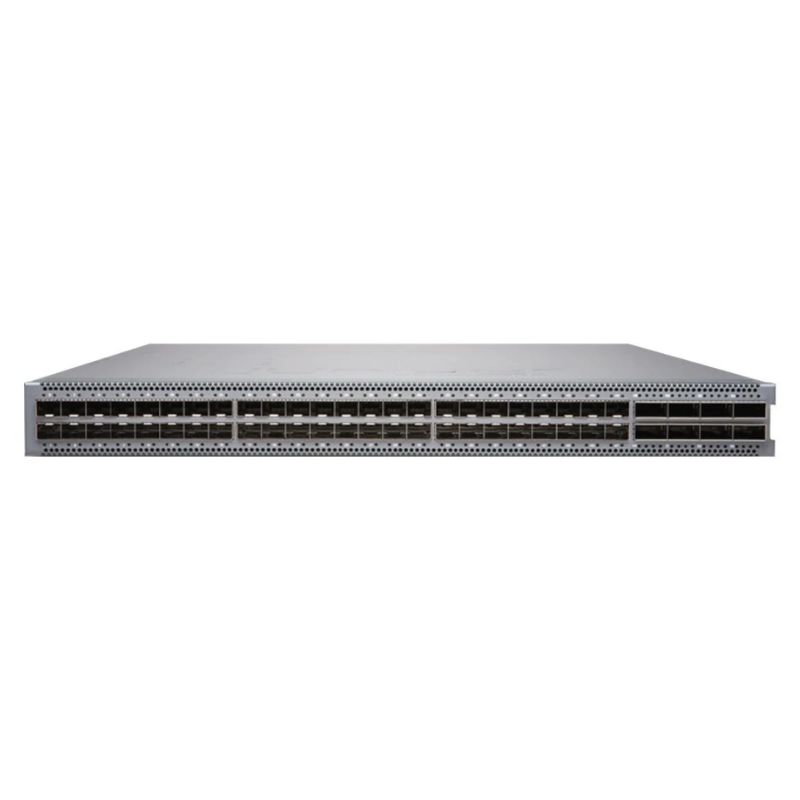

The Juniper Networks QFX5120-48Y-AFI2 is a high-performance, compact 1U switch designed for modern data centers and enterprise network environments. Featuring 48 ports of 25GbE and 8 ports of 100GbE, this switch delivers exceptional bandwidth and low-latency performance, making it suitable for demanding applications such as cloud computing, virtualization, high-frequency trading, and large-scale storage networks. Its advanced architecture, combined with the flexible AC airflow design, ensures optimal cooling efficiency and operational reliability in a variety of deployment scenarios.

Main Information

• Part: QFX5120-48Y-AFI2
• Brand: Juniper Networks
• Product Type: Switch

Key Features of Switch

• Form Factor 1U Rack-mountable
• Port Configuration 48 x 1/10/25GbE SFP28 + 8 x 40/100GbE QSFP28
• Switching Capacity 4 Tbps (Bidirectional)
• Forwarding Rate 2 Bpps (Billion packets per second)
• Airflow Direction AFI (Back-to-front / Port-side intake)

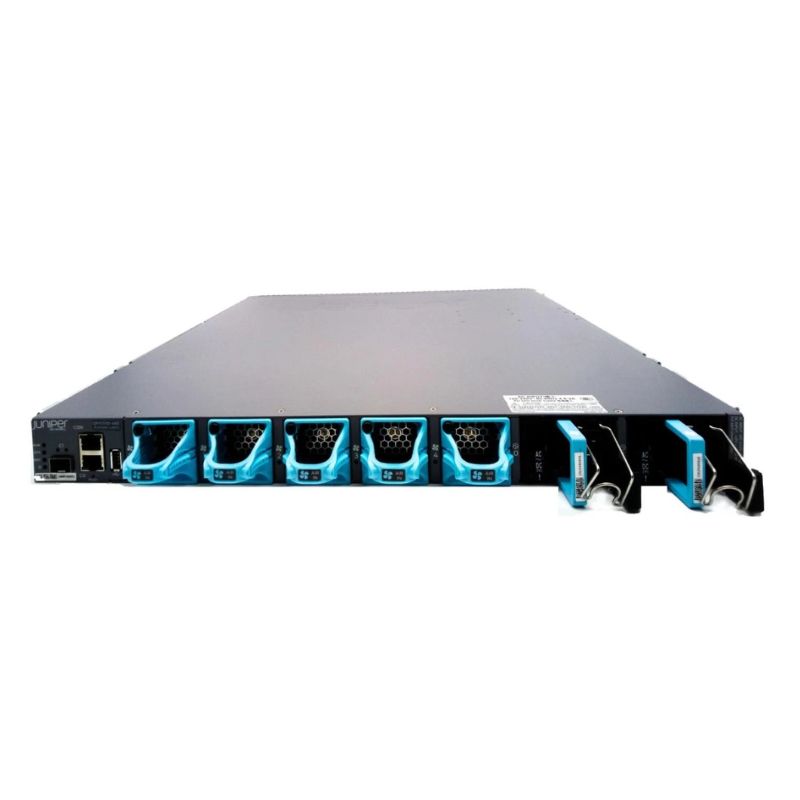

• Power Supply Dual (1+1) redundant hot-pluggable AC PSUs
• Fan Modules 5 hot-pluggable fans (4+1 redundancy)
• Latency As low as 550 nanoseconds
• CPU 2.2 GHz quad-core Intel
• Memory / Storage 16 GB RAM / 50 GB SSD

Juniper Networks QFX5120-48Y-AFI2 Switch

The QFX5120-48Y-AFI2 series is part of Juniper Networks’ renowned QFX line of switches, which are built to support scalable, high-speed networking for leaf-and-spine architectures. Its compact 1U form factor allows for dense deployments in rack environments, enabling data center operators to maximize port density without compromising airflow and thermal management.

Network Architecture Integration

The QFX5120-48Y-AFI2 switch is optimized for high-performance data center architectures, especially leaf-spine and top-of-rack (ToR) configurations. In a leaf-spine topology, this switch serves as a leaf switch connecting servers to the network fabric while spine switches handle high-speed inter-leaf traffic. The combination of 25GbE and 100GbE ports allows administrators to tailor network connectivity based on workload requirements, balancing cost and performance effectively.

The switch supports VXLAN for network virtualization, enabling overlay networks that simplify multi-tenant cloud environments. VXLAN integration also enhances network segmentation and security by isolating traffic between tenants or applications while maintaining high throughput.

Advanced Layer 2 and Layer 3 Features

The Juniper QFX5120 series is equipped with robust L2 and L3 networking capabilities. For Layer 2, it supports VLANs, link aggregation, spanning tree protocols, and other key features to efficiently manage broadcast domains and ensure loop-free topologies. Layer 3 features include OSPF, BGP, RIP, and static routing, providing flexibility in routing traffic within the data center or between multiple sites.

The switch also supports advanced features such as MLAG (Multi-Chassis Link Aggregation), which allows for active-active uplinks and higher bandwidth utilization. MLAG enables two switches to appear as a single logical switch to connected devices, simplifying management and enhancing redundancy.

Front-to-Back Airflow Optimization

The airflow design in the QFX5120-48Y-AFI2 is optimized for data center thermal management. Front-to-back airflow aligns with standard cooling practices, directing hot air away from sensitive components and ensuring consistent operating temperatures. This design not only improves energy efficiency but also enhances the longevity and reliability of the switch components.

Monitoring and Analytics

With advanced telemetry, network administrators can monitor port utilization, link errors, latency, and traffic patterns. The data collected can be integrated into network monitoring systems for predictive maintenance, capacity planning, and troubleshooting. This ensures that the network remains optimized and reduces the likelihood of downtime.

Deployment Scenarios

The QFX5120-48Y-AFI2 is versatile and can be deployed in multiple scenarios:

Data Center Top-of-Rack Switch

As a ToR switch, it provides high-speed connectivity to servers and storage units, aggregating traffic to spine switches. Its 1U form factor allows for dense installations in racks while maintaining efficient cooling and easy cable management.

Enterprise Core or Aggregation Layer

In enterprise networks, the switch can serve as a core or aggregation device, supporting high-performance routing, redundancy, and network segmentation. The combination of 25GbE and 100GbE ports allows for flexible uplink configurations to other network layers.

High-Performance Computing (HPC)

The low latency and high throughput of the QFX5120-48Y-AFI2 make it ideal for HPC environments where fast data transfer and minimal delay are critical. Its support for RDMA over Converged Ethernet (RoCE) enhances performance for distributed computing and storage clusters.

Scalability and Future-Proofing

The QFX5120 series is engineered for scalability. Organizations can start with a few switches and expand as network demands increase. The combination of 25GbE and 100GbE connectivity ensures that the switch can handle current traffic loads while supporting future upgrades. Integration with Juniper’s ecosystem allows seamless extension of network fabrics, enabling organizations to adopt emerging technologies without overhauling existing infrastructure.

Reliability and Redundancy

The Juniper QFX5120-48Y-AFI2 emphasizes high availability and operational continuity. Redundant power supplies, hot-swappable fans, and robust hardware design reduce the risk of downtime. Coupled with MLAG and dynamic routing protocols, the switch ensures that even if one component fails, network operations continue without disruption.

Quality of Service (QoS)

The switch supports comprehensive QoS policies, enabling prioritization of critical traffic such as VoIP, storage replication, and real-time applications. Traffic shaping, policing, and hierarchical QoS mechanisms allow administrators to maintain predictable performance across mixed workloads.

Energy Efficiency and Green Data Center Compliance

With rising energy costs and sustainability goals, the QFX5120-48Y-AFI2 is designed to minimize power consumption while maintaining peak performance. Energy-efficient AC power supplies, optimized airflow, and intelligent fan speed control contribute to a lower operational carbon footprint. This makes it a suitable choice for green data center initiatives.

Switch Capabilities

The Juniper Networks QFX5120-48Y-AFI2 48x25GbE + 8x100GbE 1U AC airflow switch offers a versatile, high-performance solution for modern networking environments. Its combination of high port density, low latency, advanced L2/L3 features, robust security, and energy-efficient design makes it ideal for data centers, enterprise networks, and HPC clusters. With seamless integration into leaf-spine architectures, comprehensive management and automation capabilities, and built-in redundancy, it ensures reliable, scalable, and future-proof network deployments. Organizations investing in this switch gain a durable, high-speed platform capable of supporting current and future networking demands.
