Overview of the Switch

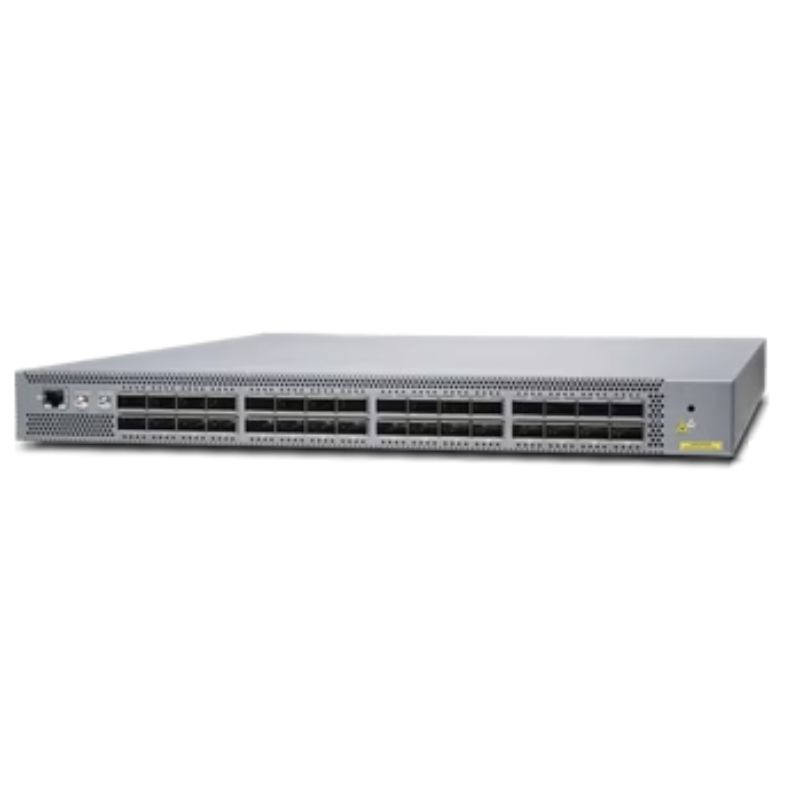

The Juniper Networks QFX5200-32C-AFI is a high-density, ultra-low-latency data center switch designed to meet the evolving demands of cloud providers, enterprises, service providers, and high-performance computing environments. Built by Juniper Networks, a globally recognized networking company specializing in carrier-grade routing and switching solutions, the QFX5200-32C-AFI delivers exceptional throughput, port flexibility, and operational reliability in a compact 1U form factor.

General Information

• Part: QFX5200-32C-AFI
• Brand: Juniper Networks
• Product Type: Switch

Key Features of Switch

Advanced Port Configuration

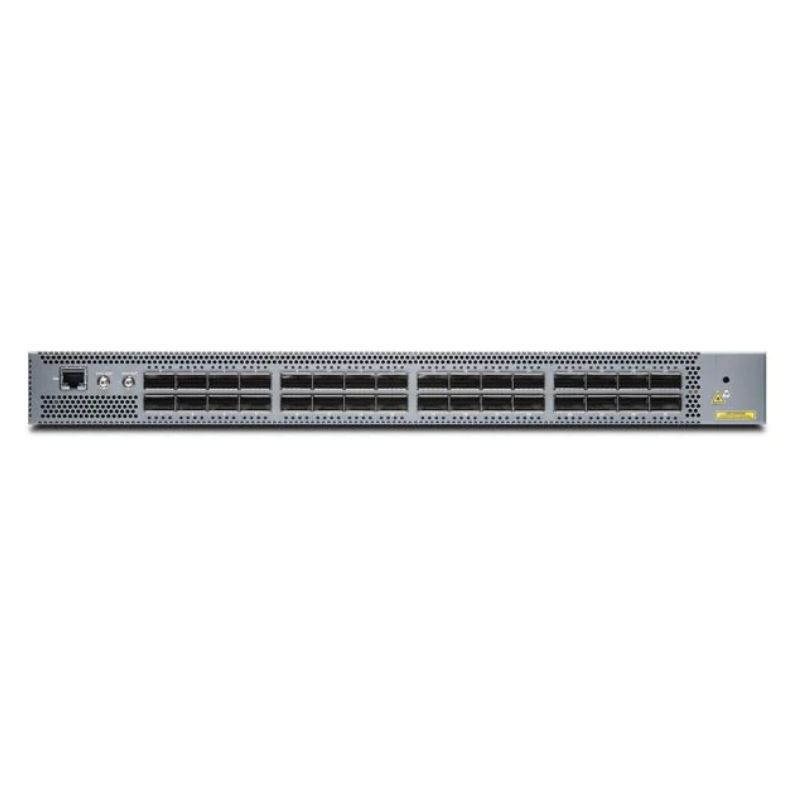

• 32x 100 Gigabit Ethernet QSFP28 interfaces for high-density connectivity
• 1x Gigabit RJ45 management interface supporting PTP Grandmaster functionality
• 1x USB port for simplified file transfers and system operations
• 1x RS-232 RJ45 console interface for direct device access
• 2x SFP ports and 1x additional Gigabit RJ45 management port (any two usable simultaneously)

Optimized Operating System & Management

• Powered by Junos OS for consistent performance and enterprise-grade stability
• Comprehensive network automation and monitoring capabilities
• Secure management access with flexible configuration options
• Reliable remote and local administrative control

Hardware Performance & Processing Power

• Switching capacity of up to 6.4 Tbps for high-throughput data handling
• Forwarding performance reaching 4.8 billion packets per second (Bpps)
• Intel Quad-Core Ivy Bridge 1.8 GHz processor for efficient system control
• 16 GB SDRAM ensuring responsive operations
• 64 GB SSD storage for system files, logs, and configurations
• 16 MB packet buffer supporting burst traffic management

Scalability & Routing Capabilities

• MAC address table capacity supporting up to 136,000 entries
• Maximum 128,000 IPv6 LPM routes for next-generation networking
• Up to 104,000 IPv4 host routes for large-scale deployments
• Multicast routing support: 52,000 IPv4 routes and 28,000 IPv6 routes
• Support for 4,096 VLANs enabling flexible segmentation

Cooling & Airflow Design

• Back-to-front airflow configuration for optimized rack deployment

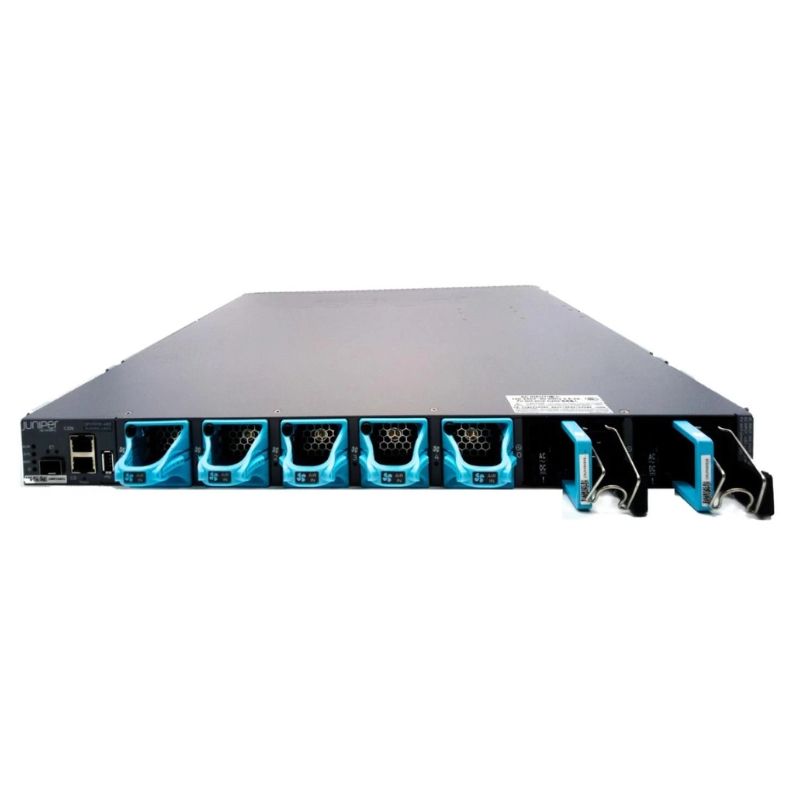

• Includes 5x QFX5200-32C-FANAFI fan modules for effective thermal management
• Designed to maintain stable operation in demanding environments

Redundant Power & Reliability

• 2x JPSU-850W-AC-AFI power supply units included for redundancy
• Hot-swappable power modules to reduce downtime
• Built for continuous, mission-critical network availability

Enterprise-Grade Networking Solution

• Ideal for spine-leaf architectures and high-speed aggregation layers
• Low-latency switching optimized for virtualization and cloud workloads
• High-density 100GbE connectivity for bandwidth-intensive applications
• Robust Layer 2 and Layer 3 feature set for scalable deployments

High-Performance 100GbE Data Center Switching

Featuring 32 QSFP+/QSFP28 ports, redundant hot-swappable fans, dual AC power supplies, and back-to-front airflow, this switch is optimized for spine-and-leaf architectures, data center interconnect (DCI), top-of-rack (ToR) deployments, and aggregation layers requiring 10GbE, 25GbE, 40GbE, 50GbE, and 100GbE connectivity. Its hardware architecture and Junos operating system support advanced automation, programmability, and telemetry, enabling organizations to scale performance while maintaining visibility and control.

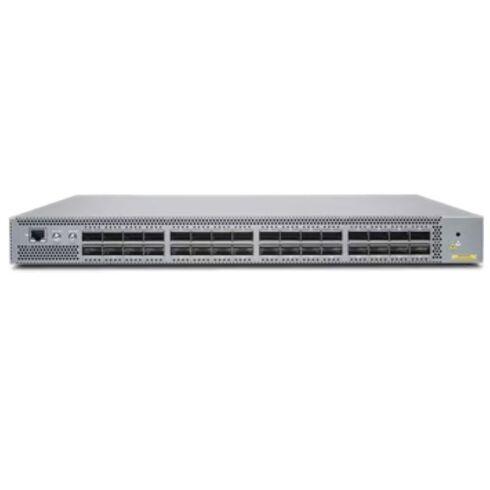

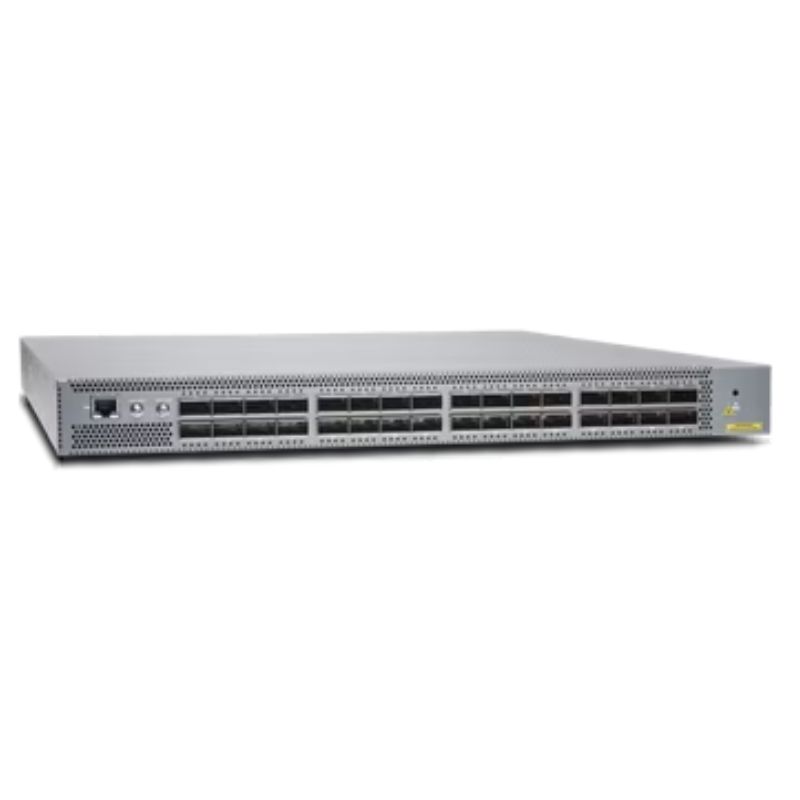

32 QSFP+/QSFP28 Ports for Flexible 10G–100G Connectivity

The defining feature of the QFX5200-32C-AFI is its 32 high-speed QSFP+/QSFP28 ports, each capable of supporting multiple Ethernet speeds. This flexibility allows network architects to design and evolve their infrastructure without replacing switching hardware.

This port versatility ensures investment protection and smooth migration from legacy 10GbE or 40GbE networks to modern 25GbE and 100GbE architectures. Organizations can incrementally upgrade servers, storage, and uplinks without overhauling the switching layer.

In spine-and-leaf deployments, the QFX5200-32C-AFI excels as either a high-performance leaf switch connecting to 100GbE spines or as a compact spine platform for mid-sized environments. With breakout capabilities, it can also serve as a dense top-of-rack switch delivering dozens of 10GbE or 25GbE server connections from a single 1U appliance.

Optimized for Modern Data Center Traffic Patterns

East-west traffic dominates modern data centers, driven by virtualization, microservices, containerization, and distributed storage systems. The QFX5200-32C-AFI is engineered to handle these traffic flows with predictable low latency and high throughput. Its switching fabric supports multi-terabit performance, ensuring non-blocking forwarding even under heavy load.

For environments leveraging hyperconverged infrastructure (HCI), cloud-native applications, or big data analytics, consistent low latency and high port density are essential. The QFX5200-32C-AFI addresses these requirements with wire-speed performance across all ports, reducing bottlenecks and improving application responsiveness.

Redundant Fans and 2 AC Power Supplies for High Availability

Enterprise and service provider networks demand continuous uptime. The QFX5200-32C-AFI incorporates redundant, hot-swappable fan modules and dual AC power supplies to ensure uninterrupted operation even in the event of component failure.

Dual AC Power Supplies

Equipped with two field-replaceable AC power supply units (PSUs), the switch supports N+1 redundancy. Each PSU can independently power the system, allowing maintenance or replacement without shutting down the device.

Hot-Swappable Redundant Fan Modules

Thermal management is vital in high-density 100GbE switches. The QFX5200-32C-AFI features redundant fan trays that can be replaced without powering down the unit. Intelligent thermal monitoring dynamically adjusts fan speeds based on temperature, balancing cooling efficiency with energy consumption.

This hardware-level redundancy significantly reduces the risk of unexpected outages caused by cooling failures and supports continuous operation in demanding rack environments.

Back-to-Front Airflow for Data Center Optimization

The “AFI” designation indicates back-to-front airflow, meaning air is drawn in from the port side and exhausted through the power supply side. This airflow pattern aligns with hot aisle/cold aisle containment strategies commonly used in enterprise and hyperscale data centers.

Back-to-front airflow simplifies rack planning and ensures thermal consistency when deployed alongside other networking and server equipment configured with similar cooling direction.

For organizations maintaining strict environmental controls, selecting the correct airflow model is critical. The QFX5200-32C-AFI is ideal for facilities designed with intake at the rear and exhaust at the front of the rack.

Spine-and-Leaf Architecture Enablement

The QFX5200-32C-AFI is purpose-built for spine-and-leaf data center architectures, which eliminate traditional three-tier bottlenecks.

With 100GbE uplinks and high-density breakout capabilities, this switch can function effectively in either role. As a leaf, it aggregates server connections and uplinks at 100GbE. As a spine, it interconnects multiple leaf switches with consistent throughput and minimal latency.

VXLAN and EVPN Support

Modern data centers require scalable network virtualization. The QFX5200-32C-AFI supports VXLAN overlays with EVPN control plane, enabling Layer 2 and Layer 3 segmentation across large-scale environments.

Advanced Automation and Programmability

Running on the Junos operating system, the QFX5200-32C-AFI integrates automation and programmability features that streamline deployment and management. Junos offers a consistent CLI, robust APIs, and support for modern automation frameworks.

Zero-Touch Provisioning (ZTP)

Zero-Touch Provisioning allows administrators to deploy switches rapidly without manual configuration. When powered on, the switch can automatically retrieve configuration files from a network server, reducing deployment time and human error.

Telemetry and Analytics

Streaming telemetry provides real-time performance insights. Instead of relying solely on traditional SNMP polling, telemetry continuously exports operational data to monitoring platforms

In large-scale data centers, these capabilities enhance operational visibility and reduce mean time to resolution (MTTR).

Security and Network Segmentation

The QFX5200-32C-AFI supports advanced security features at both Layer 2 and Layer 3. These include access control lists (ACLs), role-based access control (RBAC), MACsec encryption (where applicable), and secure management interfaces.

Combined with EVPN-VXLAN segmentation, the switch enables fine-grained policy enforcement, isolating workloads, departments, or tenants.

Data Center Interconnect (DCI) Capabilities

High-speed 100GbE interfaces make the QFX5200-32C-AFI suitable for data center interconnect use cases. Organizations operating multiple facilities can leverage high-bandwidth links to synchronize storage, replicate virtual machines, and support disaster recovery strategies.

Energy Efficiency and Operational Control

Despite delivering multi-terabit throughput, the QFX5200-32C-AFI is designed for energy efficiency. Intelligent fan control, efficient power supplies, and optimized silicon architecture help reduce power consumption per gigabit.

Use Cases Across Industries

Enterprise Data Centers

Enterprises deploying virtualization, private cloud platforms, and high-performance storage can rely on the QFX5200-32C-AFI for scalable leaf-spine connectivity and seamless integration with orchestration tools.

Cloud Service Providers

Public and private cloud providers benefit from high-density 100GbE connectivity and EVPN-VXLAN overlays to support multi-tenant environments with predictable performance.

Financial Services

Low latency and hardware redundancy make the switch suitable for trading floors and analytics clusters where microseconds matter.

Research and High-Performance Computing

Universities and research labs running distributed compute workloads require high bandwidth and low latency between nodes. The QFX5200-32C-AFI provides the interconnect performance needed for simulation, AI training, and scientific modeling.

Scalability for Future Growth

Network demands continue to grow due to AI workloads, real-time analytics, and increasing data volumes. The QFX5200-32C-AFI offers a scalable foundation that supports gradual upgrades from 10GbE and 40GbE to 25GbE and 100GbE without disruptive hardware changes.

Its combination of 32 flexible QSFP+/QSFP28 ports, redundant components, back-to-front airflow, and advanced software features makes it a long-term strategic investment for organizations seeking resilient, high-performance networking.

By integrating high-speed interfaces, advanced automation, robust security, and carrier-grade reliability, the Juniper Networks QFX5200-32C-AFI stands as a powerful solution for modern data center switching requirements. Whether deployed as a spine, leaf, aggregation, or DCI switch, it delivers the performance, flexibility, and dependability necessary for today’s and tomorrow’s network infrastructures.
