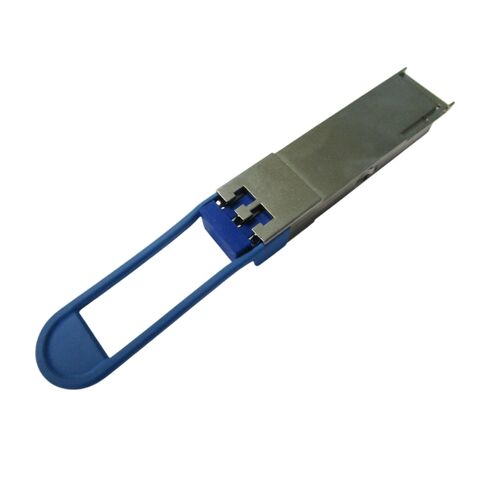

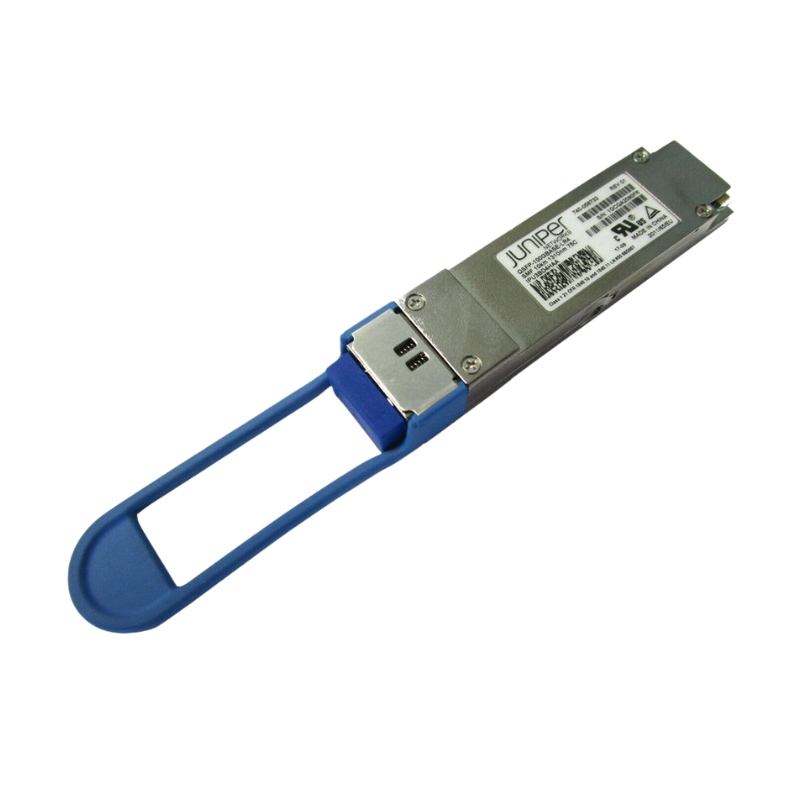

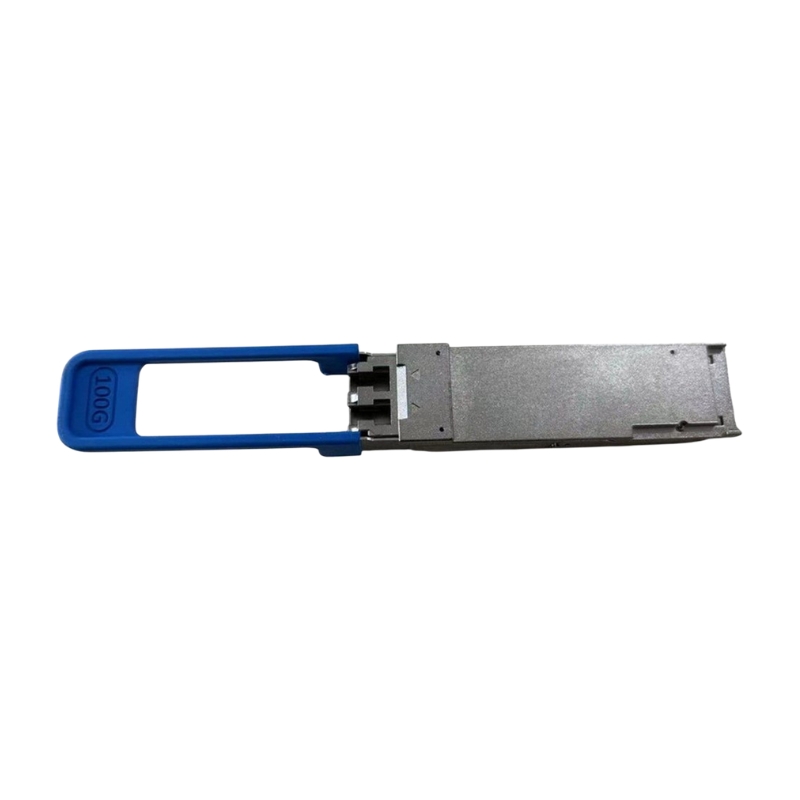

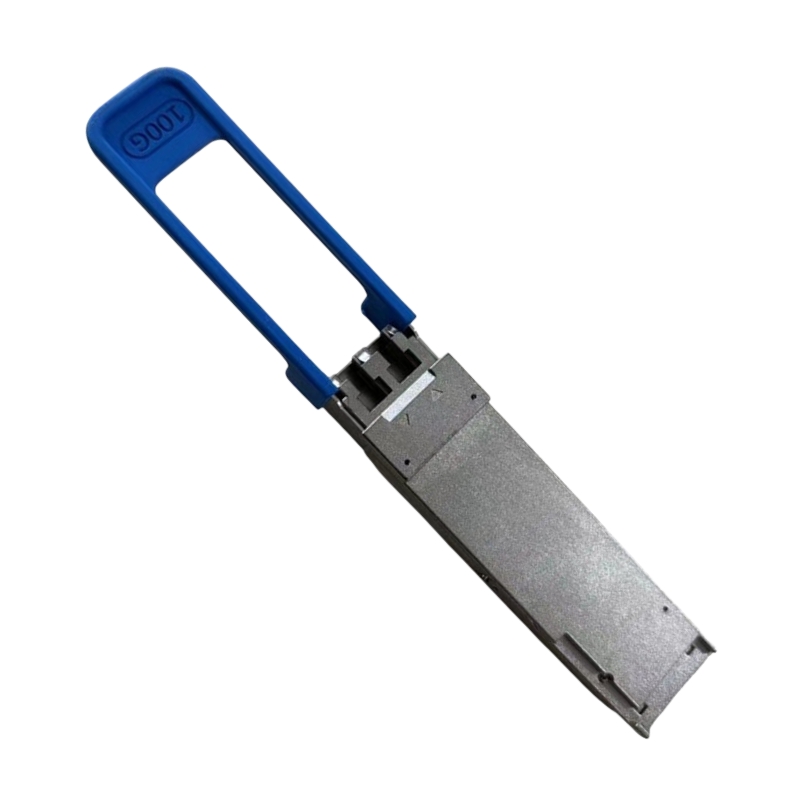

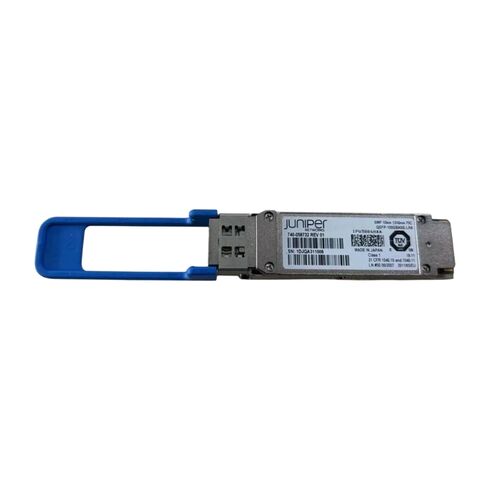

QSFP-100GBASE-LR4 Juniper Networks QSFP28 Ethernet Pluggable Rate Module Support Only Optical Transceiver

QSFP-100GBASE-LR4 QSFP28 Pluggable Transceiver Overview

The Juniper Networks QSFP-100GBASE-LR4 QSFP28 Ethernet Pluggable Rate Module Support Only Optical Transceiver category represents a highly specialized class of high-speed optical connectivity solutions engineered for enterprise, carrier, data center, and service provider environments that demand reliable, long-reach 100 Gigabit Ethernet transmission. Designed specifically to operate within compatible Juniper networking platforms, this module class ensures seamless interoperability, predictable performance, and strict adherence to industry optical standards while supporting mission-critical infrastructure.

As network architectures evolve toward spine-leaf data center fabrics, edge computing, virtualization, and cloud-native deployments, 100G connectivity has become a fundamental building block. QSFP-100GBASE-LR4 QSFP28 optical transceivers serve as essential components in achieving scalable bandwidth expansion, reduced latency, and efficient fiber utilization across metropolitan and campus environments. These modules are purpose-built for single-mode fiber applications, delivering extended transmission distances while maintaining low power consumption and high signal integrity.

Understanding QSFP-100GBASE-LR4 QSFP28 Technology

QSFP28 Form Factor and Electrical Architecture

The QSFP28 form factor is the evolution of the QSFP+ interface, enabling 100 Gigabit Ethernet throughput within a compact pluggable module footprint. QSFP28 modules utilize four independent transmit and receive channels, each operating at 25Gbps, to aggregate a total bandwidth of 100Gbps. The compact size allows high-density port configurations in modern switches and routers, enabling network architects to scale capacity without increasing rack space or power demands.

Within the Juniper Networks ecosystem, QSFP28 modules are optimized for integration with high-performance switching and routing platforms. The design ensures compliance with IEEE 802.3ba and related optical standards, allowing consistent signaling and reliable long-haul performance in structured cabling environments.

100GBASE-LR4 Optical Standard

100GBASE-LR4 is defined for long-reach transmission over single-mode fiber up to 10 kilometers. The LR4 designation indicates four optical wavelengths transmitted over a duplex LC interface using wavelength division multiplexing technology. Each of the four wavelengths carries a 25Gbps data stream, combining at the receiver to form a single 100Gbps signal.

This approach enables extended reach without requiring parallel fiber infrastructure, making LR4 modules especially suitable for inter-building connectivity, campus networks, metropolitan area networks, and large enterprise data centers. The optical design incorporates distributed feedback laser technology to ensure stable wavelength accuracy and minimize dispersion-related degradation.

Juniper Networks Platform Compatibility

Modules in this category are engineered specifically for compatibility with :contentReference[oaicite:0]{index=0} switching and routing systems. Juniper-certified optical transceivers undergo rigorous validation processes to ensure optimal functionality with supported hardware, firmware, and operating systems such as Junos OS.

Platform-specific compatibility ensures features such as digital diagnostics monitoring, automatic recognition, thermal management optimization, and performance reporting operate seamlessly. This level of integration minimizes interoperability risks and eliminates uncertainties associated with third-party optics in high-availability environments.

Supported Juniper Networking Systems

QSFP-100GBASE-LR4 modules are typically supported across a wide range of Juniper switching families, including data center, enterprise, and service provider platforms. High-density core switches, aggregation switches, and edge routers leverage these modules to establish backbone connections and high-capacity uplinks. The precise compatibility list depends on hardware revision and firmware version, but certified optics ensure guaranteed operation within specified environmental and electrical tolerances.

Optical Performance and Transmission Characteristics

Single-Mode Fiber Transmission

The LR4 optical transceiver is designed exclusively for single-mode fiber applications. Single-mode fiber supports long-distance communication with minimal signal attenuation and reduced modal dispersion compared to multimode fiber. This makes LR4 modules suitable for extended campus connections, metro interconnects, and cross-building fiber runs.

With a typical maximum reach of 10 kilometers, these modules provide sufficient distance capacity for most enterprise backbone deployments. Proper fiber quality, connector cleanliness, and power budget calculations ensure optimal signal integrity across the entire transmission path.

Wavelength Division Multiplexing Technology

Wavelength division multiplexing technology allows four distinct wavelengths to transmit simultaneously over a single fiber pair. Each channel operates independently, maintaining signal integrity while maximizing fiber efficiency. The integrated multiplexing and demultiplexing components inside the module ensure precise wavelength separation and recombination at the receiver.

Data Center and Enterprise Deployment Scenarios

Spine-Leaf Architecture Connectivity

Modern data centers frequently deploy spine-leaf topologies to ensure predictable latency and scalable bandwidth. In such architectures, 100G LR4 modules provide interconnections between spine and leaf switches across extended data hall distances. Their long-reach capability enables distributed switching fabrics without requiring additional intermediate aggregation layers.

Inter-Building Campus Connectivity

Large enterprises and educational institutions often operate multiple buildings within a campus environment. QSFP-100GBASE-LR4 modules facilitate high-capacity backbone links between buildings using existing single-mode fiber infrastructure. This eliminates the need for expensive fiber reinstallation while supporting bandwidth-intensive applications such as virtualization, unified communications, and high-resolution video collaboration.

Service Provider and Metro Access Networks

Service providers rely on reliable 100G optical connectivity to deliver broadband services and enterprise connectivity. LR4 modules are well-suited for metropolitan aggregation and access networks, where 10-kilometer reach provides flexibility in network topology design. Carrier-grade reliability ensures continuous service delivery in competitive telecommunications environments.

Compliance and Industry Standards

IEEE 802.3 100 Gigabit Ethernet Standard

QSFP-100GBASE-LR4 modules comply with IEEE 802.3 specifications governing 100 Gigabit Ethernet transmission. Compliance ensures interoperability across standards-based networking infrastructure while maintaining performance benchmarks for latency, signal integrity, and reliability.

Safety and Regulatory Certifications

These optical transceivers adhere to international safety and electromagnetic compatibility standards. Laser safety classifications and electromagnetic emission controls ensure safe operation in enterprise and carrier facilities. Compliance with global regulatory requirements supports deployment across multiple geographic regions.

High-Performance Computing Environments

Research institutions and analytics-driven enterprises deploy high-performance computing clusters that demand rapid data exchange between compute nodes. 100G optical interconnects enable reduced latency and enhanced throughput necessary for data-intensive simulations and machine learning tasks.

Hot-Pluggable Functionality

Hot-pluggable capability allows network administrators to install or replace modules without powering down equipment. This feature is essential for maintaining continuous network operation in mission-critical environments where downtime is unacceptable.

Category Significance in Modern Networking Infrastructure

The Juniper Networks QSFP-100GBASE-LR4 QSFP28 Ethernet Pluggable Rate Module Support Only Optical Transceiver category represents a critical connectivity segment within modern high-speed networking infrastructure. By combining long-distance optical transmission, high port density, energy efficiency, and certified compatibility, these modules address the growing bandwidth demands of enterprises, cloud providers, educational institutions, healthcare networks, and telecommunications operators.

As digital transformation accelerates and network traffic volumes continue to expand, the role of 100G optical interconnects becomes increasingly central to maintaining competitive performance standards. This category of Juniper-certified QSFP28 LR4 modules provides the foundation for scalable, resilient, and future-ready network architectures that can adapt to evolving technological demands without compromising reliability or operational efficiency.
