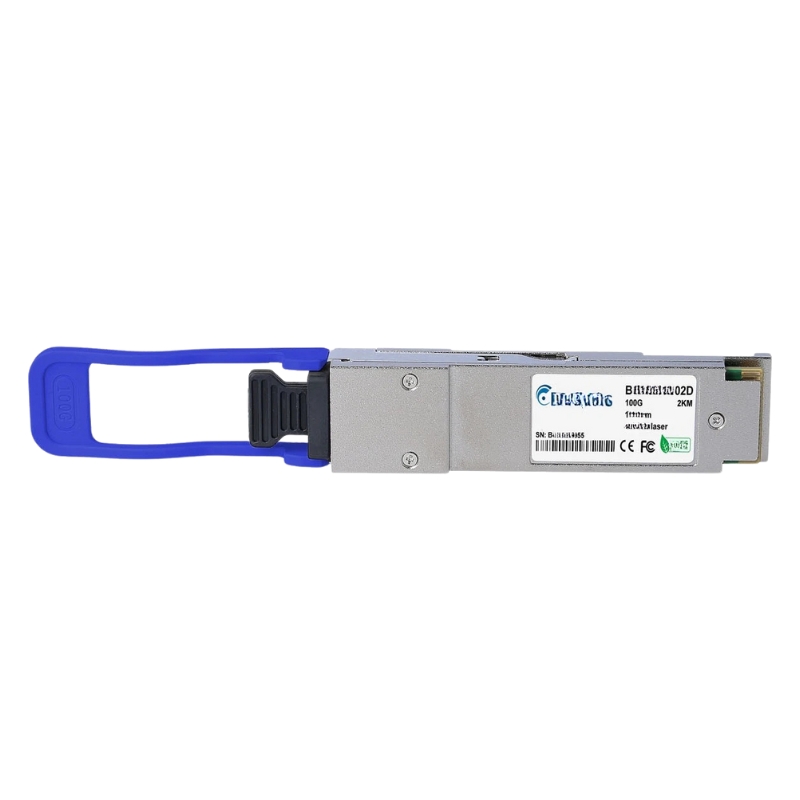

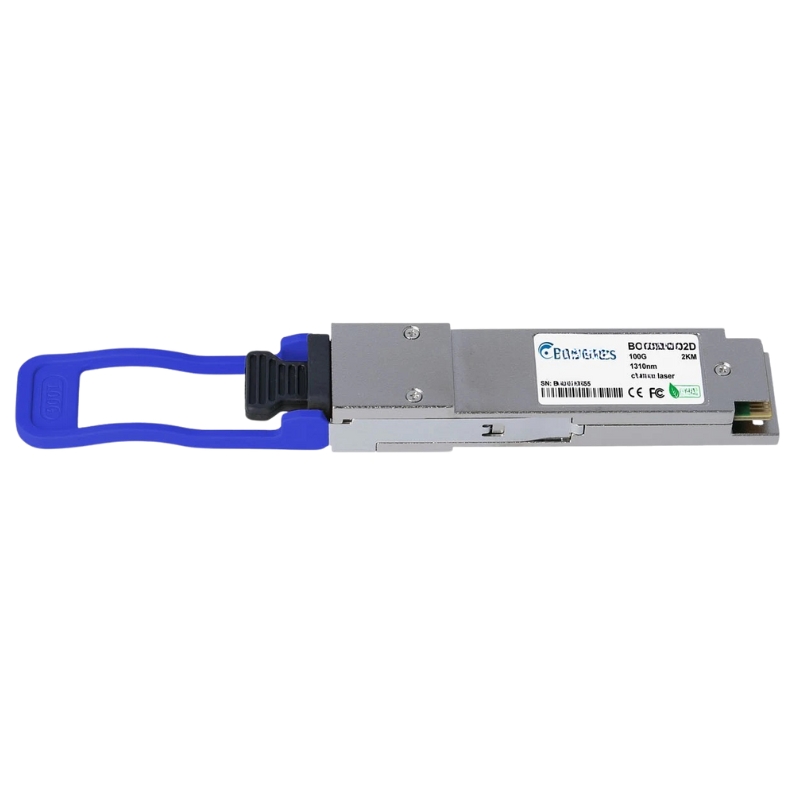

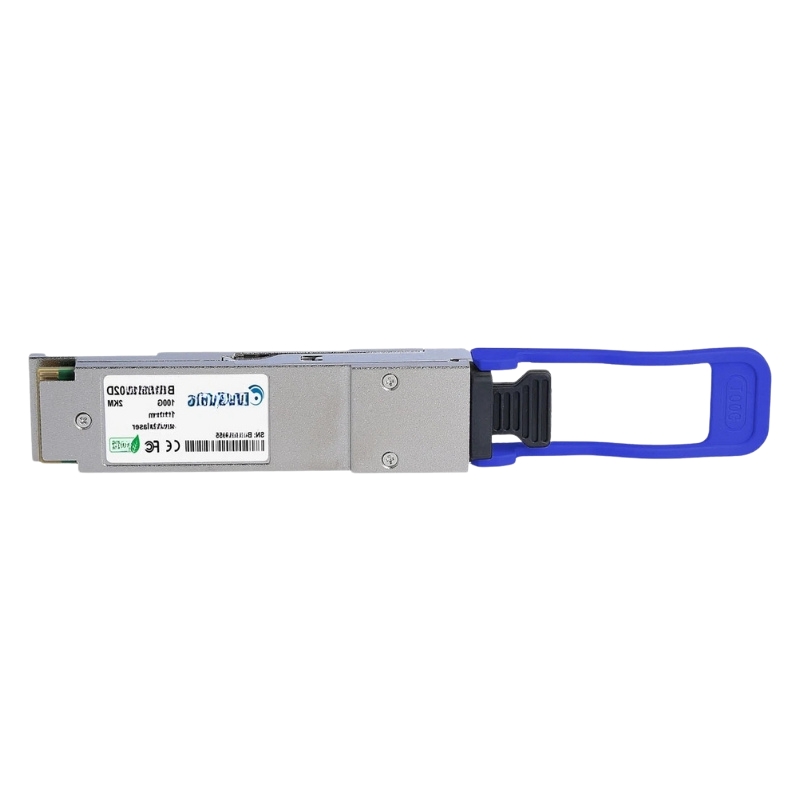

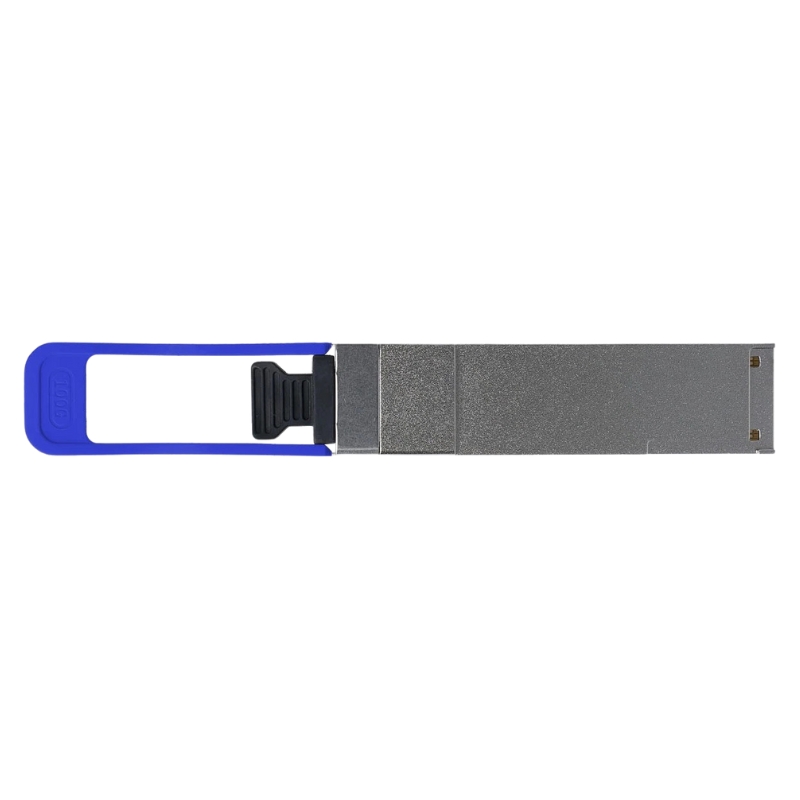

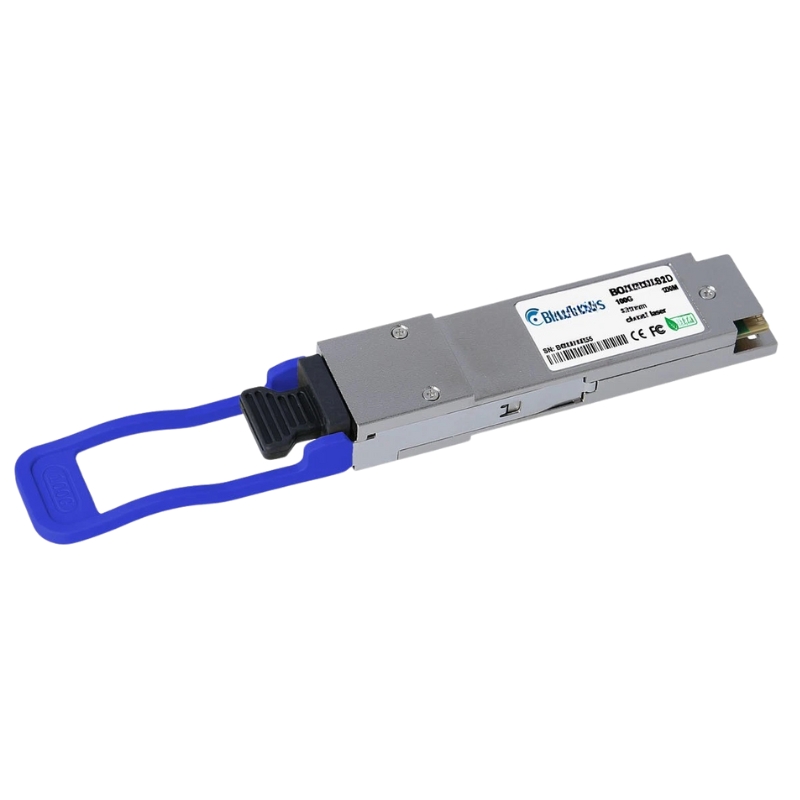

Juniper QSFP-100G-SR4-C Qsfp-28 100g-sr4 Transceiver.

Juniper QSFP-100G-SR4-C Networks QSFP-28 100G-SR4 Transceiver

The Juniper QSFP-100G-SR4-C transceiver module is an advanced high-speed networking solution designed to deliver superior performance in 100G Ethernet applications. This hot-pluggable transceiver is specifically engineered for data centers, high-performance computing networks, and enterprise environments that demand ultra-fast connectivity. With a compact QSFP28 form factor and support for multimode fiber, this module ensures seamless data transmission with exceptional reliability.

Key Features of Juniper QSFP-100G-SR4-C

High-Speed 100G Connectivity

The QSFP-100G-SR4-C supports a data rate of 100Gbps, making it ideal for high-bandwidth applications that require low-latency and high-throughput performance. This module operates over multimode fiber (MMF) and utilizes four parallel lanes, each transmitting at 25Gbps.

Multimode Fiber Compatibility

Designed for short-range data transmission, the transceiver works efficiently over OM3 and OM4 multimode fiber. It offers a maximum reach of up to 70 meters on OM3 and up to 100 meters on OM4 fiber, ensuring optimal connectivity within data center environments.

Hot-Pluggable QSFP28 Form Factor

With its hot-pluggable QSFP28 design, the Juniper QSFP-100G-SR4-C allows network administrators to install or replace the module without interrupting network operations. This feature enhances network flexibility and reduces downtime.

Applications of QSFP-100G-SR4-C Transceivers

Data Center Interconnects

Large-scale data centers rely on the QSFP-100G-SR4-C for interconnectivity between high-density switches, ensuring low-latency and high-speed data transfer. The module supports hyperscale architectures, enabling seamless scalability.

High-Performance Computing (HPC) Networks

For high-performance computing applications, the transceiver offers reliable and fast data transmission essential for complex computational processes and machine learning models that require real-time processing.

Enterprise and Cloud Networking

Organizations deploying cloud-based solutions and virtualization environments benefit from the QSFP-100G-SR4-C’s ability to provide high-speed, cost-effective, and scalable networking solutions.

Technical Specifications

Interface and Compliance

• Form Factor: QSFP28
• Compliance: IEEE 802.3bm 100GBASE-SR4, MSA QSFP28
• Connector Type: MPO-12

Performance and Power Consumption

• Data Rate: 100Gbps
• Transmission Distance: Up to 100 meters (OM4 fiber)
• Power Consumption: Typically <3.5W

Operating Environment

• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C

Advantages of Using Juniper QSFP-100G-SR4-C

Energy-Efficient and Cost-Effective

The low power consumption of the Juniper QSFP-100G-SR4-C reduces operational costs while maintaining high-performance networking, making it an energy-efficient solution for modern data centers.

Enhanced Signal Integrity

Utilizing advanced optical technologies, the transceiver ensures minimal signal loss and enhanced data transmission integrity, even in high-density network environments.

Reliable and Scalable Network Solutions

Designed to meet growing bandwidth demands, the QSFP-100G-SR4-C provides scalable solutions for evolving network infrastructures, from enterprise networks to hyperscale data centers.

Comparison with Other 100G Transceivers

QSFP-100G-SR4 vs. QSFP-100G-LR4

While both transceivers support 100Gbps, the SR4 variant is optimized for short-range applications using multimode fiber, whereas the LR4 model is designed for long-distance transmission over single-mode fiber.

QSFP-100G-SR4 vs. CFP-100G-SR10

Compared to CFP-100G-SR10, the QSFP-100G-SR4 has a smaller footprint, lower power consumption, and better compatibility with modern networking equipment.

Installation and Deployment

Step-by-Step Installation Guide

To install the Juniper QSFP-100G-SR4-C, simply insert the module into a compatible QSFP28 port, ensuring the MPO-12 connector aligns correctly. Secure the module by pressing it firmly into place.

Compatibility with Network Devices

This transceiver is fully compatible with Juniper network switches and routers, as well as other industry-standard QSFP28-compliant equipment.

Where to Buy Juniper QSFP-100G-SR4-C

Authorized Distributors

For authentic and high-quality Juniper QSFP-100G-SR4-C transceivers, purchasing from authorized distributors ensures product reliability and warranty coverage.

Online Retailers

Several online platforms offer genuine Juniper transceivers at competitive prices, providing a convenient purchasing option for businesses and network administrators.
