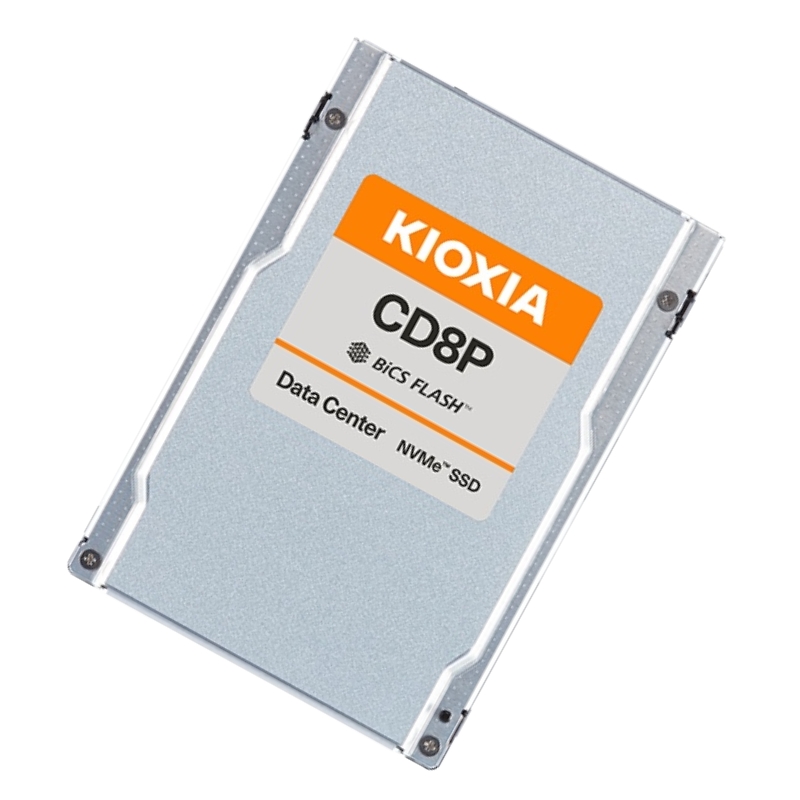

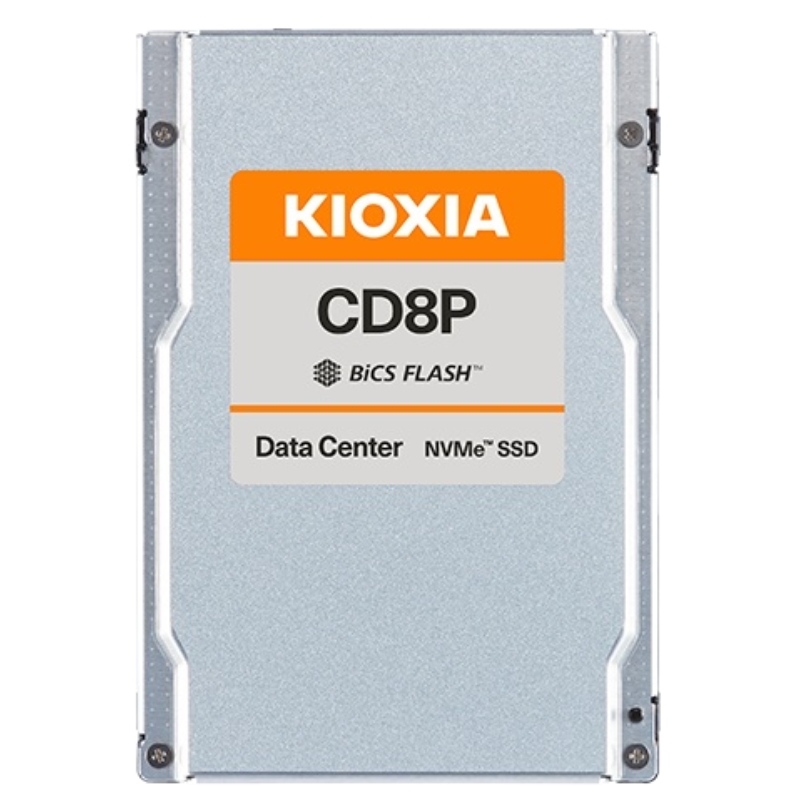

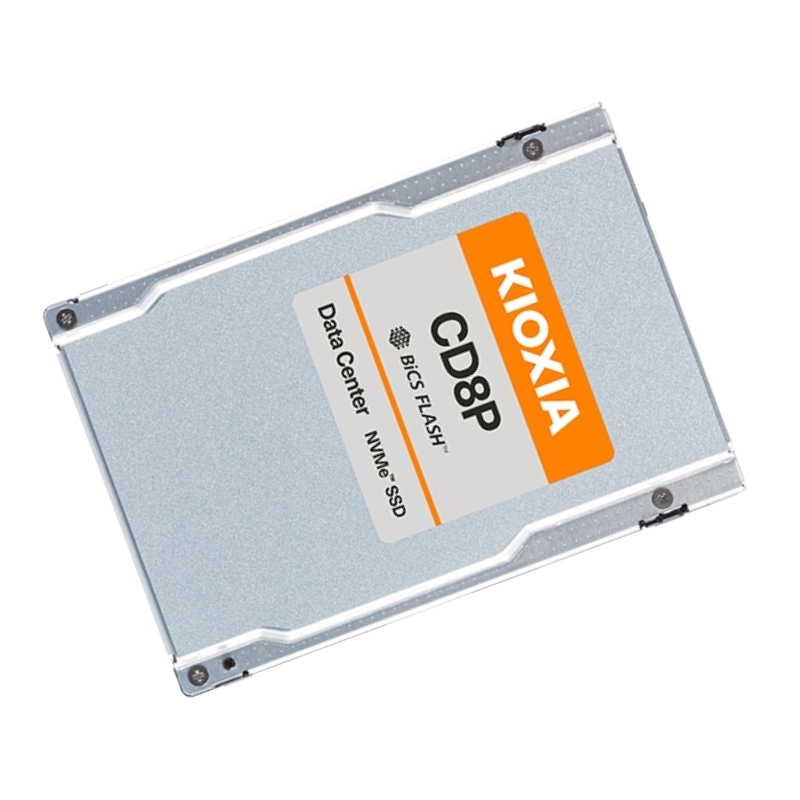

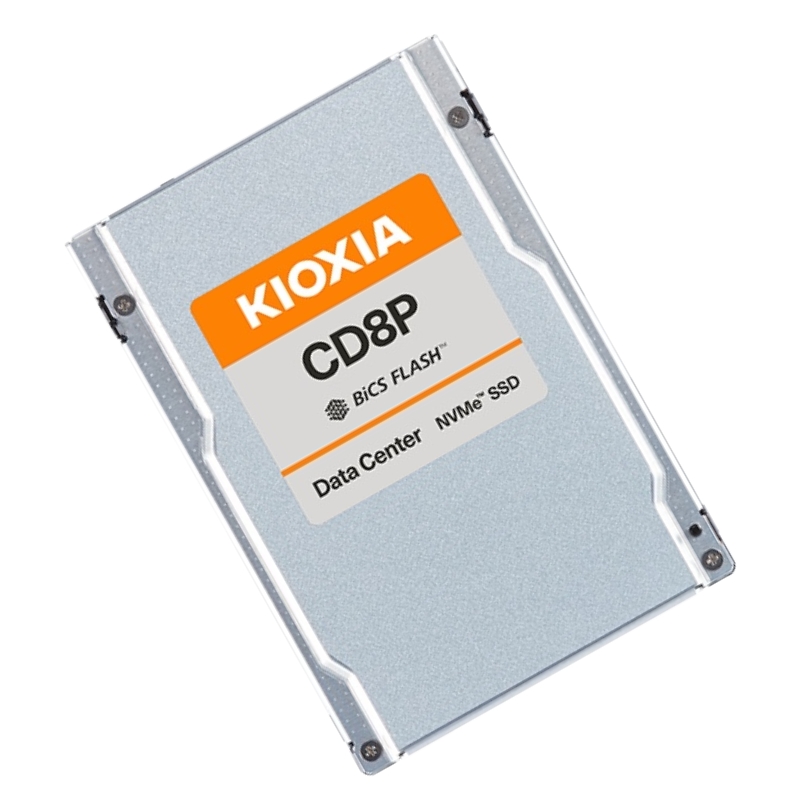

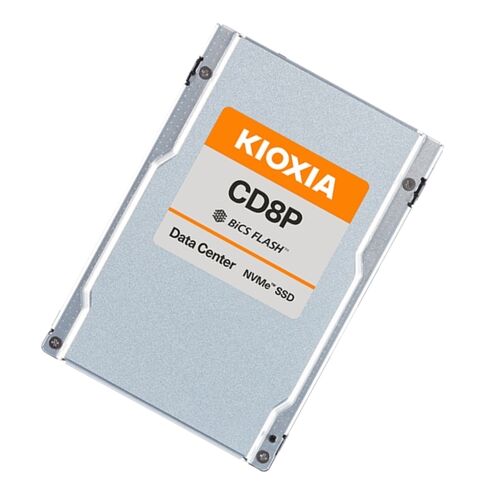

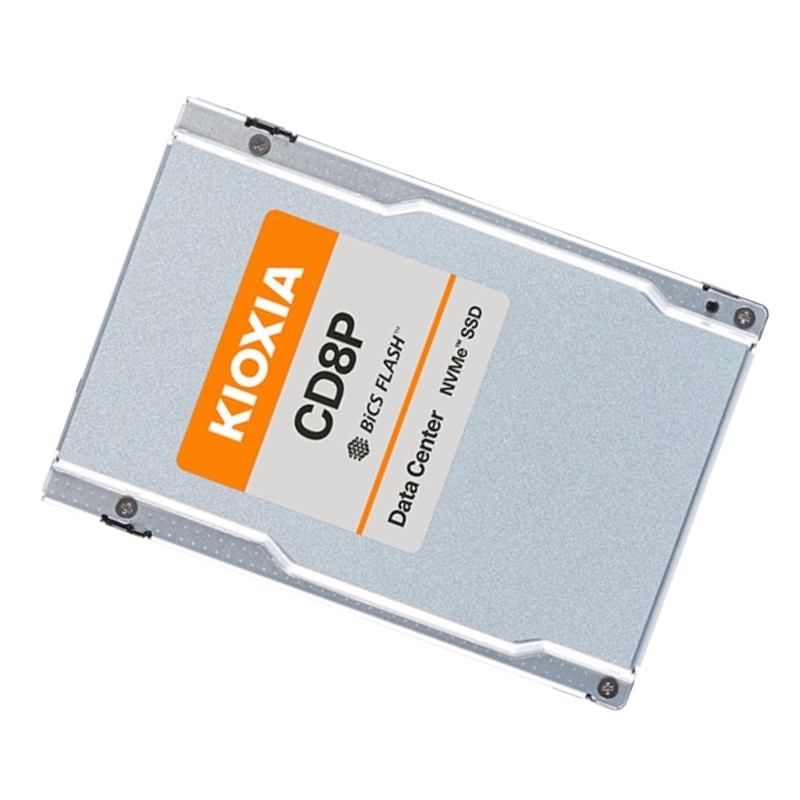

Kioxia KCD8XPUG3T20 3.2TB Mixed Use PCI-E NVMe SSD

KCD8XPUG3T20
Hover on image to enlarge

Brief Overview of KCD8XPUG3T20

Kioxia KCD8XPUG3T20 CD8P-V Series 3.2TB Data Center Mixed Use PCIe 5.0 x4 NVMe Solid State Drive. New Sealed in Box (NIB) with 3 Years Warranty

QR Code of Kioxia KCD8XPUG3T20 3.2TB Mixed Use PCI-E NVMe SSD
$1,209.00
$852.00
You save: $357.00 (30%)
Ask a question
Price in points: 852 points
+
Quote
SKU/MPNKCD8XPUG3T20Availability✅ In StockProcessing TimeUsually ships same day ManufacturerKioxia Product/Item ConditionNew Sealed in Box (NIB) ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30
Description

Product Overview

KIOXIA Cd8p-v Series KCD8XPUG3T20: High-Performance SSD for Mixed-Use Workloads

  • Storage capacity of 3.2TB tailored for mixed-use applications in modern data centers.
  • Powered by PCIe 5.0 x4 interface, ensuring ultra-fast data transfer rates.
  • Engineered for 24/7 reliability with an impressive endurance rating of 3 DWPD.
  • Utilizes advanced 3D TLC NAND technology for consistent and durable performance.

Performance Highlights

Exceptional IOPS for Intensive Workloads

Optimized Random and Sequential Operations

  • Random 4KB Read: Achieves up to 1,900,000 IOPS for rapid data retrieval.
  • Random 4KB Write: Offers up to 400,000 IOPS, supporting heavy-duty operations.
  • Sequential Read Speed: Delivers up to 12,000 Mbps for large-scale data transfers.
  • Sequential Write Speed: Capable of up to 5,500 Mbps for efficient storage tasks.

Reliability and Durability

Enterprise-Level Robustness

  • Mean Time Between Failures (MTBF): Rated at 2.5 million hours for extended operational lifespan.
  • Designed for continuous 24x7 usage, ensuring stability in critical environments.

Comprehensive Data Protection

  • Power Loss Protection (PLP): Shields data during unexpected power failures.
  • End-to-End Data Protection: Guarantees data integrity throughout the transfer process.
  • Sanitize Instant Erase (SIE): Allows secure and quick data removal.

Power Efficiency

Optimized Energy Consumption

  • Active Power Usage: Consumes 19W during operation for high performance.
  • Idle Power Usage: Drops to just 5W, conserving energy when not in use.

Environmental Specifications

Resilient in Challenging Conditions

  • Operating Temperature: Functional within a range of 0°C to 73°C.
  • Storage Temperature: Can endure from -40°C to 85°C for extended storage periods.
  • Humidity Resistance: Operates effectively in environments with 5% to 95% relative humidity.
  • Shock Tolerance: Withstands up to 1000G at 0.5ms for added durability.
  • Vibration Resistance: Rated at 2.17 Grms over a frequency range of 5-800 Hz.

Physical Dimensions

Compact and Lightweight Design

  • Dimensions: 100.45mm (D) x 69.85mm (W) x 15mm (H) for flexible installation options.
  • Weight: A lightweight 130g for hassle-free deployment and maintenance.

Overview of Kioxia KCD8XPUG3T20 CD8P-V Series 3.2TB NVMe SSD

The Kioxia KCD8XPUG3T20 is a high-performance 3.2TB PCIe 5.0 x4 NVMe Solid State Drive from the CD8P-V Series, engineered specifically for data center mixed-use applications. Designed to support the most demanding workloads, this SSD offers unparalleled speed, durability, and efficiency for enterprise storage solutions. With PCIe 5.0 support, the Kioxia KCD8XPUG3T20 delivers faster data transfer rates, while its mixed-use capabilities ensure that it can handle both read-intensive and write-intensive tasks with ease. Whether for cloud services, big data applications, or virtualization, this SSD offers the reliability and performance needed for modern data centers.

Key Features of the Kioxia KCD8XPUG3T20

  • Storage Capacity: 3.2TB, ideal for high-capacity data storage in data centers.
  • PCIe 5.0 Support: Harnesses the full potential of PCIe 5.0 x4 for faster data throughput.
  • Mixed-Use Capabilities: Optimized for handling both read and write-intensive workloads.
  • Form Factor: 2.5-inch U.3 for easy integration into enterprise storage systems.
  • Endurance: Designed to handle high-write endurance in enterprise environments.
  • Advanced Security: Built-in security features to protect sensitive data from unauthorized access.

What Makes the Kioxia KCD8XPUG3T20 Stand Out?

The Kioxia KCD8XPUG3T20 is a cutting-edge SSD built to provide maximum performance and reliability in demanding data center environments. Its combination of high capacity, low latency, and robust endurance makes it an excellent choice for businesses requiring fast, secure, and durable storage for large-scale applications. The PCIe 5.0 interface is one of the standout features of this SSD, allowing for extremely fast read and write speeds, making it suitable for a wide variety of data-intensive applications.

PCIe 5.0 Interface: Speed and Efficiency

The Kioxia KCD8XPUG3T20 takes advantage of the PCIe 5.0 interface, the latest generation of PCIe technology. PCIe 5.0 offers double the bandwidth compared to PCIe 4.0, providing a data transfer rate of up to 32GT/s (gigatransfers per second). This results in significantly faster read and write speeds, which is essential for high-performance data center operations.

How PCIe 5.0 Improves Storage Performance

PCIe 5.0's increased bandwidth and lower latency allow the Kioxia KCD8XPUG3T20 to handle more data throughput, reducing bottlenecks and speeding up data processing. With this enhanced performance, businesses can expect faster data access times, improved I/O throughput, and a more responsive system overall. Whether you’re managing large databases, running virtualized applications, or processing real-time data analytics, the Kioxia SSD delivers the necessary performance boost.

Future-Proofing with PCIe 5.0

As data center applications continue to evolve and require more power, PCIe 5.0 ensures that the Kioxia KCD8XPUG3T20 is ready to meet future demands. Its support for PCIe 5.0 makes this SSD an ideal choice for businesses that want to future-proof their storage infrastructure and stay ahead of technological advancements.

Mixed-Use Performance: Balancing Read and Write Operations

The Kioxia KCD8XPUG3T20 SSD is optimized for mixed-use workloads, providing a balanced solution for both read-intensive and write-intensive applications. This balance is crucial in data center environments where workloads often involve a combination of data retrieval and storage operations, such as in database management, virtualization, and cloud computing. The mixed-use design of this SSD ensures that it can maintain high levels of performance and endurance, even during high-volume read and write cycles.

Read-Intensive Applications

In read-intensive environments, such as cloud-based applications and web servers, the Kioxia KCD8XPUG3T20 excels at providing rapid data access. Its high throughput enables fast retrieval of large data sets, ensuring low latency and high availability of information. The SSD's high-speed interface and low response time make it ideal for applications that require fast and frequent access to large amounts of data.

Write-Intensive Applications

For write-intensive applications, such as big data analytics, machine learning, and transactional databases, the Kioxia KCD8XPUG3T20 offers robust endurance to withstand constant writing without compromising performance. The drive is engineered to handle high levels of write cycles, ensuring long-lasting reliability in demanding workloads. Its endurance rating supports large-scale enterprise environments that rely on continuous data input and processing.

Endurance and Reliability: Built for Enterprise Workloads

Enterprise SSDs like the Kioxia KCD8XPUG3T20 are built to provide high endurance, as they must withstand the constant read and write demands of data center operations. The endurance of an SSD is crucial for ensuring that the device performs reliably over time without degrading in performance. The Kioxia KCD8XPUG3T20 is specifically designed to handle sustained heavy workloads, making it a perfect solution for environments that rely on continuous, high-volume data access and storage.

What is Mixed-Use Endurance?

Mixed-use endurance refers to a drive's ability to handle both read and write operations without degradation in performance. The Kioxia KCD8XPUG3T20's mixed-use design makes it ideal for applications that demand both high read and write speeds. With the ability to sustain high write endurance levels, this SSD ensures reliable performance across a variety of enterprise workloads, from data centers to large-scale cloud services.

Enterprise-Grade Reliability

Enterprise storage solutions must meet rigorous reliability standards, and the Kioxia KCD8XPUG3T20 excels in this area. Its robust architecture, combined with high endurance ratings, ensures that it can handle the most demanding enterprise environments, providing uninterrupted service and minimal downtime. This reliability makes it a critical component for any organization looking to optimize its data center infrastructure.

Security Features: Protecting Your Data

In today's data-driven world, security is a top priority, especially for enterprises dealing with sensitive information. The Kioxia KCD8XPUG3T20 incorporates advanced security features to safeguard data against unauthorized access and potential breaches. The self-encrypting drive (SED) technology used in this SSD ensures that your data remains secure at all times.

Self-Encrypting Drive (SED) Technology

The Kioxia KCD8XPUG3T20 is equipped with SED technology, which automatically encrypts data at the hardware level. This feature ensures that all data stored on the drive is protected by AES-256 encryption, without the need for additional software. Even if the SSD is physically removed from the system, the data remains encrypted and inaccessible, protecting sensitive business information.

Data Security in a Multi-Tenant Environment

In multi-tenant environments, where multiple users or organizations share the same infrastructure, data security is even more critical. The Kioxia KCD8XPUG3T20’s built-in encryption capabilities provide an added layer of security, ensuring that each tenant's data remains isolated and protected from unauthorized access. This is essential for cloud providers, shared data centers, and other multi-user applications.

Form Factor and Compatibility: Easy Integration with Data Centers

The Kioxia KCD8XPUG3T20 is designed in a 2.5-inch U.3 form factor, which is widely compatible with enterprise servers, storage arrays, and other data center infrastructure. The U.3 form factor ensures that the drive can be easily integrated into systems that support PCIe 5.0 x4, making it a versatile and flexible solution for a wide range of data center applications.

Benefits of the 2.5-Inch U.3 Form Factor

The 2.5-inch form factor offers several benefits, including compact size, compatibility with a wide range of devices,
