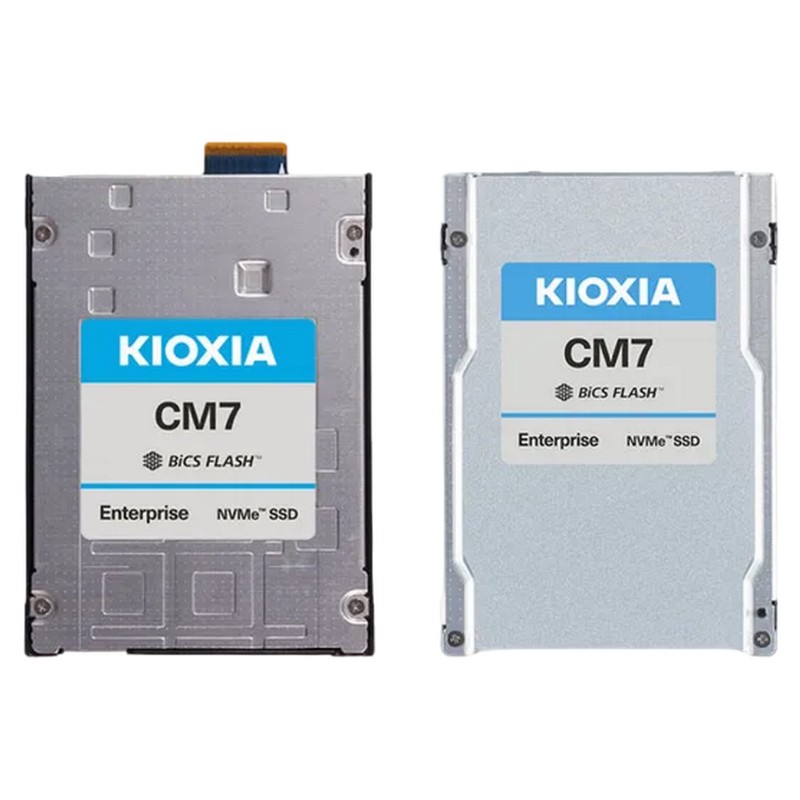

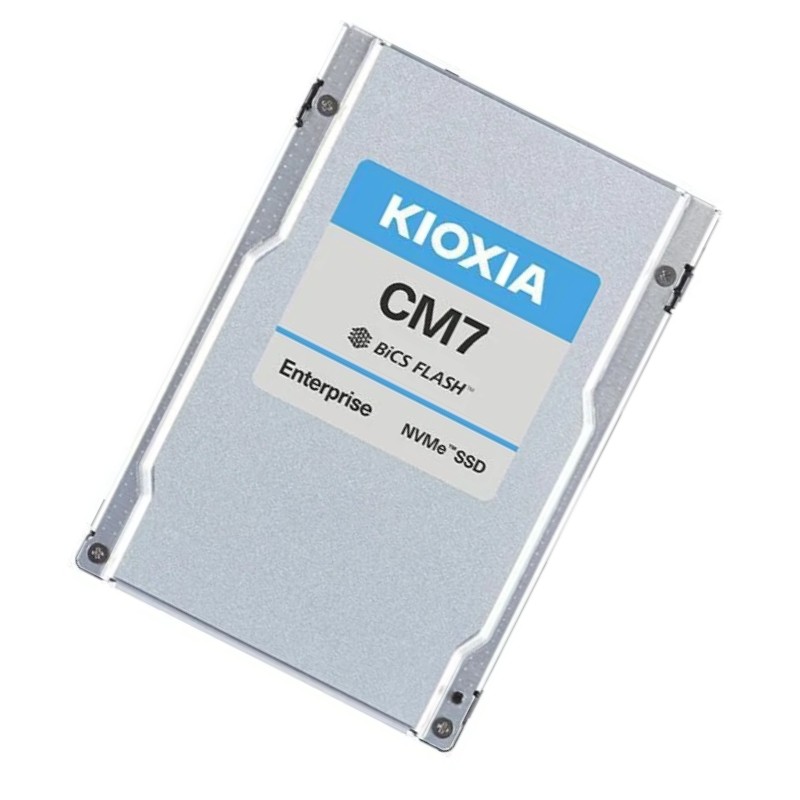

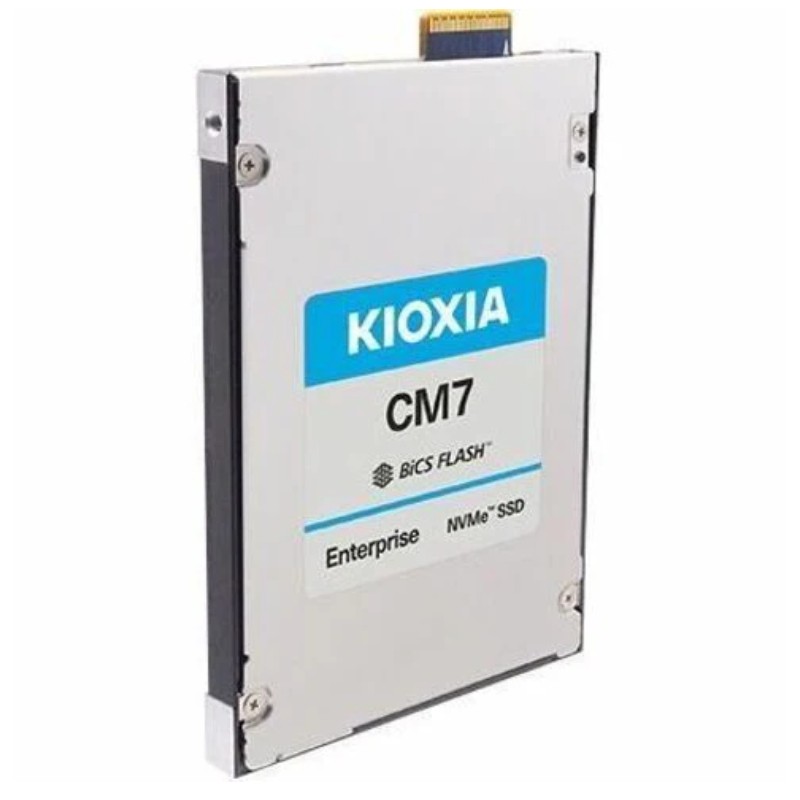

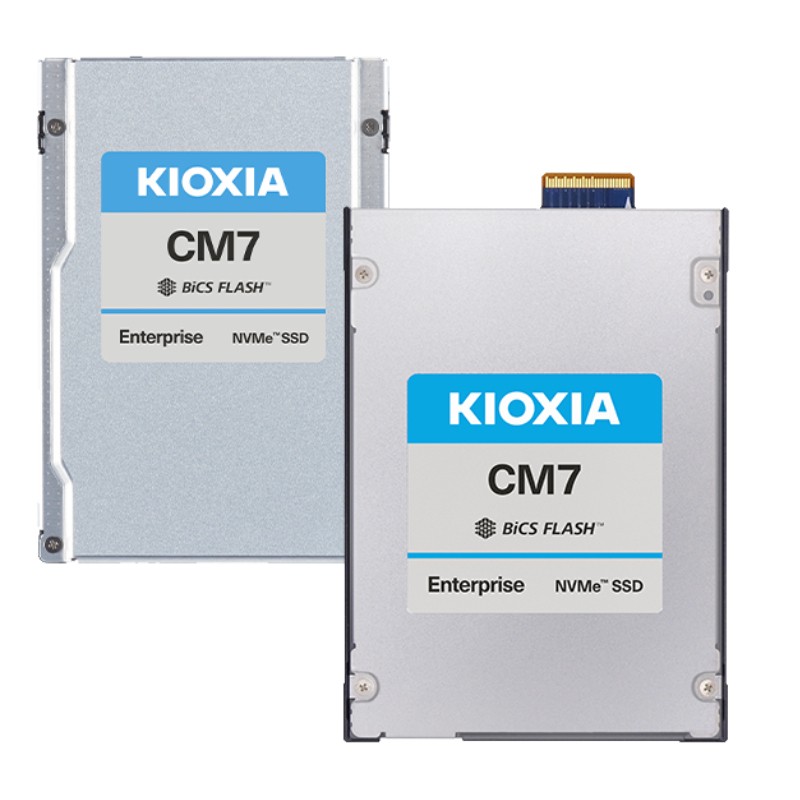

Kioxia KCMYXVUG1T60 1.6TB NVMe 2.5inch 15mm Enterprise SSD

In-Depth Analysis of the Kioxia KPM6XVUG12T8 12.8TB SAS 24GBPS SSD

The Kioxia KPM6XVUG12T8 is a high-performance 12.8TB solid-state drive that belongs to the PM6-V series, a new generation of SAS (Serial Attached SCSI) SSDs designed to meet the demanding needs of enterprise environments. This 2.5-inch U.2 form factor SSD uses BiCS Flash™ TLC NAND technology, offering a powerful balance of speed, capacity, and endurance to ensure seamless integration into various mission-critical applications such as cloud storage, high-performance computing, and data centers. In this comprehensive guide, we will delve into the features, specifications, and performance of the Kioxia KPM6XVUG12T8 SSD, offering an in-depth look at how this cutting-edge storage solution can benefit your enterprise's storage needs.

Key Features of the Kioxia KPM6XVUG12T8

The Kioxia KPM6XVUG12T8 stands out as one of the most advanced solid-state drives in its class, offering a range of features that optimize data storage performance, reliability, and efficiency in enterprise environments. Below, we explore the most notable features of this drive:

• PCIe® 5.0 & NVMe™ 2.0 Specification Compliant: The Kioxia KPM6XVUG12T8 is compliant with the latest PCIe 5.0 and NVMe 2.0 standards, providing top-tier data throughput and lower latency for read-intensive and write-heavy applications. These technologies ensure that the drive can handle the growing data demands of modern workloads.
• Advanced Kioxia BiCS Flash™ 3D TLC NAND: The drive utilizes Kioxia’s proprietary 112-layer BiCS Flash™ TLC NAND technology, offering enhanced performance and endurance. This advanced NAND allows for high-density storage while balancing speed, cost-effectiveness, and power efficiency.
• Dual-Port Design: The Kioxia KPM6XVUG12T8 features a dual-port design that enhances data availability and reliability by allowing multiple data paths. This feature ensures high uptime and fault tolerance, crucial for enterprise applications that require continuous data access.
• Power Loss Protection (PLP): In case of sudden power loss, the drive incorporates power loss protection technology that safeguards data integrity. It ensures that data being written to the drive is not corrupted during a power failure.
• Energy Efficiency: Despite its high-performance capabilities, the Kioxia KPM6XVUG12T8 operates efficiently, consuming only 22W under typical conditions and 5W in standby mode. This power-efficient design makes it an environmentally friendly option for enterprises focused on reducing their energy consumption.
• End-to-End Data Protection: The drive includes robust data protection features, ensuring that all data written and read from the drive remains safe and uncorrupted, even in the event of failures or disruptions.
• Security Options: SIE: The Kioxia KPM6XVUG12T8 provides optional hardware-based security features, including Self-Encrypting Drive (SED) technology, which provides an added layer of security for sensitive data stored on the drive.

Performance Specifications

Sequential Read and Write Speeds

The Kioxia KPM6XVUG12T8 is engineered to deliver exceptional sequential read and write speeds. In single-port (1x4) mode, the drive offers:

• Sustained 128KB Sequential Read Speed: The drive can reach speeds of up to 14,000 MB/s, making it suitable for high-demand applications like data migrations, video streaming, and large file transfers where sequential access to large datasets is critical.
• Sustained 128KB Sequential Write Speed: With a write speed of up to 3,500 MB/s, the Kioxia KPM6XVUG12T8 ensures fast data writing, which is crucial for tasks like real-time data analytics, database operations, and heavy-duty storage workloads.

Random Read and Write Performance

The random read and write performance of the Kioxia KPM6XVUG12T8 is equally impressive, supporting workloads that require low latency and high IOPS. The drive offers:

• Sustained 4KB Random Read Speed: Up to 2,000,000 IOPS, ensuring fast access to small chunks of data, which is ideal for applications such as databases and virtualized environments that require quick random data access.
• Sustained 4KB Random Write Speed: Up to 310,000 IOPS, providing optimal write performance for write-intensive workloads, including transaction-heavy applications and large-scale data processing.

Power Efficiency and Consumption

Power Requirements

The Kioxia KPM6XVUG12T8 has been designed to provide excellent performance without compromising on power efficiency. It operates with the following power specifications:

• Supply Voltage: 12V ± 10% and 3.3V ± 15% for stable and reliable operation across a wide range of system configurations.
• Power Consumption: Under typical operating conditions, the drive consumes 22W of power, while the power consumption during idle mode is reduced to just 5W, helping to lower energy costs in large-scale data centers.

Reliability and Durability

Mean Time To Failure (MTTF)

The Kioxia KPM6XVUG12T8 offers exceptional reliability with a mean time to failure (MTTF) of 2.5 million hours. This ensures the drive is durable enough to handle demanding, round-the-clock workloads commonly found in enterprise and data center environments. The drive's high MTTF rating means it is built for long-term operation, minimizing the risk of downtime due to hardware failure.

Endurance: Drive Writes Per Day (DWPD)

With a DWPD rating of 3, the Kioxia KPM6XVUG12T8 is capable of handling heavy write workloads, making it ideal for applications that require frequent data writes, such as transactional databases, business analytics, and high-performance computing systems. This endurance rating ensures the drive performs optimally over an extended period, even under constant load.

Environmental Resilience

Operating and Non-Operating Temperatures

The Kioxia KPM6XVUG12T8 is engineered to withstand a wide range of environmental conditions. It operates within a temperature range of 0°C to 73°C and can tolerate non-operating temperatures as low as -40°C and as high as 85°C. This makes the drive suitable for deployment in various environments, from temperature-controlled data centers to less stable operating conditions such as edge computing sites or outdoor enclosures.

Vibration and Shock Resistance

The Kioxia KPM6XVUG12T8 is built with durability in mind, able to withstand vibrations of up to 2.17 Grms (5 to 800 Hz) and shocks of up to 1,000 G (0.5 ms). This resilience ensures that the drive performs reliably in environments subject to physical stress, making it suitable for mobile and industrial applications, as well as in data centers where physical vibrations are common due to heavy machinery or traffic.

Form Factor and Compatibility

2.5-Inch U.2 Form Factor

The Kioxia KPM6XVUG12T8 comes in a standard 2.5-inch U.2 form factor, providing a flexible and space-efficient solution for enterprise storage. This form factor is widely compatible with modern server platforms and storage solutions, allowing for easy installation into existing systems without the need for additional adapters or custom configurations. The 15mm thickness of the drive ensures it fits into a wide range of storage chassis and systems that support 2.5-inch drives.

Compatibility with Enterprise Systems

The Kioxia KPM6XVUG12T8 is built to be fully compatible with a wide range of enterprise systems, supporting both PCIe 5.0 and NVMe 2.0 protocols. This ensures that the drive can be integrated into modern data center infrastructure, providing seamless connectivity with high-performance servers, storage arrays, and computing clusters. The drive is also compliant with SFF-TA-1001 standards, ensuring it can be easily adopted by companies adhering to the latest storage specifications.

Applications and Use Cases

Data Centers and Cloud Storage

The Kioxia KPM6XVUG12T8 is designed with the needs of data centers in mind, offering high capacity and performance for large-scale data storage applications. Its exceptional throughput and low latency make it perfect for environments that require rapid data access and storage, such as cloud service providers, enterprise storage solutions, and data-intensive applications like machine learning
