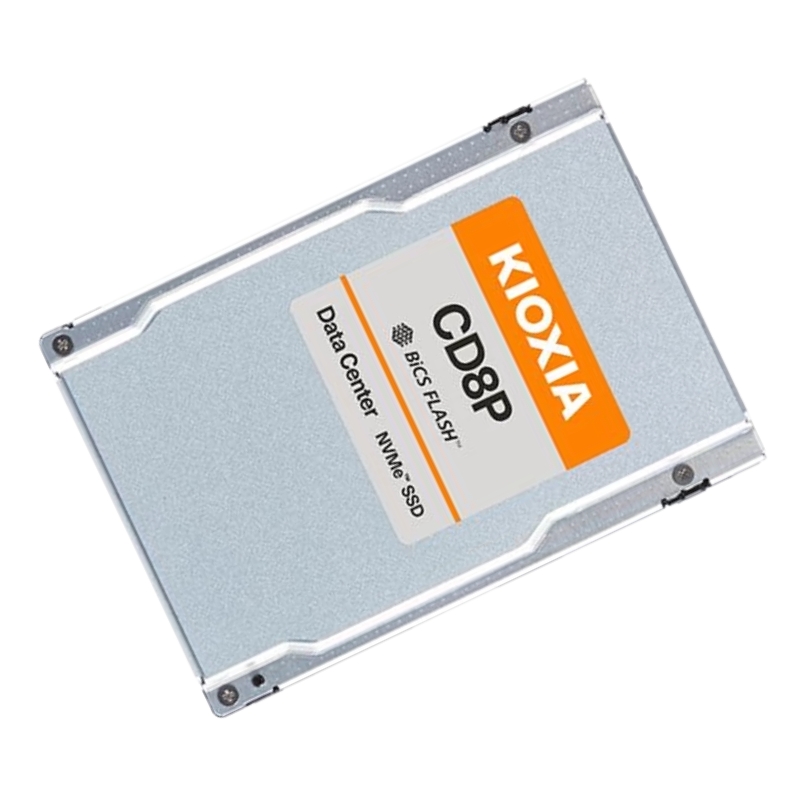

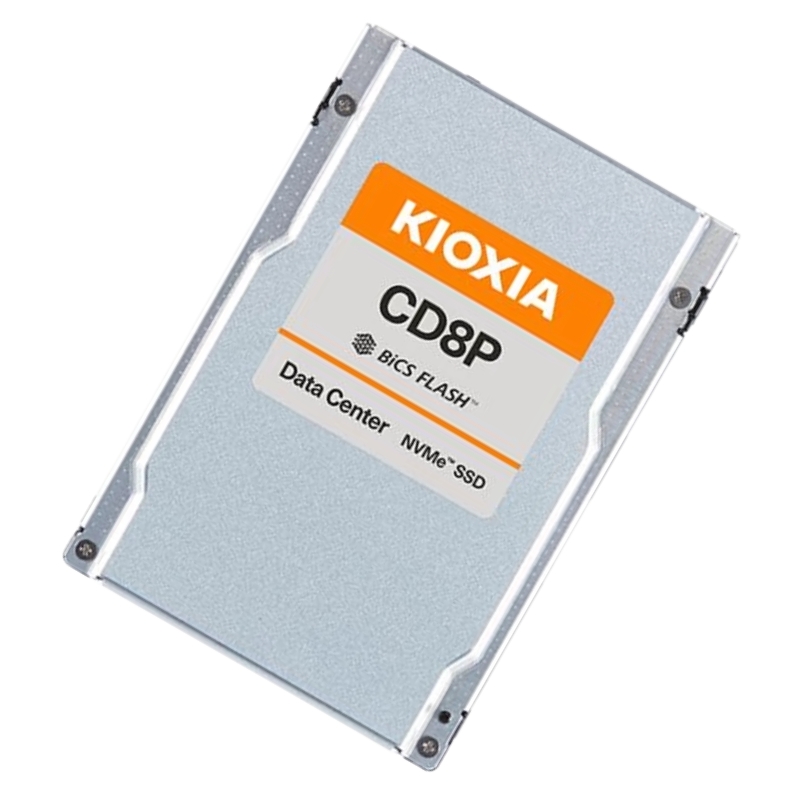

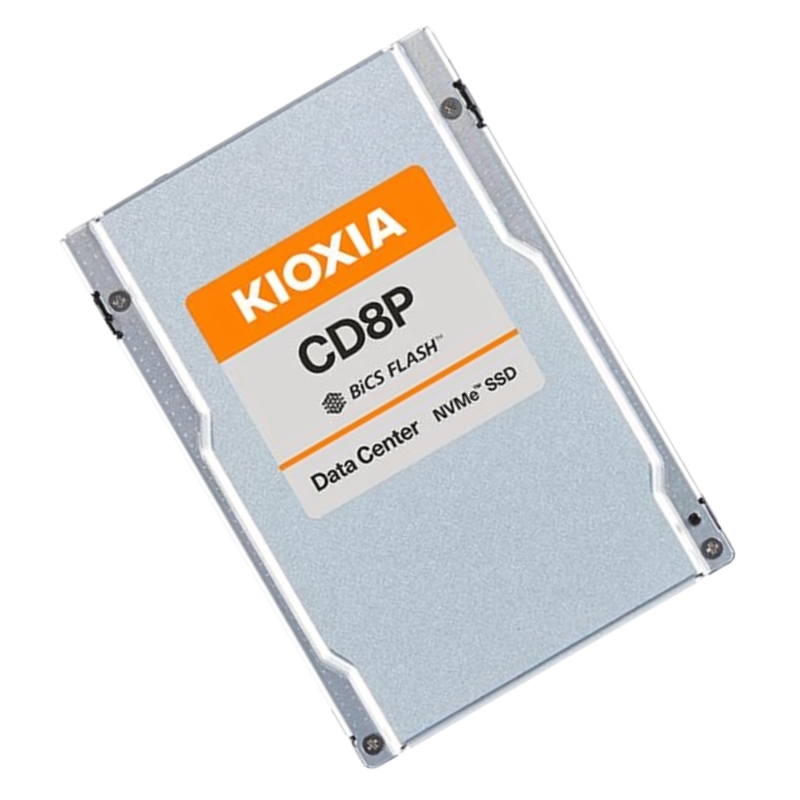

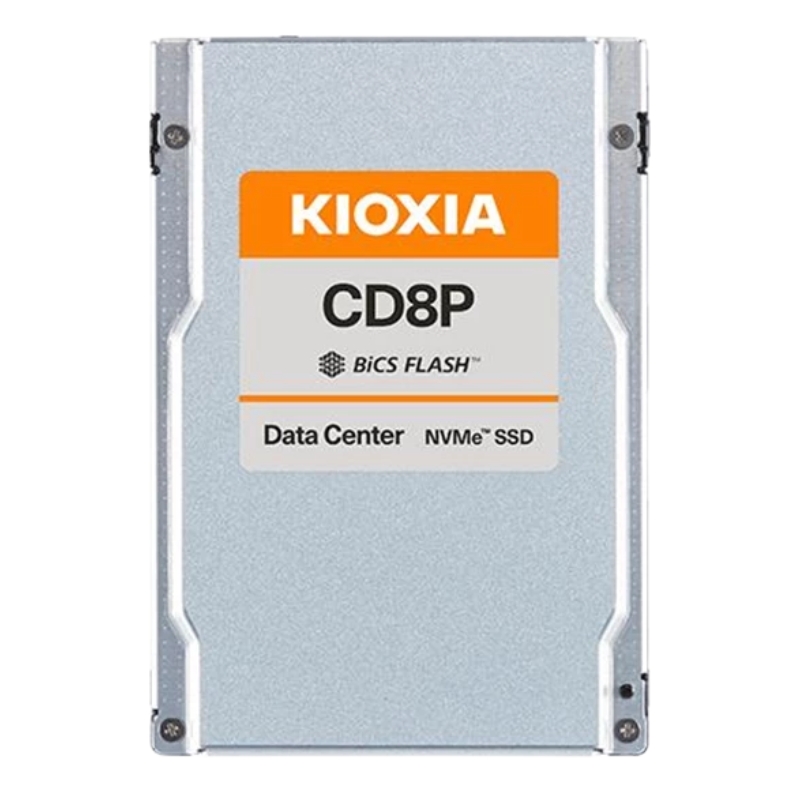

SDF7283GEB01T Kioxia CD8P-R Series 7.68 TB U.2 PCI-E 4.0 x4 (NVMe) Solid State Drive.

Kioxia CD8P-R Series 7.68TB U.2 SSD

Explore the high-performance Kioxia SDF7283GEB01T solid-state drive engineered for enterprise-grade storage solutions and data-intensive applications.

Core Product Information

• Brand Name: Kioxia
• Model Number: SDF7283GEB01T
• Drive Type: Internal SSD

Hardware Specifications

Storage Capacity & Interface

• Total Capacity: 7.68 Terabytes
• Connection Standard: PCI Express 5.0 x4 with NVMe protocol

Physical Dimensions

• Form Factor: 2.5-inch
• Width: 69.85 mm
• Depth: 100.45 mm
• Height: 15 mm
• Weight: 130 grams

Flash Memory Architecture

• Memory Type: BiCS Flash TLC NAND

Performance Characteristics

Sequential Data Transfer Rates

• Read Speed (128 KiB): Up to 12,000 MB/s
• Write Speed (128 KiB): Up to 5,500 MB/s

Random Access Speeds

• 4 KiB Random Read: 2,000,000 IOPS
• 4 KiB Random Write: 200,000 IOPS

Endurance Rating

• Drive Writes Per Day: 1 DWPD

Reliability Metrics

• Mean Time Between Failures: 2.5 million hours

Electrical Requirements

Voltage Input

• Main Voltage: 12V ±10%
• Auxiliary Voltage: 3.3V ±15%

Power Usage

• Active Mode Consumption: Typical 21 Watts
• Idle Mode Consumption: Typical 5 Watts

Environmental Tolerances

Temperature Range

• Operational Temperature: 0°C to 73°C
• Storage Temperature: -40°C to 85°C

Humidity & Vibration

• Operating Humidity: 5% to 95% RH
• Vibration Resistance: 21.27 m/s² (2.17 Grms) from 5 to 800 Hz

Shock Resistance

• Shock Tolerance: 9.8 km/s² (1,000 G) for 0.5 ms

Choose Kioxia CD8P-R Series SSD

• Exceptional read/write speeds for high-throughput environments
• Robust endurance and reliability for enterprise workloads
• Compact 2.5-inch design with advanced NAND flash technology
• Optimized for data centers and mission-critical operations

Kioxia CD8P-R Series SSDs: Enterprise-Class Performance

The Kioxia CD8P-R Series solid state drives represent a significant advancement in enterprise storage technology. Designed for high-performance computing environments, these U.2 PCIe 4.0 x4 NVMe 2.5-inch SSDs offer a combination of exceptional speed, reliability, and capacity. The SDF7283GEB01T model, with a massive 7.68 TB storage capacity, is specifically engineered for data-intensive applications, enabling enterprises to accelerate workloads while maintaining data integrity and energy efficiency.

High-Speed PCIe 4.0 x4 NVMe Interface

The CD8P-R Series SSDs utilize the latest PCIe 4.0 x4 interface, providing double the bandwidth of PCIe 3.0 solutions. This high-speed interface ensures ultra-low latency, enabling data centers to handle large-scale transaction processing, real-time analytics, and virtualization tasks without bottlenecks. NVMe protocol integration optimizes parallel processing and command queuing, allowing multiple simultaneous operations with minimal latency.

Enhanced Data Throughput and IOPS

One of the defining characteristics of the Kioxia CD8P-R Series is its exceptional input/output performance. With high sequential read and write speeds, these drives are ideal for workloads requiring fast data access. Random read and write IOPS are significantly improved compared to previous generation SSDs, ensuring consistent performance under heavy transactional loads. This makes the SDF7283GEB01T SSD highly suitable for database management systems, enterprise resource planning software, and AI-driven analytics applications.

Enterprise-Grade Endurance and Reliability

Kioxia has engineered the CD8P-R Series to meet the rigorous demands of enterprise environments. Utilizing advanced NAND flash technology and sophisticated error correction algorithms, these SSDs provide exceptional endurance, capable of sustaining high write workloads over extended periods. The SDF7283GEB01T model is rated for extensive drive writes per day, reducing the need for frequent replacements and lowering total cost of ownership for IT operations.

Advanced Error Correction and Data Protection

Reliability is further enhanced by Kioxia's robust error correction mechanisms, including LDPC (Low-Density Parity-Check) and end-to-end data protection. These technologies ensure that data integrity is maintained during both read and write operations, even under high-stress workloads. Additionally, power loss protection safeguards against unexpected outages, preventing data corruption and maintaining operational continuity in critical enterprise applications.

U.2 Form Factor and Data Center Compatibility

The 2.5-inch U.2 form factor of the SDF7283GEB01T SSD provides seamless integration into modern server and storage systems. Its compact design allows high-density storage configurations, supporting large-scale deployment in enterprise racks without occupying excessive physical space. Compatibility with standard U.2 connectors ensures straightforward installation, hot-swappable capabilities, and reduced downtime during maintenance operations.

Scalable Storage for Data-Intensive Workloads

The 7.68 TB capacity of the SDF7283GEB01T model enables organizations to consolidate storage and minimize the number of drives required for critical workloads. This scalability is particularly valuable for virtualization platforms, cloud computing infrastructures, and high-performance computing clusters. By reducing the number of drives while maintaining performance, IT administrators can optimize space utilization, power consumption, and cooling efficiency within the data center.

Optimized for Enterprise Applications

Kioxia CD8P-R SSDs are purpose-built for demanding enterprise applications that require consistent, high-performance storage. They excel in transactional databases, virtual machine storage, real-time analytics, and AI-driven workloads. The combination of NVMe acceleration, high capacity, and robust endurance allows enterprises to streamline operations, accelerate processing times, and deliver responsive services to end-users without compromise.

Compatibility with Modern Server Architectures

The CD8P-R Series is engineered to seamlessly integrate with contemporary server platforms, including HPE, Dell EMC, Lenovo, and other enterprise-grade servers. Its U.2 interface, PCIe 4.0 x4 bandwidth, and NVMe protocol support ensure plug-and-play functionality with minimal configuration effort. This compatibility enables enterprises to modernize their storage infrastructure while leveraging existing server investments for enhanced performance and scalability.
