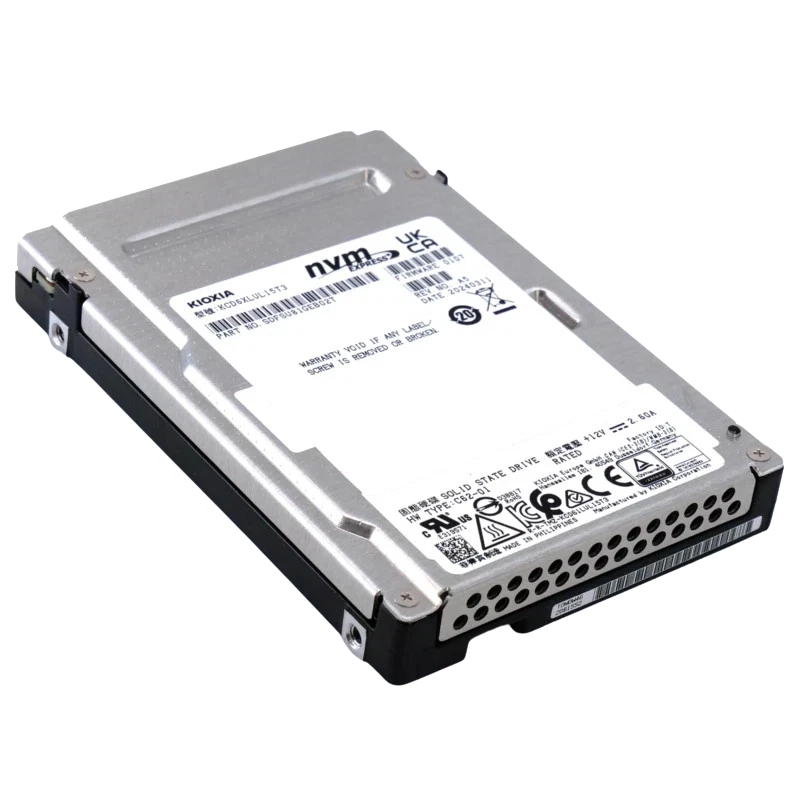

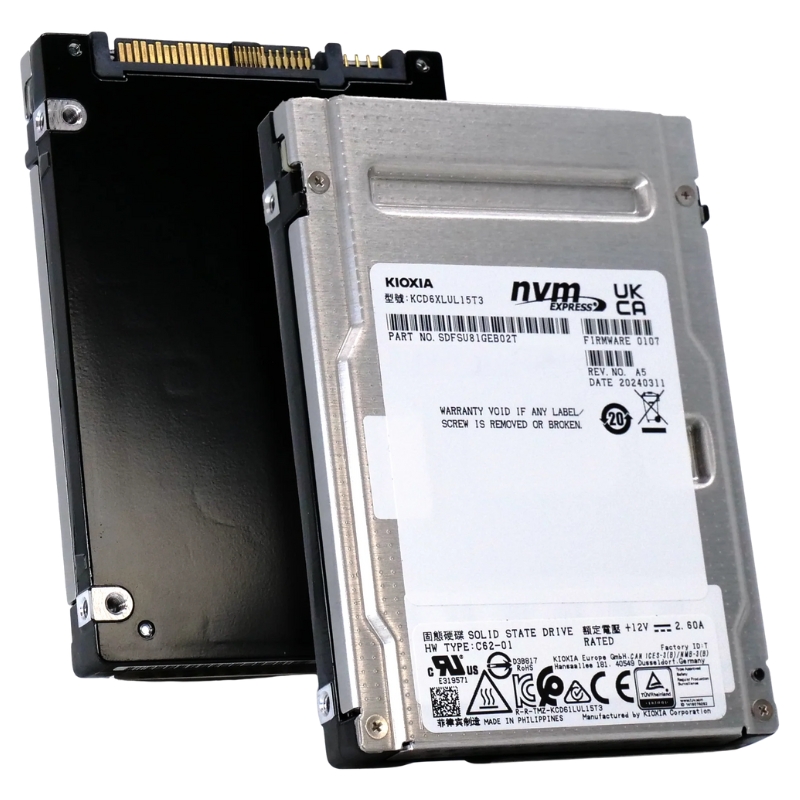

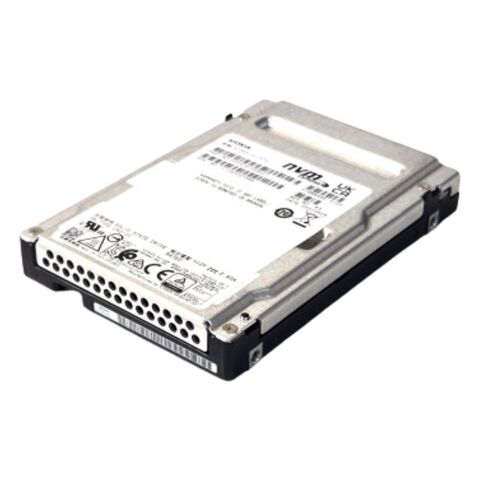

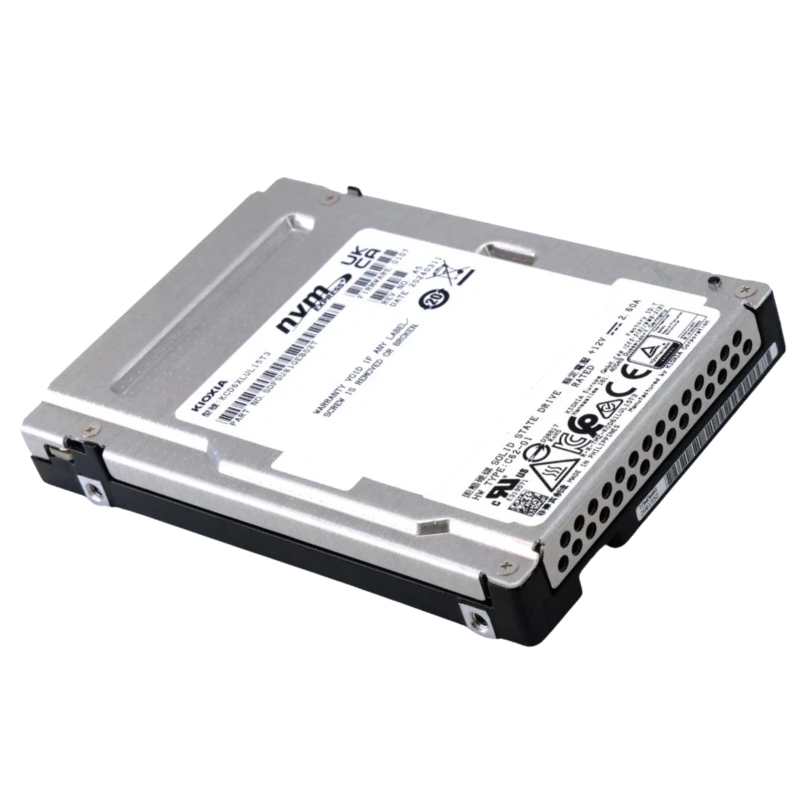

SDFSU83CAB02T Kioxia CD6-R SFF TLC 15mm PCI-E 4.0 NVMe 7.68TB SSD

Understanding of Kioxia SDFSU83CAB02T 7.68TB SSD

The Kioxia CD6-R series represents the pinnacle of data center solid-state storage, engineered for read-intensive cloud and enterprise environments. The model SDFSU83CAB02T CD6-R 7.68TB SFF TLC stands as a cornerstone offering within this lineup, providing a high-capacity, high-performance solution for modern data centers grappling with exponential data growth and the demands of hyperscale computing.

Built for the Data Center

The Kioxia SDFSU83CAB02T CD6-R is not a repurposed client drive; it is conceived from the ground up for 24/7/365 operation in server and storage systems. Its architecture addresses the core challenges of data center storage: consistent low-latency input/output, power efficiency, data integrity, and seamless integration into large-scale deployments.

Form Factor and Interface: The PCIe 4.0 NVMe Standard

This drive embraces the dual pillars of modern high-performance storage: the NVMe protocol and the PCI Express 4.0 interface.

NVMe Protocol Efficiency

By utilizing the Non-Volatile Memory Express (NVMe) protocol over traditional SATA or SAS, the CD6-R dramatically reduces command overhead and unlocks the inherent parallelism of NAND flash memory. The NVMe protocol supports deep queues (up to 64K) and a multitude of concurrent commands, which is essential for handling the massive, randomized I/O workloads typical in virtualized environments, databases, and content delivery networks.

PCIe 4.0 Bandwidth

The PCI-Express 4.0 interface doubles the per-lane bandwidth of the previous PCIe 3.0 generation. With four lanes (x4), the CD6-R enjoys a theoretical host interface bandwidth of up to 8 GB/s. This headroom ensures the drive is never bottlenecked by the connection to the host CPU, allowing the full performance of the flash and controller to be realized, future-proofing installations for next-generation server platforms.

2.5-inch SFF 15mm Form Factor

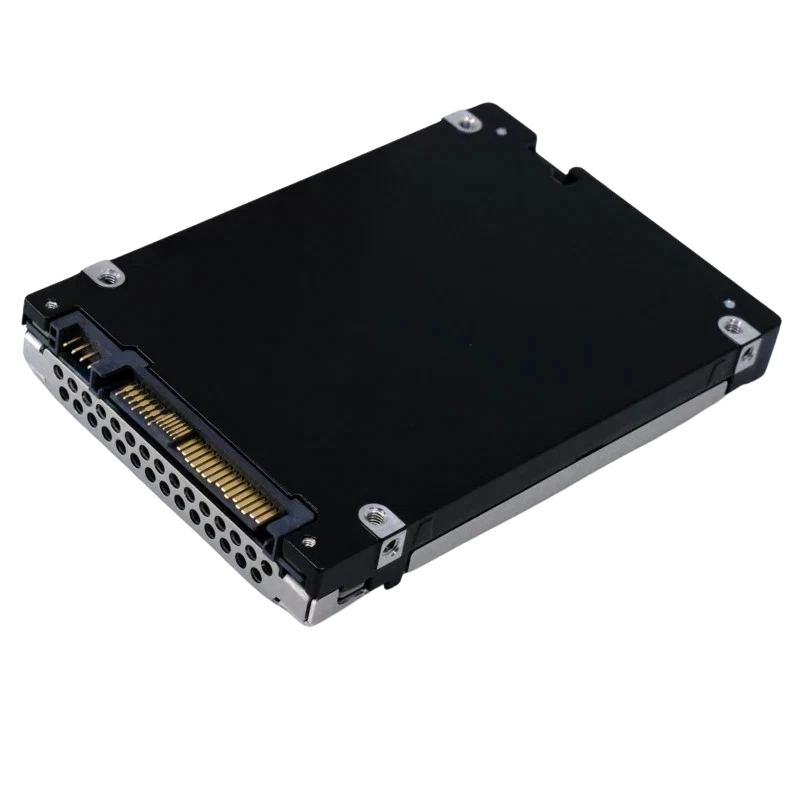

The drive is housed in a standard 2.5-inch Small Form Factor (SFF) case with a 15mm z-height. This dimension is critical for housing the high-density NAND packages and power management components required for a 7.68TB capacity. It is designed for hot-swap compatibility with enterprise server and storage bay backplanes that support the SFF-8639 (U.2) connector, enabling easy deployment, replacement, and scaling in rack-scale environments.

Performance Specifications and Real-World Application

The Kioxia SDFSU83CAB02T CD6-R 7.68TB is optimized for read-centric workloads, where the majority of operations are data retrieval rather than writing. This focus allows Kioxia to fine-tune the drive's internal management for maximum throughput and lowest latency in scenarios like data analytics, web serving, and boot volumes.

Sequential and Random Performance Metrics

Leveraging the PCIe 4.0 interface, the drive delivers impressive sequential transfer rates. It is capable of sequential read speeds of up to 7,100 MB/s and sequential write speeds of up to 2,900 MB/s. More importantly for server workloads, its random performance is robust, with random read IOPS (4KB) reaching up to 1,450,000 and random write IOPS (4KB) up to 230,000. This ensures rapid transaction processing and data access even under highly randomized load patterns.

Latency Consistency

For enterprise applications, consistent low latency is often more critical than peak throughput. The CD6-R incorporates advanced QoS features to minimize performance variability. Its average read latency is typically under 70 microseconds, providing predictable, fast response times. This is achieved through a combination of a high-performance controller, efficient firmware algorithms, and the use of TLC NAND managed in a way that reduces write amplification and background activity interference.

Endurance, Reliability, and Data Protection

Data integrity and drive longevity are non-negotiable in the data center. The Kioxia CD6-R 7.68TB is built with a comprehensive suite of features to safeguard data and ensure uninterrupted operation.

Advanced Error Correction and Protection

The drive features a powerful, multi-level ECC (Error Correction Code) engine capable of correcting a high number of bit errors per NAND page. It also employs end-to-end data path protection, which includes parity checks for data traversing the internal DRAM cache. This ensures data is checked for integrity from the host interface all the way to the NAND media and back, preventing silent data corruption.

Power Loss Protection (PLP)

A critical enterprise feature, the integrated Power Loss Protection circuit includes capacitors that provide holdup power in the event of an unexpected power failure. This allows the drive's controller to complete any in-flight writes from the volatile cache to the non-volatile NAND flash, ensuring data-at-rest consistency and preventing corruption. This makes the drive safe for write-back caching applications.

Firmware and Security Features

The drive runs on field-proven, robust firmware that manages wear leveling, bad block management, and garbage collection efficiently. For security, it supports the TCG Opal 2.0 and Pyrite standards for self-encrypting drive (SED) functionality, as well as Sanitize Instant Erase (SIE) and Crypto Erase commands for secure, rapid data disposal during drive decommissioning or repurposing.

Optimized for Scalability and Manageability

Deploying hundreds or thousands of drives requires features that simplify management and maximize uptime.

NVMe-MI and Telemetry

The SDFSU83CAB02T CD6-R supports NVMe Management Interface (NVMe-MI) over SMBus or PCIe VDM. This allows out-of-band management for tasks like health monitoring, firmware updates, and drive identification even if the drive is not powered on the main PCIe bus. Detailed telemetry data, including SMART attributes, temperature, and usage statistics, is accessible for proactive health monitoring and predictive failure analysis using standard data center management tools.

Power Efficiency

Operating in dense server configurations requires careful thermal management. The drive supports multiple power states (e.g., PS0, PS1, PS2, PS3) to balance performance and power consumption. Its typical active power draw is optimized for efficiency. Additionally, it can report temperature and throttle performance if necessary to stay within safe operating limits, ensuring reliability in varied environmental conditions.

Environmental Specifications

The Kioxia SDFSU83CAB02T CD6-R is designed to operate reliably within standard data center environmental parameters. Its operating temperature range is typically 0°C to 70°C case temperature. It is tested to withstand vibrations and shocks appropriate for enterprise hardware, ensuring it can perform in large, multi-drive storage arrays and servers.

Ideal Use Cases and Deployment Scenarios

The specific performance and endurance profile of the Kioxia CD6-R 7.68TB makes it exceptionally well-suited for a range of modern data center applications.

Hyperscale and Cloud Storage

In large-scale cloud infrastructure, this drive is ideal for boot drives for virtual machines and containers, where fast read performance for launching instances is key. It is also perfectly suited for storing operating system images, application binaries, and libraries that are frequently read but rarely updated.

Content Delivery and Web Serving

For content delivery networks (CDNs) and high-traffic web servers, the drive's massive capacity and high read IOPS allow it to store and deliver vast libraries of static content—images, videos, software downloads, web pages—with extremely low latency to end-users.

Data Analytics and Data Warehousing

In big data analytics platforms (e.g., Hadoop, Spark) and data warehouses, the drive can serve as high-performance storage for "warm" data—datasets that are queried frequently but not updated in real-time. Its speed accelerates data scan and query operations, reducing time-to-insight.

Database Read Replicas

For database systems, the CD6-R is an excellent choice for housing read replicas used to offload query traffic from primary transactional databases. Its consistent low latency also makes it suitable for database redo logs or transaction logs, where write performance, while secondary to reads, must still be reliable and fast.
