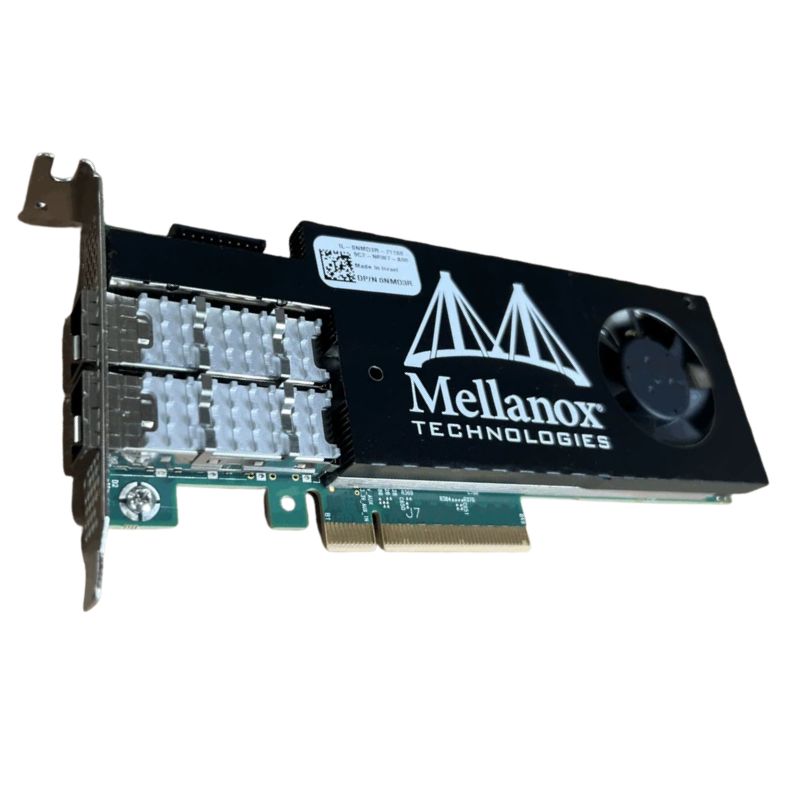

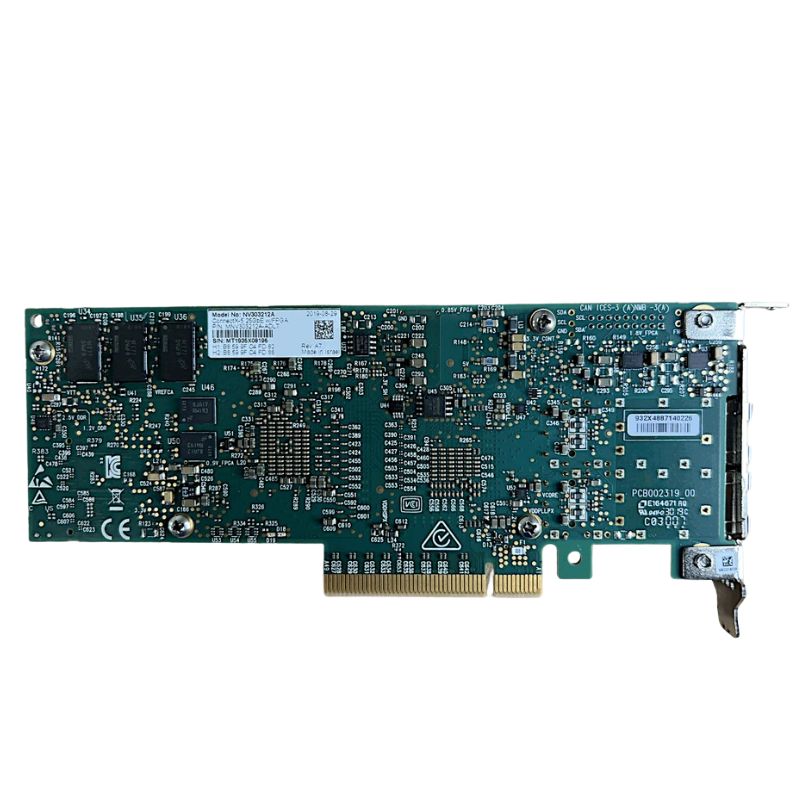

01PG974 Lenovo Mellanox Innova-2 ConnectX-5 FPGA 25GbE Adapter

Overview of the Lenovo 01PG974 2 Ports Adapter

The Lenovo 01PG974 Mellanox Innova-2 ConnectX-5 FPGA 25GbE Dual-Port Adapter, designed to deliver high-performance networking and programmable capabilities. With the integration of the cutting-edge ConnectX-5 Ethernet controller and a versatile Xilinx FPGA, this adapter supports custom offloading for various demanding applications such as HPC, security, machine learning, and storage.

General Information

• Manufacturer: Lenovo
• Part Number: 01PG974
• Product Type: Dual Port Network Adapter

Technical Highlights

• Ethernet : 25 Gigabit Ethernet Card
• Host Interface: PCI Express 4.0 x8
• Protocol Standard: 25GBase-X
• LAN Ports: 2 Ethernet connections (RJ-45/SFP/SFP+)
• Transmission Medium: Optical Fiber

Form Factor

• Compact plug-in card engineered for enterprise servers
• Optimized for high-speed data throughput

Reliability Standards

• Built to support intensive workloads
• Ensures consistent performance across demanding environments

Key Advantages

• Enhanced bandwidth for modern applications
• Future-ready PCIe 4.0 compatibility
• Dual-port flexibility for scalable networking

Lenovo 01PG974 Mellanox 25GbE 2 Port Adapter

High-Performance Network Acceleration Architecture

The Lenovo 01PG974 Mellanox Innova-2 ConnectX-5 FPGA 25GbE 2 Port Adapter represents a next-generation convergence of high-speed Ethernet networking and field-programmable gate array (FPGA) acceleration technology. Designed for enterprise data centers, cloud infrastructures, high-performance computing (HPC) environments, and latency-sensitive workloads, this adapter delivers a dual-function architecture that integrates advanced network interface controller (NIC) capabilities with programmable hardware acceleration. The device is engineered to meet modern workload demands such as AI inference, real-time analytics, virtualization, and software-defined networking (SDN).

Integrated FPGA and SmartNIC Functionality

At the core of the Lenovo 01PG974 is the Mellanox ConnectX-5 architecture combined with FPGA-based programmable logic, enabling users to offload compute-intensive networking and data processing tasks from the CPU. This SmartNIC design allows organizations to accelerate packet processing, encryption, compression, and deep packet inspection directly at the network edge. By combining FPGA flexibility with ConnectX-5 performance, the adapter supports custom hardware acceleration pipelines tailored to specific workloads.

Hardware Acceleration Capabilities

The FPGA integration enables real-time customization of network processing functions. Organizations can deploy hardware-level optimizations for telemetry, firewalling, load balancing, and storage acceleration without modifying host CPU resources. This results in improved throughput efficiency and reduced latency across distributed systems.

25GbE Dual-Port High-Speed Connectivity

This adapter features two 25 Gigabit Ethernet (25GbE) ports, providing aggregate high-bandwidth connectivity suitable for modern high-density server environments. Each port supports low-latency data transmission, optimized for virtualization clusters, distributed storage systems, and cloud-native applications. The dual-port configuration ensures redundancy and load balancing capabilities in mission-critical deployments.

Network Performance Optimization

The ConnectX-5 architecture provides advanced congestion control mechanisms, adaptive routing, and hardware offload engines that reduce CPU overhead. These optimizations significantly enhance packet processing efficiency in environments requiring sustained high-throughput networking.

RDMA and Low-Latency Communication

Remote Direct Memory Access (RDMA) over Converged Ethernet (RoCE) is supported, enabling ultra-low latency communication between servers. This is particularly beneficial for HPC clusters, AI training environments, and financial trading systems where microsecond-level latency differences can impact performance outcomes.

Enterprise Data Center Integration

Scalability for Cloud and Virtualized Environments

The Lenovo 01PG974 adapter is optimized for scalable cloud infrastructure deployments. Its ability to handle high packet rates and multiple virtual functions makes it suitable for virtual machine (VM) environments and containerized workloads. With support for Single Root I/O Virtualization (SR-IOV), the adapter can partition physical network resources into multiple virtual interfaces, improving efficiency in multi-tenant architectures.

Multi-Tenant Network Isolation

In cloud environments, secure isolation between tenants is critical. The adapter supports hardware-enforced isolation mechanisms, ensuring secure data transmission across virtual instances without performance degradation. This is essential for service providers hosting diverse workloads on shared infrastructure.

Virtual Switching and Offload Engine

The embedded offload engines reduce reliance on hypervisor-based virtual switching, improving packet forwarding efficiency and reducing CPU utilization. This allows more compute resources to be allocated to application workloads rather than network management tasks.

Storage Networking Acceleration

The adapter is highly effective in storage-intensive environments such as NVMe over Fabrics (NVMe-oF), distributed storage systems, and software-defined storage architectures. By accelerating storage traffic, it reduces bottlenecks and improves data access speeds across clustered storage nodes.

Optimized Data Path Processing

The ConnectX-5 FPGA architecture enables direct data path optimization, minimizing the number of processing hops between storage and compute nodes. This reduces latency in read/write operations and improves overall system responsiveness.

High-Throughput Storage Workloads

For enterprise storage solutions requiring sustained high throughput, the adapter ensures consistent performance under heavy I/O loads. This makes it suitable for big data analytics, large-scale virtualization storage pools, and database replication systems.

Use Cases for FPGA Acceleration

The FPGA can be programmed for use cases such as packet filtering, encryption acceleration, real-time analytics processing, and machine learning inference acceleration. This flexibility enables organizations to adapt infrastructure dynamically as workloads evolve.

Security and Encryption Offload

Security workloads, including TLS encryption, IPsec tunneling, and secure key management, can be offloaded to the FPGA, freeing CPU cycles and enhancing overall system performance. This improves throughput for secure applications without compromising latency.

Telemetry and Network Visibility

The adapter provides advanced telemetry capabilities, enabling real-time monitoring of network traffic, performance metrics, and system behavior. This visibility is essential for large-scale data center operations where proactive monitoring and predictive analytics are required.

Real-Time Packet Analysis

FPGA-based packet inspection allows for deep visibility into network traffic patterns. This enables administrators to detect anomalies, optimize traffic flows, and enforce compliance policies at the hardware level.

Infrastructure Optimization Insights

By collecting detailed telemetry data, organizations can optimize infrastructure usage, identify bottlenecks, and improve workload distribution across servers and clusters.

Hardware Design and System Compatibility

PCI Express Interface Integration

The Lenovo 01PG974 adapter utilizes a high-speed PCI Express interface, ensuring maximum bandwidth between the host system and the network adapter. This allows seamless integration into enterprise-grade servers and workstation platforms.

Low-Latency Bus Communication

PCIe integration ensures minimal communication overhead between CPU and NIC, enabling faster data transfers and reducing bottlenecks in high-performance environments.

Power Efficiency

Designed for data center efficiency, the adapter incorporates optimized thermal management systems and power-efficient circuitry. This ensures stable performance even under sustained high-throughput workloads.

Energy-Aware Performance Scaling

Dynamic power management features adjust energy consumption based on workload intensity, reducing operational costs in large-scale deployments.

Heat Dissipation Engineering

Advanced heat dissipation design ensures stable operation in dense server environments where multiple high-performance NICs operate simultaneously.

Enterprise Use Cases and Deployment Scenarios

High-Performance Computing Clusters

In HPC environments, the Lenovo 01PG974 enables rapid inter-node communication, supporting parallel processing workloads and distributed simulations. The low-latency RDMA capabilities are particularly beneficial for scientific computing and research applications.

Deep Learning Data Pipelines

Efficient handling of large datasets is critical for deep learning workloads. The adapter ensures high-speed ingestion and distribution of training data across compute nodes.

Financial and Real-Time Trading Systems

The ultra-low latency characteristics of the adapter make it suitable for financial trading platforms where microsecond latency differences can affect transaction outcomes. FPGA-based acceleration ensures deterministic packet processing.

High Availability and Redundancy

Dual-port architecture provides built-in redundancy, ensuring continuous network availability even in case of port failure. This is critical for mission-critical enterprise systems requiring 24/7 uptime.

Failover and Load Balancing

Automatic failover mechanisms distribute traffic across available ports, maintaining consistent performance during hardware or network disruptions.

Enterprise Reliability Standards

The adapter is engineered to meet strict enterprise reliability standards, ensuring long-term operational stability in large-scale deployments.
