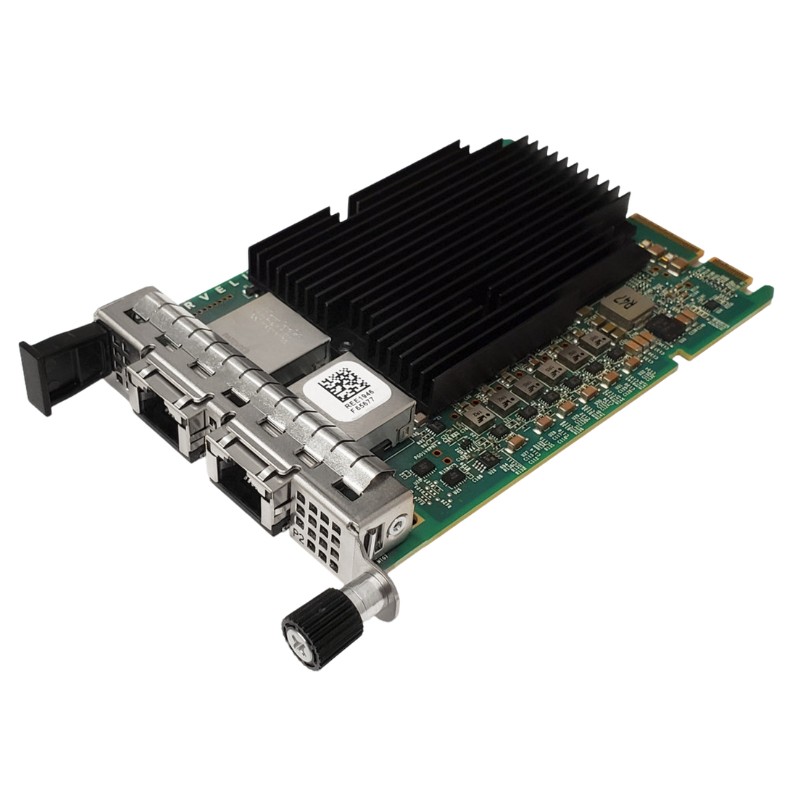

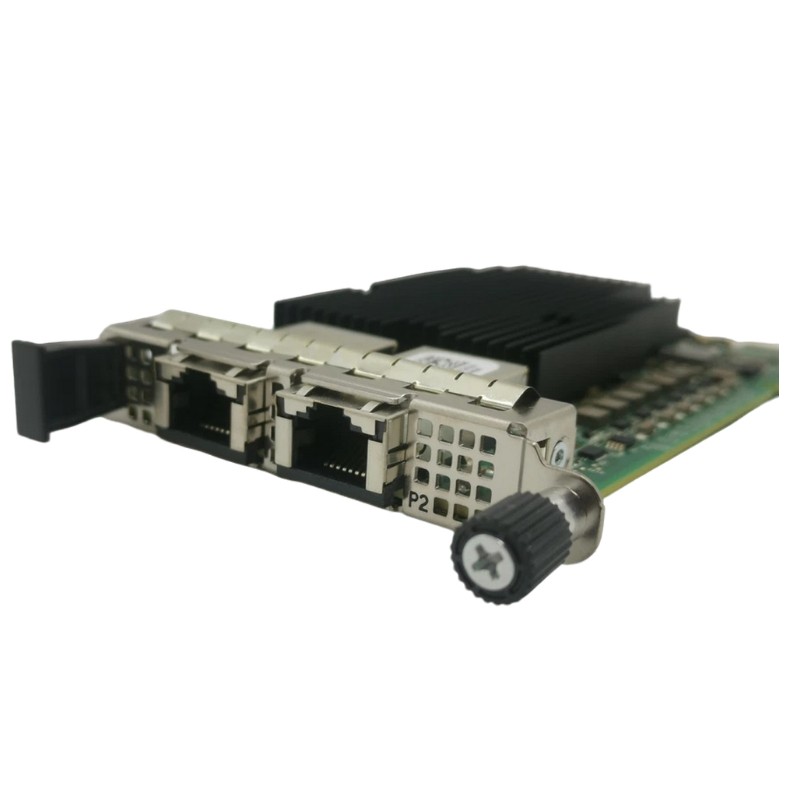

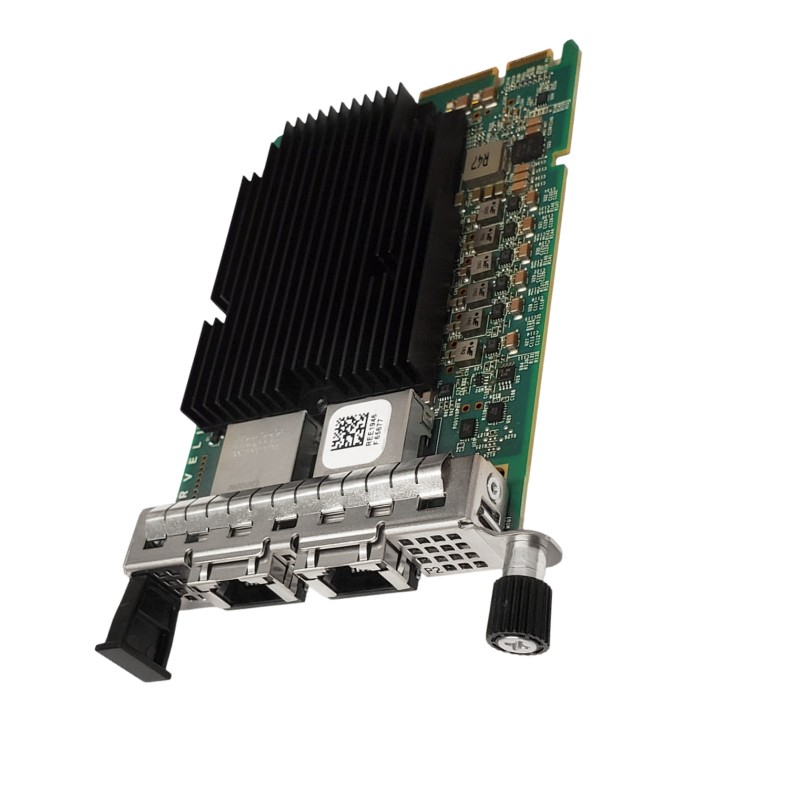

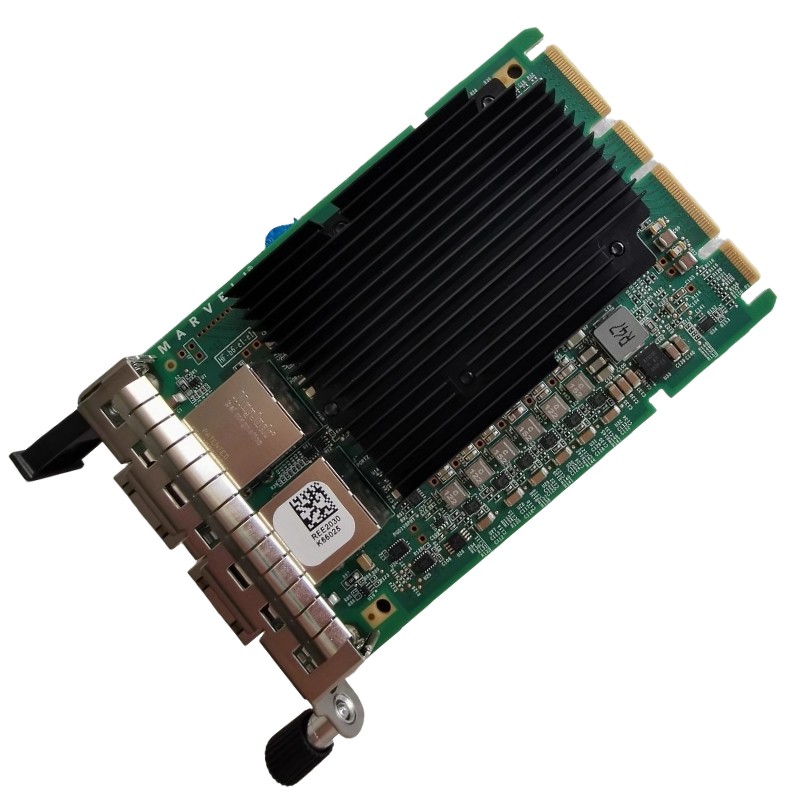

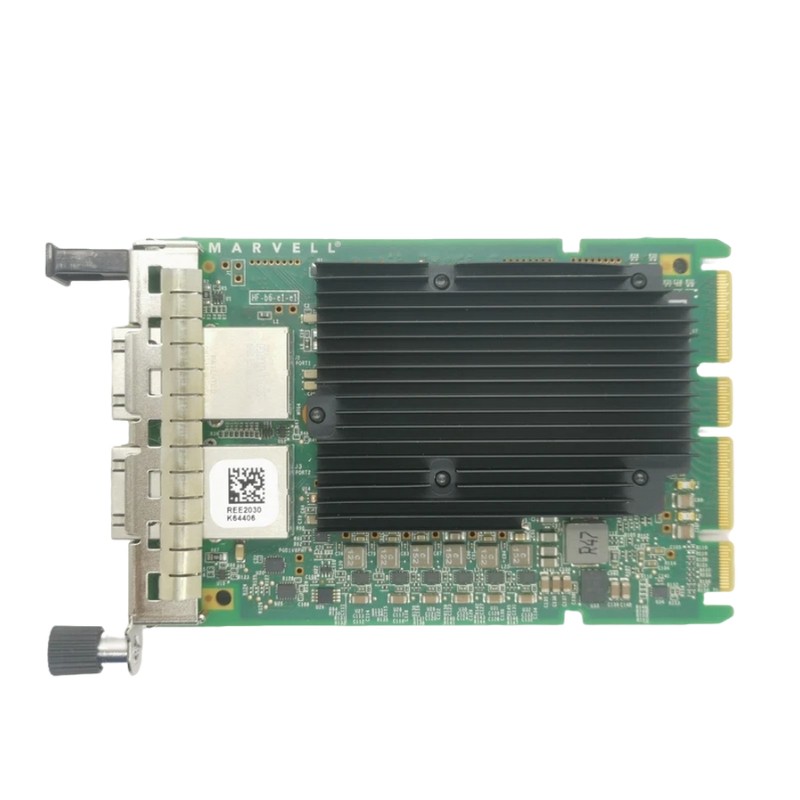

02JK500 Lenovo Marvell 10GBASE-T 2-Ports OCP Ethernet Adapter for Think system

Product Highlights of Lenovo 02JK500 Ethernet Adapter

The Lenovo Marvell 10GBASE-T 2-Ports OCP Ethernet Adapter Ethernet Adapter is a cutting-edge networking solution designed to provide users with high-speed and reliable connectivity. One of the standout features of this adapter is its unique part number, 02JK500. In this section, we will delve into the benefits and importance of this feature for users.

General Information

• Manufacturer: Lenovo
• Part Number: 02JK500
• Product Type: Dual-Port Network Adapter

Technical Information

• Bus Standard: Open Compute Project Mezzanine (OCP)
• Form Factor: Plug-in Card
• Supported Ports: Gigabit Ethernet / 10Gb Ethernet × 2
• Protocols: GigE, 10 GigE, RoCE, iWARP
• Transfer Speed: 10 Gigabits per second
• Packet Handling: 60,000,000 packets per second
• Jumbo Frame Capacity: Up to 9600 bytes

Compatibility & Deployment

• ThinkAgile Systems: MX3330-F Appliance, MX3330-H Appliance
• Certified Nodes: MX3331-F, MX3331-H
• Hybrid Platforms: MX3530-H Appliance, MX3531-H Node
• VX Series: VX2330, VX3330, VX3530-G, VX5530, VX7330-N, VX7530, VX75xx Certified Node

Key Advantages

• High-speed throughput for demanding workloads
• Optimized for virtualization and cloud environments
• Compact design suitable for scalable infrastructures

Enhanced Reliability

• Robust compliance with modern Ethernet standards
• Designed for enterprise-grade data centers
• Supports advanced networking protocols for efficiency

Lenovo 02JK500 2-Ports OCP Ethernet Adapter

The Lenovo 02JK500 Marvell 10GBASE-T 2-Ports OCP Ethernet Adapter for ThinkSystem servers represents a high-performance networking solution engineered for enterprise-grade data centers requiring reliable, scalable, and high-bandwidth connectivity. Developed in collaboration with Lenovo and powered by advanced controller technology from Marvell Technology, this adapter is designed to deliver robust dual-port 10 Gigabit Ethernet performance through OCP (Open Compute Project) architecture integration. It is optimized for ThinkSystem platforms, ensuring seamless compatibility, enhanced throughput, and efficient system integration for modern cloud, virtualization, and storage-heavy workloads.

OCP Adapter Form Factor Integration

The Open Compute Project (OCP) adapter form factor used in the Lenovo 02JK500 is engineered to simplify server design while maximizing modularity and serviceability. Unlike traditional PCIe network cards, OCP adapters are designed for tool-less installation and direct integration into supported ThinkSystem servers. This architecture reduces system complexity, improves airflow efficiency, and enables faster maintenance cycles in large-scale deployments.

System-Level Efficiency Improvements

By utilizing an OCP NIC 3.0 compatible interface, the adapter eliminates unnecessary chassis overhead while ensuring direct connectivity to the CPU and memory subsystems. This reduces latency and improves packet processing efficiency, which is critical in environments such as virtualization clusters, software-defined networking (SDN), and hyper-converged infrastructure (HCI).

Thermal and Power Optimization

The Lenovo 02JK500 is optimized for low power consumption while maintaining high throughput. Its thermal profile is engineered for front-to-back airflow in ThinkSystem chassis, allowing stable operation under sustained network loads. The efficient heat dissipation design ensures long-term reliability in dense rack deployments.

10GBASE-T Dual-Port Performance Capabilities

High-Speed Copper Connectivity

The adapter supports 10GBASE-T Ethernet over standard twisted-pair copper cabling, enabling up to 10 Gbps per port across widely deployed Cat6a or Cat7 infrastructure. This eliminates the need for expensive fiber transceivers in many use cases.

Dual-Port Load Balancing

With two independent 10GbE ports, the Lenovo 02JK500 enables network traffic distribution across multiple channels. This allows administrators to implement link aggregation (LACP), failover redundancy, and traffic segmentation strategies that improve resilience and throughput consistency in mission-critical environments.

Latency

The Marvell-powered architecture provides hardware acceleration for packet processing, reducing CPU overhead and improving data flow efficiency. This ensures consistent low-latency performance for applications such as real-time analytics, database clustering, and high-frequency transactional systems.

Marvell Controller Technology and Hardware Acceleration

Advanced Ethernet Controller Architecture

At the core of the Lenovo 02JK500 lies a high-performance Ethernet controller developed by Marvell. This chipset is designed to handle multi-gigabit traffic with advanced offloading capabilities, including checksum offload, segmentation offload, and interrupt moderation.

Hardware Offload Capabilities

By shifting processing tasks from the CPU to the network adapter, the system achieves improved overall efficiency. This is particularly beneficial in virtualized environments where multiple virtual machines share the same physical network interface.

Virtualization Optimization Features

The adapter supports virtualization technologies such as SR-IOV (Single Root I/O Virtualization), enabling direct assignment of virtual functions to guest systems. This reduces hypervisor overhead and improves network performance for virtual workloads.

Data Center Use Cases and Deployment Scenarios

Cloud Infrastructure and Hyperscale Computing

In cloud environments, the Lenovo 02JK500 plays a critical role in ensuring high-bandwidth connectivity between compute nodes and storage systems. Its dual-port 10GbE capability supports distributed architectures where scalability and redundancy are essential.

Virtualization and Containerized Workloads

Modern container orchestration platforms such as Kubernetes benefit from high-throughput networking interfaces. The adapter ensures stable communication between nodes, supporting microservices architectures and distributed application deployment models.

Storage Network Acceleration

The adapter is well-suited for iSCSI and NAS environments where consistent throughput is required for data replication, backup operations, and storage clustering. Its low-latency design ensures efficient storage access patterns across networked systems.

Enterprise Database and Analytics Systems

Large-scale databases and analytics platforms require predictable network performance. The Lenovo 02JK500 ensures stable throughput for high-volume query processing, data ingestion, and distributed compute workloads.

High Availability and Redundancy Models

Dual-port configuration enables redundant network paths, ensuring continuous operation even in the event of a port or switch failure. This is essential for mission-critical enterprise applications requiring 24/7 uptime.

Traffic Segmentation Strategies

Administrators can allocate each port for different network segments, such as storage traffic and user application traffic, improving performance isolation and reducing congestion in high-load environments.

Performance Optimization and Network Efficiency

Interrupt Moderation and CPU Offloading

By reducing the frequency of CPU interrupts, the adapter enhances system performance under heavy network load. This allows server processors to focus on application-level tasks rather than network packet handling.

Throughput Consistency Under Load

Even under sustained high-bandwidth traffic conditions, the Lenovo 02JK500 maintains stable throughput levels, making it suitable for environments requiring predictable network behavior.

Security and Network Integrity Features

Hardware-Level Security Enhancements

Security is a core aspect of modern data center networking. The adapter supports hardware-based features that help protect data integrity and reduce vulnerability exposure.

Secure Boot and Firmware Validation

Firmware integrity checks ensure that only verified software is executed on the adapter, reducing the risk of unauthorized modifications or malicious firmware injection.

Network Isolation Capabilities

Support for virtualization-based segmentation allows secure isolation of workloads, ensuring that different tenants or application environments remain separated at the network level.

Energy Efficiency

Low Power Consumption Design

The Lenovo 02JK500 is engineered for energy efficiency, making it suitable for large-scale deployments where power consumption is a critical operational cost factor. Its optimized silicon design reduces unnecessary energy usage during low traffic conditions.

Green Data Center Alignment

Organizations focused on sustainability benefit from reduced energy requirements per gigabit of throughput. This contributes to lower carbon footprints in modern data center environments.

Dynamic Power Scaling

The adapter can adjust its power usage based on network load, ensuring optimal energy efficiency without compromising performance during peak demand periods.

Scalability

Support for Evolving Network Demands

As enterprise networks continue to scale, the need for adaptable and future-proof hardware becomes critical. The Lenovo 02JK500 provides a foundation for scalable 10GbE deployments across diverse IT infrastructures.

Compatibility with Modern Network Architectures

The adapter integrates seamlessly with SDN (Software Defined Networking) environments, enabling flexible traffic control and dynamic network provisioning.
