Lenovo 32GB Pc5-38400 4800mhz DDR5 03GX397 1.1v SDRAM 288-pin Cl46 Ecc Registered Rdimm RAM

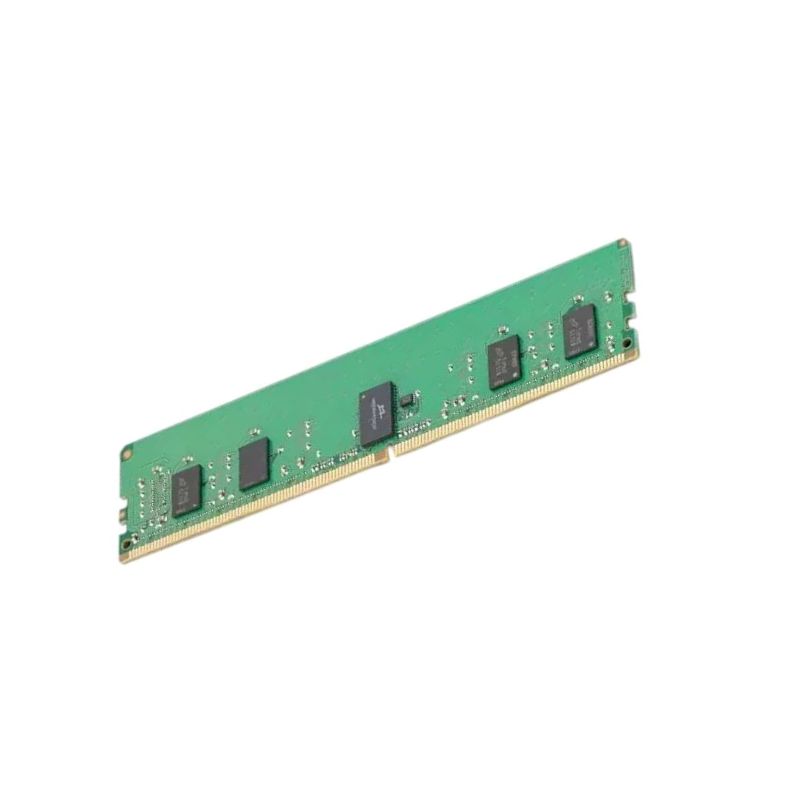

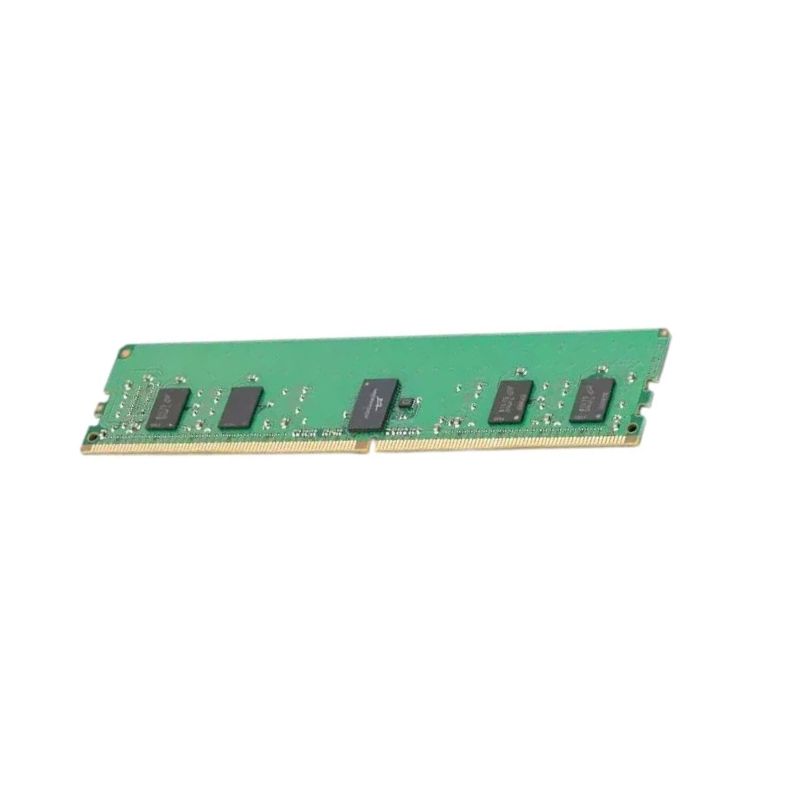

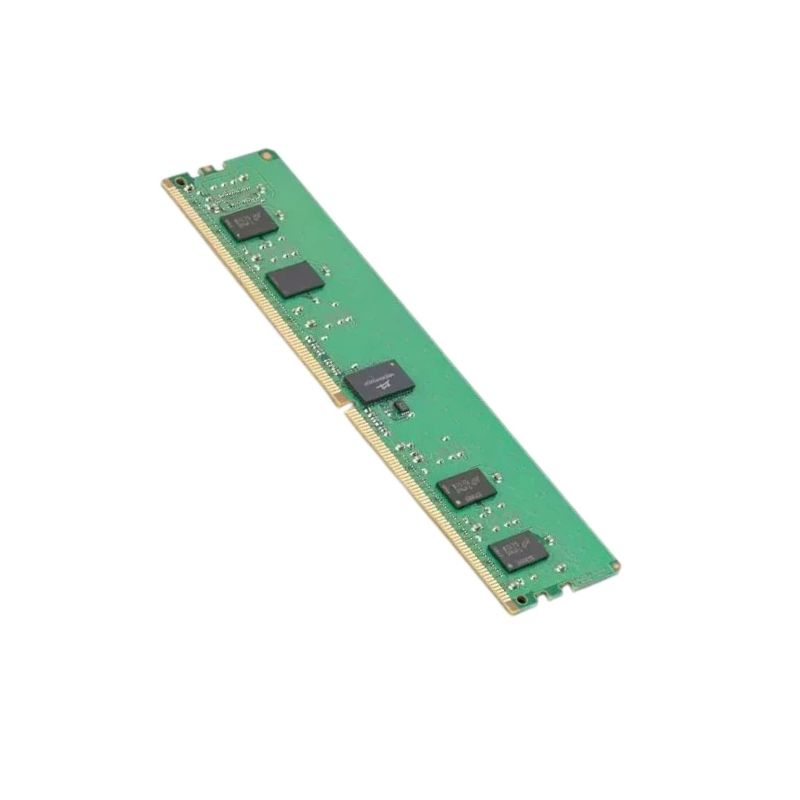

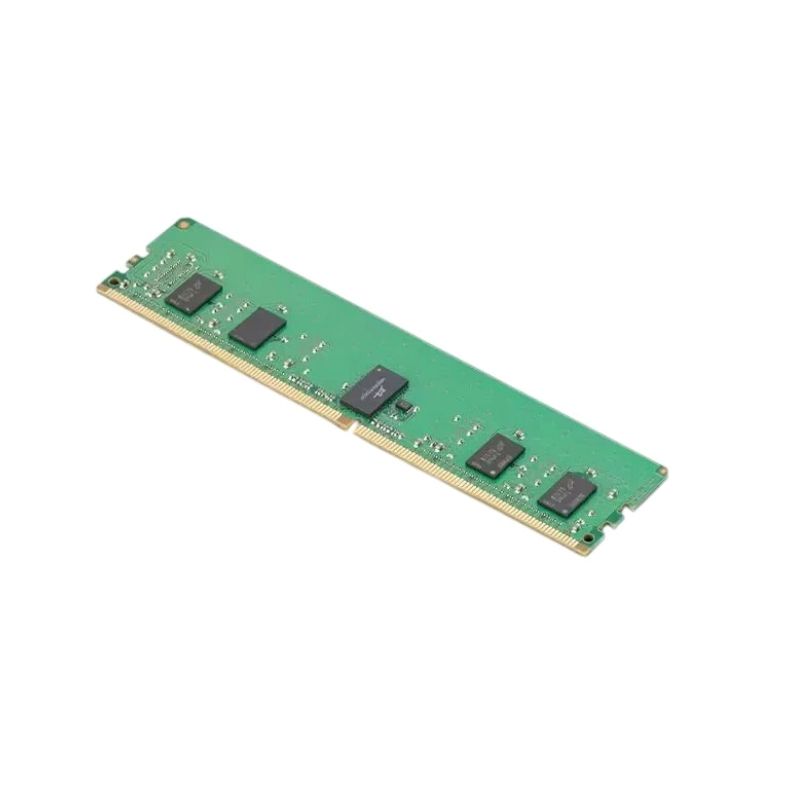

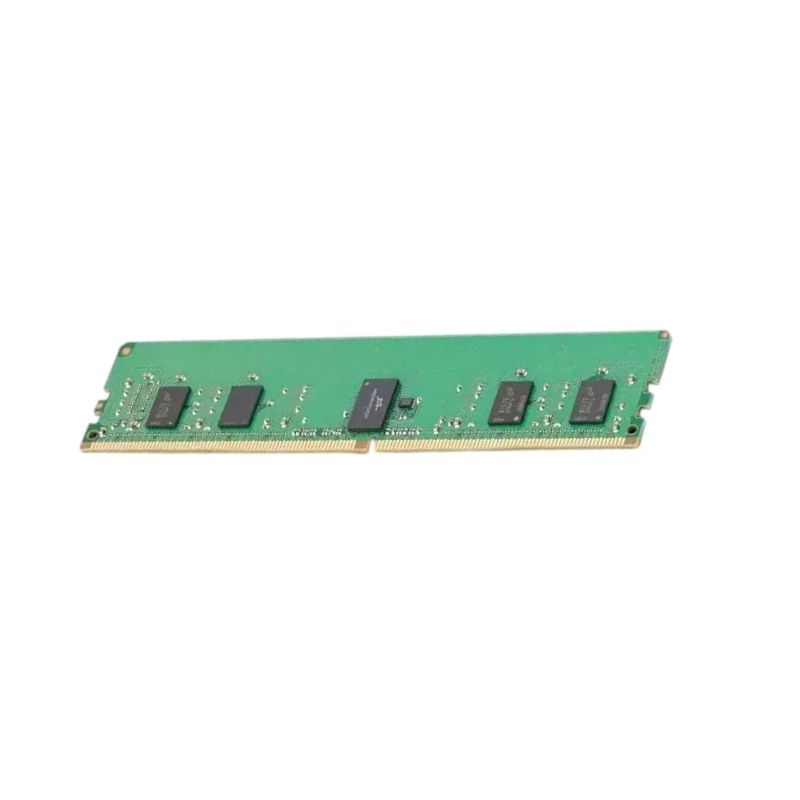

Lenovo 03GX397 32GB DDR5 Server Memory Module

Core Technical Specifications

The Lenovo 03GX397 is a high-performance 32GB DDR5 memory module specifically engineered for enterprise server environments. This memory module operates at a speed of 4800MHz (PC5-38400) and utilizes a 288-pin RDIMM form factor. It incorporates Error Correcting Code (ECC) technology, which is essential for maintaining data integrity and system stability in mission-critical applications. The module is designed to meet the rigorous demands of modern data centers, providing reliable performance for a wide range of server workloads.

Memory Capacity

This module features a substantial 32GB capacity per DIMM, allowing for significant total memory configurations in multi-slot server systems. When deployed in servers with numerous memory channels, this capacity enables the creation of high-density memory systems essential for memory-intensive applications such as large databases, virtualization hosts, and high-performance computing clusters. The 32GB density represents an optimal balance between performance, power efficiency, and cost-effectiveness for many enterprise deployment scenarios.

Data Transfer Speed and Bandwidth

Operating at 4800MT/s (Mega Transfers per second), the Lenovo 03GX397 delivers impressive data transfer rates that significantly outperform previous generation DDR4 memory. The PC5-38400 designation indicates a peak transfer rate of 38,400 MB/s per module. This high-speed performance reduces data access latency and improves overall system responsiveness, particularly beneficial for applications requiring rapid data processing and real-time analytics capabilities in enterprise server environments.

Advanced DDR5 Memory Technology

DDR5 Architectural Improvements

DDR5 technology represents a substantial evolution from previous memory standards, introducing several architectural enhancements that significantly improve performance and efficiency. The Lenovo 03GX397 leverages these advancements, including a more robust command bus structure, improved bank groups, and enhanced burst capabilities. These improvements contribute to higher bandwidth utilization and reduced power consumption compared to DDR4 modules, making DDR5 the preferred choice for next-generation server platforms demanding increased memory performance.

On-Die ECC Implementation

A key innovation in DDR5 architecture is the implementation of On-Die ECC, which operates independently of the standard module-level ECC. This feature provides an additional layer of data protection by correcting bit errors that occur within the DRAM chips themselves before they can affect system operation. The Lenovo 03GX397 incorporates this advanced error correction capability alongside traditional ECC functionality, delivering superior reliability and data integrity for enterprise applications where uninterrupted operation is critical.

Power Management Integration

The Lenovo 03GX397 features integrated power management through the Power Management IC (PMIC) on the module itself. This represents a fundamental shift from previous memory architectures where power regulation was handled by the motherboard. The onboard PMIC enables more precise voltage control, improved power delivery efficiency, and better power distribution across the memory module. This results in enhanced signal integrity, reduced power consumption, and more stable operation under varying workload conditions.

Server Compatibility and Integration

Supported Lenovo Server Platforms

The Lenovo 03GX397 32GB DDR5 memory module is specifically validated and certified for compatibility with various Lenovo server platforms. This module is designed to work seamlessly with Lenovo's ThinkSystem and System x server families that support DDR5 memory technology. Proper compatibility ensures optimal performance, reliability, and access to Lenovo's comprehensive support services. Users should consult specific server documentation and compatibility matrices to verify support for their particular server model and configuration requirements.

Error Correction and Reliability Features

ECC Technology Implementation

The Lenovo 03GX397 incorporates Error Correcting Code (ECC) technology, a critical feature for enterprise server environments. ECC functionality enables the memory module to detect and correct single-bit memory errors automatically, while also detecting multi-bit errors. This capability significantly reduces the likelihood of system crashes, data corruption, and silent data errors that can compromise application integrity and system stability in production environments.

Single Device Data Correction (SDDC)

Beyond standard ECC, the Lenovo 03GX397 supports advanced error correction features such as Single Device Data Correction (SDDC), also known as Chipkill technology. This sophisticated error correction capability can survive the complete failure of an individual DRAM chip within the memory module while maintaining system operation. SDDC provides enhanced protection against memory errors that could otherwise lead to system failures, particularly important in mission-critical applications requiring maximum uptime and data reliability.

Patrol Scrubbing and Memory Testing

When deployed in compatible server platforms, the Lenovo 03GX397 memory modules benefit from advanced memory reliability features such as patrol scrubbing. This background process continuously scans memory for errors and proactively corrects them before they can impact system operation. Additional memory testing capabilities, including memory mirroring and sparing functionalities in supported server configurations, further enhance system reliability by providing redundancy and failover capabilities for critical memory resources.

Performance Characteristics and Benchmarks

Bandwidth and Latency Profile

The Lenovo 03GX397 delivers substantial performance improvements over previous generation memory technologies, with DDR5 architecture providing approximately 50% higher bandwidth compared to equivalent DDR4 modules. The 4800MHz operating frequency combined with architectural enhancements results in significantly improved data transfer rates while maintaining competitive latency characteristics. These performance attributes translate to tangible benefits in memory-sensitive applications, including database operations, virtual machine performance, and computational workloads.

Real-World Application Performance

In practical server deployments, the Lenovo 03GX397 demonstrates measurable performance benefits across various enterprise workloads. Database applications typically show improved transaction processing rates, virtualization environments support higher virtual machine densities, and scientific computing applications experience reduced computation times. The combination of high bandwidth, large capacity per module, and advanced reliability features makes this memory particularly well-suited for demanding server applications where both performance and stability are paramount considerations.

Comparative Performance Metrics

When compared to previous generation memory technologies, the Lenovo 03GX397 DDR5 module exhibits superior performance across multiple metrics. Bandwidth improvements are particularly notable in memory bandwidth-sensitive applications, while power efficiency per gigabyte transferred shows significant enhancement. These performance characteristics make DDR5 technology increasingly attractive for data center deployments where balancing computational performance with power consumption and cooling requirements is a critical operational consideration.

Physical Specifications

Module Form Factor and Dimensions

The Lenovo 03GX397 utilizes the standard 288-pin RDIMM (Registered Dual In-Line Memory Module) form factor, measuring approximately 133.35mm in length and 31.25mm in height. This standardized form factor ensures mechanical compatibility with DDR5 server memory slots across various server platforms. The module features a carefully designed PCB with optimized signal routing and power delivery networks to maintain signal integrity at high operating frequencies while minimizing electromagnetic interference.

Electrical Specifications and Power Requirements

Operating at a nominal voltage of 1.1V, the Lenovo 03GX397 demonstrates improved power efficiency compared to DDR4 modules that typically operate at 1.2V. This reduced operating voltage, combined with architectural efficiency improvements, results in lower power consumption per gigabyte transferred. The integrated PMIC further optimizes power delivery, providing stable voltage regulation to various components on the module while supporting advanced power management states to reduce energy consumption during periods of lower memory utilization.

Enterprise Deployment Scenarios

Data Center Applications

The Lenovo 03GX397 32GB DDR5 memory module is ideally suited for various data center deployment scenarios. Its combination of capacity, performance, and reliability characteristics makes it particularly valuable for database servers, where large memory capacities can significantly reduce disk I/O and improve query performance. Virtualization hosts benefit from the high memory density and bandwidth, enabling higher virtual machine consolidation ratios and improved performance for memory-intensive virtual workloads.

High-Performance Computing Environments

In high-performance computing (HPC) and technical computing environments, the Lenovo 03GX397 provides the memory performance required for complex computational tasks. Scientific simulations, engineering analysis, and research applications often process large datasets that benefit from both high memory capacity and bandwidth. The ECC functionality ensures computational accuracy by preventing memory errors that could compromise calculation results in sensitive scientific and engineering applications.

Memory Technology Evolution and Comparison

DDR5 vs. Previous Generation Memory

The transition from DDR4 to DDR5 memory technology represents a significant advancement in server memory capabilities. DDR5 introduces architectural improvements that double the burst length, implement two independent 40-bit data channels per module (32 data bits with 8 ECC bits each), and incorporate decision feedback equalization (DFE) for improved signal integrity at higher speeds. These enhancements collectively contribute to the substantial performance and efficiency improvements observed in DDR5 modules like the Lenovo 03GX397 compared to previous generation memory technologies.

Performance and Efficiency Metrics

When comparing DDR5 to DDR4 memory technologies, several key performance and efficiency differences become apparent. DDR5 offers approximately double the theoretical bandwidth of equivalent-speed DDR4 modules due to architectural improvements. Power efficiency is enhanced through lower operating voltage and more sophisticated power management capabilities. Reliability features are strengthened with the addition of on-die ECC alongside traditional module-level ECC. These collective improvements make DDR5 particularly advantageous for modern server workloads that demand both high performance and exceptional reliability.
