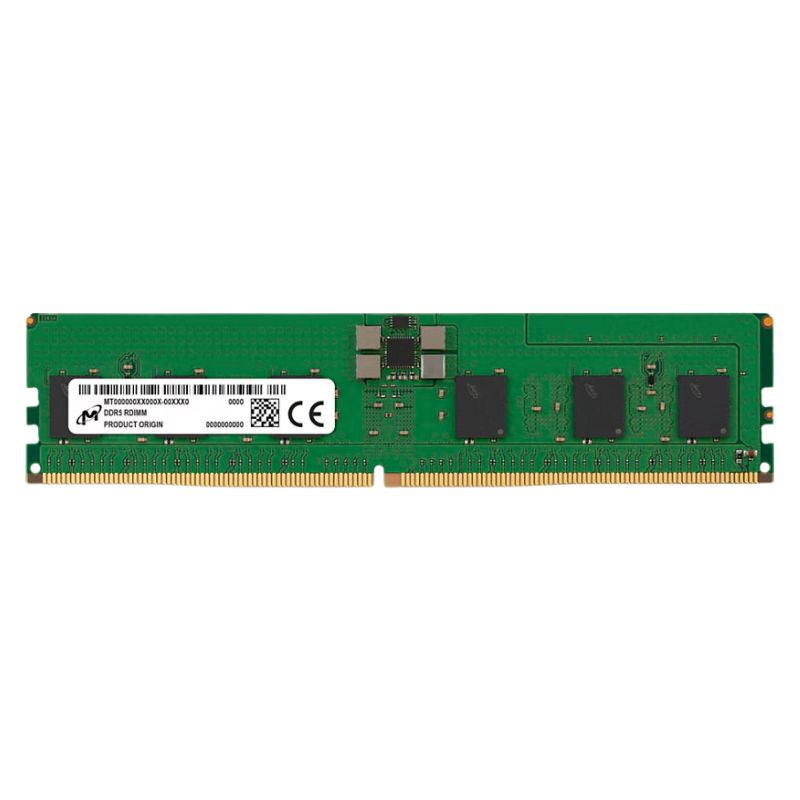

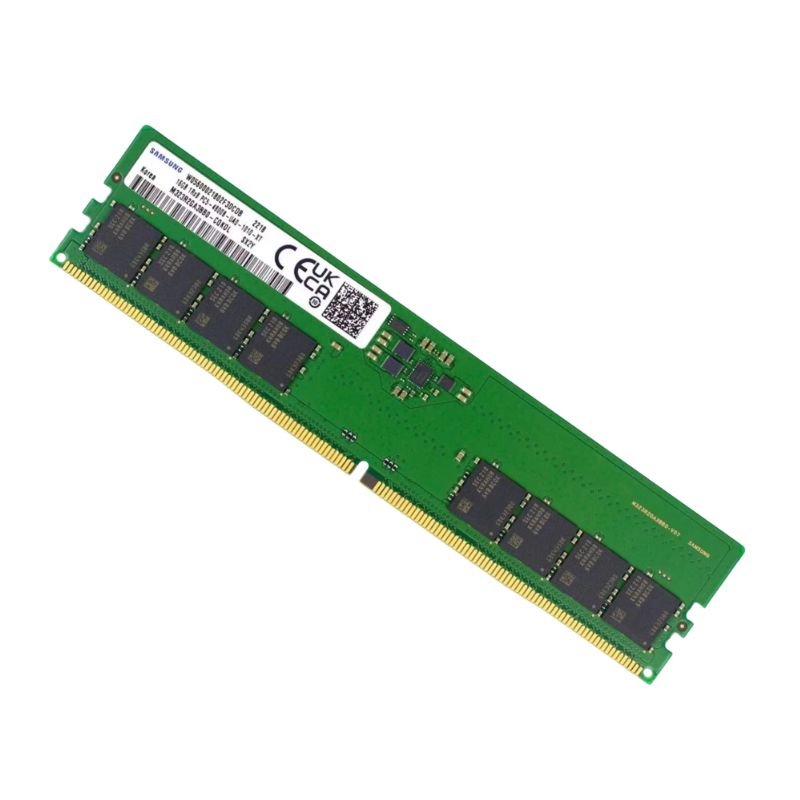

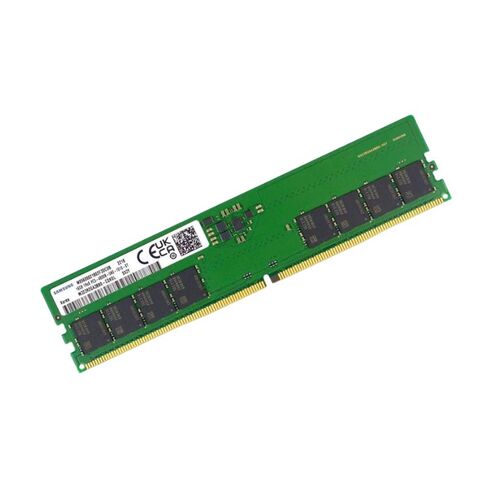

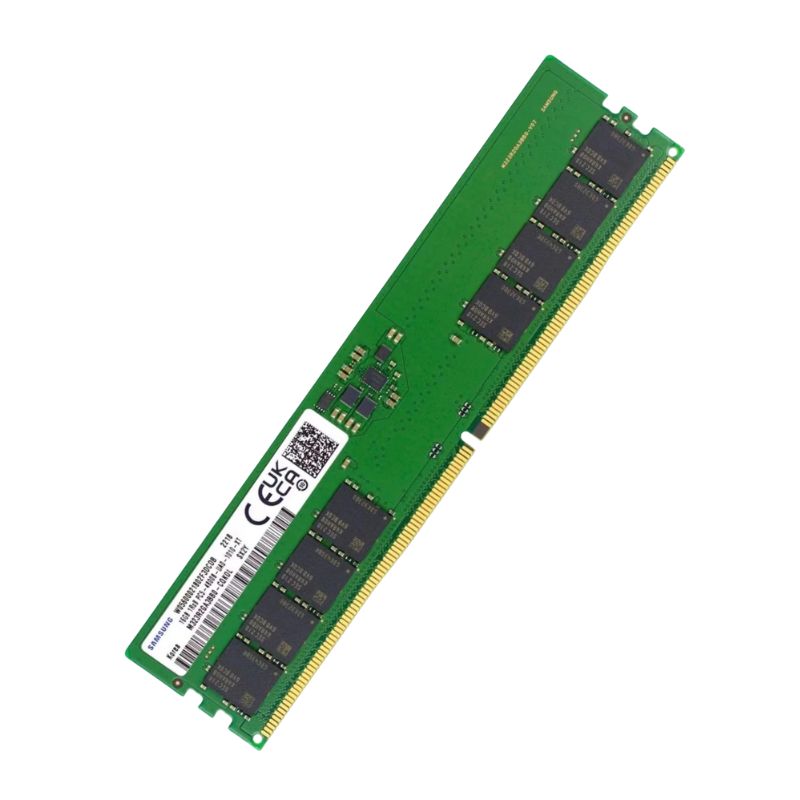

03KL452 Lenovo 16GB PC5-38400 DDR5 4800MHz Registered 288-pin Rdimm Memory Module

Lenovo 03KL452 16GB PC5-38400 DDR5 Memory

The transition from DDR4 to DDR5 represents the most significant leap in memory technology in over a decade. For server environments, this isn't merely an incremental speed bump; it's a foundational shift that addresses the escalating demands of modern data processing, multi-core CPUs, and I/O-intensive workloads. DDR5 introduces a suite of architectural enhancements designed to deliver higher bandwidth, improved power efficiency, and greater reliability at scale. DDR5 memory is engineered from the ground up to overcome the limitations of previous generations. The Lenovo 03KL452 module leverages these core innovations to provide enterprise-level performance.

Physical Design and 288-Pin RDIMM ECC

ECC (Error Correction Code)

A pivotal feature of DDR5 is the inclusion of On-Die ECC. While Registered DIMMs still feature traditional side-band ECC for correcting errors in data transmission, On-Die ECC works within the DRAM chip itself to correct internal bit errors before they are sent to the memory controller. This adds a vital layer of data integrity and reliability, reducing the latent error rate and contributing to overall system stability—a non-negotiable requirement in 24/7 server operations.

Understanding Registered DIMMs (RDIMMs): The

The "Registered" designation in the Lenovo 03KL452 is a cornerstone of its server-grade classification. This technology is fundamentally different from the Unbuffered DIMMs (UDIMMs) used in typical desktops and workstations. An RDIMM incorporates a register, or Registering Clock Driver (RCD), situated between the server's memory controller and the DRAM chips. This component buffers the address, command, and clock signals, acting as a traffic cop. It reduces the electrical load on the memory controller by presenting a single load instead of the load from every DRAM chip on the module.

Scalability

The primary advantage of this buffering is the ability to support significantly higher memory capacities per channel and per system. Servers can be populated with more DIMMs per CPU without risking signal degradation. This ensures reliable operation at high speeds (like 4800MHz) even in fully populated configurations, which is critical for memory-intensive applications such as in-memory databases (e.g., SAP HANA), large-scale virtualization, and scientific simulations.

RDIMMs vs. UDIMMs and LRDIMMs

It's crucial to distinguish RDIMMs from other types: UDIMMs are unbuffered, offering lower latency but much lower capacity and scalability, making them unsuitable for most multi-CPU server platforms. LRDIMMs (Load Reduced DIMMs) take buffering a step further by also buffering the data lines, enabling the highest possible capacities (e.g., 256GB+ modules) but with slightly higher latency and cost. The Lenovo 03KL452 RDIMM strikes the optimal balance of performance, capacity, and cost for the vast majority of enterprise workloads.

Capacity: 16GB

This capacity is a workhorse for general-purpose servers, ideal for tasks like virtual machine hosting, mid-sized database servers, and application servers. It allows for substantial total memory configurations (e.g., 256GB across 16 slots) while maintaining a cost-effective price point per gigabyte.

Data Rate: PC5-38400 (4800MHz)

The "PC5" denotes a DDR5 module. The number "38400" refers to the module's theoretical peak transfer rate in megabytes per second (MB/s). A single 4800MHz DDR5 module like the 03KL452 can achieve up to 38,400 MB/s of bandwidth. Operating at a base frequency of 4800 million transfers per second (MT/s), this speed provides a substantial uplift over standard DDR4-3200 (PC4-25600) server memory, directly translating to faster data access for CPUs and reduced processing bottlenecks.

Module Type: 288-pin RDIMM

The physical interface is a 288-pin connector, which is mechanically different from DDR4's 288-pin design (the key notch is in a different location to prevent insertion errors). The RDIMM classification confirms the presence of the address/command register, as detailed earlier.

Advantage of DDR5 Investment

Upon first boot, enter the system BIOS/UEFI. The firmware should automatically detect the new memory and its SPD (Serial Presence Detect) profiles. Verify the total recognized memory matches expectations and that it is running at the advertised speed (4800MHz). Ensure that all firmware, including the BIOS and BMC (Baseboard Management Controller), is updated to the latest version for best compatibility and performance. On Lenovo systems, use the XClarity Controller (BMC) interface to monitor the health of the newly installed memory. Check for any correctable ECC errors logged in the system event log (SEL). A small number of correctable errors is normal, but a rising trend can indicate a potential issue.

Compatibility

The Lenovo 03KL452 is designed for specific generations of Lenovo server platforms. It is compatible with systems built on Intel's Xeon Scalable Processors (Sapphire Rapids and later) and the compatible AMD EPYC platforms that support DDR5 RDIMMs, such as select models in the Think System SR series (e.g., SR650 V3, SR670 V3). Always verify compatibility using the Lenovo Memory Proven list or compatibility matrix for your specific server model and firmware level before purchase. Mixing memory speeds, capacities, or brands can lead to system instability or failure to boot. Every detail in the module's part number and description conveys critical technical information for proper selection and deployment. Lenovo's part numbering system is specific to their product ecosystem.
