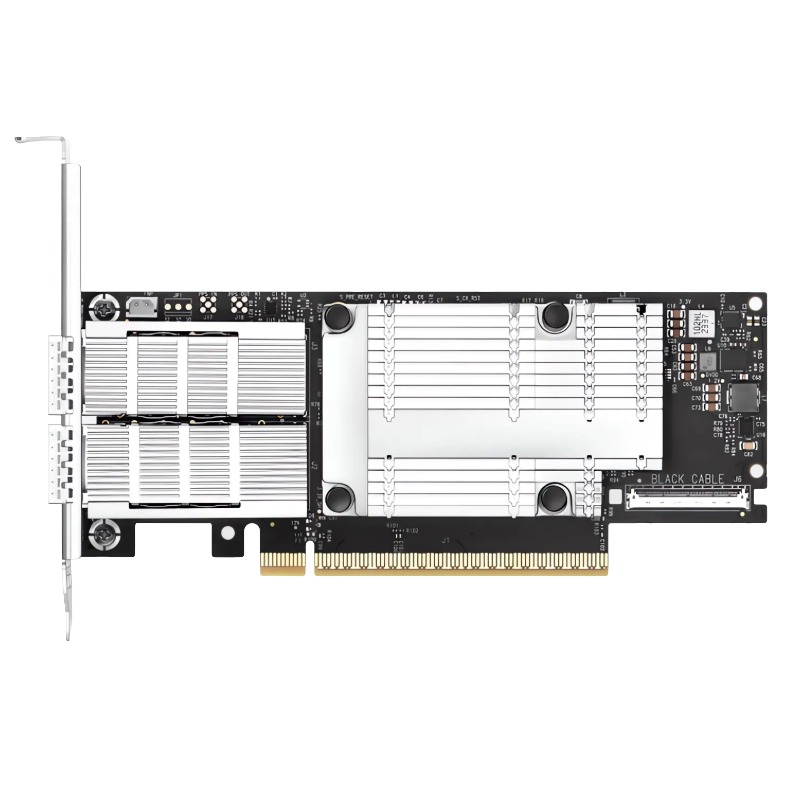

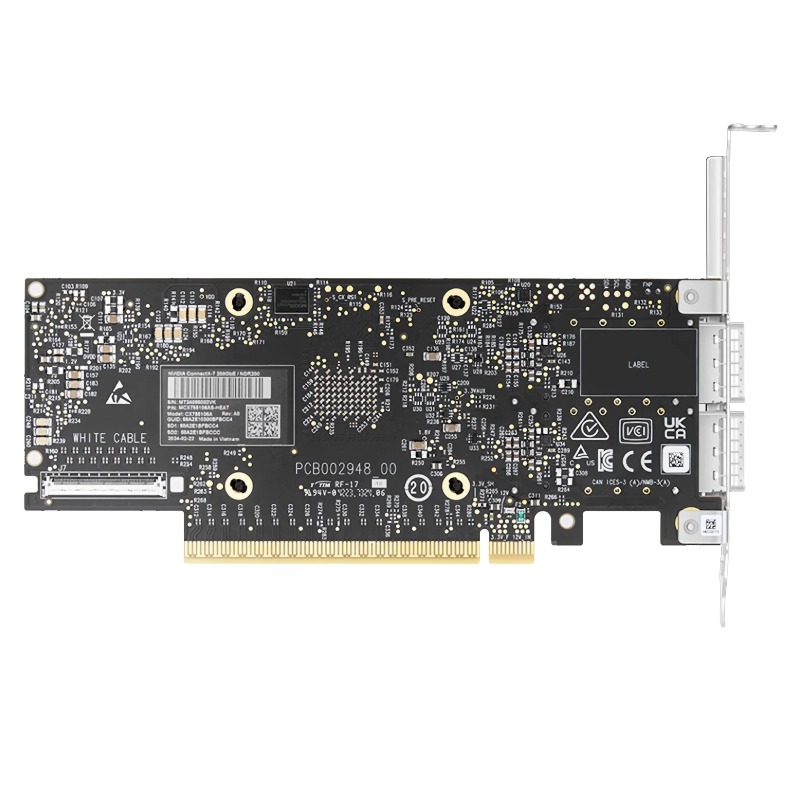

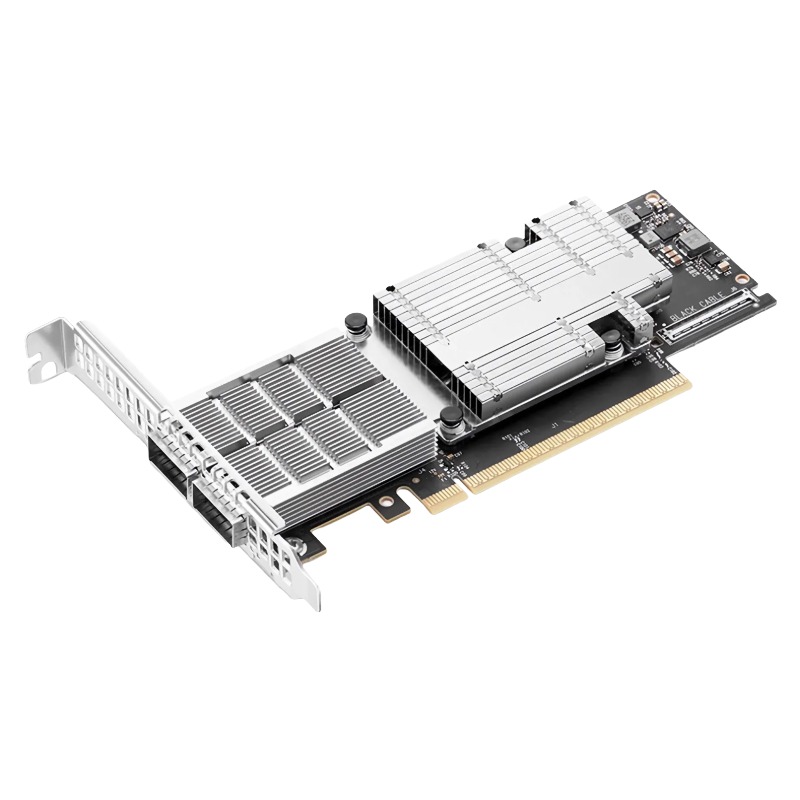

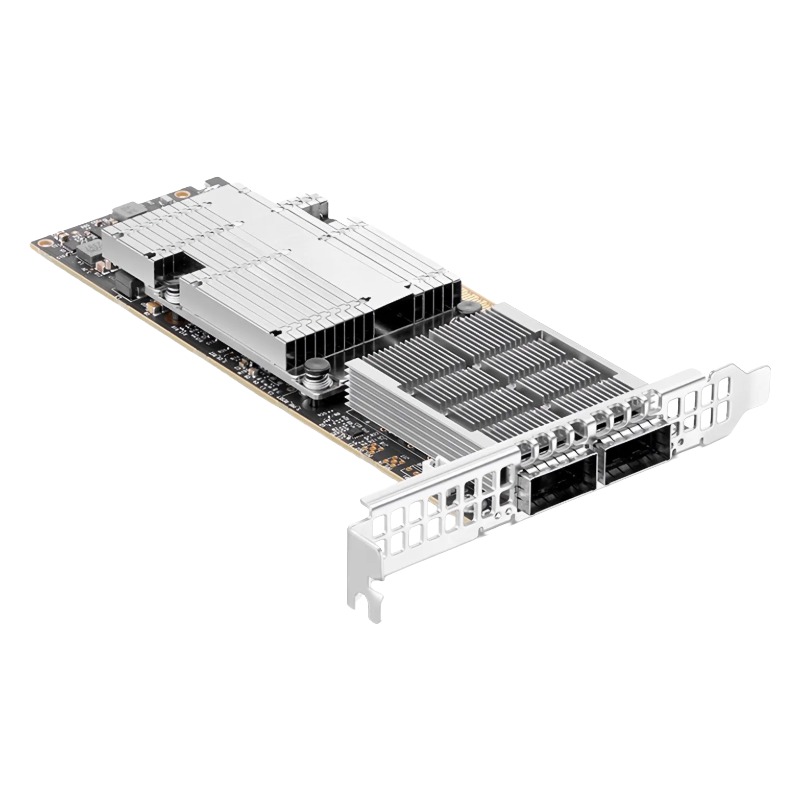

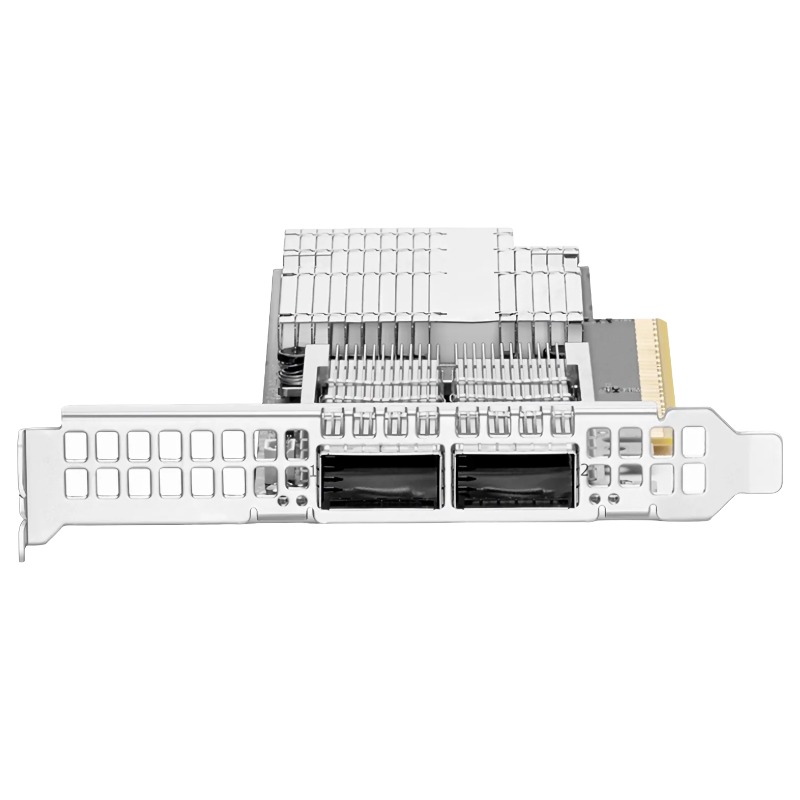

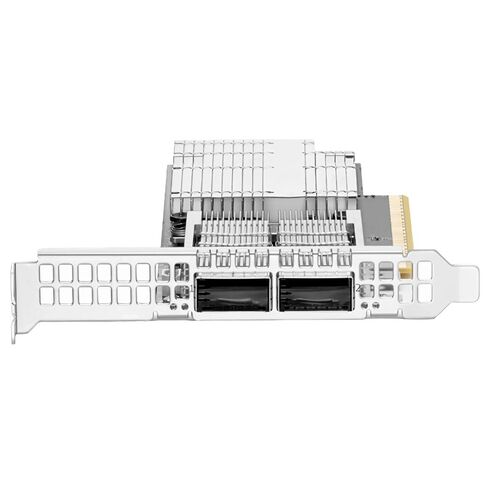

4XC7A81883 Lenovo ConnectX-7 NDR200/200GBE QSFP112 Infiniband Adapter

Comprehensive Product Overview

The Lenovo 4XC7A81883 ConnectX-7 NDR200/200GBE QSFP112 Infiniband Adapter is a cutting-edge networking solution designed to deliver exceptional performance and reliability.

General Information

• Manufacturer: Lenovo
• Part Number: 4XC7A81883
• Product Type: Network Adapter

Technical Highlights

• Host Interface: PCI Express 5.0 x16
• Total Ports Available: 2
• Expansion Slots: 2
• Slot Type: QSFP112
• Supported Media: Optical Fiber
• Form Factor: Plug-in Card
• Bracket Height: Full-Height

Enhanced Connectivity

• Designed for high-speed networking with PCIe Gen5 bandwidth
• Dual-port configuration ensures flexible deployment

Expansion Flexibility

• Two QSFP112 slots for scalable growth
• Supports advanced optical fiber connections for enterprise-grade performance

Reliability & Build Quality

• Full-height bracket for secure installation
• Durable plug-in card design optimized for long-term use

Lenovo 4XC7A81883 PCI-E Network Adapter

The Lenovo 4XC7A81883 ConnectX-7 NDR200 2-Port 200Gb/s Ethernet PCI Express 5.0 x16 Network Adapter represents a cutting-edge advancement in data center interconnect technology, engineered to deliver ultra-low latency, extreme bandwidth efficiency, and advanced hardware offload capabilities. Built on the NVIDIA ConnectX-7 architecture and optimized for enterprise-scale workloads, this adapter is designed to support modern hyperscale environments, AI computing clusters, high-frequency trading systems, cloud service infrastructures, and high-performance storage networks where deterministic performance is essential.

As data volumes continue to grow exponentially across distributed computing systems, the demand for ultra-high-speed networking solutions has increased significantly. This adapter addresses these demands by leveraging 200 Gigabit Ethernet connectivity over QSFP112 interfaces, combined with PCI Express 5.0 x16 host connectivity, ensuring that both network throughput and system bus performance remain balanced even under extreme workloads.

Advanced Hardware Design and PCIe 5.0 Integration

PCI Express 5.0 x16 Host Interface Capabilities

At the core of the Lenovo 4XC7A81883 network adapter is a PCI Express 5.0 x16 interface, providing a substantial increase in data transfer bandwidth compared to previous PCIe generations. This allows the adapter to fully utilize its dual 200Gb/s ports without bottlenecks, ensuring efficient packet processing, minimal jitter, and reduced CPU overhead. PCIe 5.0 doubles the bandwidth per lane compared to PCIe 4.0, making it particularly suited for next-generation networking hardware where throughput efficiency is critical.

Optimized Data Path Architecture

The internal architecture of the ConnectX-7 controller is designed with a highly optimized data path that minimizes latency at every stage of packet processing. It integrates dedicated hardware engines for packet parsing, checksum offload, and protocol acceleration, enabling near-line-rate performance even in complex virtualized or multi-tenant environments.

Energy-Efficient High-Speed Operation

Despite its extreme performance capabilities, the adapter is engineered for energy efficiency through dynamic power management technologies. These mechanisms adjust power consumption based on traffic load, link utilization, and thermal conditions, helping data centers maintain optimal performance per watt ratios while reducing operational costs.

Dual-Port 200Gb/s QSFP112 Ethernet Connectivity

200GBase-X High-Speed Networking Standard

The adapter supports dual 200Gb/s Ethernet ports compliant with 200GBase-X standards, enabling massive data throughput for compute-intensive workloads. Each port is designed to operate independently, allowing flexible network topologies such as load balancing, redundancy configurations, or dedicated data and storage paths.

QSFP112 Optical and Copper Compatibility

Equipped with QSFP112 form factor support, the Lenovo 4XC7A81883 ensures compatibility with a wide range of transceivers and DAC/AOC cables designed for 200G networking environments. The QSFP112 interface offers improved signal integrity and higher lane speeds compared to earlier QSFP56 designs, making it ideal for dense rack-scale deployments.

Signal Integrity and Transmission Efficiency

The QSFP112 implementation enhances signal integrity through improved electrical channel design and reduced insertion loss. This ensures reliable data transmission across short-reach and long-reach links in enterprise and hyperscale infrastructures, minimizing retransmissions and packet loss even under heavy network congestion.

ConnectX-7 Architecture and SmartNIC Capabilities

Advanced SmartNIC Offload Engine

The ConnectX-7 platform introduces advanced SmartNIC capabilities that significantly reduce CPU utilization by offloading networking, security, and virtualization tasks to dedicated hardware. This includes RDMA over Converged Ethernet (RoCE), TCP/UDP checksum offloading, encryption acceleration, and encapsulation/decapsulation for overlay networks.

RDMA and Low-Latency Data Transfers

Remote Direct Memory Access (RDMA) support enables direct memory-to-memory communication between servers without involving the CPU, dramatically reducing latency and improving throughput for distributed computing workloads such as AI training, HPC simulations, and real-time analytics.

Hardware-Based Virtualization Acceleration

The adapter supports advanced virtualization features such as SR-IOV (Single Root I/O Virtualization), enabling multiple virtual machines or containers to share a single physical adapter while maintaining near-native performance. This is essential for cloud service providers and enterprise virtualization platforms requiring isolated yet high-performance network access.

Data Center and Enterprise Deployment Scenarios

Hyperscale Cloud Infrastructure Integration

In hyperscale environments, the Lenovo ConnectX-7 NDR200 adapter plays a critical role in scaling distributed workloads across thousands of nodes. Its high throughput and low latency characteristics make it suitable for east-west traffic optimization in large-scale data centers, where internal communication between servers dominates external network traffic.

High-Performance Computing (HPC) Environments

HPC workloads such as scientific simulations, weather modeling, and computational fluid dynamics benefit from the adapter’s ultra-low latency networking capabilities. The ConnectX-7 architecture ensures deterministic packet delivery and efficient parallel processing communication patterns.

Financial Trading and Real-Time Analytics

Low-latency trading systems require microsecond-level responsiveness, and the Lenovo 4XC7A81883 is engineered to meet these demands through hardware acceleration and optimized packet processing pipelines. Real-time analytics platforms also benefit from its ability to process large data streams with minimal delay.

Network Virtualization

SDN Compatibility

The adapter is fully compatible with software-defined networking architectures, enabling dynamic network configuration and policy-based traffic management. This programmability allows administrators to adapt network behavior based on workload requirements in real time.

Containerized and Cloud-Native Workloads

Modern container orchestration platforms such as Kubernetes benefit from the adapter’s ability to provide high-speed networking for microservices communication. Its support for hardware offloads ensures that containerized applications maintain consistent performance even under heavy network load.

Multi-Tenant Isolation and Security Acceleration

Security features integrated into the ConnectX-7 architecture provide isolation between tenants in shared environments. Hardware acceleration for encryption and encapsulation protocols ensures that security overhead does not degrade network performance.

Thermal Design and Physical Form Factor Efficiency

The Lenovo 4XC7A81883 adapter is designed with advanced thermal dissipation mechanisms to maintain stable operation under continuous high-throughput workloads. Efficient heat distribution ensures that the adapter remains within optimal operating temperatures even in densely packed server environments.

Compact PCIe Form Factor for Dense Server Configurations

Its PCIe form factor allows seamless integration into modern rack-mounted servers, blade systems, and modular data center architectures. The compact design supports high-density deployments where space optimization is critical.

High Availability Network Design

With dual-port redundancy support, the adapter enables failover configurations that maintain continuous network availability in the event of link or port failure. This is essential for mission-critical systems requiring uninterrupted connectivity.

Scalability and Future-Ready Networking Capabilities

Kernel Bypass and User-Space Acceleration

Kernel bypass technologies enable applications to directly access network hardware, significantly reducing software overhead and improving throughput for latency-sensitive applications.

Zero-Copy Data Processing Efficiency

Zero-copy mechanisms eliminate unnecessary memory duplication during packet processing, reducing CPU cycles and improving overall system efficiency in high-performance workloads.

Enterprise Storage and Data Transfer Acceleration

High-Speed Storage Networking Integration

The adapter is optimized for high-speed storage networking environments, enabling rapid data transfer between compute nodes and storage arrays. This is particularly beneficial for distributed storage systems and cloud storage architectures.

NVMe over Fabrics Support

Support for NVMe over Fabrics allows direct access to remote storage devices with minimal latency, making it ideal for high-performance database systems and real-time analytics platforms.
