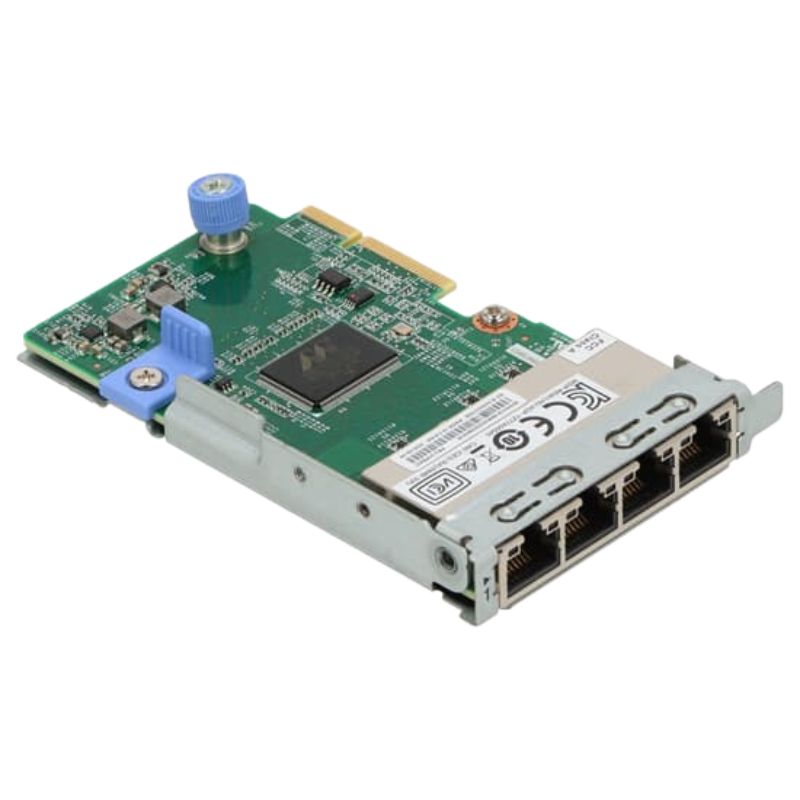

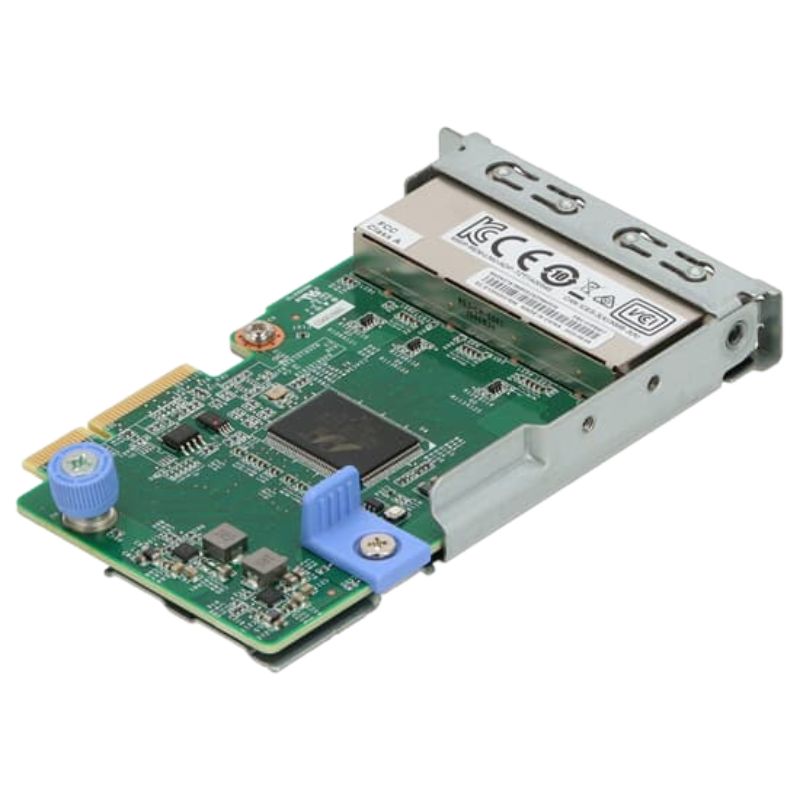

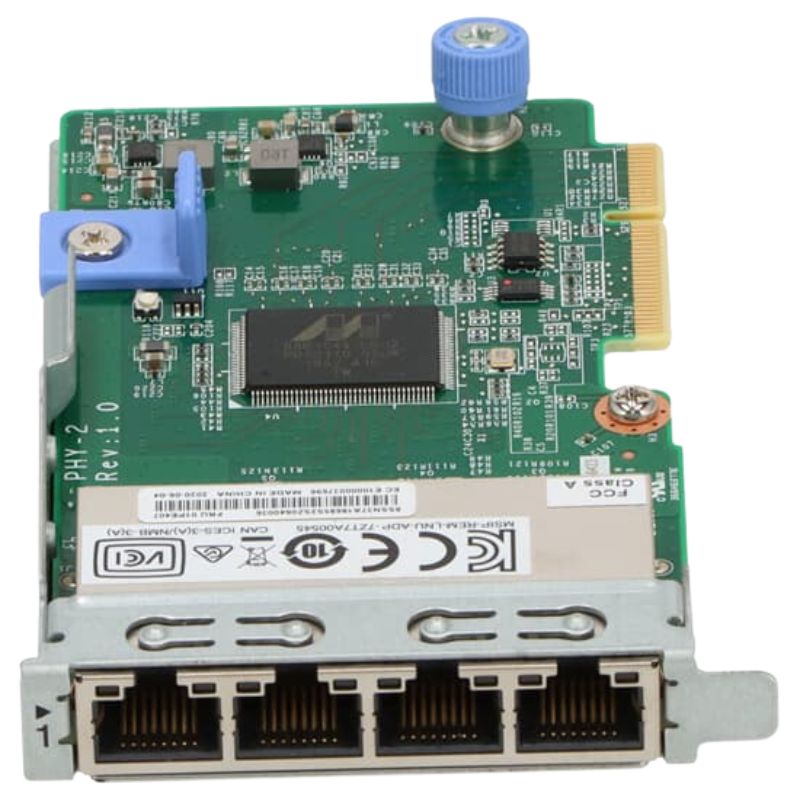

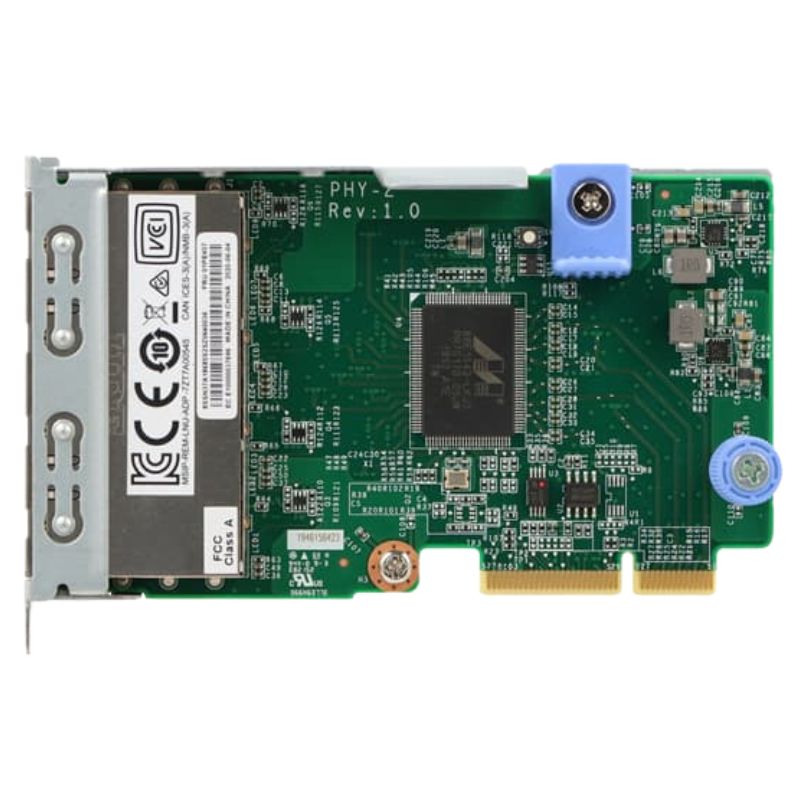

7ZT7A00547 Lenovo ThinkSystem 10GB 4-Port LOM Adapter

Lenovo ThinkSystem 10GB 4-Port Adapter

The Lenovo 7ZT7A00547 ThinkSystem 10GB 4-Port LOM Adapter is engineered to deliver superior networking performance, offering enhanced connectivity and speed for enterprise-grade servers.

General Specifications

Manufacturer Information

• Brand: Lenovo
• Part Number: 7ZT7A00547
• Category: Network Adapter

Technical Highlights

Form Factor

• Plug-in Card design for seamless integration

Interface Type

• LAN-on-Motherboard (LOM) compatibility

Port Configuration

• Four 10 Gigabit Ethernet ports
• Supports 10 GigE protocol
• Data transfer speed up to 10 Gbps

Performance Capacity

• Virtual Functions: 128
• Processor: 1 x CS4223 Inphi chipset

Compliance Standards

• IEEE 802.1q
• IEEE 802.1p
• IEEE 802.3x
• IEEE 802.3ad (LACP)
• IEEE 802.1as
• IEEE 802.1qbg

Compatibility and Supported Systems

Designed For

• ThinkSystem SR530
• ThinkSystem SR550
• ThinkSystem SR570
• ThinkSystem SR590
• ThinkSystem SR630
• ThinkSystem SR650
• ThinkSystem SR850
• ThinkSystem SR860
• ThinkSystem SR950

Operating System Requirements

Microsoft Platforms

• Windows Server 2012 R2
• Windows Server 2016

Linux Distributions

• SUSE Linux Enterprise Server 11 SP4
• SUSE Linux Enterprise Server 12 SP2
• Red Hat Enterprise Linux 6.9
• Red Hat Enterprise Linux 7.3

Virtualization Platforms

• VMware ESXi 6.0 Update 3
• VMware ESXi 6.5

Lenovo 7ZT7A00547 10GB 4-Port LOM Adapter Overview

The Lenovo 7ZT7A00547 ThinkSystem 10GB 4-Port LOM Adapter represents a highly efficient and performance-driven networking solution tailored for enterprise-grade server environments. Designed to seamlessly integrate with Lenovo ThinkSystem servers, this LAN on Motherboard adapter delivers robust connectivity with four 10 Gigabit Ethernet ports, ensuring consistent and high-throughput data transfer capabilities. In modern data centers where bandwidth demands continue to grow exponentially, this adapter serves as a reliable backbone for virtualization, cloud computing, and high-performance workloads.

The architecture of this adapter is optimized for low latency and high reliability, allowing organizations to scale their infrastructure without compromising on network performance. By offering four independent 10GbE ports, it enables improved traffic segmentation, enhanced redundancy, and greater flexibility in configuring network topologies. This makes it an ideal solution for enterprises seeking to maximize uptime while maintaining efficient data flow across multiple applications and services.

Advanced Networking Capabilities for Enterprise Infrastructure

The Lenovo ThinkSystem 10GB 4-Port LOM Adapter is engineered to support advanced networking features that align with modern enterprise requirements. It incorporates support for virtualization technologies such as SR-IOV, enabling direct assignment of network resources to virtual machines. This significantly reduces CPU overhead and enhances overall system performance, making it particularly beneficial for virtualized environments and cloud-based deployments.

In addition, the adapter supports advanced offload features including TCP/IP offloading, checksum offloading, and large send offload. These capabilities reduce the processing burden on the host CPU, allowing servers to allocate more resources to mission-critical applications. As a result, organizations can achieve higher efficiency and improved performance without the need for additional hardware investments.

Enhanced Bandwidth Utilization and Scalability

Bandwidth optimization is a critical factor in data center operations, and the Lenovo 7ZT7A00547 adapter excels in this area. With four 10GbE ports, it offers a combined bandwidth potential of up to 40Gbps, enabling organizations to handle large volumes of data traffic with ease. This is particularly advantageous for applications such as big data analytics, database management, and high-frequency trading systems where data throughput is paramount.

The scalability of this adapter ensures that it can adapt to evolving business needs. Whether an organization is expanding its infrastructure or upgrading existing systems, this adapter provides the flexibility required to accommodate increased network demands. Its compatibility with various ThinkSystem servers further enhances its versatility, making it a valuable addition to any enterprise environment.

Redundancy and High Availability Features

Ensuring continuous network availability is essential for mission-critical operations, and the Lenovo ThinkSystem LOM Adapter is designed with redundancy in mind. The presence of four ports allows for link aggregation and failover configurations, ensuring that network connectivity remains uninterrupted even in the event of a port failure. This level of reliability is crucial for businesses that require constant uptime and cannot afford network disruptions.

By supporting advanced teaming and bonding technologies, the adapter enables administrators to create resilient network configurations that enhance both performance and reliability. This ensures that workloads are distributed efficiently across multiple links, reducing the risk of bottlenecks and improving overall network stability.

Integration with Lenovo ThinkSystem Servers

The Lenovo 7ZT7A00547 adapter is specifically designed to integrate seamlessly with ThinkSystem servers, providing a cohesive and optimized solution for enterprise environments. Its LOM design allows it to be embedded directly onto the server motherboard, eliminating the need for additional PCIe slots and simplifying system architecture. This not only saves valuable space but also enhances airflow and thermal management within the server chassis.

Integration with Lenovo’s management ecosystem further enhances the usability of this adapter. Administrators can leverage Lenovo XClarity Controller and other management tools to monitor network performance, configure settings, and troubleshoot issues efficiently. This centralized management approach reduces operational complexity and ensures that IT teams can maintain optimal performance across their infrastructure.

Compatibility and Deployment Flexibility

The adapter is compatible with a wide range of Lenovo ThinkSystem servers, making it suitable for diverse deployment scenarios. Whether used in rack servers, tower servers, or blade environments, it delivers consistent performance and reliability. This flexibility allows organizations to standardize their networking components across different server platforms, simplifying maintenance and reducing operational costs.

Deployment of the adapter is straightforward, thanks to its plug-and-play design and comprehensive driver support. It is compatible with major operating systems including Windows Server, Linux distributions, and VMware environments. This ensures that organizations can integrate it into their existing infrastructure without encountering compatibility issues.

Optimized for Virtualization and Cloud Workloads

Virtualization and cloud computing have become integral components of modern IT infrastructure, and the Lenovo 7ZT7A00547 adapter is designed to excel in these environments. Its support for advanced virtualization features enables efficient resource allocation and improved performance for virtual machines. By reducing latency and increasing throughput, it ensures that applications run smoothly even under heavy workloads.

In cloud environments, where scalability and flexibility are paramount, the adapter provides the necessary bandwidth and reliability to support dynamic workloads. Its ability to handle multiple data streams simultaneously makes it ideal for multi-tenant environments and large-scale cloud deployments.

Security Enhancements and Data Protection

Security is a critical concern in enterprise networking, and the Lenovo ThinkSystem LOM Adapter incorporates features to safeguard data integrity and confidentiality. It supports secure boot and firmware validation, ensuring that only trusted code is executed on the device. This helps prevent unauthorized access and protects against potential security threats.

Additionally, the adapter supports advanced encryption protocols and secure communication standards, enabling organizations to maintain compliance with industry regulations. By integrating robust security features, it provides a secure foundation for enterprise networking operations.

Performance Optimization and Efficiency

The performance capabilities of the Lenovo 7ZT7A00547 adapter are designed to meet the demands of high-performance computing environments. Its low-latency architecture ensures rapid data transmission, minimizing delays and enhancing application responsiveness. This is particularly important for real-time applications such as financial trading systems, video streaming, and online gaming platforms.

Efficiency is further enhanced through intelligent power management features. The adapter dynamically adjusts its power consumption based on network activity, reducing energy usage without compromising performance. This contributes to lower operational costs and supports environmentally sustainable data center practices.

Load Balancing and Traffic Management

Effective traffic management is essential for maintaining optimal network performance, and the Lenovo ThinkSystem adapter provides advanced load balancing capabilities. By distributing network traffic across multiple ports, it prevents congestion and ensures efficient utilization of available bandwidth. This results in improved performance and reduced latency, even during peak usage periods.

Administrators can configure traffic management policies to prioritize critical applications and ensure that they receive the necessary bandwidth. This level of control enhances overall network efficiency and ensures that business-critical operations are not impacted by network congestion.

Support for Modern Networking Standards

The adapter is designed to support the latest networking standards, ensuring compatibility with modern infrastructure. It supports IEEE 802.3 standards for Ethernet, as well as advanced features such as VLAN tagging and jumbo frames. These capabilities enable organizations to optimize their network configurations and achieve higher performance levels.

By adhering to industry standards, the adapter ensures interoperability with a wide range of networking equipment, including switches and routers from various vendors. This flexibility allows organizations to build a heterogeneous network environment without compatibility concerns.
