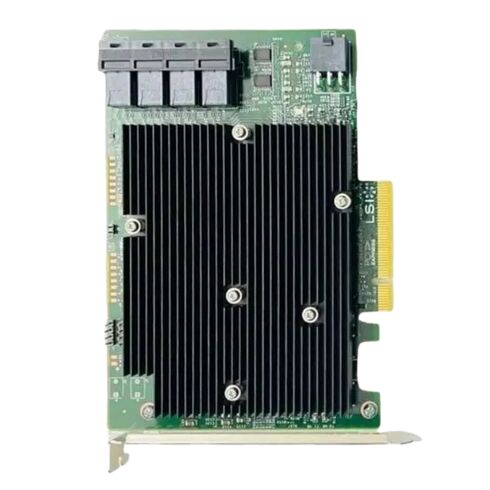

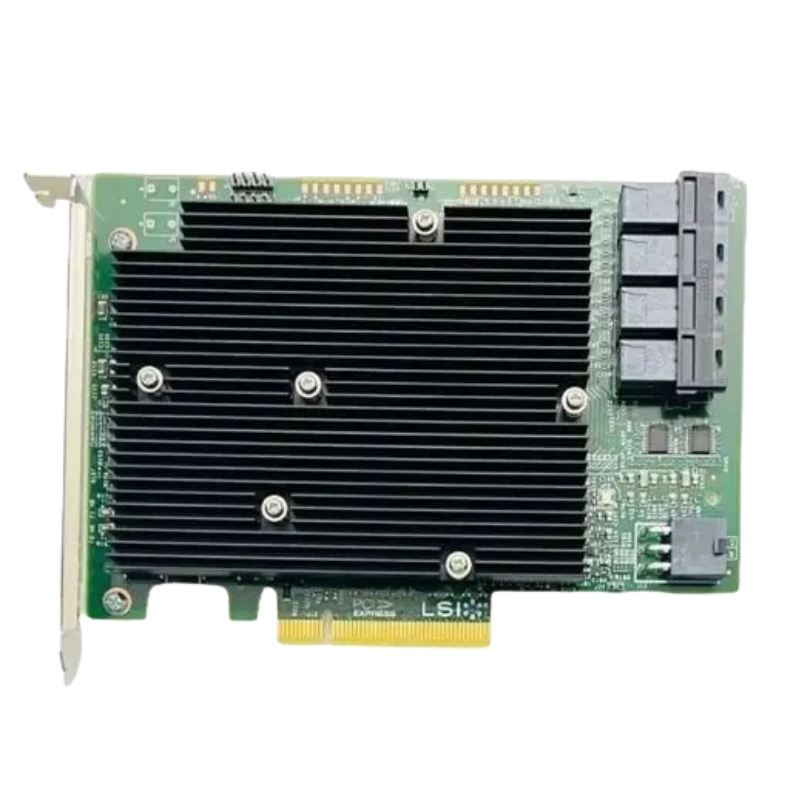

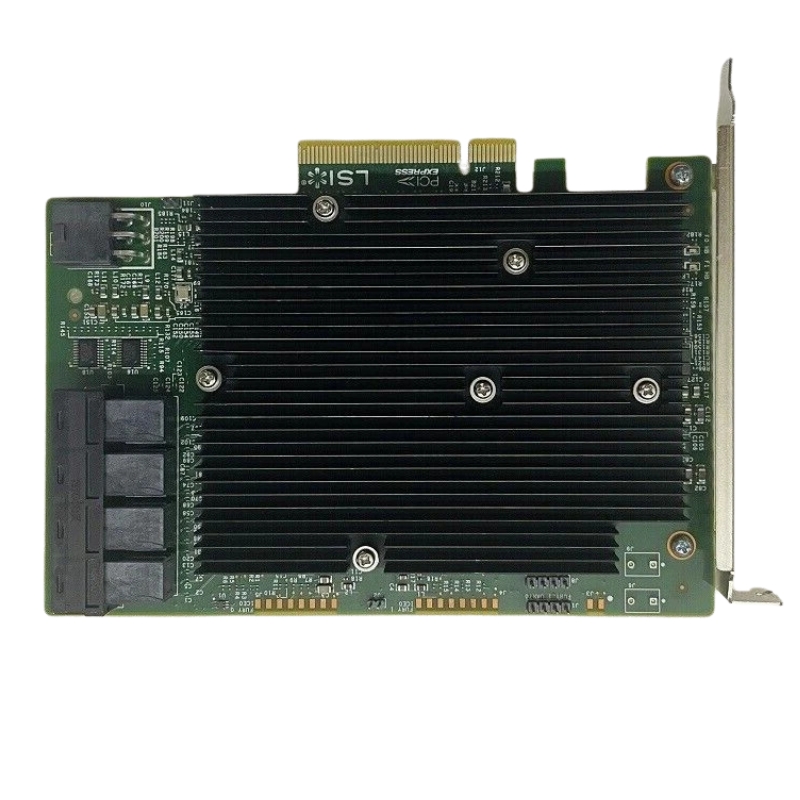

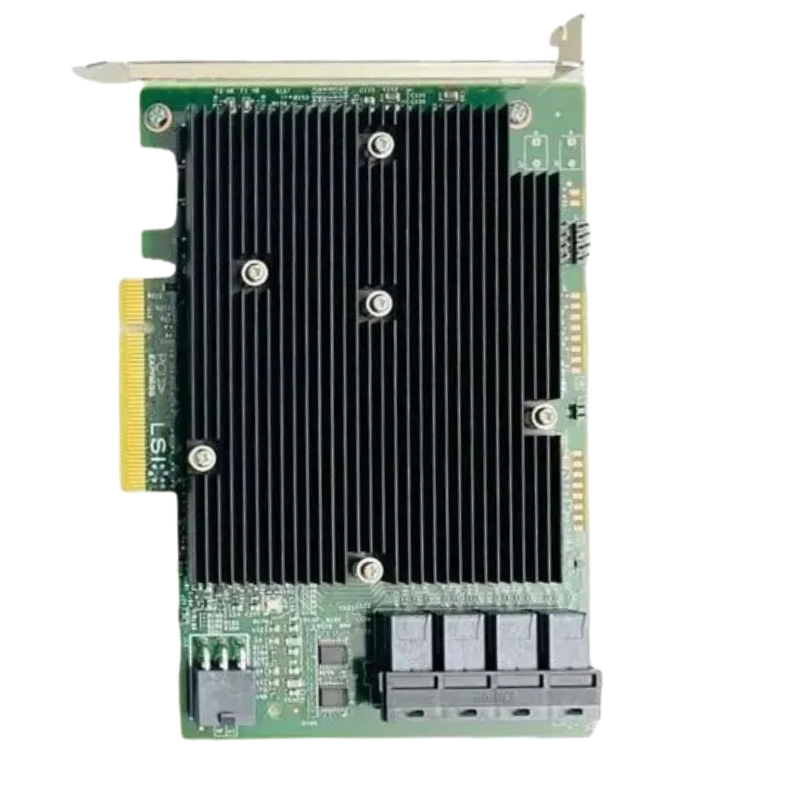

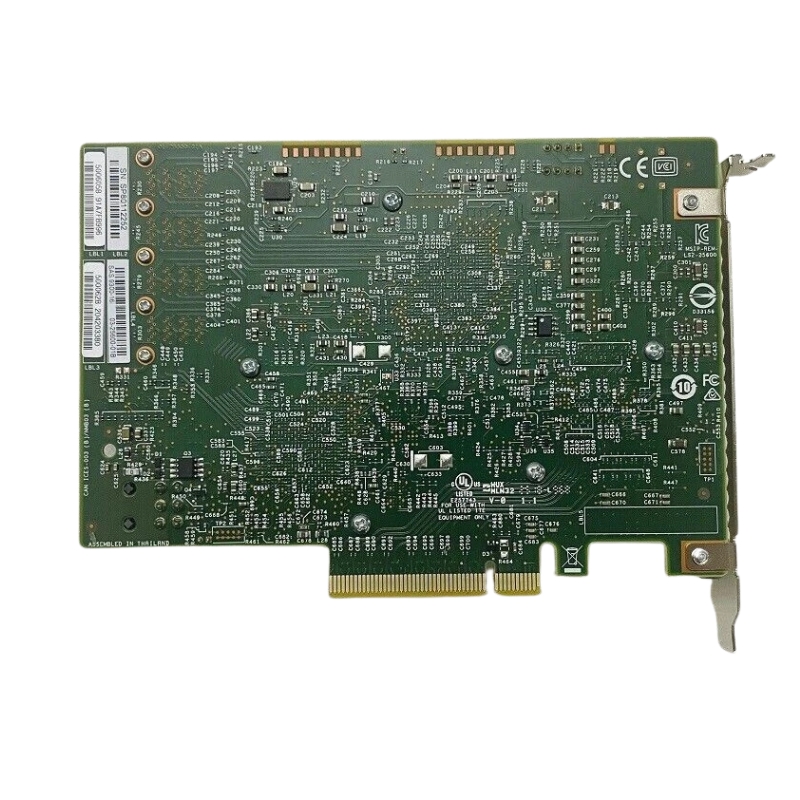

SAS9300-16I LSI Logic SAS 12GBPS 16-Ports PCIE 3.0 X8 Host Bus Adapter

The Enterprise SAS Host Bus Adapter

The category of enterprise-grade SAS Host Bus Adapters (HBAs) is designed to deliver high-throughput, low-latency storage connectivity for data centers, virtualization platforms, cloud infrastructures, and performance-driven workstations. Products in this category focus on providing direct, reliable access between servers and large-scale storage devices using the SAS protocol, ensuring stability, scalability, and long-term compatibility with enterprise storage ecosystems. Adapters such as the LSI Logic SAS9300-16I exemplify this category by offering a balance of raw bandwidth, port density, and protocol efficiency required for modern storage workloads.

This category primarily targets environments that rely on internal SAS and SATA storage rather than external enclosures, making it ideal for servers that require high disk density and predictable performance. These adapters eliminate unnecessary RAID abstraction layers, allowing operating systems and software-defined storage platforms to manage disks directly. As a result, SAS HBAs are widely used in hyper-converged infrastructure, software RAID deployments, backup servers, archival systems, and high-capacity database servers.

High-Speed SAS 12Gbps

At the core of this category is the SAS 12Gbps interface, which represents a significant advancement over earlier SAS generations. SAS 12Gbps doubles the bandwidth of SAS 6Gbps, enabling faster data transfers, reduced command latency, and improved I/O parallelism. This architecture is essential for modern solid-state drives and high-speed hard drives that can easily saturate older interfaces.

Adapters in this category are engineered to support full-duplex communication, meaning data can be transmitted and received simultaneously at maximum speed. This is especially important in enterprise environments where multiple virtual machines, applications, and users access storage resources concurrently. The result is smoother performance under heavy workloads and better utilization of available storage hardware.

SAS and SATA Devices

A defining feature of this category is backward compatibility. SAS 12Gbps HBAs are designed to work seamlessly with SAS 6Gbps, SAS 3Gbps, and SATA devices. This ensures that organizations can upgrade their server infrastructure without replacing existing drives. Mixed-drive environments are common in enterprise storage, and this compatibility allows for gradual upgrades and cost-effective scaling.

Support for SATA drives also makes these adapters versatile. SATA-based SSDs and HDDs can be used alongside SAS drives, providing flexibility in balancing performance and capacity. This makes the category suitable for tiered storage architectures where different drive types serve different roles.

16-Port Internal for Storage

Port density is a critical factor in enterprise storage design. The 16-port configuration found in this category allows a single adapter to connect to a large number of internal drives using Mini-SAS HD connectors. This reduces the need for multiple adapters, conserves PCIe slots, and simplifies cabling within server chassis.

High port counts are especially valuable in high-density servers, storage nodes, and custom-built systems where maximizing drive capacity within limited physical space is essential. By supporting up to 16 internal lanes, these adapters enable efficient connectivity to backplanes, expanders, and direct-attached storage configurations.

PCI Express 3.0 x8

Adapters in this category utilize the PCI Express 3.0 x8 interface to deliver ample bandwidth between the host system and connected storage devices. PCIe 3.0 provides a significant increase in throughput compared to previous generations, ensuring that the adapter does not become a bottleneck even under heavy I/O loads.

The x8 lane configuration strikes a balance between performance and slot efficiency. It provides sufficient bandwidth for 16 SAS lanes operating at 12Gbps while remaining compatible with a wide range of server and workstation motherboards. This makes the category adaptable to both enterprise servers and advanced professional systems.

Host Bus Adapter Software Storage

Unlike RAID controllers, Host Bus Adapters in this category are designed to present each connected drive directly to the operating system. This approach is ideal for software-defined storage solutions that require full visibility and control over individual disks. Filesystems and storage platforms can manage redundancy, caching, and data distribution without interference from hardware-level RAID logic.

This design philosophy aligns with modern storage trends, where flexibility and scalability are prioritized over proprietary hardware features. By providing a transparent data path, these adapters enable advanced storage technologies to function as intended.

Use Cases

Virtualized environments place unique demands on storage infrastructure. Host Bus Adapters in this category are well-suited for virtualization because they provide consistent performance and predictable behavior. Hypervisors can access storage devices directly, enabling features such as passthrough, software RAID, and advanced caching mechanisms.

In private and hybrid cloud deployments, these adapters support scalable storage nodes that can be easily expanded by adding more drives. Their reliability and performance characteristics make them a common choice for building storage backends that support virtual machines, containers, and cloud-native applications.

SAS expanders play a crucial role in large storage configurations, and adapters in this category are fully compatible with them. Expanders allow a single HBA to manage dozens or even hundreds of drives, depending on the configuration. This capability is essential for building high-capacity storage servers and JBOD solutions.

By supporting expanders, these adapters provide flexibility in designing storage architectures that balance performance, capacity, and cost. Administrators can tailor their systems to specific workload requirements without compromising reliability.

Small Data Centers and Enterprise Environments

Both small data centers and large enterprise environments benefit from the features of this category. Smaller organizations gain access to enterprise-grade performance and reliability without excessive complexity, while larger enterprises can deploy these adapters at scale to support diverse workloads.

The adaptability of these adapters makes them a practical choice for organizations at different stages of growth, ensuring that storage infrastructure can evolve alongside business needs.

Platform Stability

Enterprise storage hardware is expected to remain in service for many years. Adapters in this category are designed with long-term platform stability in mind, offering consistent performance and ongoing firmware support. This reduces the need for frequent hardware replacements and simplifies lifecycle management.

Stable hardware platforms also make it easier to maintain compliance with internal standards and external regulations. Organizations can rely on consistent behavior and performance throughout the adapter’s service life.
