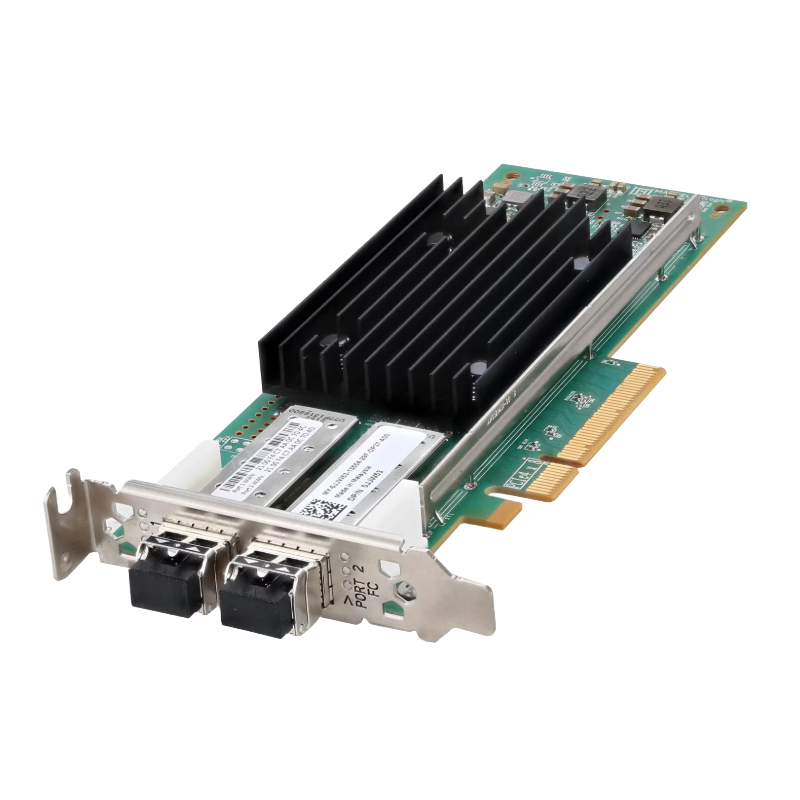

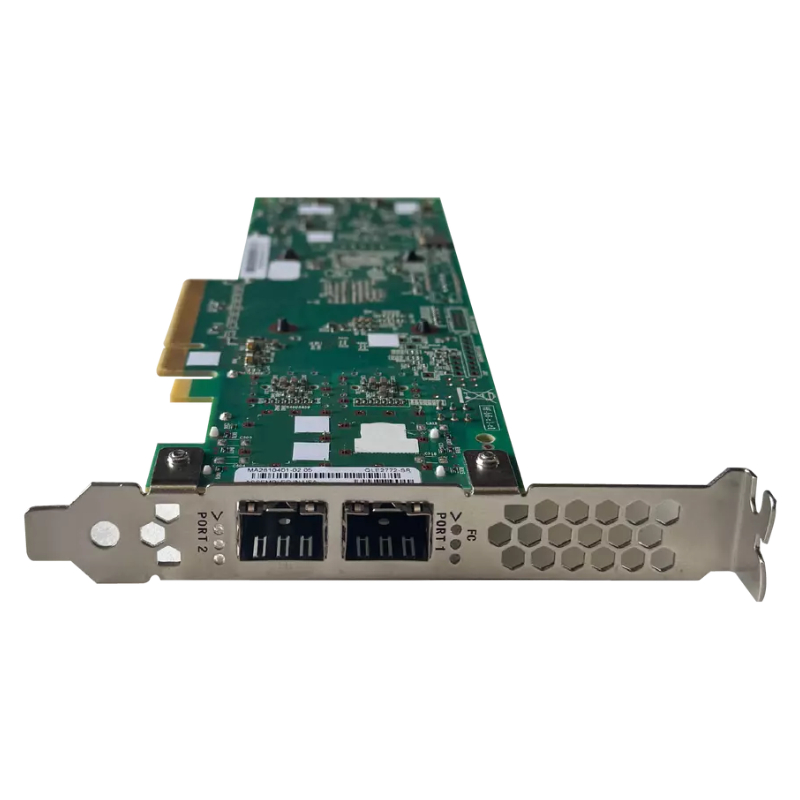

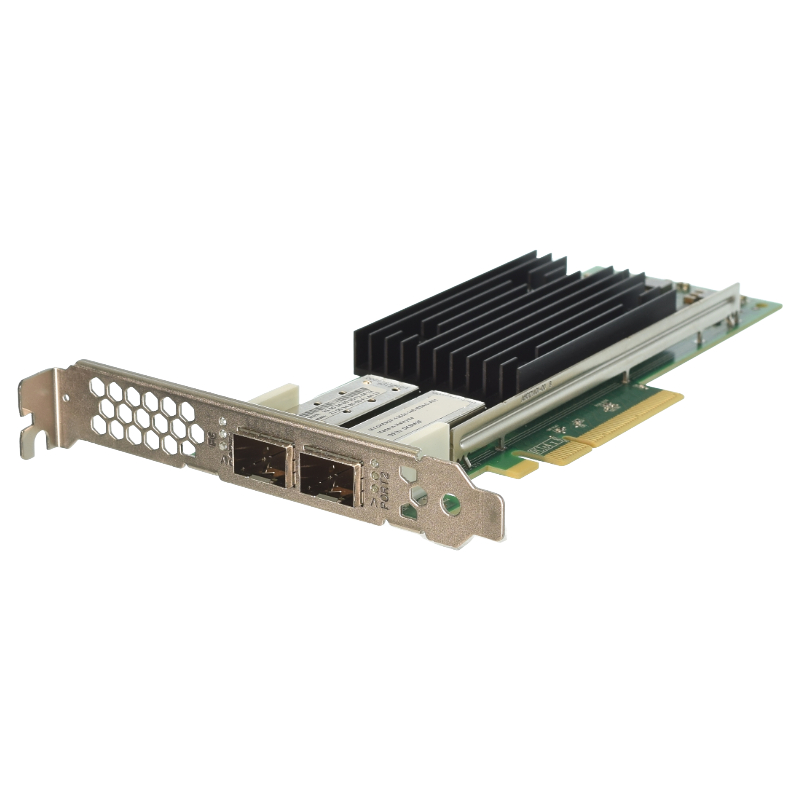

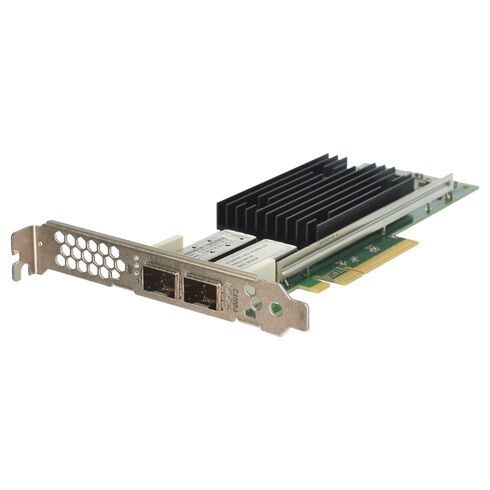

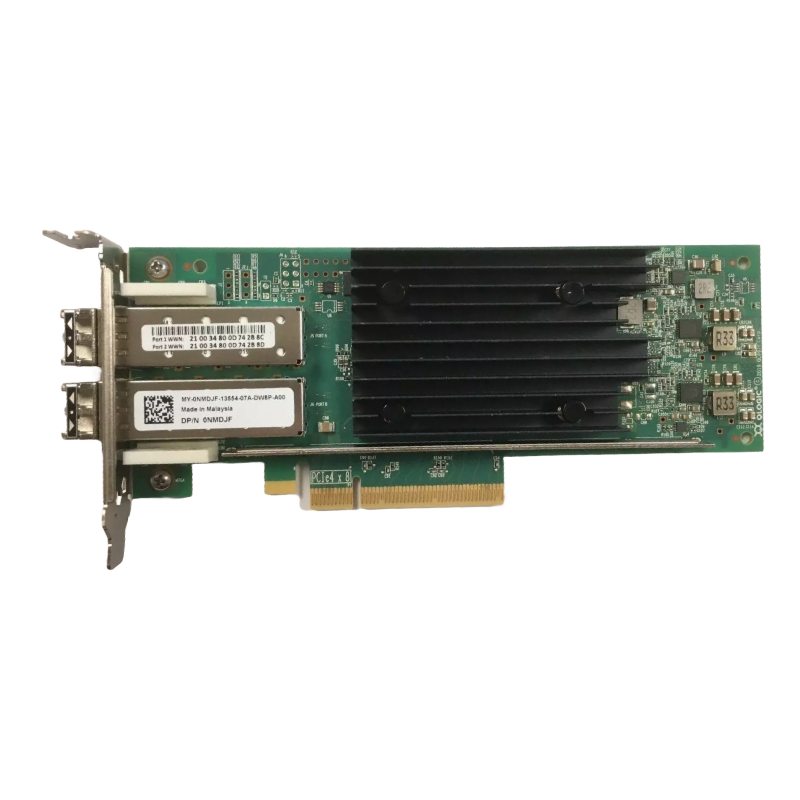

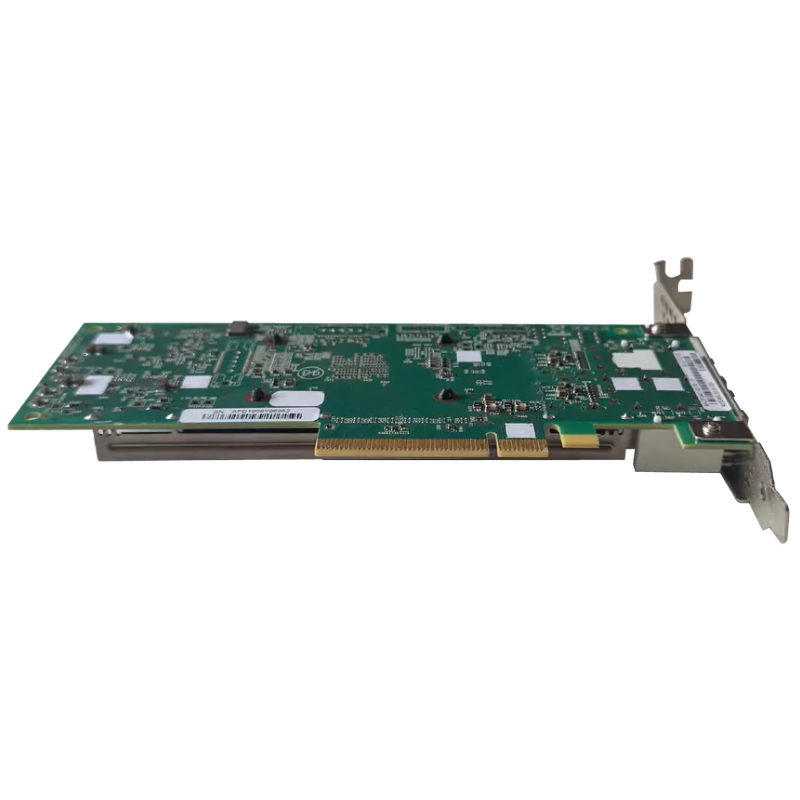

Marvell QLogic Enhanced 32GBPS PCI-E 4.0 Fibre Channel HBA Dell 6P9HC JJW53 QLE2772NL

Speed

The Dell 6P9HC JJW53 QLE2772NL Fibre Channel HBA is a high-performance storage solution that offers an impressive speed of 32Gbps. This blazing-fast speed ensures that data transfers happen quickly and efficiently, allowing users to access and manipulate their data without any delays or bottlenecks. In this section, we will explore the benefits and importance of this feature in greater detail.

Enhanced Data Transfer

With a speed of 32Gbps, the Dell 6P9HC JJW53 QLE2772NL Fibre Channel HBA enables users to transfer large amounts of data in a fraction of the time compared to lower-speed alternatives. This is particularly beneficial for organizations that deal with massive datasets or require real-time data processing. Whether it's a high-definition video file, a complex database, or an extensive collection of documents, this HBA ensures that data transfers are completed swiftly, enhancing overall productivity.

General Information: Dell 6P9HC Fibre Channel Controller

Manufacturer Details

• Brand: Dell
• Part Number: 6P9HC
• Product Type: Fibre Channel Controller

Technical Specifications

• Interface: PCI Express 4.0 x16
• Fibre Channel Protocol: FC-PI-7
• Fibre Channel Topologies Supported: Point-to-Point, Arbitrated Loop (AL), Switched Fabric
• Data Transfer Rate: 32 Gbps
• Port Configuration: Dual-Port
• Connector Type: LC SFP+
• Supported Operating Systems: Microsoft Windows, Red Hat Linux, SUSE Linux Enterprise Server, VMware ESXi, Oracle Linux
• Physical Dimensions (H x L): 6.6 x 16.7 cm
• Weight: 90.7 g
• Power Consumption: 6.5 W (Typical)
• Operating Temperature Range: 0°C to 55°C
• Storage Temperature Range: -40°C to 70°C
• Operating Humidity: 5% to 93% (Non-Condensing)
• MTBF (Mean Time Between Failures): 2,596,766 Hours
• Certifications: FCC Class A, UL, CE, VCCI, C-Tick, ICES-003, BSMI, KCC, RoHS, WEEE, REACH

Compatibility with Dell PowerEdge Systems

• Compatible with the following Dell PowerEdge Servers:
• PowerEdge C6615
• PowerEdge C6620
• PowerEdge HS5610
• PowerEdge HS5620
• PowerEdge R660
• PowerEdge R660xs
• PowerEdge R6615
• PowerEdge R6625
• PowerEdge R760
• PowerEdge R760xd2
• PowerEdge R760xs
• PowerEdge R7615
• PowerEdge R7625
• PowerEdge R860
• PowerEdge R960

Improved Workflows

The increased speed provided by the Dell 6P9HC JJW53 QLE2772NL Fibre Channel HBA significantly improves workflows in various industries, such as media and entertainment, finance, and healthcare. For example, in the media industry, where large video files need to be edited and rendered, the high-speed data transfer capability of this HBA allows professionals to work seamlessly and meet tight deadlines. Similarly, in the finance sector, where real-time transaction processing is crucial, rapid data transfer ensures the timely execution of trades and accurate financial reporting.

Reduced Latency

Latency refers to the delay experienced when accessing or retrieving data. With a speed of 32Gbps, the Dell 6P9HC JJW53 QLE2772NL Fibre Channel HBA minimizes latency to provide users with near-instantaneous access to their data. This is especially important for applications that require real-time data analysis, such as high-frequency trading or scientific research. By reducing latency, this HBA enables users to make critical decisions faster and gain a competitive edge in their respective fields.

Future-Proof Solution

In today's rapidly evolving technological landscape, it is essential to invest in future-proof solutions. The 32Gbps speed offered by the Dell 6P9HC JJW53 QLE2772NL Fibre Channel HBA ensures that users are prepared for the increasing demands of data-intensive applications. As more advanced technologies emerge and data volumes continue to grow, this HBA's high-speed capabilities will remain relevant and enable seamless integration with future systems and storage infrastructure.

Interface

Another key feature of the Dell 6P9HC JJW53 QLE2772NL Fibre Channel HBA is its PCI-E 4.0 interface. This interface offers several benefits and is crucial for users looking to maximize the performance of their storage systems. Let's delve into the importance of this feature in greater detail.

Increased Bandwidth

The PCI-E 4.0 interface of the Dell 6P9HC JJW53 QLE2772NL Fibre Channel HBA provides users with increased bandwidth compared to previous generations. With a doubled transfer rate, this interface allows for faster data communication between the HBA and the server, resulting in improved overall system performance. This is especially beneficial for applications that require high-speed data processing, such as virtualization, database management, and content creation.

Scalability

The PCI-E 4.0 interface not only offers increased bandwidth but also provides improved scalability. This means that users can connect multiple devices and expand their storage capabilities without compromising performance. Whether you need to add additional hard drives, SSDs, or tape drives, the Dell 6P9HC JJW53 QLE2772NL Fibre Channel HBA's interface can accommodate your growing storage needs while maintaining optimal data transfer speeds.

Future-Ready Technology

By adopting the PCI-E 4.0 interface, the Dell 6P9HC JJW53 QLE2772NL Fibre Channel HBA embraces future-ready technology. As newer generations of PCI-E interfaces emerge, this HBA will continue to deliver exceptional performance and compatibility. This ensures that users can stay ahead of the technology curve and seamlessly upgrade their storage systems without any compatibility issues or performance degradation.

Enhanced Server Performance

The high-speed data transfer capability offered by the PCI-E 4.0 interface significantly enhances server performance. It allows for faster access to storage resources, which is particularly crucial in scenarios where multiple users are accessing data simultaneously or when running resource-intensive applications. With the Dell 6P9HC JJW53 QLE2772NL Fibre Channel HBA's interface, servers can handle higher workloads efficiently and deliver superior performance for a wide range of applications.

Chipset

The Dell 6P9HC JJW53 QLE2772NL Fibre Channel HBA features the Marvell QLogic Enhanced chipset, which provides numerous benefits and plays a vital role in the overall performance of this HBA. Let's explore the importance and advantages of this chipset in more detail.

Industry-Leading Performance

The Marvell QLogic Enhanced chipset is known for its industry-leading performance, delivering exceptional speed and reliability. This chipset has been specifically designed to optimize data transfer and ensure efficient communication between the HBA and the connected storage devices. With its advanced architecture and robust processing capabilities, this chipset enables users to maximize the performance of their storage systems, resulting in faster data access and improved application responsiveness.

Reduced CPU Overhead

One of the key advantages of the Marvell QLogic Enhanced chipset is its ability to offload processing tasks from the server's CPU. This significantly reduces CPU overhead, allowing the server to focus on other critical tasks and applications. By offloading tasks such as protocol handling and data integrity checks to the chipset, the Dell 6P9HC JJW53 QLE2772NL Fibre Channel HBA ensures optimal system performance and minimizes latency for data transfers.

Enhanced Reliability

The Marvell QLogic Enhanced chipset is renowned for its reliability and robustness. It incorporates advanced error detection and correction mechanisms, ensuring that data transfers are accurate and free from errors. This is particularly important in mission-critical environments where data integrity is paramount. By leveraging the reliability of this chipset, users can have peace of mind knowing that their data is secure and protected from any potential data corruption or loss.

Advanced Management and Monitoring

The Marvell QLogic Enhanced chipset provides advanced management and monitoring capabilities, allowing users to effectively manage and monitor their storage systems. This includes features such as comprehensive diagnostics, performance monitoring, and firmware updates. With these capabilities, users can proactively identify and resolve any potential issues, ensuring optimal system performance and minimizing downtime.
