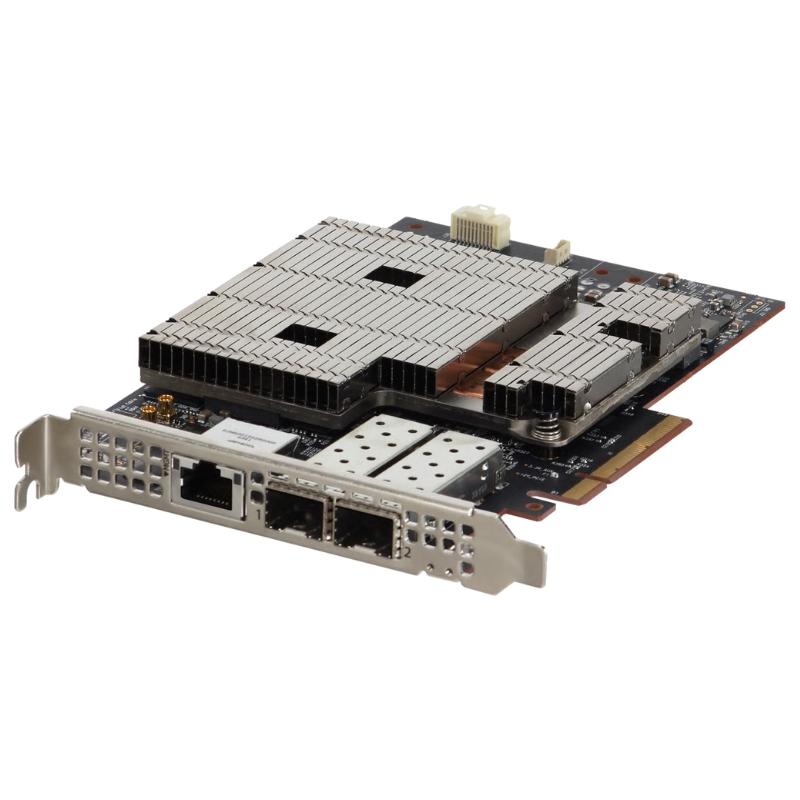

MBF2H532C-AECOT Nvidia 8 Cores 32GB Ddr4 Dual SFP56 Dpu

Dell Nvidia MBF2H532C-AECOT High-Performance DPU Features

The Dell Nvidia BlueField-2 MBF2H532C-AECOT Data Processing Unit (DPU) stands at the forefront of next-generation computing acceleration. With its powerful BlueField-2 P-series chipset, high-speed memory, and PCIe Gen 4.0 interface, this device is built to handle complex workloads, secure networking tasks, and accelerate infrastructure virtualization across enterprise data centers.

Core Hardware Specifications

• Manufacturer: Nvidia
• Product Line: BlueField-2 P-Series
• Model ID: MBF2H532C-AECOT
• Processor Cores: 8 Arm Cortex cores running at 500 MHz base and up to 2.5 GHz
• Memory Configuration: 32 GB DDR4 with ECC (64-bit + 8-bit ECC) at 3200 MT/s
• Interface: PCI Express Gen 4.0 (x8 lanes, compatible with Gen 3.0, 2.0, and 1.1)
• Data Connectivity: Dual SFP56 ports supporting both copper and optical transceivers

Memory Architecture and Data Integrity

ECC-Enabled DDR4 Memory System

The onboard single-channel memory architecture utilizes a 32GB DDR4 module configured with error correction code (ECC). The ECC functionality (64-bit + 8-bit) ensures that critical data transactions are protected from corruption and memory faults, preserving system stability and data reliability in high-performance computing tasks.

Benefits of High-Speed DDR4 at 3200 MT/s

• Reduces latency in processing network traffic and storage operations
• Improves workload efficiency for virtualized environments
• Enhances performance in real-time data analytics and AI/ML inference tasks

Connectivity and I/O Flexibility

Dual SFP56 Ports for Versatile Networking

Equipped with two SFP56 transceiver slots, the BlueField-2 DPU offers a flexible and powerful networking interface. These ports support both copper and optical modules, enabling adaptable deployment across various network infrastructures and topologies.

High-Speed Data Rates for Low-Latency Transfers

• Ideal for software-defined networking and NVMe-over-Fabrics environments
• Supports ultra-fast data transport and scalable cloud applications
• Maximizes bandwidth efficiency in microsegmentation and secure multi-tenant data flows

Secure and Isolated Workloads

With the isolated networking enabled by dual interfaces, IT architects can segment workloads effectively. This physical separation boosts security posture in multi-tenant or hybrid-cloud infrastructures.

Next-Gen PCI Express Interface

PCIe Gen 4.0 Compatibility

The DPU connects to host systems via an advanced PCI Express Gen 4.0 interface, delivering speeds up to 16 GT/s per lane. Its x8 lane configuration offers seamless integration with current and previous generation servers, supporting PCIe 3.0, 2.0, and 1.1 for backward compatibility.

Performance Advantages of PCIe 4.0

• Reduces I/O bottlenecks for data-heavy workloads
• Supports fast lane switching for distributed edge computing
• Enables higher data throughput with lower CPU overhead

Compute Acceleration and Virtualization Readiness

Eight-Core BlueField-2 Processor Design

The embedded P-series BlueField-2 SoC (System on Chip) includes eight Arm cores optimized for offloading infrastructure tasks. This enables the separation of management and application layers, accelerating security enforcement, storage control, and network processing without host CPU interference.

Virtualization and Container Support

The DPU is optimized for containerized environments, supporting Kubernetes-native operations and runtime offloading. By offloading hypervisor functions, the BlueField-2 DPU enhances system efficiency, scalability, and security across virtual environments.

NVMe Storage and RDMA Capabilities

• Accelerates access to NVMe SSD arrays through native support
• Integrates seamlessly with RoCE and RDMA over Converged Ethernet
• Optimized for scalable, high-bandwidth storage fabrics

Security Capabilities and Data Protection

End-to-End Infrastructure Security

Featuring programmable security capabilities, the MBF2H532C-AECOT offers zero-trust architecture with root-of-trust support. Its secure boot, hardware-isolated execution environments, and data-in-motion encryption help enterprises mitigate advanced threats.

Trustworthy Hardware and Firmware Stack

• Secure Boot with cryptographic verification of firmware
• Support for in-band and out-of-band management through secure channels
• Role-based access controls (RBAC) and key management integration

Application Environments and Deployment Versatility

Designed for Modern Data Centers

The Dell BlueField-2 DPU is tailor-made for enterprise data centers, edge computing nodes, and hyperscale infrastructure. Its powerful processing engine and flexible interface architecture allow seamless deployment across compute, storage, and networking planes.

Ideal Use Cases Include:

• Cloud-native application offloading
• Software-defined storage acceleration
• Service mesh and microservices security
• High-performance AI/ML inference pipelines
• Secure multi-tenancy in data center networks

Scalable Architecture for Future-Proofing

This DPU allows horizontal scaling by supporting workload orchestration across nodes. As AI workloads and multi-cloud deployments grow, the MBF2H532C’s hardware architecture ensures compatibility and growth without infrastructure overhauls.

Technical Advantages Over Traditional NICs

Choose a Data Processing Unit Over Standard Network Adapters

Unlike conventional NICs, the Dell NVIDIA BlueField-2 MBF2H532C is purpose-built to handle offload-intensive workloads such as firewalling, telemetry, overlay network routing, and storage protocol processing — tasks that previously bogged down host CPUs.

Functional Upgrades Provided by BlueField-2

• Reduces CPU workload by offloading packet processing and telemetry functions
• Supports SmartNIC functionality for deeper network visibility and orchestration
• Offers distributed firewall and load balancing at the hardware level

Increased ROI Through Efficiency Gains

By decreasing system overhead and improving throughput, organizations using DPUs see faster application response times and better infrastructure utilization, resulting in improved operational efficiency and long-term return on investment.

Nvidia BlueField-2 DPU Solutions for High-Performance Networking

The MBF2H532C-AECOT Nvidia BlueField-2 DPU stands at the forefront of Data Processing Unit (DPU) innovation, representing a category of advanced smart networking interface cards (SmartNICs) that dramatically transform data center efficiency, performance, and security. Built with 8 powerful Arm cores clocked at 500MHz/2500MHz, 32GB of DDR4 memory, and dual SFP56 interfaces supporting 25Gbps each, this PCIe 4.0 x8 FHHL device is engineered for modern, cloud-native, and high-performance computing (HPC) environments.

SmartNIC and DPU Evolution: The Rise of BlueField-2

Traditional NICs (Network Interface Cards) have historically handled only data movement between servers and networks. However, the evolution into DPUs such as the BlueField-2 platform has added compute capabilities, allowing for offloading tasks from the main CPU and significantly improving application and network performance. The MBF2H532C-AECOT represents the second-generation BlueField architecture, designed not only for high-throughput networking but also for running data-centric services like storage virtualization, security policy enforcement, and telemetry without CPU overhead.

Arm Cortex-A72: Embedded Computing Power

At the core of the MBF2H532C-AECOT lies a bank of eight Arm Cortex-A72 cores running at dual clock rates of 500MHz (base) and 2500MHz (boost), empowering the DPU to execute complex software-defined networking (SDN) functions. These cores are optimized for virtualization, container-based workloads, and managing traffic-intensive enterprise applications, freeing up valuable CPU cycles from the host system.

High-Speed Memory Integration: 32GB DDR4

The inclusion of 32GB DDR4 memory ensures high-bandwidth, low-latency data handling directly on the DPU. This is crucial for storage services, security packet inspection, data analytics, and telemetry workloads that require rapid memory access and buffer management. The DDR4 architecture enhances the parallelism required for modern cloud-native microservices.

Interface Capabilities: Dual SFP56 and PCIe Gen 4.0 x8

The networking interface of the MBF2H532C-AECOT features dual SFP56 ports supporting speeds up to 25Gbps each. Combined, these deliver 50Gbps full duplex bandwidth for environments with intensive east-west and north-south traffic. This ensures high scalability for environments leveraging distributed storage systems, machine learning clusters, and hybrid cloud infrastructure.

PCIe 4.0 x8 Bandwidth Advantage

With a PCIe Gen 4.0 x8 connection, the DPU interfaces seamlessly with the host system at double the data rate of its predecessor generation. PCIe 4.0 delivers a theoretical throughput of 16GT/s per lane, totaling 128GT/s bi-directional, crucial for latency-sensitive workloads that require real-time analytics or deep packet inspection (DPI) functionality.

Key Applications of Nvidia BlueField-2 DPUs

The MBF2H532C-AECOT BlueField-2 DPU is an ideal choice for a wide range of data center applications that demand low latency, high security, and enhanced scalability. These include but are not limited to:

Infrastructure Offload and Virtualization

One of the most powerful aspects of this DPU is its ability to offload network functions such as overlay networks (VXLAN, NVGRE), virtual switching (OVS), and security features like firewall and intrusion detection systems (IDS). Offloading these functions from the host CPU enables improved application density per server and reduces power consumption.

Software-Defined Storage (SDS)

With its compute and memory resources, the DPU can run SDS solutions like NVMe over Fabrics (NVMe-oF), Ceph, or Lustre independently of the host. This is highly beneficial for environments where performance isolation and workload optimization are mission-critical.

Cloud-Native Security Operations

The MBF2H532C-AECOT supports advanced inline security processing. These include packet filtering, application-aware firewalls, microsegmentation, and encryption/decryption, allowing enterprises to implement zero-trust architectures without impacting server performance.

Design and Form Factor Considerations

The full-height, half-length (FHHL) form factor of this DPU ensures compatibility with most standard server chassis, while its power-efficient design enables deployment in energy-conscious environments. It fits easily into 1U and 2U rackmount servers that form the backbone of enterprise and hyperscale data centers.

Thermal Management and Reliability

Thermal design power (TDP) and heat dissipation are key for ensuring longevity and reliable performance in 24/7 data center operations. The BlueField-2 DPU includes passive cooling mechanisms and can be combined with server airflow strategies for optimal performance. Reliability is reinforced through ECC memory support and secure boot mechanisms.

Management and Programmability with DOCA SDK

The Nvidia DOCA SDK (Data-Center-on-a-Chip Architecture) allows developers to build, deploy, and manage accelerated applications directly on the DPU. With support for containers and Kubernetes orchestration, the MBF2H532C-AECOT integrates easily into CI/CD pipelines and DevOps ecosystems.

Telemetry, Monitoring, and Automation

Embedded telemetry and observability capabilities let administrators collect data on traffic patterns, anomalies, and performance metrics directly from the DPU. Combined with DOCA, this allows seamless integration with monitoring platforms like Prometheus, Grafana, or Splunk.

Support for Multiple Operating Environments

The BlueField-2 DPU supports a range of Linux-based operating environments and container runtimes, including Ubuntu, CentOS, and Red Hat Enterprise Linux. Developers can run isolated services on the DPU while managing it separately from the host OS, enhancing system stability and uptime.

Security Capabilities and Trusted Infrastructure

In the modern era of persistent threats, BlueField-2 DPUs serve as security co-processors for the server. The MBF2H532C-AECOT provides:

Root of Trust and Secure Boot

The DPU features secure boot with hardware root of trust to prevent unauthorized firmware execution. It helps maintain the chain of trust across the server boot process, a critical aspect of compliance for industries like finance, healthcare, and government.

Inline Encryption and IPsec Offload

Hardware-accelerated IPsec and TLS allow data-in-motion to be encrypted without involving the main CPU. This is essential for achieving regulatory compliance (e.g., HIPAA, GDPR) while maintaining high-speed communication between servers, clients, and storage devices.

Use Cases Across Industries

The MBF2H532C-AECOT is versatile across many verticals:

• Financial Services: High-frequency trading, real-time risk modeling, secure transaction processing
• Healthcare: Medical imaging, genomics data processing, HIPAA-compliant secure storage
• Cloud Service Providers: Multi-tenant infrastructure, SDN, firewall-as-a-service
• Telecommunications: 5G core networks, network slicing, virtual RAN
• Government & Defense: Encrypted mission-critical communications, AI-assisted surveillance, secure multi-domain operations

BlueField Ecosystem and Compatibility

The BlueField-2 platform is fully integrated with the Nvidia networking stack including Mellanox ConnectX and supports technologies like RoCE, DPDK, and SR-IOV. This ensures seamless deployment in Mellanox-powered data centers and compatibility with existing Ethernet and Infiniband fabrics.

Support for AI and Machine Learning Workflows

With programmable hardware and offloading capabilities, BlueField-2 DPUs can preprocess and filter data at the network edge before sending it to GPUs. This is especially useful in distributed AI/ML pipelines where minimizing latency and reducing CPU/GPU contention is essential.

Future-Proofing with Scalable Infrastructure

As enterprises adopt 100Gbps and higher-speed infrastructures, the BlueField architecture is built to scale. The MBF2H532C-AECOT can integrate seamlessly into transitional environments while future versions of the platform support even higher port densities and compute resources.

Environmental and Power Efficiency

Data centers increasingly prioritize sustainability, and the MBF2H532C-AECOT meets this demand through its energy-efficient design. By offloading compute-intensive tasks from CPUs, it reduces total power consumption per server node and allows for more efficient thermal design and cooling systems.

Green IT and Lower TCO

Organizations focused on reducing operational expenses and carbon footprints benefit from deploying DPUs like the BlueField-2. Lower total cost of ownership (TCO) is realized through reduced CPU usage, better performance per watt, and enhanced server longevity.
