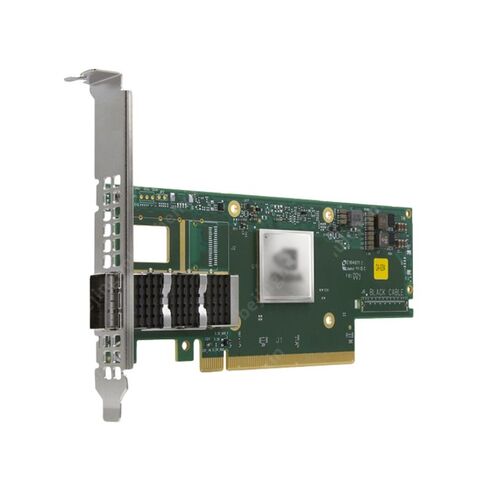

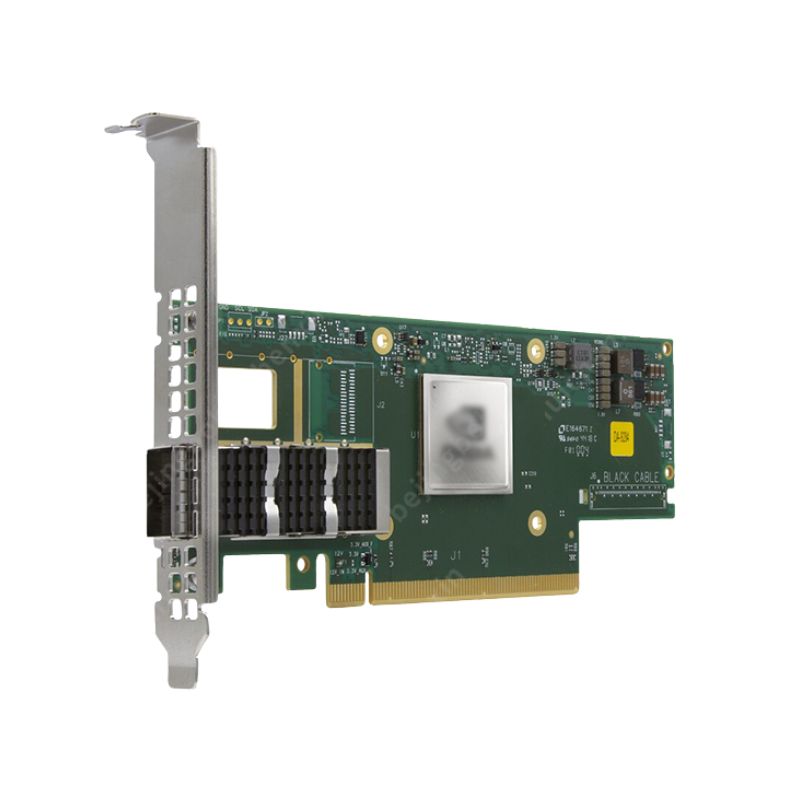

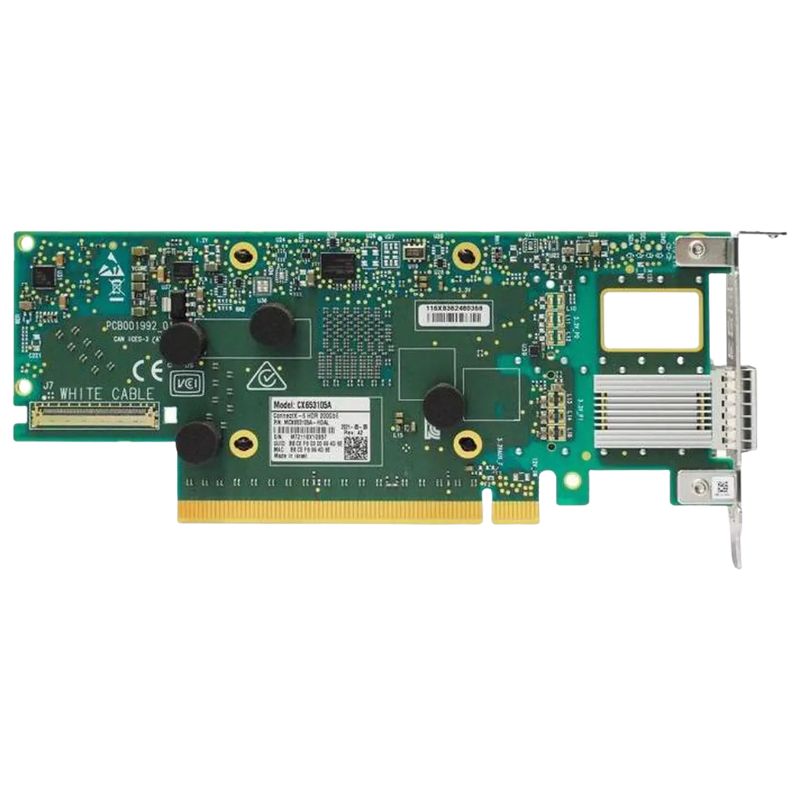

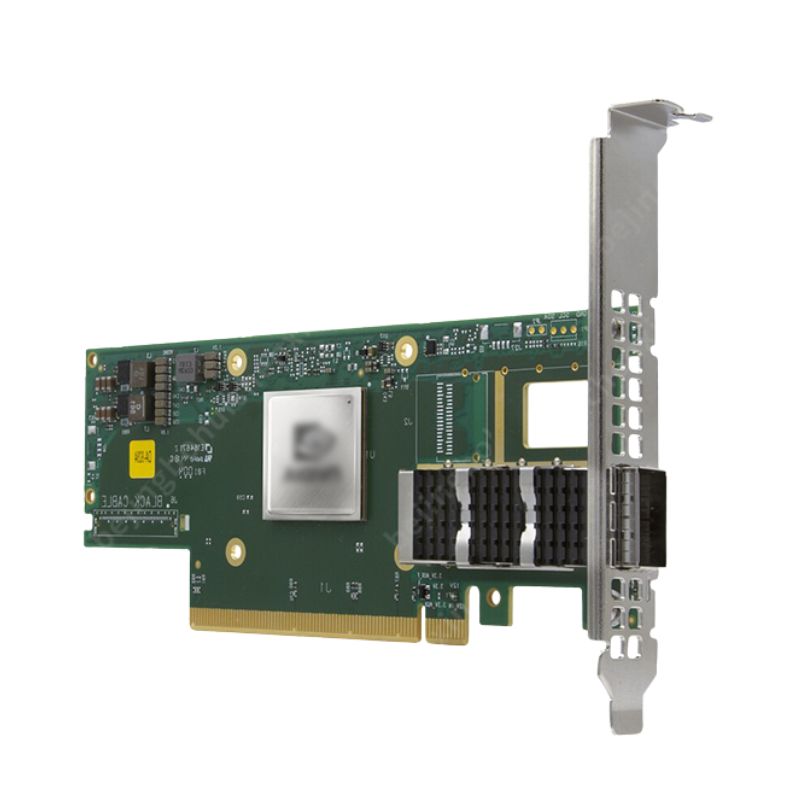

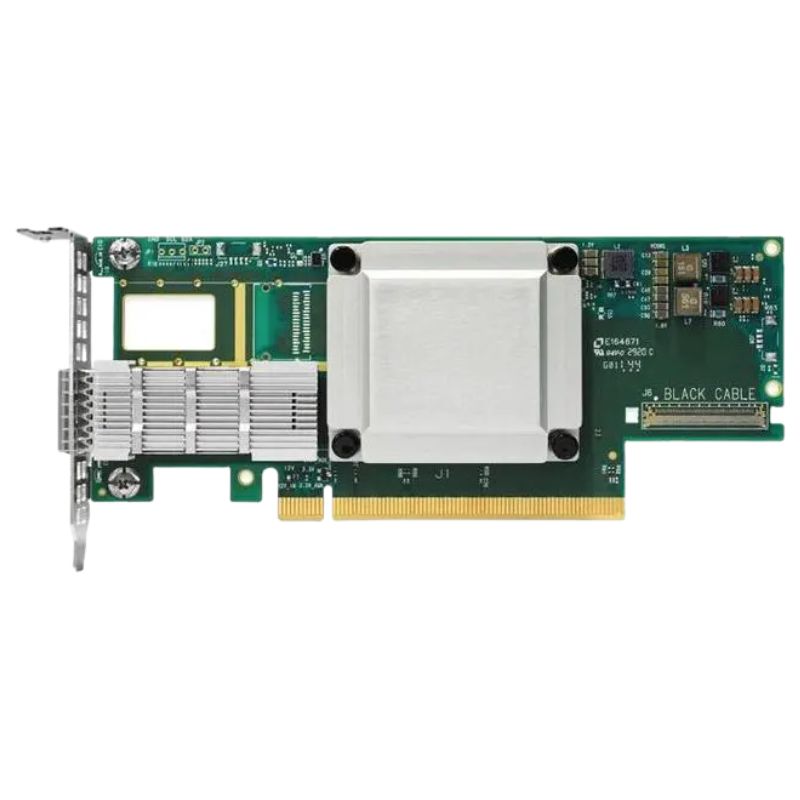

MCX653105A-HDAL Mellanox ConnectX-6 VPI HDR IB 200Gb/s PCIe4.0 x16 Adapter

Mellanox MCX653105A-HDAL 200Gb/s Adapter Overview

The Mellanox MCX653105A-HDAL ConnectX-6 VPI Network Adapter is a high-performance enterprise networking solution engineered for modern data centers, cloud infrastructure, artificial intelligence (AI), high-performance computing (HPC), enterprise virtualization, and storage networking. Featuring a single-port QSFP56 interface, this advanced adapter delivers up to 200Gb/s connectivity while supporting both HDR InfiniBand and 200 Gigabit Ethernet (200GbE) through Mellanox's innovative Virtual Protocol Interconnect (VPI) technology.

Designed with PCI Express Gen 4.0 x16 compatibility while maintaining backward support for PCIe Gen 3.0, the MCX653105A-HDAL enables exceptional bandwidth, ultra-low latency, and outstanding message processing performance. It is an ideal networking card for mission-critical workloads where speed, reliability, scalability, and application responsiveness are essential.

General Information of Mellanox MCX653105A-HDAL

• Manufacturer: Mellanox
• Part Number: MCX653105A-HDAL
• Product Family: ConnectX-6 VPI
• Product Type: Network Adapter Card

Technical Specifications

Network Specifications

• Maximum Network Speed: 200Gb/s
• Network Protocols: HDR InfiniBand and 200 Gigabit Ethernet
• Port Configuration: Single Port
• Connector Type: QSFP56

Host Interface

• Interface: PCI Express Gen 4.0 x16
• Backward Compatibility: PCI Express Gen 3.0 x16

Performance Specifications

• Maximum Message Rate: Up to 215 Million Messages Per Second
• Latency: Less than 0.6 Microseconds

Physical Characteristics

• Form Factor: Half Height Half Length (HHHL)
• Profile: Low Profile

Benefits of 200Gb/s Connectivity

• Accelerates large-scale data transfers
• Reduces application processing time
• Supports bandwidth-intensive workloads
• Improves server communication efficiency
• Enhances storage and compute performance
• Enables faster cloud service delivery

Advantages of High Message Rates

• Faster transaction processing
• Reduced communication bottlenecks
• Improved scalability for clustered applications
• Optimized virtualization performance
• Efficient workload balancing

Maximum System Bandwidth

• Higher data transfer bandwidth
• Reduced communication latency
• Improved CPU efficiency
• Enhanced virtualization support
• Compatibility with multiple server generations

Business Benefits

Infrastructure Optimization

• Simplifies enterprise network deployment
• Supports future infrastructure growth
• Improves server utilization
• Reduces operational overhead
• Enhances workload efficiency
• Supports demanding enterprise applications
• Provides flexible Ethernet and InfiniBand connectivity

Key Features of Mellanox MCX653105A-HDAL

• Single-port QSFP56 network interface
• Supports HDR InfiniBand and 200 Gigabit Ethernet
• Maximum network bandwidth up to 200Gb/s
• Virtual Protocol Interconnect (VPI) technology
• PCI Express Gen 4.0 x16 with backward compatibility to PCIe Gen 3.0
• Half-height, half-length low-profile design
• Processes up to 215 million messages per second
• Ultra-low latency below 0.6 microseconds
• Optimized for cloud, virtualization, AI, machine learning, and HPC environments
• Enterprise-grade reliability and scalability

Mellanox MCX653105A-HDAL 200Gb/s and 200GbE Adapter Card

The Mellanox MCX653105A-HDAL ConnectX-6 VPI HDR IB 200Gb/s and 200GbE Single-Port QSFP56 PCIe 4.0 x16 Network Adapter Card is engineered for modern enterprise infrastructures that demand exceptional networking throughput, ultra-low latency, and intelligent acceleration technologies. Built on the advanced ConnectX-6 architecture, this high-performance adapter enables organizations to support demanding workloads in artificial intelligence, machine learning, high-performance computing, cloud platforms, enterprise virtualization, software-defined storage, and large-scale data centers. Its versatile Virtual Protocol Interconnect (VPI) capability allows seamless deployment across both InfiniBand HDR 200Gb/s and Ethernet 200GbE environments, making it an excellent solution for organizations seeking infrastructure flexibility while maximizing investment value.

Designed to deliver industry-leading bandwidth with PCI Express 4.0 x16 connectivity, the adapter significantly reduces communication bottlenecks between servers and storage resources. The single QSFP56 interface supports high-speed optical and direct-attach copper connectivity while maintaining excellent signal integrity and energy efficiency. Organizations deploying latency-sensitive applications benefit from advanced hardware acceleration technologies integrated directly into the adapter, improving application responsiveness while reducing processor utilization.

ConnectX-6 VPI Architecture for Modern Data Centers

The ConnectX-6 architecture represents a significant advancement in intelligent networking by integrating high-speed packet processing, programmable acceleration engines, and enterprise-grade reliability into a single adapter platform. The Mellanox MCX653105A-HDAL has been optimized for environments where predictable network performance directly impacts application efficiency, including AI training clusters, scientific simulations, distributed storage systems, virtualization hosts, financial computing platforms, and hyperscale cloud deployments.

Unlike conventional network interface cards, the ConnectX-6 VPI adapter combines protocol flexibility with hardware acceleration capabilities that minimize software overhead. This architecture enables servers to process massive amounts of network traffic while maintaining consistent latency even during peak utilization. The result is improved infrastructure scalability and better resource utilization across demanding enterprise environments.

Virtual Protocol Interconnect Flexibility

One of the defining advantages of the MCX653105A-HDAL adapter is its Virtual Protocol Interconnect technology. VPI allows administrators to deploy either InfiniBand HDR networking or high-speed Ethernet using the same hardware platform. This flexibility simplifies procurement strategies while enabling infrastructure architects to design networking environments that meet both current operational requirements and future expansion plans.

Organizations operating hybrid infrastructures often require multiple networking technologies to support specialized applications. VPI enables seamless deployment across these environments without requiring different hardware models for each protocol, reducing inventory complexity while improving long-term investment protection.

PCIe 4.0 x16 Performance Optimization

The PCI Express 4.0 x16 interface provides sufficient bandwidth to fully support 200Gb/s networking performance without introducing internal communication limitations. Compared to previous PCIe generations, PCIe 4.0 significantly increases data transfer capacity between the adapter and server processors. This enhanced throughput ensures storage traffic, virtualization workloads, GPU communications, and high-performance computing applications receive uninterrupted access to network resources.

The wider PCIe interface also enables efficient utilization of advanced acceleration engines, allowing intelligent packet processing to occur directly within the adapter instead of relying heavily on host CPU resources.

HDR InfiniBand 200Gb/s Networking Capabilities

HDR InfiniBand has become the preferred networking technology for many high-performance computing environments because of its extremely low latency, deterministic communication behavior, and exceptional bandwidth efficiency. The Mellanox MCX653105A-HDAL fully supports HDR InfiniBand at speeds up to 200Gb/s, enabling faster communication between compute nodes within large clusters.

Scientific research institutions, engineering organizations, pharmaceutical companies, and artificial intelligence developers rely on InfiniBand to accelerate distributed computing workloads. The adapter enables rapid message passing between servers while minimizing communication delays that could otherwise reduce overall cluster performance.

High-Performance Computing Applications

High-performance computing environments require networking solutions capable of supporting thousands of simultaneous communications between compute nodes. The MCX653105A-HDAL enables efficient parallel processing by providing consistent latency characteristics and sustained high bandwidth. These capabilities improve application scaling for computational fluid dynamics, weather forecasting, molecular modeling, seismic analysis, engineering simulations, and scientific research applications.

GPU Cluster Communication

Modern GPU clusters generate enormous volumes of network traffic during distributed AI training and machine learning workloads. ConnectX-6 technology helps accelerate GPU-to-GPU communications by reducing network overhead while supporting advanced communication libraries commonly used in artificial intelligence frameworks. Faster data exchange enables reduced model training times and improved utilization of expensive GPU resources.

200GbE Ethernet Connectivity

Beyond InfiniBand support, the adapter also delivers high-speed 200 Gigabit Ethernet connectivity, making it suitable for enterprise networks transitioning toward next-generation Ethernet infrastructure. Organizations deploying large virtualization environments, software-defined networking platforms, storage networks, and cloud architectures can leverage the adapter's high throughput while maintaining compatibility with standard Ethernet ecosystems.

The combination of 200GbE performance and hardware acceleration enables efficient handling of east-west traffic within data centers while supporting demanding application requirements without excessive processor utilization.

Enterprise Ethernet Deployment

Large enterprise environments frequently consolidate numerous applications onto virtualized infrastructure. As virtual machine density increases, network performance becomes increasingly critical. The MCX653105A-HDAL provides sufficient bandwidth to support numerous virtual machines, containers, storage systems, and application services simultaneously without introducing significant congestion.

Cloud Infrastructure Support

Cloud service providers require networking solutions capable of supporting dynamic workloads with predictable performance characteristics. The adapter's advanced offloading technologies reduce software processing overhead while enabling efficient packet forwarding, virtualization acceleration, and secure multi-tenant networking across cloud platforms.

Advanced Hardware Acceleration Technologies

One of the major strengths of the ConnectX-6 platform lies in its intelligent hardware acceleration capabilities. Instead of relying solely on host processors for networking tasks, the adapter performs many operations directly within dedicated hardware engines. This approach minimizes CPU interruptions while improving application responsiveness and increasing server efficiency.

Hardware acceleration benefits organizations running storage systems, virtualization platforms, AI clusters, financial applications, cloud-native services, and enterprise databases where processing efficiency directly influences operational performance.

RDMA Acceleration

Remote Direct Memory Access allows applications to exchange data directly between server memories without unnecessary processor intervention. RDMA significantly reduces latency while increasing throughput for storage systems, clustered databases, distributed computing environments, and enterprise applications requiring rapid communication.

Efficient CPU Utilization

By transferring networking operations into dedicated hardware, processors remain available for application execution rather than packet management. This improved workload distribution enables organizations to maximize server investments while supporting higher application densities.

Storage Offloading

Storage traffic continues to increase as organizations deploy high-speed NVMe arrays and distributed storage architectures. ConnectX-6 hardware acceleration enables efficient handling of storage communications while reducing software overhead, allowing storage systems to deliver improved responsiveness for transactional workloads, analytics platforms, virtualization storage, and enterprise databases.

Virtualization and Cloud Optimization

Virtualized infrastructures depend heavily on intelligent networking technologies capable of maintaining consistent performance despite rapidly changing workloads. The Mellanox MCX653105A-HDAL supports advanced virtualization features that improve communication efficiency between physical servers, virtual machines, containers, and cloud-native applications.

Organizations operating VMware, Microsoft Hyper-V, KVM, OpenStack, Kubernetes, and container orchestration platforms benefit from enhanced networking performance while maintaining efficient workload isolation and resource allocation.

Scalable Virtual Machine Networking

As virtual machine density continues increasing, network adapters must efficiently manage numerous simultaneous connections without becoming a performance bottleneck. ConnectX-6 provides intelligent queue management, packet classification, and virtualization acceleration that enable higher consolidation ratios while preserving application responsiveness.

Container Networking Performance

Containerized applications generate dynamic networking patterns that require flexible packet processing capabilities. The adapter supports efficient communication between containers, microservices, storage resources, and cloud orchestration platforms, making it well suited for DevOps environments and cloud-native deployments.

Enterprise Reliability and Availability

Mission-critical enterprise environments require networking components capable of maintaining stable operation under continuous heavy workloads. The Mellanox MCX653105A-HDAL incorporates enterprise-grade reliability features that support continuous operation within demanding production environments.

Comprehensive error detection mechanisms, intelligent traffic management, advanced diagnostics, and mature firmware contribute to dependable network operation across large enterprise deployments. These capabilities reduce operational disruptions while simplifying long-term infrastructure maintenance.

Data Integrity

Maintaining data accuracy during high-speed communication is essential for enterprise applications, storage systems, and scientific computing. The adapter incorporates multiple integrity verification mechanisms that ensure reliable transmission while minimizing packet loss and communication errors.

Continuous Operational Stability

Organizations deploying around-the-clock services benefit from hardware designed for sustained workloads. Whether supporting cloud applications, enterprise databases, AI clusters, or HPC environments, the adapter delivers dependable networking performance under intensive operating conditions.

QSFP56 Connectivity Advantages

The single QSFP56 port provides flexible connectivity options compatible with both optical transceivers and direct-attach copper cables. This versatility enables organizations to deploy the adapter across short-distance server racks, medium-distance aggregation layers, and long-distance data center interconnections depending on infrastructure requirements.

QSFP56 technology supports efficient signal transmission while enabling straightforward migration toward increasingly faster network architectures. Standardized connectivity also simplifies cable management, maintenance procedures, and future network upgrades.

Flexible Infrastructure Deployment

Whether installed within enterprise servers, GPU clusters, cloud infrastructure, storage appliances, or research computing environments, the QSFP56 interface supports diverse deployment scenarios. Administrators can select the most appropriate cabling solution based on distance, environmental requirements, and performance objectives without changing adapter hardware.

Scalability for Future Enterprise Growth

As enterprise workloads continue expanding, networking infrastructure must accommodate increasing bandwidth demands without requiring frequent hardware replacement. The Mellanox MCX653105A-HDAL ConnectX-6 VPI HDR IB 200Gb/s and 200GbE Single-Port QSFP56 PCIe 4.0 x16 Network Adapter Card provides a future-ready platform capable of supporting evolving workloads across high-performance computing, cloud services, enterprise storage, virtualization, artificial intelligence, machine learning, financial computing, and hyperscale data center environments. Its combination of intelligent hardware acceleration, protocol flexibility, PCIe Gen4 performance, advanced networking technologies, and enterprise-class reliability makes it an ideal solution for organizations seeking long-term networking scalability while maximizing infrastructure efficiency, application responsiveness, and operational productivity.
