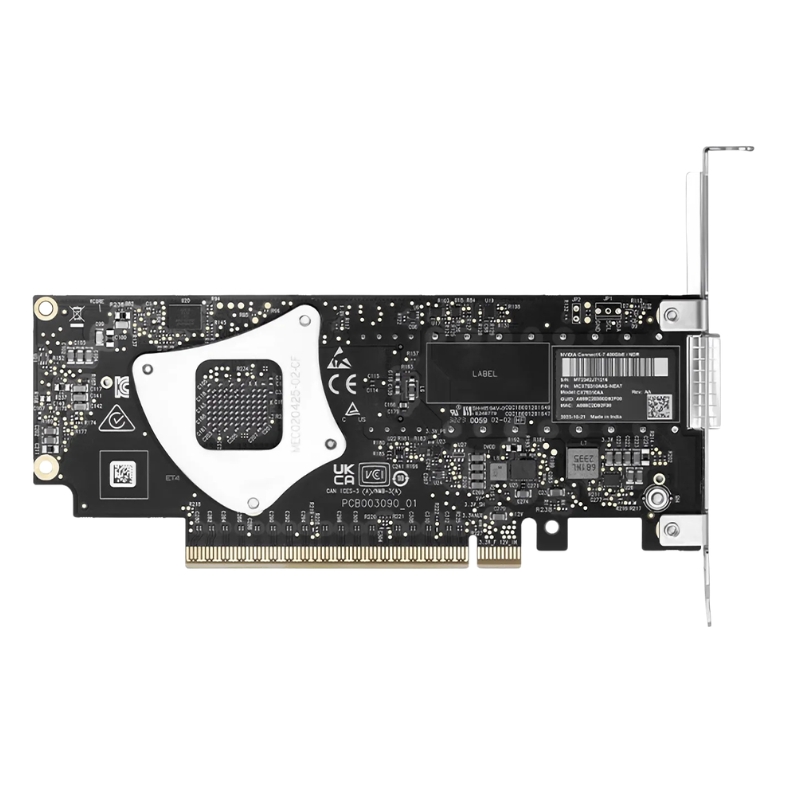

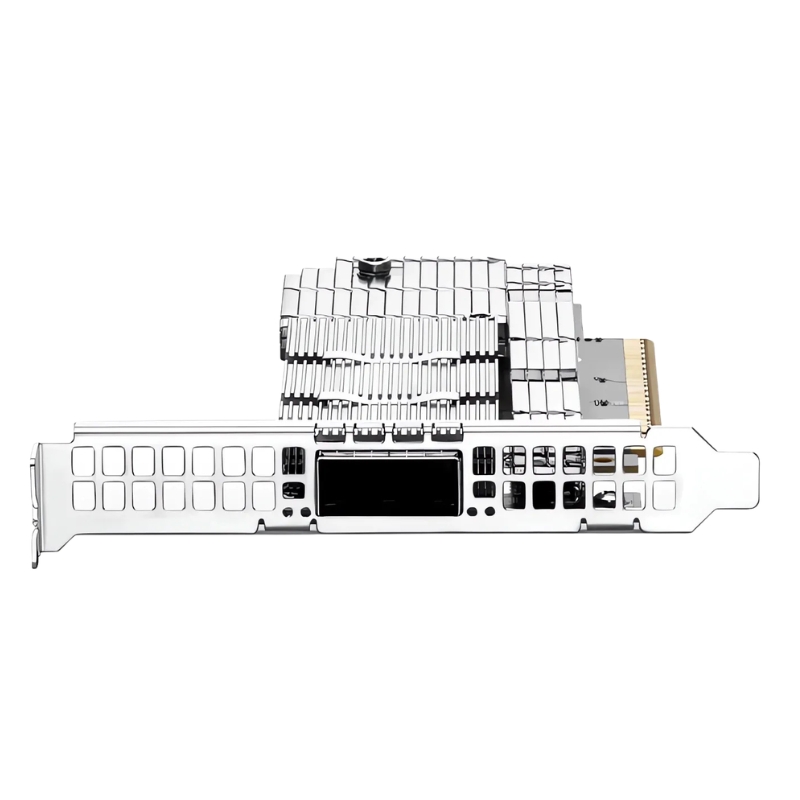

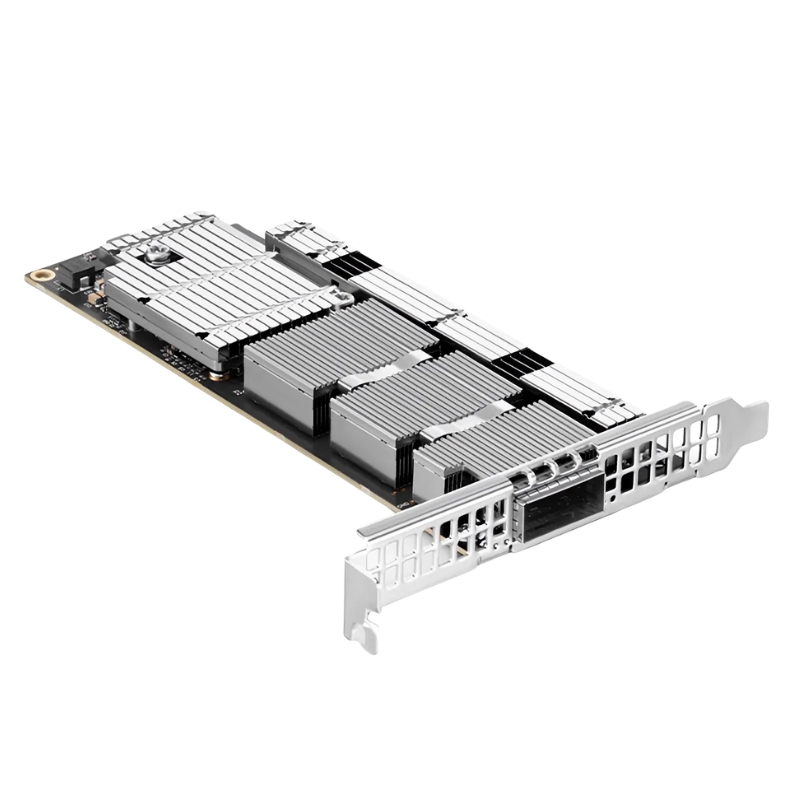

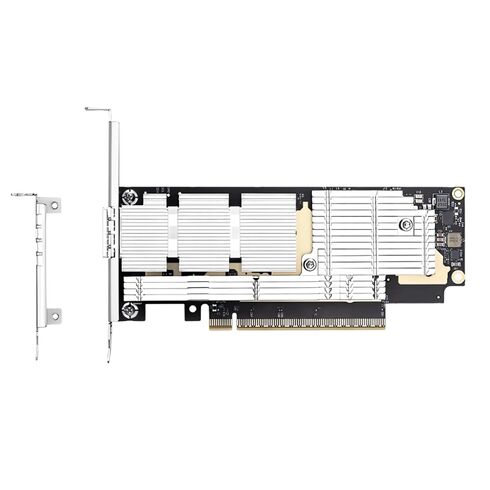

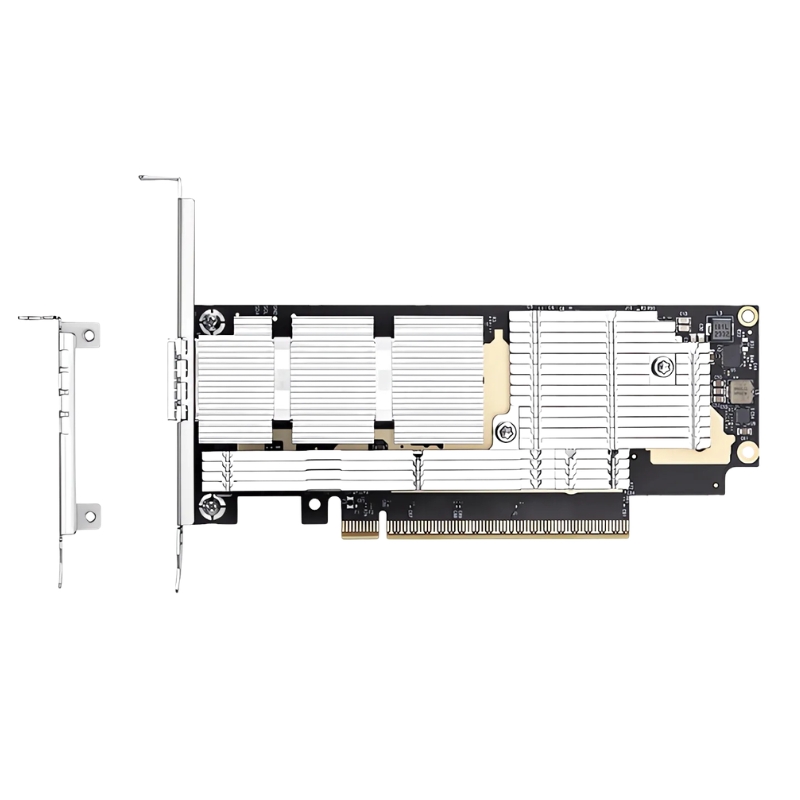

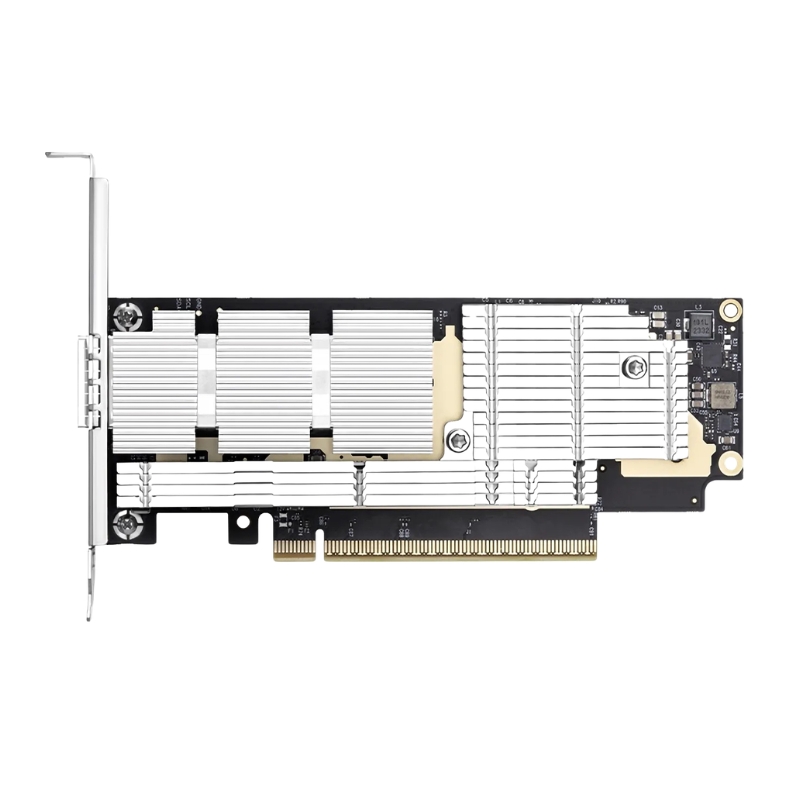

MCX75510AAS-NEAT Nvidia Adapter Card with 400GB/S Ndr Ib Single-Port OSFP Pcie 5.0 X16

Nvidia MCX75510AAS-NEAT High‑Performance Network Adapter

The Nvidia MCX75510AAS-NEAT adapter card delivers exceptional throughput, advanced PCIe connectivity, and next‑generation InfiniBand performance for demanding data center, HPC, and enterprise networking environments.

General Product Details

• Brand: Nvidia
• Part Number: MCX75510AAS-NEAT
• Category: High-speed network adapter

Physical Dimensions & Form Factor

Main Adapter Card Size

• Compact PCIe half-height, half-length layout
• Dimensions: 2.71 in × 6.6 in (68.90 mm × 167.65 mm)

Auxiliary PCIe Extension Card

• Size: 5.09 in × 2.32 in (129.30 mm × 59.00 mm)
• Includes dual Cabline CA‑II Plus harnesses (white and black)

Interface Architecture

PCI Express Connectivity

• PCIe Gen 5.0 / Gen 4.0 support with SerDes at 16/32 GT/s
• Primary interface: x16 lanes, backward compatible with PCIe 4.0 and 3.0

Optional Expansion

• Additional PCIe x16 Gen 4.0 via auxiliary passive card
• Utilizes Cabline SA‑II Plus harnesses for extended bandwidth

Network Port Configuration

• Single OSFP InfiniBand port for ultra‑high‑speed data transport

Performance & Data Rates

InfiniBand Capabilities

• Supports NDR, NDR200, HDR, HDR100, EDR, FDR, and SDR link speeds
• Optimized for low latency and extreme throughput workloads

Ethernet Throughput (Default Mode)

• Compatible with 400 / 200 / 100 / 50 / 25 / 10 Gb/s Ethernet

Protocol Compatibility

• InfiniBand IBTA v1.5a compliant
• Advanced auto‑negotiation across multiple lane configurations:
• NDR: 4 × 100 Gb/s lanes
• NDR200: 2 × 100 Gb/s lanes
• HDR: 50 Gb/s per lane
• HDR100: 2 × 50 Gb/s lanes
• EDR: 25 Gb/s per lane
• FDR: 14.0625 Gb/s per lane
• SDR: 1× / 2× / 4× at 2.5 Gb/s per lane

Security & Functional Features

• Secure Boot enabled for trusted hardware initialization
• Crypto functionality disabled for controlled environments

Electrical & Thermal Characteristics

Power Requirements

• Voltage inputs: 12 V and 3.3 V AUX
• Maximum current draw: 100 mA
• Typical power usage: 24.9 W (PCIe Gen 5.0 x16 with passive cables)

Operating Conditions

Temperature Range

• Operational: 0°C to 55°C
• Storage / Non-operational: -40°C to 70°C

Humidity Tolerance

• Operational: 10% to 85% (non‑condensing)
• Non-operational: 10% to 90%

Ideal Use Cases

• High‑performance computing clusters
• Enterprise data centers requiring extreme bandwidth
• Low‑latency InfiniBand‑based interconnects

Data Transfer Rate

The Nvidia MCX75510AAS-NEAT Adapter Card is equipped with an impressive data transfer rate of 400GB/s Ndr. This feature sets it apart from other adapter cards in the market and provides users with exceptional performance and speed.

Enhanced Performance

One of the key benefits of the 400GB/s Ndr data transfer rate is the enhanced performance it offers to users. With such a high transfer rate, users can experience lightning-fast data transfers, whether they are working on complex projects, streaming high-resolution videos, or engaging in intensive gaming sessions.

Seamless Data Transfers

With a data transfer rate of 400GB/s Ndr, users can transfer large files and data sets seamlessly. This is particularly beneficial for professionals working with big data, as it significantly reduces the time required for data transfers. It allows for quick and efficient backups, ensuring that important files are safely stored without any delays.

Smooth Gaming Experience

Gamers will appreciate the Nvidia MCX75510AAS-NEAT Adapter Card's high data transfer rate. It ensures smooth gameplay without any lag or latency issues. This is especially crucial in competitive gaming, where split-second decisions can make all the difference. The 400GB/s Ndr data transfer rate ensures that gamers experience minimal delays and can fully immerse themselves in their favorite games.

Fast Content Creation

Content creators often work with large video files and high-resolution images that require significant processing power. With a data transfer rate of 400GB/s Ndr, the Nvidia MCX75510AAS-NEAT Adapter Card enables content creators to edit and render their projects quickly and efficiently. This allows them to meet tight deadlines and deliver high-quality content in a timely manner.

Interface

The Nvidia MCX75510AAS-NEAT Adapter Card features an OSFP interface, which further enhances its usability and compatibility with a wide range of systems.

Universal Compatibility

The OSFP interface ensures that the Nvidia MCX75510AAS-NEAT Adapter Card can be seamlessly integrated into various systems. Whether you have a desktop computer, a server, or a workstation, this adapter card will work flawlessly with your existing setup. This versatility makes it an ideal choice for both personal and professional use.

Flexible Connectivity

The OSFP interface offers flexible connectivity options, allowing users to connect the adapter card to different devices and peripherals. This adaptability is particularly valuable in multi-device environments where users may need to connect their adapter card to various devices or switch between different setups seamlessly.

Future-Proof Technology

The OSFP interface is designed to support future advancements in technology. As new devices and systems are developed, the Nvidia MCX75510AAS-NEAT Adapter Card's OSFP interface ensures that it remains compatible and can continue to deliver optimal performance. This future-proofing feature saves users from having to upgrade their adapter cards frequently, providing long-term value and cost-effectiveness.

Connector Type

The Nvidia MCX75510AAS-NEAT Adapter Card features a PCIe 5.0 x16 connector type, offering users a high-speed connection for their data transfer needs.

High-Speed Connectivity

The PCIe 5.0 x16 connector type provides users with high-speed connectivity for their adapter card. It offers faster data transfer rates compared to previous PCIe versions, allowing users to take full advantage of the Nvidia MCX75510AAS-NEAT Adapter Card's capabilities. Whether you are transferring large files or streaming high-definition content, the PCIe 5.0 x16 connector type ensures a smooth and efficient experience.

Increased Bandwidth

The PCIe 5.0 x16 connector type supports increased bandwidth, allowing for greater data throughput. This is particularly beneficial for professionals working with resource-intensive applications such as video editing or 3D modeling. The increased bandwidth enables faster data access and retrieval, improving overall productivity and reducing waiting times.

Future-Ready Design

The PCIe 5.0 x16 connector type is designed to be future-ready, ensuring compatibility with upcoming technologies. As new devices and systems adopt the PCIe 5.0 standard, the Nvidia MCX75510AAS-NEAT Adapter Card can seamlessly integrate with them, providing users with a reliable and future-proof solution.

Ports

The Nvidia MCX75510AAS-NEAT Adapter Card is equipped with a single-port configuration, offering users simplicity and convenience in their connectivity options.

Simplified Setup

The single-port configuration simplifies the setup process for users. With just one port to connect, users can quickly and easily establish a connection between their adapter card and their desired device or peripheral. This streamlined setup saves time and eliminates any potential confusion that may arise from multiple ports.

Space-Saving Solution

The single-port configuration also offers a space-saving solution for users who have limited workspace or require a clutter-free environment. With only one port to manage, users can keep their setup neat and organized, maximizing their available space for other essential equipment.

Cost-Effective Connectivity

The single-port configuration of the Nvidia MCX75510AAS-NEAT Adapter Card offers a cost-effective connectivity solution. Users only pay for the necessary connectivity they require, eliminating the need for additional ports that may go unused. This cost-efficiency is especially beneficial for budget-conscious users who want to maximize the value of their investment without compromising on performance.

In conclusion, the Nvidia MCX75510AAS-NEAT Adapter Card's impressive data transfer rate, interface, connector type, and single-port configuration make it a versatile and high-performance solution for users. Whether you are a professional working with large data sets, a gamer seeking smooth gameplay, or a content creator requiring fast rendering times, this adapter card delivers exceptional performance and efficiency. Its advanced features ensure compatibility with various systems and provide future-proofing capabilities, making it a reliable long-term investment. With the Nvidia MCX75510AAS-NEAT Adapter Card, users can experience seamless data transfers, enhanced connectivity, and simplified setup in their computing endeavors.
