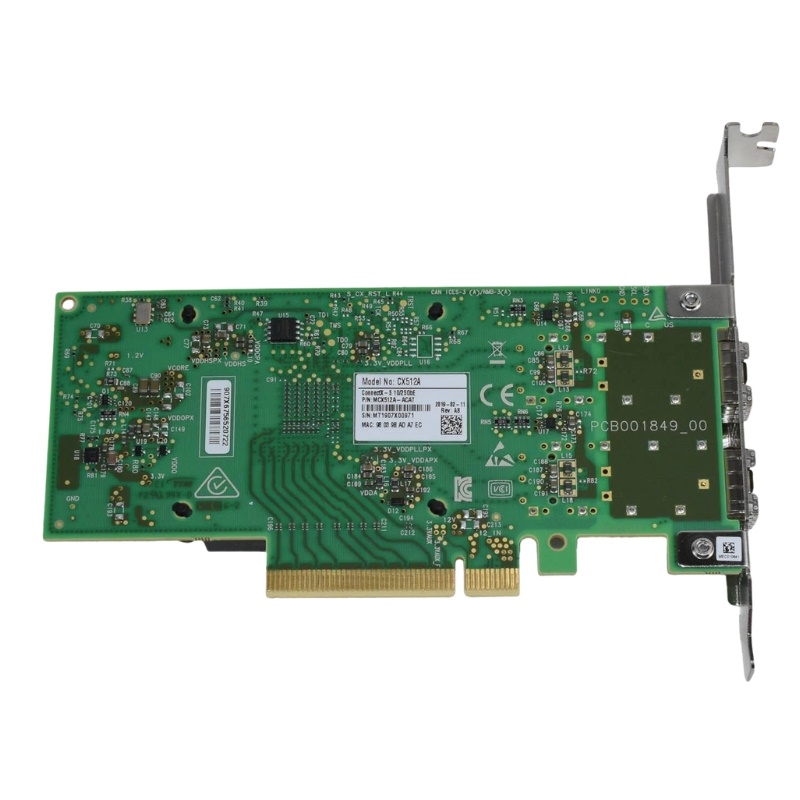

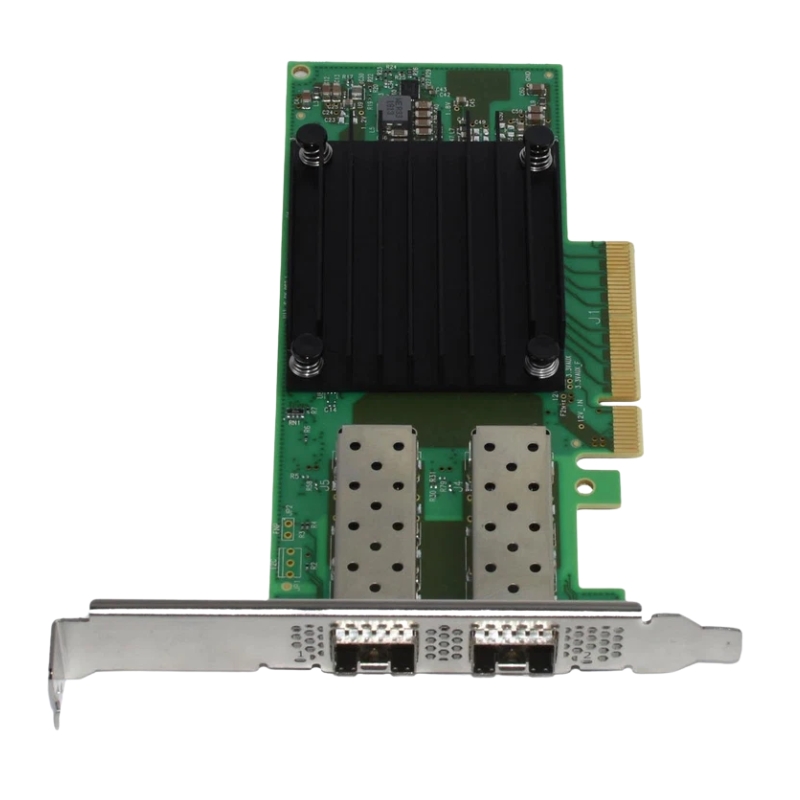

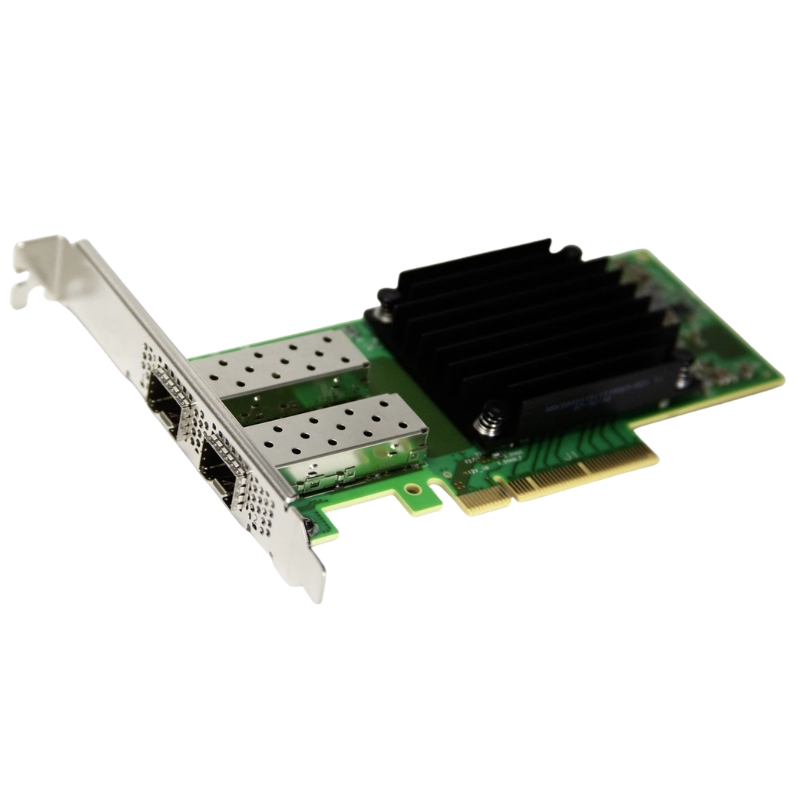

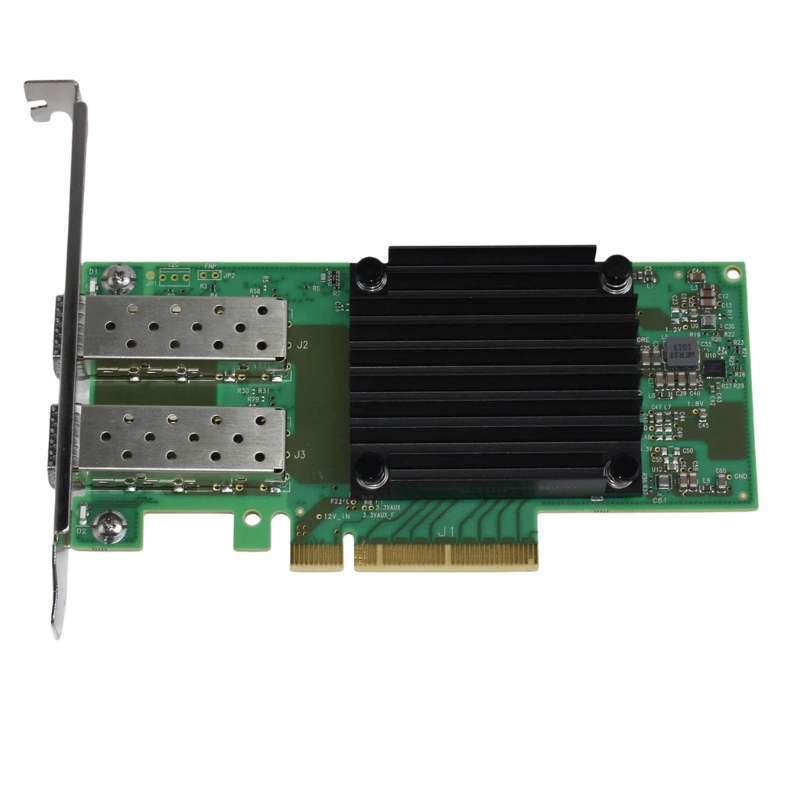

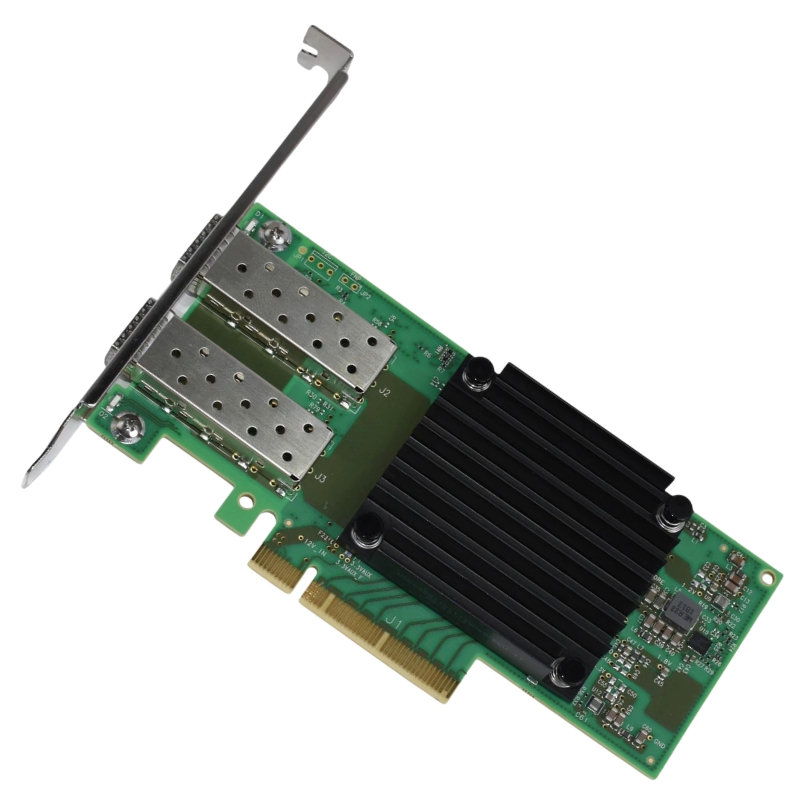

MCX512A-ADAT Mellanox ConnectX-5 10/25GbE SFP28 PCI-E 2 Ports Network Interface Card

Comprehensive Product Overview

The Mellanox MCX512A-ADAT represents a pinnacle of 10/25GbE adapter technology, belonging to the renowned ConnectX‑5 EN series from Mellanox. This category of network interface cards is engineered to meet the escalating demands of data center virtualization, storage efficiency, and high‑performance computing (HPC) clusters. As a dual‑port SFP28 adapter with a PCIe 4.0 x8 host interface, the MCX512A‑ADAT bridges the gap between legacy 10GbE deployments and modern 25GbE fabrics, while ensuring forward compatibility with emerging network architectures.

Main Specifications

• Brand: Mellanox
• Part Number: MCX512A-ADAT
• Product Type: Network Interface Card

Technical Specifications

• Compact plug-in card layout for seamless integration
• Optimized structure ensuring efficient airflow and stability
• Bus Type: PCI Express 4.0 x8
• Compliant with PCIe 4.0 specification revision
• Engineered for advanced server and enterprise platforms
• Dual 25 Gigabit SFP28 ports
• Supports 25 Gigabit LAN protocol
• Reliable high-speed networking for demanding workloads

Performance Highlights

Data Throughput

• Transfer speed up to 25 Gbps
• Consistent low-latency communication
• Enhanced bandwidth for virtualization and cloud environments

Efficiency & Reliability

• Stable performance under heavy traffic loads
• Designed for enterprise-grade reliability
• Future-ready architecture supporting next-gen applications

Technical Advantages

Scalability

• Flexible deployment across multiple server infrastructures
• Ideal for data centers requiring rapid expansion

Mellanox MCX512A-ADAT 2 Ports Network Interface Card

The Mellanox MCX512A-ADAT ConnectX-5 2 Ports 10/25GbE SFP28 PCI-E 4.0 X8 Network Interface Card is engineered to deliver enterprise-grade Ethernet connectivity with advanced offload engines, intelligent packet acceleration, and hardware-level virtualization capabilities. This network interface adapter is built upon the ConnectX-5 architecture, which is recognized for its high-throughput packet processing pipeline, low latency switching logic, and efficient power-to-performance ratio. The design integrates a high-speed controller with optimized DMA engines, adaptive interrupt moderation, and flexible port configuration, allowing it to meet demanding data center, cloud, storage, and virtualization workloads.

High Performance Controller

The internal controller architecture uses a multi-core packet processing engine that distributes workload across multiple hardware queues. This ensures balanced processing of inbound and outbound traffic, minimizing bottlenecks even when operating at full dual-port 25GbE line rate. Advanced scheduling algorithms dynamically prioritize flows, ensuring time-sensitive packets such as storage or virtualization traffic receive consistent bandwidth allocation.

PCI Express 4.0 X8 Interface Bandwidth

The MCX512A-ADAT PCI Express 4.0 x8 host interface provides a theoretical bandwidth of up to 128Gbps, which is essential for supporting the combined throughput of two 25GbE ports while maintaining headroom for protocol overhead, virtualization encapsulation, and RDMA operations. The high-speed interface ensures that host memory transactions occur without latency spikes, which is critical in environments running high-performance computing applications or real-time analytics.

Bus Optimization And Latency Reduction

Advanced bus arbitration logic allows the adapter to efficiently queue and process memory requests. By minimizing wait cycles and optimizing burst transfers, the card maintains deterministic latency characteristics that are required in financial trading platforms, database clusters, and distributed storage infrastructures.

Dual-Port 10/25GbE Connectivity Capabilities

This network interface card includes two SFP28 ports capable of operating at either 10GbE or 25GbE speeds. Each port can be configured independently, enabling flexible deployment scenarios where mixed network speeds are necessary. The adaptive link negotiation automatically detects connected transceivers and configures link parameters for optimal throughput and stability.

SFP28 Transceiver Compatibility

The SFP28 cages support a wide range of fiber optic and direct attach copper transceivers. This allows administrators to deploy short-reach DAC cables for rack-level connectivity or long-range optical modules for cross-data-center links. The ports support hot-swappable modules, enabling maintenance or upgrades without powering down the server.

Dynamic Speed

Each interface can automatically switch between 10GbE and 25GbE operation based on transceiver capability and switch negotiation. This flexibility allows gradual infrastructure upgrades without replacing existing networking equipment, ensuring investment protection and long-term scalability.

Signal Integrity and Error Correction

Integrated signal conditioning circuits and forward error correction technologies maintain stable transmission even over extended cable lengths. These features reduce retransmissions and ensure data integrity, which is vital for storage replication, database synchronization, and high-volume transactional systems.

Advanced Offload Technologies

The ConnectX-5 controller includes multiple hardware offload engines that relieve the host CPU from processing network stack operations. These accelerators handle checksum calculations, segmentation, reassembly, encryption support, and protocol encapsulation directly on the adapter, freeing system resources for application workloads.

RDMA Acceleration

Remote Direct Memory Access technology enables direct memory transfers between systems without CPU intervention. The adapter supports RDMA over Converged Ethernet protocols, allowing extremely low latency and high throughput communication between clustered servers or storage nodes. This capability is essential for high-performance computing clusters, distributed databases, and artificial intelligence training infrastructures.

TCP and UDP Offload Engines

Dedicated hardware modules manage segmentation offload, large receive offload, and checksum offload for both TCP and UDP protocols. By transferring these tasks to the adapter, system CPU utilization decreases significantly under heavy network loads, allowing servers to handle more simultaneous connections or transactions.

Tunneling and Overlay Network

The card accelerates encapsulated traffic such as VXLAN, GRE, and NVGRE. Hardware parsing of encapsulated headers allows virtualized environments to maintain high performance even when network virtualization overlays are used. This is especially beneficial in cloud environments that rely on software-defined networking.

Virtualization and Multi-Tenant Optimization

The Mellanox MCX512A-ADAT adapter is designed to operate efficiently in virtualized infrastructures where multiple virtual machines or containers share physical network resources. It supports advanced virtualization technologies that provide near-native performance for each guest instance.

SR-IOV and Virtual Function Technology

Single Root I/O Virtualization allows the physical adapter to present multiple virtual network interfaces to the host operating system. Each virtual function operates as an independent NIC with dedicated queues and bandwidth allocation. This ensures predictable performance for each virtual machine and reduces hypervisor overhead.

Hardware-Based Isolation

The adapter implements hardware-level traffic isolation mechanisms that prevent data leakage between virtual machines. These mechanisms enforce strict queue separation and memory mapping boundaries, enhancing security and stability in multi-tenant environments.

Power Efficiency

The adapter is engineered with a highly efficient silicon design that reduces power consumption without sacrificing throughput. Intelligent thermal sensors monitor internal temperatures and adjust performance parameters when necessary to maintain safe operating conditions.

Data Center Networking Optimization

Modern data centers require high-bandwidth connectivity to support virtualization, storage replication, distributed computing, and cloud services. This adapter is optimized for such environments by delivering consistent throughput and minimal packet loss even during peak demand.

Load Balancing

The controller supports advanced hashing algorithms that distribute network flows across multiple queues and CPU cores. This ensures efficient resource utilization and prevents single-core saturation, which can otherwise limit network performance.

Scalability For Growing Infrastructure

The dual-port design allows aggregation or separation of network traffic depending on configuration. Organizations can dedicate one port to storage traffic and another to application traffic, or aggregate both ports for higher bandwidth using link aggregation technologies.

High Density Deployments

Because the adapter delivers high bandwidth per slot, fewer cards are required to achieve target throughput levels. This reduces power consumption, cooling requirements, and rack space usage, making it ideal for dense server environments.

Storage Networking Performance

The network adapter is highly suitable for storage networking environments where consistent throughput and minimal latency are required for reliable data transfer. Its hardware acceleration features support storage protocols running over Ethernet infrastructures.

High Throughput

Dual 25GbE ports enable rapid synchronization between storage nodes, reducing replication time and improving data availability. This is particularly beneficial for disaster recovery systems and distributed storage clusters.

Efficient I/O Handling

The adapter’s DMA engines efficiently handle large data transfers, ensuring that storage traffic does not interfere with application communication. This separation of workloads improves overall system responsiveness.

Scalable Networking Infrastructure Enablement

The Mellanox MCX512A-ADAT ConnectX-5 adapter is designed to support long-term infrastructure growth. Its combination of high bandwidth, flexible port configuration, and hardware acceleration ensures that it can handle increasing traffic demands without requiring frequent hardware replacement.

Ethernet Speeds

Support for both 10GbE and 25GbE ensures compatibility with existing networks while enabling upgrades to faster speeds. Organizations can deploy the adapter today and scale network bandwidth as infrastructure evolves.

Deployment Capability

The card can be used in application servers, storage nodes, virtualization hosts, or high-performance computing systems. Its versatility reduces the need for multiple adapter models, simplifying inventory management.

Consistent Performance Across Workloads

Regardless of workload type, the adapter maintains stable throughput and latency characteristics. This consistency ensures predictable application performance and reliable user experiences.
