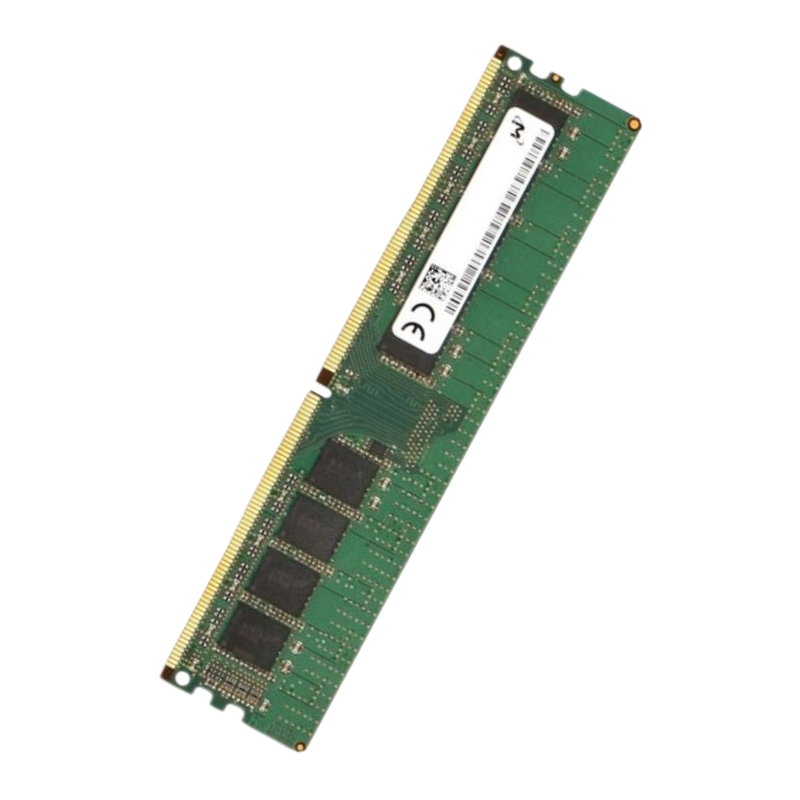

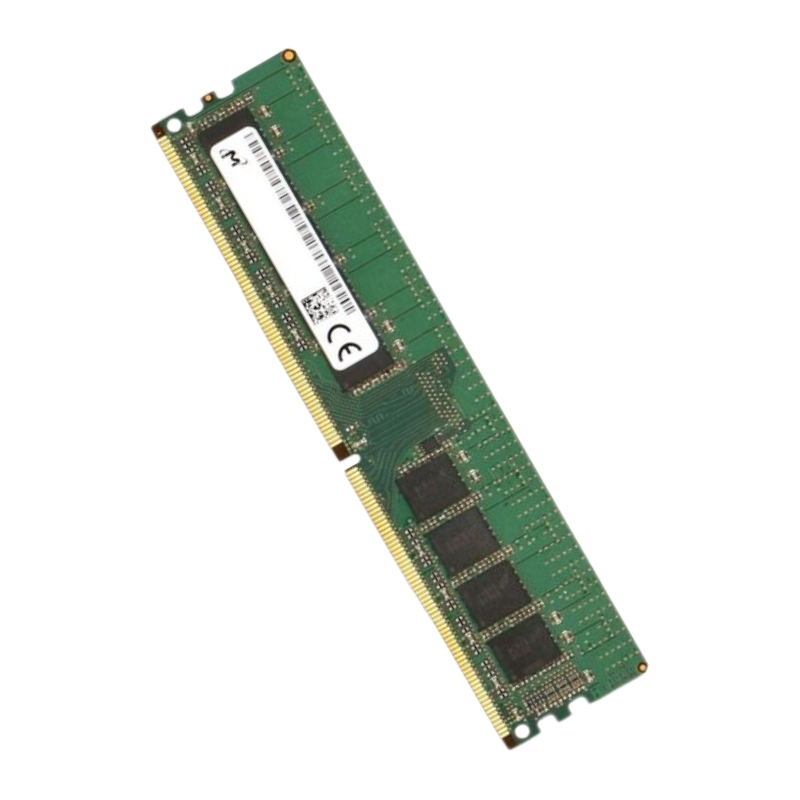

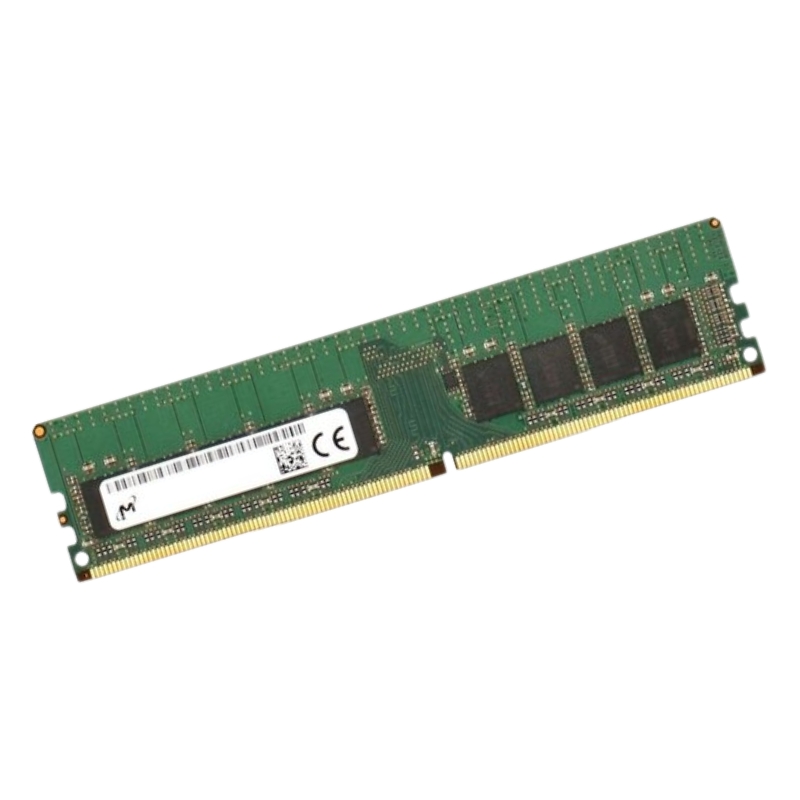

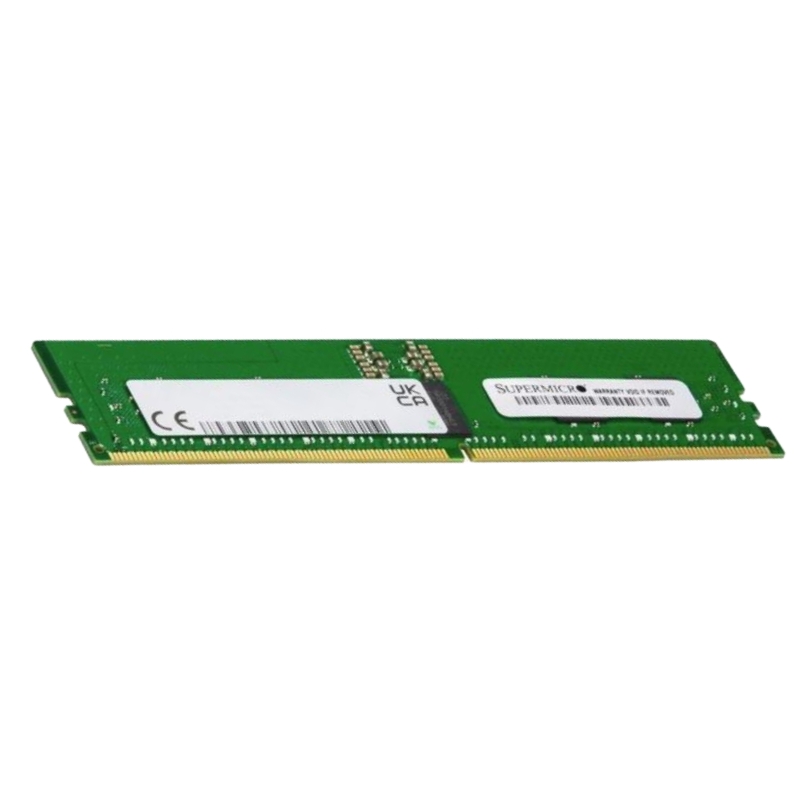

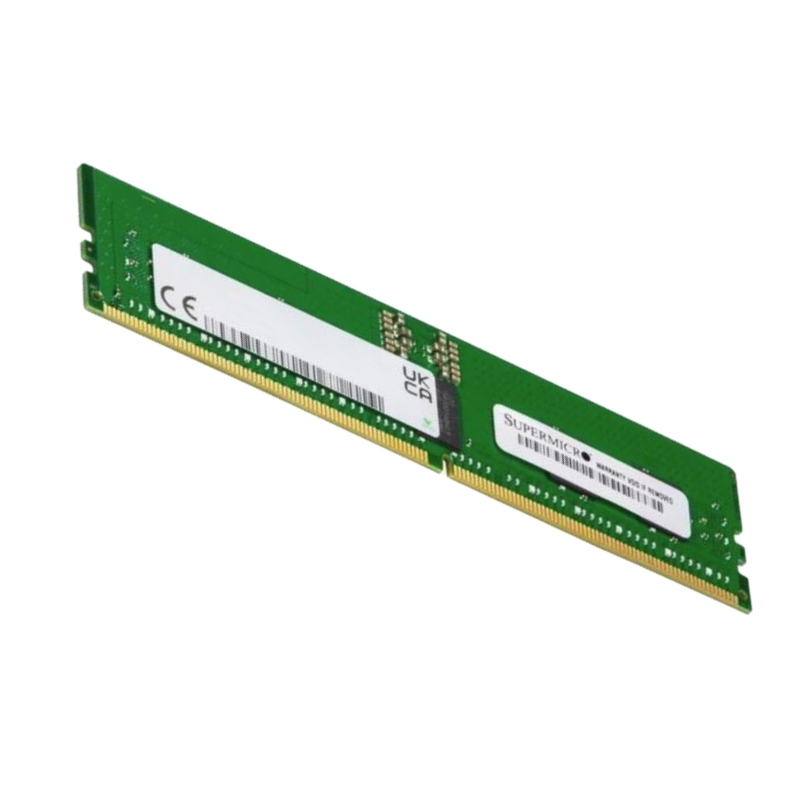

MEM-DR524L-CL01-ER56 Supermicro 24GB DDR5 5600 MT/s Ecc Memory Module

Highlights of Supermicro MEM-DR524L-CL01-ER56 24GB DDR5

The Supermicro MEM-DR524L-CL01-ER56 is a high-performance DDR5 RDIMM memory module designed for enterprise servers and data center applications. With high-speed data transfer, low latency, and ECC reliability, this module ensures stable operation for critical workloads and virtualization environments.

General Information

• Manufacturer: Supermicro
• Part Number: MEM-DR524L-CL01-ER56
• Product Type: Server Memory Module
• Sub Type: DDR5 5600MT/s PC5-44800

Technical Specifications

• Memory Type: DDR5 SDRAM
• Operating Speed: 5600 MT/s
• Standard: PC5-44800
• CAS Latency: CL46
• Error Correction: ECC Supported
• Signal Type: Registered (RDIMM)
• Memory Rank: Single Rank (1Rx8)
• Operating Voltage: 1.1V
• Form Factor: 288-pin DIMM
• Profile: Low Profile (LP)
• Trusted Supermicro quality for enterprise environments

Compatibility

Supported Server Platforms

• Supermicro DDR5-enabled servers with RDIMM support
• Enterprise and data center servers requiring ECC memory for mission-critical applications
• Rackmount and tower servers that support DDR5 Registered DIMMs

Processor Compatibility

• Intel Xeon Scalable processors (DDR5-supported generations)
• AMD EPYC 9004 Series processors (DDR5-enabled platforms)

Memory Slot Requirements

• 288-pin DDR5 RDIMM memory slots
• Supports single-rank ECC Registered DIMM configurations
• Not compatible with UDIMM, SO-DIMM, or standard desktop systems

Overview of Supermicro MEM-DR524L-CL01-ER56 5600MT/s

The Supermicro MEM-DR524L-CL01-ER56 24GB DDR5 5600MT/s PC5-44800 ECC SDRAM RDIMM represents a high-performance memory module within the enterprise-grade DDR5 RDIMM category. This category of memory is engineered to support mission-critical server environments, cloud infrastructure, and large-scale data centers where reliability, scalability, and sustained performance are of paramount importance. Unlike consumer-oriented memory, this category focuses on long-term operational stability, error correction, and compatibility with server-grade CPUs and chipsets, making it ideal for virtualization, database management, analytics, and high-throughput workloads.

DDR5 RDIMM: Advancements and Architectural Enhancements

DDR5 RDIMM modules such as the MEM-DR524L-CL01-ER56 incorporate multiple architectural enhancements over DDR4, providing improved efficiency, bandwidth, and scalability. Operating at 5600MT/s, this module belongs to the higher-speed tier of DDR5 memory, which enables faster data transfer between memory and CPU cores. This increased speed is particularly beneficial for applications that demand consistent and rapid memory access, such as real-time analytics, virtualization clusters, and AI workloads. One of the key advancements in DDR5 is the introduction of dual 32-bit subchannels per DIMM, allowing for improved parallelism in memory operations.

PC5-44800 Bandwidth and Enterprise Impact

The PC5-44800 classification indicates a theoretical peak bandwidth of 44.8 GB/s per module. This level of bandwidth enables servers to process large volumes of data efficiently, supporting memory-intensive applications without bottlenecks. High bandwidth is crucial for database engines, virtualization hosts, and in-memory analytics platforms, where delays in memory access can significantly impact overall system performance. By providing increased memory throughput, the MEM-DR524L-CL01-ER56 allows enterprise servers to handle larger datasets, more simultaneous transactions, and higher virtual machine densities. This bandwidth advantage translates into faster processing, smoother multitasking contributing to overall system and reducing the need for frequent hardware upgrades.

Latency CL46 Timing

While DDR5 focuses on higher frequencies, latency remains an important consideration for enterprise applications. The MEM-DR524L-CL01-ER56 operates with a CL46 latency, which reflects a balance between speed and stability. This timing is optimized to deliver predictable performance for memory-intensive workloads, ensuring consistent access times for applications that require deterministic behavior, such as database management systems, ERP platforms, and virtualization environments. Maintaining stable latency is particularly important in multi-socket server environments, where communication between memory and CPU must remain reliable across all populated channels. The CL46 specification ensures that the module can operate effectively in high-density configurations without causing memory contention or performance degradation.

ECC and Registered RDIMM Architecture for Reliability

The MEM-DR524L-CL01-ER56 is an ECC Registered DIMM, placing it in a category specifically designed for high reliability and stability. ECC (Error-Correcting Code) memory continuously monitors and corrects single-bit errors, while detecting multi-bit errors. This functionality is essential in mission-critical environments where even minor data errors can have significant operational consequences. Registered DIMMs introduce a buffer between the memory controller and the DRAM chips, reducing electrical load on the controller. This buffering improves signal integrity and allows servers to support higher memory capacities per channel and per socket. By combining ECC and registered architecture, the MEM-DR524L-CL01-ER56 provides a robust solution capable of handling intensive workloads with minimal risk of data corruption or system instability.

1Rx8 Memory Organization and Server

The module features a 1Rx8 memory organization, which denotes a single-rank DIMM with x8 DRAM chips. This configuration offers a balance between performance, efficiency, and compatibility. Single-rank modules typically allow for more efficient memory access in fully populated channels, and they are broadly supported across modern server platforms, reducing potential deployment complications. This memory organization enhances the versatility of the MEM-DR524L-CL01-ER56, making it suitable for a variety of server configurations, from single-socket entry-level systems to multi-socket enterprise servers. IT administrators benefit from this consistency, which simplifies memory scaling and configuration planning across heterogeneous server environments.

Data Integrity and Mission-Critical Applications

ECC memory plays a vital role in protecting mission-critical workloads, such as financial transaction processing, healthcare applications, cloud services, and telecom infrastructures. The MEM-DR524L-CL01-ER56 ensures that transient errors caused by electrical noise or environmental factors are corrected in real time, maintaining the accuracy and reliability of the system. This prevents potential downtime, data corruption, or service interruptions, making it ideal for high-availability deployments. Maintaining consistent memory integrity also reduces operational risks in clustered and ensuring predictable behavior across all nodes.

Voltage Operation

The MEM-DR524L-CL01-ER56 operates at a reduced voltage of 1.1 volts, characteristic of DDR5 memory modules. Lower voltage operation reduces power consumption, which is critical for enterprise data centers where energy costs constitute a significant portion of total operational expenditure. Energy-efficient modules also generate less heat, improving thermal conditions within densely populated server racks. Effective thermal management ensures that the module can operate reliably under continuous load without the need for excessive cooling solutions. This combination of reduced power consumption and thermal stability supports both long-term component reliability and sustainable data center operations.

On-DIMM Features

DDR5 RDIMM modules implement on-DIMM power management, shifting voltage regulation from the motherboard to the memory module itself. This allows for precise control over power delivery, reducing electrical noise and improving energy efficiency. The MEM-DR524L-CL01-ER56 utilizes this feature to maintain stable voltage levels during peak memory operations, ensuring consistent performance even under demanding workloads. Reliable power delivery is critical in servers operating continuously, as fluctuations can result in transient errors or unexpected system behavior. On-DIMM regulation also simplifies motherboard design and contributes to overall system stability.

Thermal Stability for Continuous High-Density Operation

Server memory modules are often subjected to sustained high utilization in environments with limited airflow. The MEM-DR524L-CL01-ER56 is constructed using high-quality materials and optimized DRAM chips to ensure effective heat dissipation. This thermal design enables the module to maintain operational stability even in high-density configurations where multiple DIMMs are installed per server chassis. Thermal stability reduces the risk of performance throttling, prolongs the life of components, and minimizes the risk of unexpected failures, which is critical for enterprise-grade systems where uptime is a priority.

Data Center Economics

In modern enterprise data centers, energy efficiency directly affects operational expenses. By lowering power consumption and minimizing cooling requirements, DDR5 RDIMM modules like the MEM-DR524L-CL01-ER56 contribute to reduced total cost of ownership. For large-scale deployments, these savings can be significant, making high-performance DDR5 memory a sound investment for balancing operational efficiency and performance. The combination of efficiency, performance, and reliability makes this module suitable for organizations seeking to optimize data center operations without compromising on service quality.

Standards Form Factor and Integration

Compliance with industry standards is essential for enterprise memory modules. The MEM-DR524L-CL01-ER56 adheres to JEDEC specifications, ensuring uniform timing, voltage, and signaling characteristics. This guarantees interoperability with a wide range of server motherboards and simplifies deployment in multi-vendor environments. The module utilizes the 288-pin RDIMM form factor, which is standard for DDR5 server memory. This ensures physical compatibility and ease of installation, replacement, and upgrades within enterprise server systems.

Platform and Supermicro Validation

As a Supermicro-certified memory module, the MEM-DR524L-CL01-ER56 undergoes extensive validation on Supermicro server platforms to ensure compatibility, performance, and reliability. Testing under real-world workload conditions ensures that the module operates at its intended specifications, reducing the risk of deployment issues. Integration with Supermicro BIOS and firmware optimizations enables the memory to achieve peak performance with minimal configuration effort. This simplifies deployment and maintenance, ensuring a smooth experience for IT teams managing enterprise servers.

Next-Generation Processors

Modern server CPUs are designed to leverage higher DDR5 speeds for optimal multi-core performance. The MEM-DR524L-CL01-ER56 is compatible with these processors, enabling efficient memory access across multiple cores and threads. This ensures that the CPU can maintain high utilization levels without being bottlenecked by memory latency or bandwidth limitations. The module is suitable for single-socket and multi-socket servers, providing flexibility in enterprise deployment scenarios.

Consistency Across Heterogeneous Server Environments

Organizations often manage diverse server fleets with varying generations of hardware. The standardized JEDEC-compliant design of the MEM-DR524L-CL01-ER56 facilitates consistent deployment across mixed environments. This reduces operational complexity, simplifies inventory management, and ensures uniform performance across servers. Consistency in performance and reliability allows IT teams to focus on strategic initiatives rather than troubleshooting compatibility issues.

Enterprise Use Case Alignment

The MEM-DR524L-CL01-ER56 is designed to support a wide range of enterprise workloads. Virtualization platforms benefit from its high bandwidth and ECC reliability, allowing higher virtual machine density without performance degradation. Database servers rely on fast memory access for caching, indexing, and transaction processing, and this module ensures stable performance and data integrity. Analytics, AI, and machine learning workloads also benefit from DDR5 RDIMM memory. The high throughput of PC5-44800 allows large datasets to be processed in memory efficiently, reducing computational delays and improving responsiveness for real-time analysis and in-memory operations.

High-Availability and Fault-Tolerant Systems

Mission-critical servers require components that operate reliably under continuous load. The ECC Registered design minimizes the risk of memory-related failures, supporting stringent uptime requirements. In clustered and failover systems, consistent memory performance ensures predictable operation during failover events, enhancing overall system reliability.

Scalability for Future Infrastructure Needs

As enterprise workloads grow, memory requirements increase accordingly. The MEM-DR524L-CL01-ER56 supports scalable memory configurations, allowing incremental capacity expansion without replacing existing modules. Its compatibility with DDR5 platforms ensures relevance for future infrastructure upgrades, protecting investment value.

Strategic Value and Long-Term Reliability

Supermicro’s rigorous quality control and validation processes ensure that the MEM-DR524L-CL01-ER56 delivers consistent performance and long-term reliability. High-quality DRAM components and advanced manufacturing techniques make it suitable for 24/7 operation in enterprise environments. The combination of high performance, energy efficiency, ECC protection, and platform compatibility makes this module a strategic investment for enterprises seeking reliable, future-ready server memory solutions.
