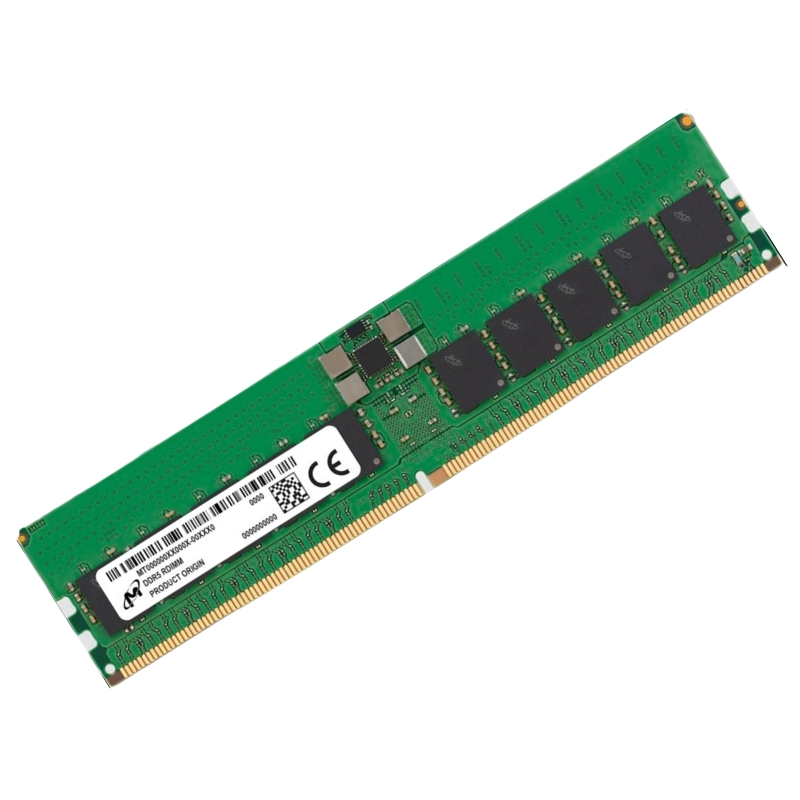

MEM-DR532L-HL02-ER56 Supermicro 32GB PC5-44800 5600MHz RAM

High-Performance DDR5 ECC Registered Server Memory

The MEM-DR532L-HL02-ER56 Supermicro 32GB (1x32GB) DDR5-5600 RDIMM ECC Registered Memory Module represents a cutting-edge solution in the enterprise memory landscape. Designed for compatibility with high-end server systems, this module leverages the latest DDR5 technology to deliver exceptional speed, capacity, and reliability. Tailored for data-intensive workloads in enterprise, cloud, and data center environments, this 288-pin RDIMM module offers ECC (Error-Correcting Code) capabilities and operates at a voltage of 1.1V, enhancing system integrity and power efficiency.

DDR5 RDIMM Technology Overview

DDR5 memory is the latest evolution in DRAM technology, offering significant improvements over DDR4 in terms of bandwidth, density, and power efficiency. Registered DIMMs (RDIMMs) like the MEM-DR532L-HL02-ER56 include an additional register between the DRAM modules and the memory controller, helping to stabilize and streamline signal timing. This makes RDIMMs particularly well-suited for servers requiring maximum reliability and scalability.

Key Innovations of DDR5 vs DDR4

• Twice the bandwidth per module compared to DDR4, supporting faster data movement.
• Higher native frequencies – DDR5 starts at 4800 MHz and extends beyond 5600 MHz.
• Improved power management architecture with on-DIMM voltage regulation.
• Increased die density allows for larger memory modules within the same form factor.
• Dual-channel DIMM architecture enables better data throughput.

Signal and Pin Configuration

The 288-pin layout ensures compatibility with most modern server motherboards, particularly those designed for Intel Xeon Scalable or AMD EPYC platforms that support DDR5 memory. The module’s dual-rank x8 organization contributes to balanced memory access patterns and better parallelism, crucial for multi-threaded server applications.

Enterprise-Grade Reliability and ECC Functionality

The inclusion of ECC (Error-Correcting Code) is essential for mission-critical systems where data integrity must be preserved at all times. ECC detects and corrects single-bit errors and detects multi-bit errors, reducing system crashes and silent data corruption. This feature is especially vital in high-performance computing (HPC), virtualization environments, and transactional databases.

Registered vs Unbuffered Memory in Servers

Registered memory (RDIMM) like the Supermicro MEM-DR532L-HL02-ER56 includes a register that acts as a buffer between the memory controller and the memory modules. This reduces the electrical load and improves signal integrity, allowing for greater memory scalability and system stability under full load. By contrast, unbuffered memory (UDIMM) lacks this register and is used in less demanding or entry-level server environments.

Compatibility and System Integration

This Supermicro 32GB DDR5-5600 RDIMM is optimized for Supermicro server platforms and motherboards that support the latest DDR5 memory architecture. It is backward-incompatible with DDR4 slots due to pin layout differences and electrical signaling changes. Server administrators should confirm BIOS and chipset support before deployment.

Chipset and Platform Support

• Compatible with Intel Sapphire Rapids CPUs
• Supports AMD EPYC 9004 (Genoa) processors
• Validated for use in Supermicro X13 motherboards and H13 server platforms
• Requires BIOS support for DDR5-5600 frequency tuning

Applications and Use Cases

The Supermicro MEM-DR532L-HL02-ER56 memory module is well-suited for a wide array of high-performance server applications:

Data Center Infrastructure

In modern hyperscale and cloud data centers, efficient memory bandwidth and density are crucial for handling enormous data flows and parallel workloads. DDR5-5600 memory delivers a substantial throughput advantage, ensuring maximum responsiveness for containerized workloads, Kubernetes clusters, and cloud-native services.

Virtualization and VDI

High-density memory modules with ECC support like this 32GB RDIMM are ideal for virtual desktop infrastructure (VDI) and virtualization hosts where multiple virtual machines (VMs) share physical hardware. Dual-rank architecture helps optimize memory access patterns for parallel VM operation.

Database and Analytics

For in-memory databases like SAP HANA, Oracle, or SQL Server, this module provides the needed bandwidth and reliability. ECC ensures data consistency, while the 5600MHz transfer rate reduces query response times and speeds up analytics pipelines.

Performance and Efficiency Benefits

High Transfer Speeds

With a blazing data rate of 5600 MT/s, the Supermicro MEM-DR532L-HL02-ER56 allows servers to handle more operations per clock cycle compared to DDR4-3200 or even DDR5-4800 memory. This translates into lower latency and improved throughput for high-I/O applications.

Energy Efficiency

The 1.1V operating voltage, made possible through DDR5’s power management IC (PMIC) on-module design, reduces overall system power consumption. This is particularly valuable in large-scale deployments where thermal and power efficiency impact total cost of ownership (TCO).

Memory Scalability and Future-Readiness

As server platforms continue to evolve to support increasing core counts and workload consolidation, memory capacity and scalability are key. DDR5’s increased die density and improved channel architecture mean that this module can coexist in dense multi-channel configurations, supporting future upgrade paths.

Dual-Channel DIMM Design

DDR5 introduces dual 32-bit subchannels per DIMM, effectively doubling the number of memory channels from the perspective of the memory controller. This results in better parallelism and improved data flow between the CPU and memory subsystems.

Thermal Considerations and Heatsink Design

Though the MEM-DR532L-HL02-ER56 is engineered for low-voltage operation, running high-speed DDR5 modules in dense server environments requires careful thermal management. This module supports advanced thermal monitoring with integrated temperature sensors, enabling dynamic system cooling adjustments.

Server Airflow Optimization

It is important to maintain adequate airflow around memory slots. Many Supermicro chassis designs support directional air channels that cool RDIMMs efficiently, minimizing the risk of thermal throttling in full-load configurations.

Reliability, Validation, and Manufacturer Assurance

Supermicro rigorously validates its memory modules against a variety of server platforms, stress-testing for interoperability, signal integrity, and long-term durability. Each module is JEDEC-compliant and manufactured using premium-grade components to ensure superior quality.

Firmware and BIOS Updates

For optimal performance and compatibility, users should ensure that server firmware and BIOS are updated to the latest versions that support DDR5 memory modules. Supermicro frequently releases validated memory QVL (Qualified Vendor List) updates to guide system integrators.

Comparison with Other Memory Options

Compared to older DDR4 RDIMM modules, the MEM-DR532L-HL02-ER56 delivers:

• Up to 70% more bandwidth per module
• Lower power draw with improved PMIC efficiency
• Better error-correction capabilities for improved system reliability
• Future compatibility with next-gen CPUs and platforms

Deployment Recommendations

For optimal memory configuration:

• Populate memory channels evenly to maximize dual-channel performance
• Use identical RDIMM modules in multi-channel setups to avoid performance mismatches
• Ensure airflow and thermal design match the module’s TDP characteristics
• Utilize BIOS tuning options for DDR5 timings and power settings when supported
