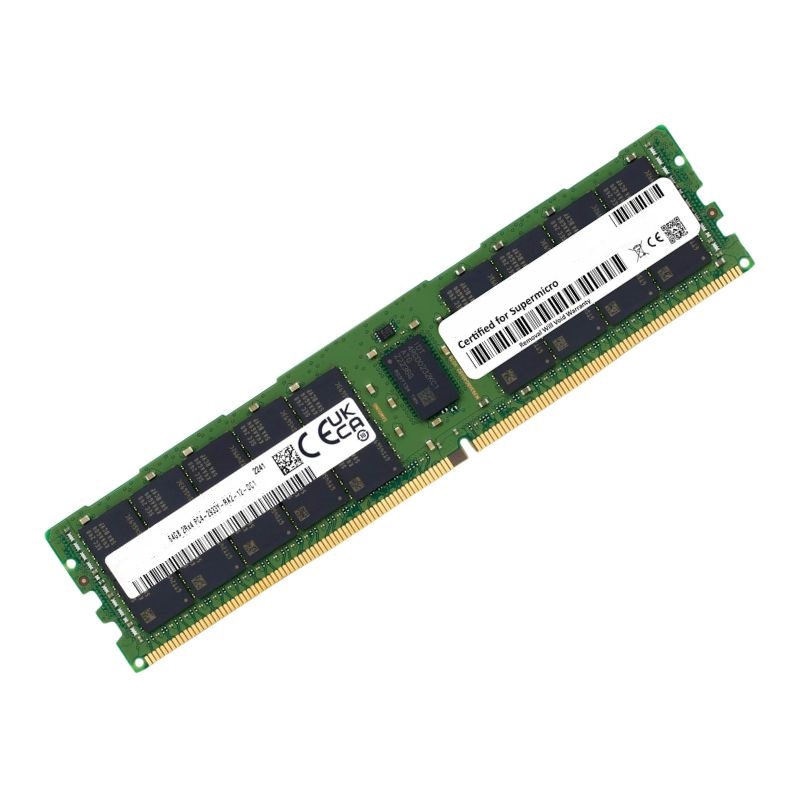

MEM-DR564L-032 Supermicro 64GB DDR5 6400MHz PC5-51200 ECC RDIMM Memory

Enterprise DDR5 RDIMM Memory Modules

The emergence of DDR5 memory technology has transformed the performance landscape in data centers and enterprise-level computing environments. Among these high-performance solutions, the MEM-DR564L-032 Supermicro 64GB DDR5 6400 MHz PC5-51200 2Rx4 ECC Registered CL52 288-pin 1.1V RDIMM Memory Module stands out as a top-tier option for mission-critical workloads. This DDR5 module delivers unprecedented bandwidth, efficiency, and reliability, making it ideal for AI, virtualization, cloud computing, and high-frequency trading environments.

Technical Architecture of the MEM-DR564L-032 DDR5 RDIMM

The Supermicro MEM-DR564L-032 memory module utilizes a dual rank by four (2Rx4) configuration, offering improved memory bandwidth and channel utilization. Built to JEDEC standards, this 288-pin Registered DIMM runs at 6400 MT/s, or 6400 MHz, achieving a transfer rate of PC5-51200. This bandwidth represents a major leap from DDR4 technologies, enabling faster data access and better performance scalability for multi-threaded applications.

Voltage Efficiency and Power Management

This memory module operates at an ultra-low voltage of 1.1V, reducing power consumption significantly compared to DDR4 equivalents. DDR5's integrated power management IC (PMIC) on the module itself improves power delivery granularity and thermal efficiency. Lower power draw translates into less heat generation, increasing the overall sustainability of high-density server environments.

ECC Registered Technology

The inclusion of Error Correction Code (ECC) and registered (buffered) technology ensures system stability and data integrity, especially in enterprise servers where uptime and accuracy are paramount. ECC allows the memory module to detect and correct single-bit errors automatically, minimizing the risk of data corruption. The registered buffer helps maintain signal integrity across large memory configurations, enhancing performance consistency under heavy workloads.

Applications and Use Cases in Enterprise Environments

The MEM-DR564L-032 DDR5 RDIMM is designed for scalability and performance in enterprise-grade servers and storage systems. Its high-speed and low-latency characteristics make it suitable for diverse application scenarios.

AI and Machine Learning

AI workloads depend heavily on large memory pools with fast access speeds. The 64GB capacity and 6400 MHz data rate of this DDR5 module make it well-suited for training deep learning models and running inference workloads at scale.

Cloud Infrastructure and Virtualization

Virtualized environments, such as VMware, Hyper-V, and KVM, require high-capacity and error-tolerant memory. The ECC and registered features of this Supermicro memory module ensure seamless operations even under virtual machine sprawl and high-density deployments.

Financial and Scientific Computing

In fields like quantitative analysis and scientific simulations, rapid data movement is vital. DDR5’s elevated bandwidth helps reduce compute bottlenecks, making this module ideal for compute-heavy workloads like Monte Carlo simulations, CFD, and financial risk modeling.

Compatibility with Supermicro and Other Server Platforms

Designed and validated for Supermicro systems, this memory module offers guaranteed compatibility with a wide range of Intel and AMD server platforms, especially those based on the latest 4th Gen Intel Xeon Scalable processors and AMD EPYC 9004 series. DDR5 support is typically found in motherboards designed for Gen5 PCIe, UPI 2.0, and CXL.

Form Factor and Pin Configuration

The module follows a 288-pin design with a standard RDIMM (Registered DIMM) form factor, compatible with dual- and quad-channel configurations in enterprise-class motherboards. It supports memory interleaving, providing an additional boost to throughput by accessing multiple DIMMs in parallel.

Thermal and Mechanical Design Considerations

With servers often deployed in tightly packed racks, thermal efficiency is critical. The MEM-DR564L-032 module’s lower voltage operation and efficient power delivery architecture reduce thermal load. Additionally, the build includes integrated heat spreaders and robust PCB layers that enhance heat dissipation and structural integrity.

DDR5 Memory Evolution and Future Scalability

DDR5 memory is the natural progression from DDR4, offering double the bandwidth and improved channel architecture. DDR5 introduces dual 32-bit sub-channels per DIMM, as opposed to a single 64-bit channel in DDR4, leading to more efficient data handling and better concurrency.

Latency and Command Efficiency

While DDR5 modules have a higher CAS latency (CL52 in this case), their increased clock speed and architectural improvements often offset this factor. Command bus efficiency and support for more banks (up to 32 banks per DIMM) mean that even with higher latency, effective throughput is considerably superior.

Capacity Scalability for Data Centers

With modules like MEM-DR564L-032 at 64GB per DIMM, systems can scale to terabytes of memory capacity. DDR5 allows for higher densities, up to 512GB per DIMM in the future, making it a long-term investment for businesses planning data center expansions.

Reliability and Error Protection Mechanisms

The MEM-DR564L-032 Supermicro module implements advanced error protection features that go beyond basic ECC. These include On-Die ECC, command/address parity checks, and CRC for data bus integrity. These features minimize silent data corruption and improve mean time between failure (MTBF) rates.

On-Die ECC

On-Die ECC is an internal feature in DDR5 memory ICs that handles single-bit errors before data leaves the memory die. This early error detection improves system stability, especially in long-running applications or critical data processing environments.

Command/Address Parity

To ensure the accuracy of data transmission, DDR5 includes parity checks on command and address buses. These checks further shield the system from potential system crashes or data misdirection resulting from signal degradation or bit flips.

Choose Supermicro DDR5 Memory Modules

Supermicro's server-grade memory modules are validated to perform under rigorous conditions. The MEM-DR564L-032 offers:

• Industry-standard compliance for seamless integration
• Server-optimized firmware and SPD configurations
• End-to-end validation with Supermicro server platforms
• Extended thermal sensor support for remote diagnostics
• Lower total cost of ownership (TCO) due to energy efficiency

Common Deployment Scenarios

Enterprises deploying the MEM-DR564L-032 can expect high performance in the following scenarios:

Multi-Tenant Data Centers

For colocation and IaaS providers, memory density and speed are vital to offering competitive SLAs. DDR5’s capacity and throughput allow providers to host more virtual machines per server.

Edge and Remote Data Nodes

With lower power demands and smaller thermal footprint, this module is suitable for edge deployments where cooling and power availability may be constrained.

Enterprise Databases

In-memory databases like SAP HANA, Oracle TimesTen, and Microsoft SQL Server benefit from higher memory capacity and bandwidth. This memory module helps achieve faster query response times and reduced I/O latency.

Upgrading to DDR5: Migration Tips

Migrating from DDR4 to DDR5 involves several key considerations:

• Ensure motherboard compatibility with DDR5 and PMIC requirements
• Review BIOS/UEFI updates for memory timing optimization
• Check cooling solutions for new power density characteristics
• Test mixed memory configurations only if officially supported

Conclusion: Scalable Memory for High-Performance Infrastructure

The Supermicro MEM-DR564L-032 64GB DDR5 6400 MHz ECC Registered RDIMM is a future-proof memory solution for modern enterprise applications. With its robust reliability features, low power consumption, and massive bandwidth, it plays a pivotal role in meeting the escalating demands of data-centric workloads and evolving IT infrastructure.
