CW9163E-MR Meraki Cisco CW9163E Wi-Fi 6E Indoor/Outdoor Wireless AP

Meraki CW9163E-MR Cisco Catalyst 9163E Cloud-Managed Wi-Fi 6E Access Point

The Meraki CW9163E-MR wireless access point represents the cutting edge in next-generation wireless networking, designed to provide unparalleled performance, scalability, and intelligent management features for enterprise environments. As part of Cisco’s Catalyst 9100 Series, the CW9163E-MR integrates cloud-based management, tri-band radio capabilities, and full support for Wi-Fi 6E, offering improved efficiency and expanded spectrum use across 2.4 GHz, 5 GHz, and the newly opened 6 GHz frequency bands. This access point is tailored to meet the needs of growing digital infrastructures in education, healthcare, retail, and other demanding commercial sectors.

Tri-Band Wireless Technology with Wi-Fi 6E

Expanded Wireless Bandwidth

With Wi-Fi 6E compatibility, the Meraki CW9163E-MR leverages the 6 GHz band in addition to traditional 2.4 GHz and 5 GHz frequencies. This enhancement significantly increases available bandwidth, reduces latency, and minimizes interference from legacy devices. Businesses deploying high-density wireless applications benefit from faster throughput and smoother user experiences even under heavy traffic.

• 2.4 GHz: Reliable coverage for legacy and IoT devices
• 5 GHz: High-speed connections for demanding apps
• 6 GHz: Future-ready spectrum with less congestion

Increased Channel Capacity

The CW9163E-MR supports multiple wide channels in the 6 GHz band, including 80 MHz and 160 MHz channels. This capability enhances performance in environments with bandwidth-hungry applications such as video conferencing, VoIP, AR/VR, and real-time collaboration tools. Users experience stable connections even when dozens or hundreds of devices are active simultaneously.

Advanced Cloud Management with Cisco Meraki Dashboard

Centralized Management at Scale

The Meraki CW9163E-MR is fully managed through the intuitive Cisco Meraki dashboard, a centralized cloud-based platform offering visibility, configuration, and monitoring of your wireless infrastructure from anywhere. Network administrators can easily configure SSIDs, apply traffic shaping policies, enforce security protocols, and track device performance in real-time.

Smart Network Analytics

Meraki’s dashboard includes detailed analytics and reporting tools that provide insight into user behavior, application usage, and device health. Network policies can be adjusted dynamically based on usage patterns and business needs, while real-time alerts notify admins of anomalies or performance degradation.

Benefits of Cloud Management

• Simplified configuration and deployment
• Remote troubleshooting and diagnostics
• Zero-touch provisioning for rapid scaling
• Regular firmware updates and enhancements

Hardware Performance and Connectivity

Multi-Gigabit Uplink Support

Equipped with both 1 Gbps and 2.5 Gbps Ethernet interfaces, the CW9163E-MR ensures maximum throughput to support the data demands of Wi-Fi 6E. The 2.5G Ethernet port is ideal for high-speed uplinks, reducing bottlenecks between the access point and wired backbone infrastructure.

External Antenna Support

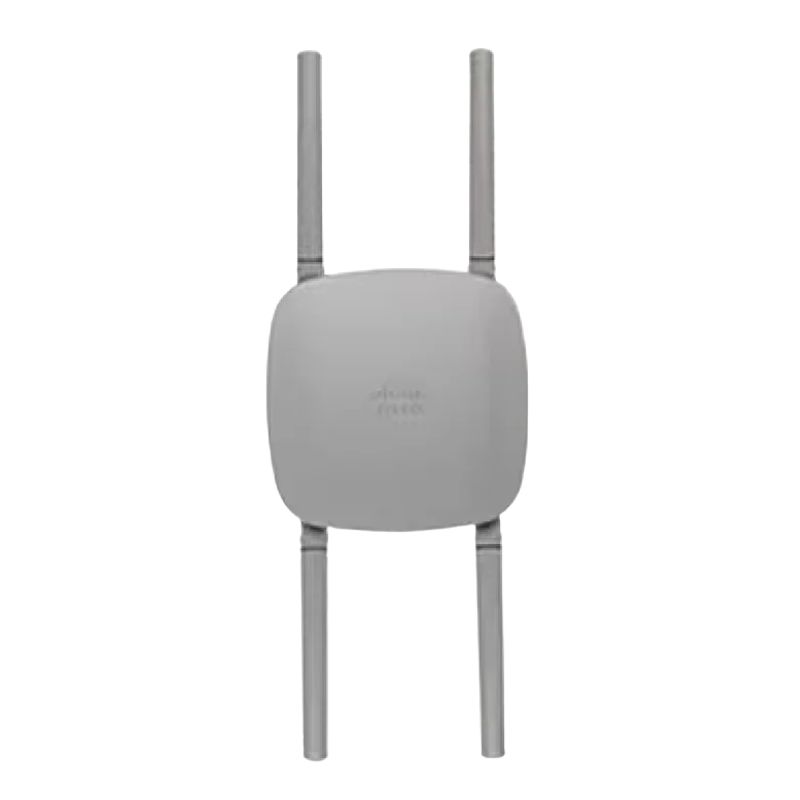

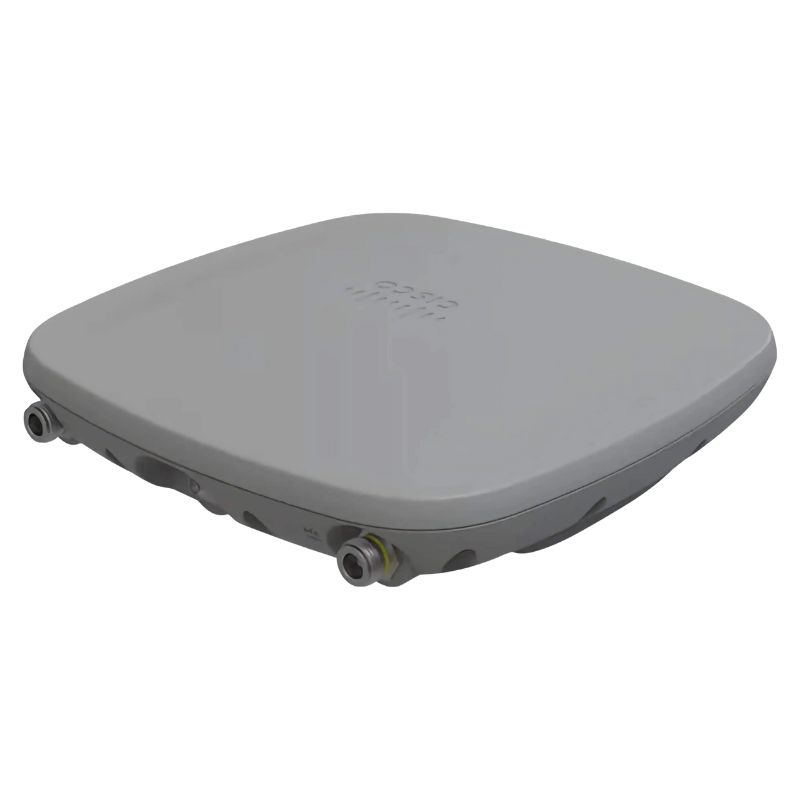

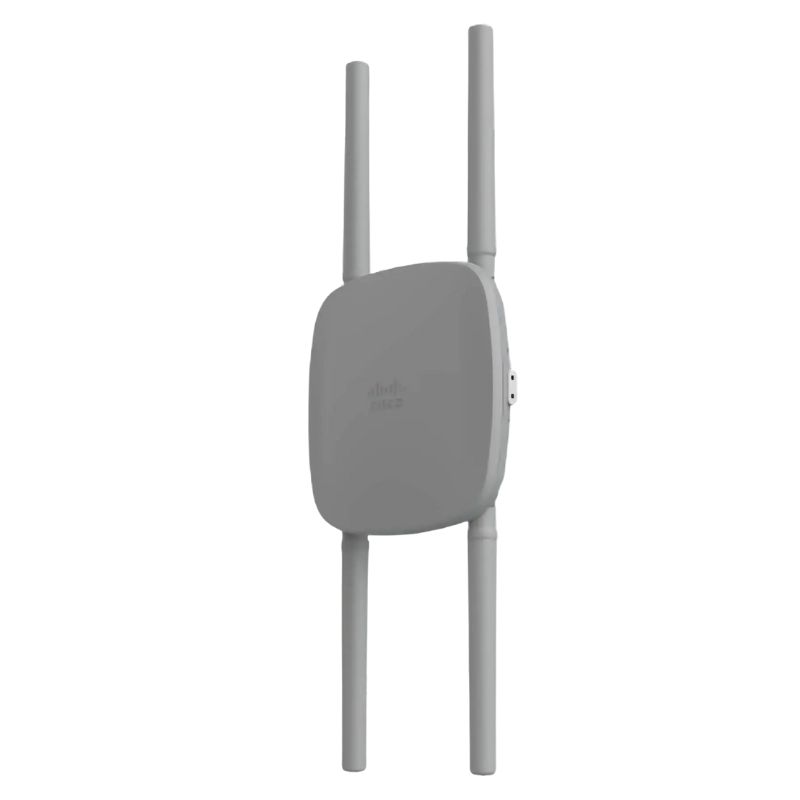

This model includes connectors for external antennas, enabling organizations to tailor coverage based on physical layout and deployment requirements. Whether mounted indoors or outdoors, or in RF-challenged environments, the external antennas can be selected to suit directional or omnidirectional propagation needs.

Bluetooth Low Energy (BLE) Integration

Enhanced IoT Support

The built-in Bluetooth radio offers support for BLE-based applications such as asset tracking, presence detection, and contactless authentication. This adds an additional layer of flexibility and innovation to enterprise networks seeking to expand IoT implementations without additional hardware.

Proximity-Based Services

Businesses can deliver location-aware services using the BLE beaconing capabilities of the CW9163E-MR. From wayfinding in large buildings to proximity marketing in retail spaces, BLE technology creates meaningful interactions between digital systems and physical environments.

High-Density Performance Optimization

Target Wake Time (TWT)

Target Wake Time allows devices to schedule transmissions, reducing power consumption and enabling longer battery life on mobile clients. This feature is particularly useful in high-density environments with large numbers of smartphones, laptops, and IoT devices.

MU-MIMO and OFDMA

Wi-Fi 6E features such as MU-MIMO (Multi-User Multiple Input Multiple Output) and OFDMA (Orthogonal Frequency Division Multiple Access) are fully supported. These technologies enhance multi-user performance, allowing multiple clients to communicate with the access point simultaneously, improving overall network efficiency.

Security and Policy Enforcement

Built-in Security Capabilities

Security is embedded into the Meraki CW9163E-MR with enterprise-grade features such as WPA3 encryption, Identity PSK (iPSK), and integrated rogue AP detection. These tools protect sensitive data and ensure that only authorized devices gain network access.

Network Segmentation

With support for VLAN tagging and role-based access control, the CW9163E-MR enables network segmentation for greater security. Guest traffic, employee devices, and IoT systems can be logically separated to minimize risk and enhance control.

Security Highlights

• WPA3 Enterprise & Personal support
• Dynamic access policies through RADIUS
• Integrated firewall and traffic shaping
• Client isolation and rogue AP mitigation

Flexible Deployment for All Environments

Outdoor and Harsh Environment Compatibility

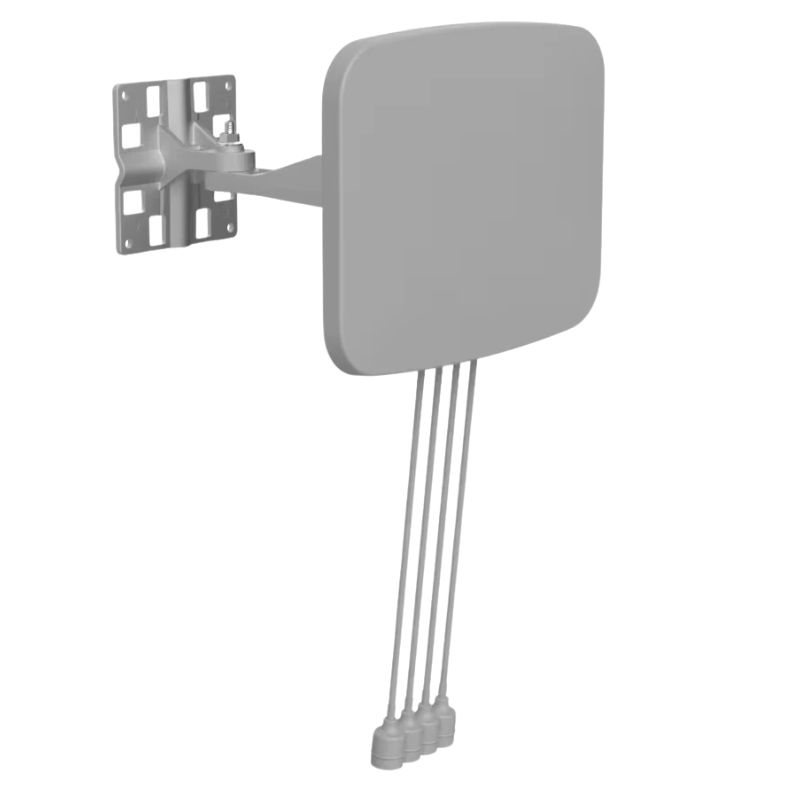

Thanks to its durable design and support for external antennas, the CW9163E-MR is suited for challenging indoor and outdoor deployments. It can be wall-mounted, pole-mounted, or ceiling-mounted depending on use case, providing exceptional wireless service in stadiums, campuses, manufacturing sites, and transportation hubs.

Energy Efficiency and Green IT

The access point is optimized for low power consumption with intelligent radio resource management (RRM) and environmental awareness, contributing to reduced operational costs and supporting green IT initiatives in the enterprise sector.

Use Cases and Industry Applications

Educational Institutions

In schools and universities, the CW9163E-MR provides seamless Wi-Fi coverage across classrooms, libraries, and dormitories, supporting digital learning platforms and secure access for thousands of students and faculty devices.

Healthcare Environments

Hospitals and clinics require highly secure and reliable wireless infrastructure to support telemedicine, digital records, and connected medical equipment. The CW9163E-MR’s tri-band support and cloud management make it ideal for healthcare compliance and connectivity needs.

Retail and Hospitality

From immersive in-store experiences to contactless check-ins, this access point supports the fast-paced needs of retail stores and hospitality venues. Its BLE functionality enables advanced customer engagement and IoT-based automation.

Large Enterprise and Corporate Offices

Enterprises deploying a distributed workforce benefit from scalable, centrally managed Wi-Fi deployments. The CW9163E-MR’s high throughput and security make it perfect for unified communications, video conferencing, and hybrid work environments.

Technical Specifications Summary

Hardware and Connectivity

• Radio: Tri-band (2.4 GHz, 5 GHz, 6 GHz)
• Standards: 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
• Ethernet: 1x 2.5GBASE-T, 1x 1GBASE-T (RJ-45)
• Antenna: External antenna connectors (N-type)
• Bluetooth: BLE beaconing and scanning

Software and Management

• Cloud-based management via Meraki Dashboard
• Automatic firmware updates and security patches
• Integrated troubleshooting tools (ping, traceroute, throughput testing)
• Live client and traffic monitoring

Security Features

• WPA3 encryption, Identity PSK
• VLAN tagging and role-based access
• Integrated firewall with Layer 3/7 rules
• Rogue AP detection and prevention

Future-Proof Wireless Infrastructure

Investment Protection

The Meraki CW9163E-MR ensures that organizations are prepared for the future of wireless networking. Its support for Wi-Fi 6E guarantees compatibility with emerging devices while reducing long-term costs associated with frequent upgrades or replacements.

Scalability

Whether you're deploying a handful of access points or managing thousands across multiple sites, the Meraki platform makes scaling easy and cost-effective. Its flexible licensing model and centralized architecture simplify the rollout of large wireless projects.

Why Choose the Meraki CW9163E-MR?

Seamless Cloud Control

Effortlessly manage network policies and performance across locations using the Cisco Meraki Dashboard.

Wi-Fi 6E Ready

Tri-band radio ensures your infrastructure is equipped for today’s and tomorrow’s wireless device demands.

Ideal for Dense and Critical Environments

Optimized for large-scale usage, including schools, hospitals, offices, and retail spaces, ensuring high availability and secure connectivity.

IoT-Enabled

Integrated BLE makes the CW9163E-MR suitable for asset tracking, automation, and smart building management.

Conclusion: The Future of Wireless is Now

The Cisco Catalyst CW9163E-MR delivers a best-in-class wireless solution for organizations that demand speed, security, reliability, and manageability. Whether deployed as a standalone AP or as part of a broader Cisco Meraki wireless ecosystem, it provides the tools and performance needed to build a resilient, high-speed wireless environment in today’s dynamic digital landscape.
