Meraki MR76-HW Outdoor Wi-Fi 6 AP

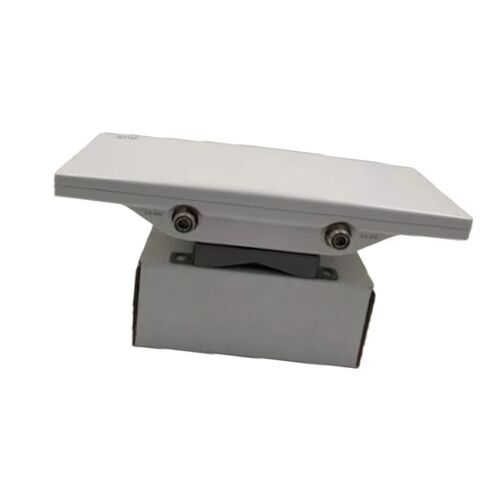

Meraki MR76-HW Wireless Access Point

The Meraki MR76-HW Wireless Access Point is a cloud-managed, high-performance device designed for outdoor environments that require reliable, scalable, and secure wireless connectivity. Leveraging Wi-Fi 6 technology, the MR76-HW provides enhanced speed, increased capacity, and improved efficiency across the 2.4 GHz and 5 GHz bands. This access point is perfect for various applications, including campuses, retail environments, parks, and public venues, where consistent connectivity and advanced security are paramount.

Networking Specifications

Connectivity and Technology

• Form Factor: External, designed for flexible deployment in various environments.
• Connectivity Technology: Wireless, offering robust and reliable connections without the need for cables.
• Line Coding Format: 1024 QAM and OFDMA, enabling efficient data transmission with high throughput.
• Data Link Protocols: Supports multiple standards, including IEEE 802.11b, 802.11a, 802.11g, 802.11n, 802.11ac Wave 2, and the latest 802.11ax for improved performance.
• Spread Spectrum Method: Utilizes OFDMA for enhanced signal efficiency and reduced latency.
• Network Protocol: Supports IPsec for secure, encrypted communication across networks.
• Cloud-Managed: Yes, allowing for seamless remote management and monitoring via the cloud.
• Frequency Bands: Operates on 2.4 GHz and 5 GHz bands, providing dual-band functionality for optimized performance.

Performance and Status Indicators

• Status Indicators: Power, Boot State, and Status LEDs for real-time device monitoring and troubleshooting.

Advanced Features

Security and Optimization

• Firewall Protection: Integrated firewall to safeguard your network against unauthorized access.
• VPN Support: Facilitates secure remote access for protected data transmission.
• Firmware Upgradable: Easily updated to maintain the latest security patches and performance enhancements.
• Wireless Intrusion Detection System (WIDS): Monitors for potential security threats and vulnerabilities in real-time.
• Wireless Intrusion Prevention System (WIPS): Proactively blocks unauthorized access and threats to the network.

Quality and Performance Enhancements

• Wi-Fi Multimedia (WMM) Support: Prioritizes multimedia traffic, ensuring smooth video and audio streaming.
• Quality of Service (QoS): Enhances network performance by prioritizing critical data traffic.
• Maximum Ratio Combining (MRC): Boosts signal quality and coverage by optimizing multiple antenna signals.
• MU-MIMO Technology: Multi-User MIMO allows simultaneous communication with multiple devices, improving overall efficiency.
• Bluetooth Low Energy Beaconing: Supports location-based services and asset tracking.
• Unscheduled Automatic Power Save Delivery (U-APSD): Reduces power consumption while maintaining performance.
• SU-MIMO Technology: Single-User MIMO enhances the signal quality to individual devices, optimizing connectivity.
• Opportunistic Key Caching (OKC): Facilitates faster roaming by reusing cached security keys.
• 2x2:2 MU-MIMO Technology: Dual spatial streams for increased bandwidth and improved data rates.
• Packet Aggregation: Combines multiple packets to reduce overhead and improve throughput.
• Target Wait Time (TWT): Schedules data transmissions to optimize battery life in connected devices.

Security Features

Encryption and Authentication

• Encryption Algorithms: Provides robust encryption with AES, TLS, TTLS, TKIP, WPA, WPA2-PSK, WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise, WPA3-Enhanced Open, WEP, and EAP-SIM.
• Authentication Methods: Supports MS-CHAP v.2, Extensible Authentication Protocol (EAP), and EAP-SIM for flexible and secure access control.

Compliance and Standards

Industry Standards

• Compliant Standards: Meets a wide range of standards, including IEEE 802.1Q, 802.1P, 802.11 series, 802.1X, 802.3af, 802.11i, 802.11h, 802.11e, 802.11n, 802.11k, 802.11r, 802.11u, 802.11ac Wave 2, and 802.11ax.

Hardware and Connectivity

Antennas and Interfaces

• Antenna Type: External antennas designed for optimal signal coverage and performance.
• Interfaces: Includes 1 x 1000BASE-T (PoE) RJ-45 port for seamless wired connectivity and power delivery.

Power Specifications

Power Over Ethernet (PoE) and Consumption

• PoE Supported: PoE enabled, simplifying installation and reducing the need for additional power cables.
• Operational Power Consumption: Consumes 15 watts, balancing performance with energy efficiency.

Key Features of the MR76-HW Access Point

The MR76-HW stands out due to its robust features that support demanding outdoor and high-density environments. Below are some of the primary features that make this access point a market leader in outdoor wireless solutions:

Wi-Fi 6 Technology

The integration of Wi-Fi 6 technology into the MR76-HW brings several enhancements, including increased capacity, lower latency, and better performance in environments with many connected devices. Wi-Fi 6 introduces technologies like MU-MIMO, OFDMA, and BSS Coloring, which contribute to the access point's overall efficiency and reliability.

Higher Data Rates and Improved Performance

Wi-Fi 6 allows the MR76-HW to achieve higher data rates compared to previous Wi-Fi generations. This makes it suitable for bandwidth-intensive applications, including video streaming, VoIP, and cloud computing.

Reduced Latency and Improved User Experience

With features like OFDMA and MU-MIMO, the MR76-HW reduces latency, enabling faster and more efficient data transmission. This is particularly beneficial for real-time applications, gaming, and virtual reality (VR) environments.

Dual-Band Operation: 2.4 GHz and 5 GHz

The MR76-HW operates on both the 2.4 GHz and 5 GHz frequency bands, providing flexibility and enhanced performance. This dual-band capability ensures compatibility with a wide range of devices and applications, balancing performance and coverage.

2.4 GHz Band

The 2.4 GHz band is known for its extensive coverage and ability to penetrate obstacles, making it ideal for broader connectivity in outdoor areas. It supports applications and devices that require longer-range connections.

5 GHz Band

The 5 GHz band offers higher speeds and reduced interference compared to the 2.4 GHz band, making it perfect for high-performance applications. It supports faster data transfer rates and is suitable for environments with higher density and greater bandwidth demands.

Cloud Management Integration

The MR76-HW is fully integrated with the Meraki cloud management platform, providing centralized management, monitoring, and configuration. This cloud-based approach simplifies network operations, enhances security, and provides valuable insights into network performance.

Centralized Dashboard

Administrators can manage the MR76-HW through a single, intuitive dashboard that provides visibility into the entire network. This centralized management approach streamlines the configuration, monitoring, and troubleshooting processes, saving time and resources.

Real-Time Analytics and Reporting

Meraki’s cloud platform offers real-time analytics and reporting, allowing administrators to track network performance, user activity, and device health. This data-driven approach helps optimize network efficiency and resolve issues before they impact users.

Seamless Firmware Updates

Firmware updates are automatically pushed to the MR76-HW through the cloud, ensuring that the access point is always up to date with the latest features, security patches, and performance enhancements. This reduces maintenance efforts and enhances security.

Robust Security Features

Security is a critical component of the MR76-HW, which includes several advanced security features to protect both data and devices. These security measures ensure that the access point can be confidently deployed in various environments without compromising network integrity.

WPA3 Encryption

WPA3 provides enhanced protection against unauthorized access and ensures the confidentiality of data transmitted over the network. It offers stronger encryption standards compared to previous protocols, making the MR76-HW a secure choice for modern networks.

Secure Guest Access

The MR76-HW supports secure guest access, allowing visitors to connect to the network without accessing sensitive internal resources. Guest networks can be easily managed and monitored through the Meraki cloud dashboard, enhancing overall network security.

Intrusion Detection and Prevention

The built-in intrusion detection and prevention system (IDS/IPS) monitors network traffic for suspicious activity, providing real-time protection against potential threats. This feature helps safeguard the network from external attacks and unauthorized access attempts.

Performance and Reliability

Designed for reliability, the MR76-HW delivers high performance across various outdoor environments. Whether in extreme weather conditions or high-density public areas, this access point maintains consistent connectivity and throughput.

High Throughput

Thanks to its Wi-Fi 6 capabilities, the MR76-HW offers high throughput, supporting multiple high-bandwidth applications simultaneously. Its advanced radio frequency (RF) optimization ensures maximum data rates even in challenging environments.

Durability in Outdoor Environments

The MR76-HW is built to withstand the elements, featuring an IP67-rated enclosure that protects against dust, moisture, and extreme temperatures. This rugged design makes it suitable for a wide range of outdoor applications, from parks to industrial sites.

Reliable Uptime

The MR76-HW offers reliable uptime, ensuring continuous network availability. Its high availability features, including failover and redundancy options, minimize downtime and provide uninterrupted service to users.

Applications and Use Cases

The versatility of the MR76-HW allows it to be deployed across various industries and use cases, providing reliable and high-performance wireless connectivity.

Campus Networks

In educational institutions, the MR76-HW enhances wireless coverage across campuses, providing seamless connectivity for students, faculty, and visitors. It supports high-density environments like lecture halls, libraries, and outdoor common areas.

Public Venues and Parks

For parks, public venues, and outdoor recreational areas, the MR76-HW ensures robust and secure wireless access. Its long-range capabilities and rugged design make it ideal for extending connectivity to open and public spaces.

Retail and Hospitality

Retail and hospitality businesses can leverage the MR76-HW to enhance customer experiences with reliable wireless connectivity. From outdoor seating areas to large retail complexes, this access point provides fast and secure connections for guests and staff alike.

Industrial and Logistics Facilities

In industrial and logistics environments, the MR76-HW supports critical operations by providing reliable wireless coverage in challenging conditions. It enables connectivity for devices and applications used in warehouses, loading docks, and outdoor storage areas.

Seamless Integration with Existing Networks

The MR76-HW integrates seamlessly with existing Meraki networks, making it easy to expand wireless coverage without the need for extensive reconfiguration. This compatibility ensures that the MR76-HW can be quickly added to any Meraki-managed network environment.

Zero-Touch Provisioning

Zero-touch provisioning allows the MR76-HW to be configured remotely via the cloud. This feature reduces on-site setup time, enabling rapid deployment across multiple locations with minimal effort.

Cloud-Based Configuration

All configurations and updates are managed through the Meraki cloud dashboard, eliminating the need for manual setup on-site. This remote management capability streamlines network deployment and maintenance.

Scalable and Future-Proof Design

The MR76-HW’s scalable design ensures that it can grow with your network needs. Its advanced hardware and cloud-based management allow for easy integration of future technologies and features, protecting your investment over time.

Modular Antenna Design

The MR76-HW’s external, detachable antennas provide flexibility in tuning the access point’s performance to specific deployment scenarios. Antennas can be adjusted or replaced to optimize coverage for different environments.

Backward Compatibility

The MR76-HW is backward compatible with previous Wi-Fi standards, ensuring seamless connectivity with legacy devices. This compatibility helps ease the transition to Wi-Fi 6 and maximizes the performance of all connected devices.

Environmental and Sustainability Considerations

Meraki emphasizes sustainability in the design of the MR76-HW, incorporating features that minimize environmental impact while maintaining high performance:

Energy Efficiency

The MR76-HW’s power-efficient design reduces energy consumption without compromising performance. Features like Power over Ethernet (PoE) support help minimize the overall energy footprint of the device.

Smart Power Management

The access point intelligently manages power consumption based on network activity, reducing power usage during periods of low demand. This feature helps lower operational costs and supports sustainable network practices.

Durable Materials

The MR76-HW is constructed from durable, weather-resistant materials designed to withstand harsh outdoor conditions. This long-lasting design minimizes the need for replacements and reduces environmental waste.

Recyclable Components

Meraki has incorporated recyclable components into the MR76-HW, supporting responsible disposal and recycling efforts. This focus on sustainability extends to the packaging, which uses eco-friendly materials.

Meraki Ecosystem Integration

The MR76-HW is a part of the broader Meraki ecosystem, which includes a range of products designed to work together seamlessly:

Compatibility with Meraki Switches

The MR76-HW integrates effortlessly with Meraki switches, providing a complete network solution that is easy to manage and scale. This integration simplifies network architecture and enhances overall performance.

Advanced Threat Protection

When combined with Meraki security appliances, the MR76-HW benefits from advanced threat protection features, including content filtering, malware protection, and application control. This layered security approach helps protect the entire network.

Enhanced Location Analytics

Meraki’s cloud management platform includes location analytics that work with the MR76-HW to provide insights into user behavior, foot traffic, and device usage patterns. These analytics help businesses optimize their operations and improve user experiences.

Use Cases for Location Analytics

Location analytics are valuable in retail, hospitality, and public venue settings, where understanding visitor movement can drive marketing strategies, improve layout designs, and enhance service delivery.

Real-Time Monitoring

Administrators can monitor device locations in real time, allowing for immediate response to network issues or security incidents. This feature supports proactive management and enhances overall network security.
