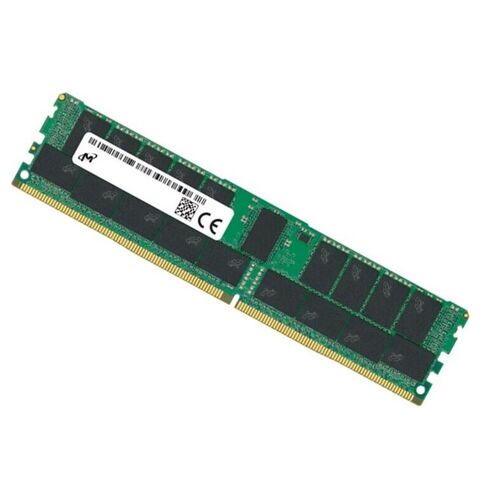

MTA18ASF2G72PDZ-2G6J1R Micron 16GB RAM PC4-21300 DDR4 2666MHZ 2RX4 ECC SDRAM Module

Understanding of 16GB DDR4 Server Memory Kit

In the realm of enterprise computing and data-intensive applications, system stability and data integrity are paramount. This is where specialized memory modules, such as ECC Registered DDR4, come into play. The Micron MTA18ASF2G72PDZ-2G6J1R represents a critical component in this category, designed for servers, high-end workstations, and storage systems where uninterrupted operation and error-free data processing are non-negotiable. Unlike standard consumer-grade memory, modules in this category incorporate advanced technologies to manage the immense workloads and constant uptime demands of modern data centers.

Decoding the Part Number: Micron MTA18ASF2G72PDZ-2G6J1R

The alphanumeric part number of any memory module is a condensed datasheet. Breaking down the Micron MTA18ASF2G72PDZ-2G6J1R provides a complete overview of its specifications before delving into deeper technicalities.

Module Capacity and Density

16GB Single Module

The "16GB" designation indicates the total storage capacity of the single module. In server configurations, multiple such modules are populated across available channels to achieve total system memory of 64GB, 128GB, 256GB, and beyond, depending on the platform.

1x16GB Organization

The "(1x16GB)" notation specifies that this is a single, monolithic module providing 16 gigabytes of capacity. It is not a kit of multiple sticks. This is a crucial distinction for procurement and system population planning.

Key Specifications

PC4-21300 & DDR4-2666MHz

These two identifiers describe the module's speed. PC4-21300 refers to the theoretical peak transfer rate in megabytes per second (MB/s). To calculate: 21300 MB/s. The DDR4-2666MHz denotes the data rate of the memory, meaning it performs 2,666 million data transfers per second. This speed balances performance with power efficiency and compatibility for many Intel Xeon Scalable and AMD EPYC platforms.

ECC Registered (ECC RDIMM)

This is the core feature defining this memory category. ECC (Error-Correcting Code) allows the module to detect and correct single-bit memory errors on-the-fly and detect multi-bit errors, preventing data corruption and potential system crashes. The "Registered" component refers to the presence of a register (or buffer) on the module. This register reduces the electrical load on the server's memory controller, enabling the system to support a higher total number of memory modules and greater overall capacity with stability. This module is an RDIMM (Registered Dual In-Line Memory Module).

Dual Ranked Architecture

A "rank" is a set of DRAM chips that the memory controller accesses simultaneously. A Dual Rank (DR) module has two such sets. It offers a good balance of performance, capacity, and loading on the memory controller compared to Single Rank (SR) or Quad Rank (QR). Dual Rank modules often provide marginally better performance than Single Rank in many server workloads due to rank interleaving.

Form Factor

The module operates at a standard DDR4 voltage of 1.2V, which is lower and more efficient than previous generations. The CAS Latency is CL19, which is a typical timing for DDR4-2666 ECC RDIMMs. The physical interface is the 288-pin design, which is exclusive to DDR4 technology and is not backward compatible with DDR3's 240-pin sockets.

Deep Dive into Core Technologies: ECC and Registered Buffers

To fully appreciate the application of this module, one must understand the technologies that define its category.

Error-Correcting Code (ECC) Memory in Action

In mission-critical environments, even a single bit flip in memory can corrupt a database calculation, crash a virtual machine, or cause silent data corruption. ECC memory adds extra bits (e.g., 8 bits for a 64-bit word) to store an encrypted code. When data is written, the code is calculated and stored. When data is read, the code is recalculated and compared. Any discrepancy triggers error correction for single-bit errors or an alert for uncorrectable multi-bit errors. This Micron module implements this essential safeguarding technology.

Impact on System Reliability

The use of ECC memory directly reduces system downtime and data loss risks. It is a fundamental requirement for any server, NAS, or workstation used for financial modeling, scientific research, content creation, or enterprise application hosting.

The Role of the Registered Buffer

As server memory capacities scaled, the electrical challenge of connecting dozens of DRAM chips directly to the memory controller became significant. The registered buffer acts as an intermediary. It receives commands and addresses from the controller, holds them for one clock cycle, and then drives the signals to the DRAM chips. This refreshes the signal and reduces the electrical capacitance "seen" by the controller.

Capacity and Stability Benefits

This buffering enables servers to support more memory modules per channel (typically 2-3 RDIMMs vs. 1-2 UDIMMs) and much higher total system memory capacities. While it adds a minimal latency of one clock cycle, the gain in system scalability and stability is immense.

Compatibility and Recommended Use Cases

The Micron MTA18ASF2G72PDZ-2G6J1R is not designed for consumer desktop PCs. Its compatibility is targeted at specific enterprise and professional platforms.

Target Server Platforms

This module is engineered for compatibility with a wide range of server systems. It is commonly validated for use in platforms from major OEMs like Dell (PowerEdge series), HPE (ProLiant series), Lenovo (ThinkSystem), and Cisco (UCS), as well as white-box server motherboards from Supermicro, ASUS, and Tyan.

Processor Architecture Compatibility

Intel Xeon Platforms

This DDR4-2666 ECC RDIMM is ideally suited for Intel Xeon Scalable processors from the "Skylake-SP," "Cascade Lake-SP," and "Cascade Lake-AP" generations (e.g., Bronze, Silver, Gold, Platinum series 6100, 6200, 6300). The memory controller on these CPUs natively supports 2666MHz speed with RDIMMs.

AMD EPYC Platforms

It is also compatible with AMD's first and second-generation EPYC processors (Naples and Rome). These platforms support high memory speeds and benefit significantly from the capacity and reliability offered by such modules.

Ideal Applications and Workloads

The characteristics of this memory make it optimal for specific demanding computing environments.

Virtualization Hosts

Servers running VMware vSphere, Microsoft Hyper-V, or other hypervisors require large pools of reliable memory to host multiple virtual machines. ECC protection is crucial to maintain VM integrity, and high capacity per module allows for greater VM density.

Database Servers

In-memory databases (like SAP HANA) and traditional RDBMS (like SQL Server, Oracle) heavily cache data in RAM for performance. ECC ensures the accuracy of transactions and queries, while the 16GB density helps build large, fast cache pools.

High-Performance Computing (HPC)

Clusters performing scientific simulations, financial analysis, or 3D rendering handle massive datasets. The combination of speed (2666MHz), error correction, and capacity per module provides a balance of throughput and data integrity for these parallelized workloads.

Network-Attached Storage (NAS) and Storage Servers

Enterprise NAS solutions from vendors like QNAP or Synology in their rackmount series, or custom-built FreeNAS/TrueNAS servers, use ECC RDIMMs to protect the ZFS or other file system's metadata and cached data, preventing silent corruption of stored files.

Comparison and Context within the Memory Hierarchy

Placing this module in the broader spectrum of server memory clarifies its positioning.

ECC RDIMM vs. Other Server Module Types

ECC Unbuffered DIMM (ECC UDIMM): Offers ECC but lacks a register. Used in entry-level servers and workstations, with lower capacity limits per channel. Load Reduced DIMM (LRDIMM): Uses an advanced buffer that reduces load further than RDIMMs, enabling the highest capacity modules (e.g., 64GB, 128GB) and the most modules per channel, but at a higher cost and latency. Non-ECC UDIMM: Consumer-grade memory; not suitable for mission-critical servers due to lack of error correction.

Choose the 16GB DDR4-2666 RDIMM

This module sits in the performance/capacity sweet spot for a vast array of deployed servers. It offers a proven balance of speed, capacity per module, reliability through ECC and buffering, and cost-effectiveness for scaling memory in 1U, 2U, and multi-node server platforms. It represents the workhorse memory of the data center for its generation.
