MTFDDAK480TDT-1AW16ABDB Micron 5300 Max 480GB SATA 6GBPS Mixed Use SFF Internal SSD

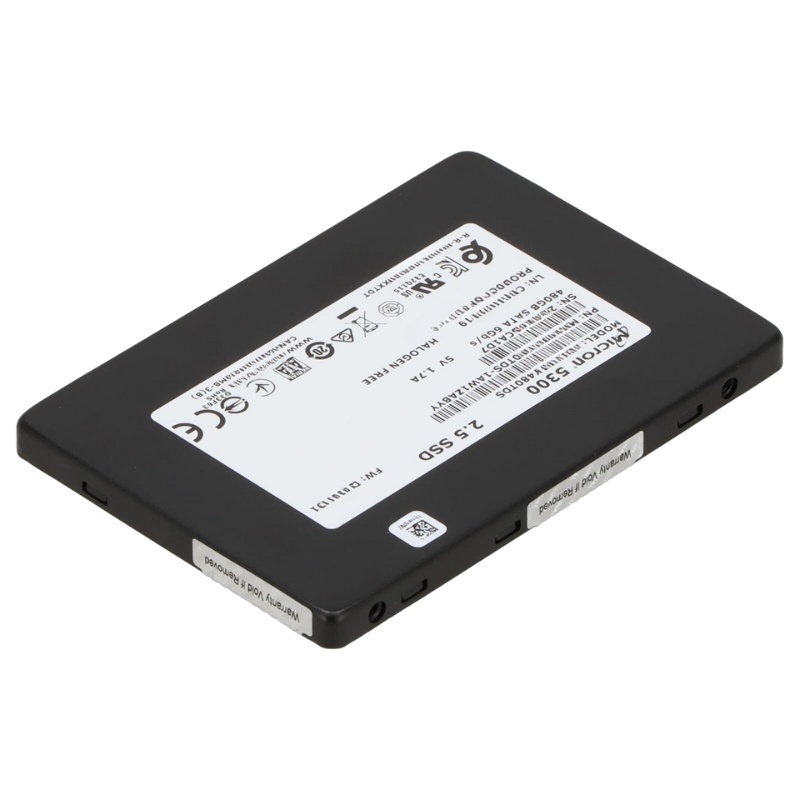

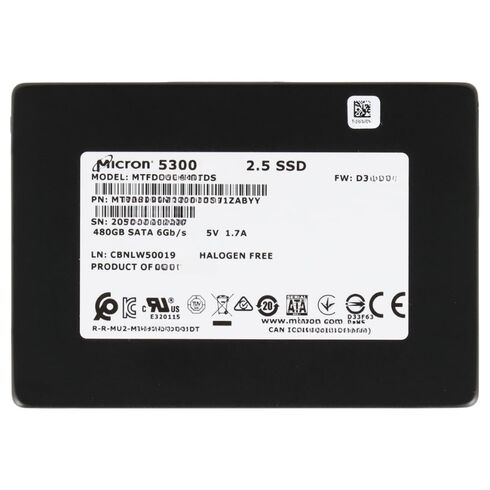

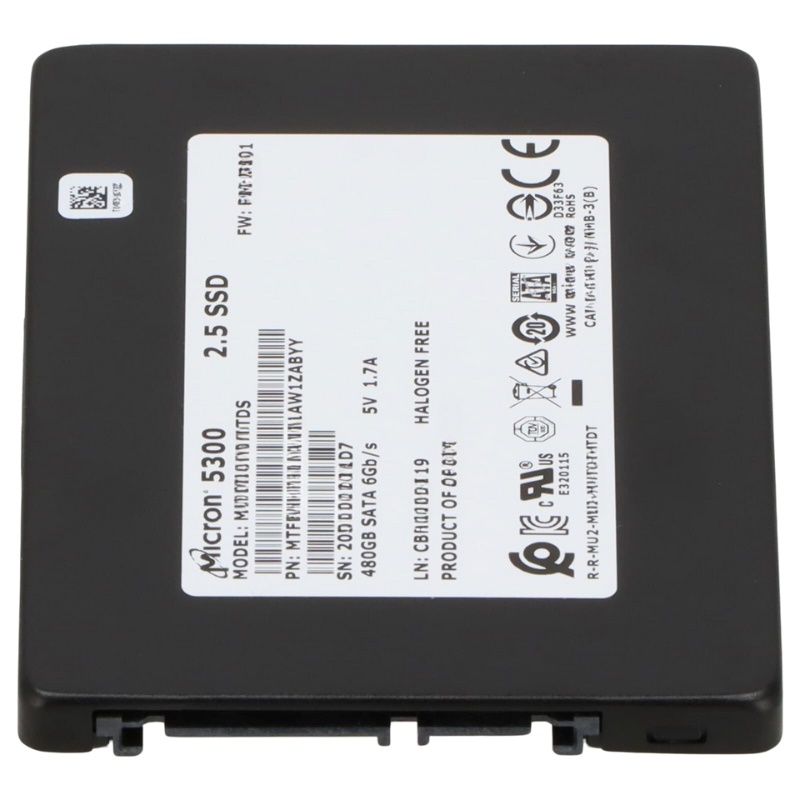

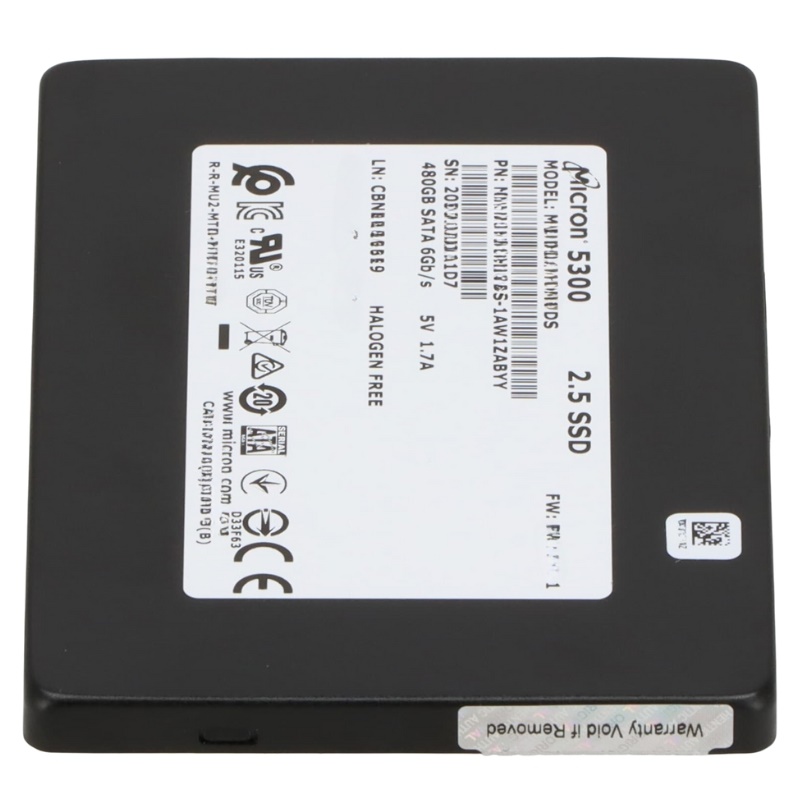

Micron MTFDDAK480TDT-1AW16ABDB 480GB Mixed Use SSD

The Micron 5300 MAX Solid State Drive represents a pinnacle of reliability and performance in the data center and enterprise storage landscape. Designed from the ground up for 24/7 operation, this series leverages Micron's deep expertise in NAND flash manufacturing and controller design. The MTFDDAK480TDT-1AW16ABDB, a 480GB model in the 5300 MAX tier, is specifically optimized to handle the demanding, unpredictable I/O patterns characteristic of modern server environments. Unlike consumer SSDs or read-intensive models, the 5300 MAX is built for mixed-use workloads, meaning it sustains high performance for both read and write operations simultaneously, a critical requirement for applications like virtualization, cloud computing, database indexing, and medium-duty server boot drives.

The Micron 480GB SSD Model: MTFDDAK480TDT-1AW16ABDB

Understanding the product nomenclature provides immediate insight into its capabilities. "Micron MTFDDAK480TDT-1AW16ABDB" breaks down as follows: The brand (Micron), the series (5300), the capacity (480GB), the form factor (2.5-inch), and the interface (SATA 6Gb/s). The "TDT" suffix often indicates a drive with higher endurance specifications. The "MAX" designation within the 5300 series lineup signifies the highest endurance and performance tier, positioned above the PRO and ECO models. This 480GB drive is engineered to deliver consistent, low-latency performance where storage endurance and data integrity are non-negotiable.

Core Specifications

At its heart, the 5300 MAX combines Micron's high-quality 64-layer 3D TLC (Triple-Level Cell) NAND with a sophisticated, purpose-built controller and robust firmware. This synergy is engineered to maximize the potential of the SATA interface while providing enterprise-grade features that go far beyond speed metrics.

Performance Specifications: Sustained Speed Under Pressure

The "5300" in the name directly references its impressive sequential performance metrics. This drive is rated for up to 530MB/s sequential read and 500MB/s sequential write speeds, effectively saturating the SATA 6Gb/s interface. More importantly, its random performance—critical for server workloads—reaches up to 95,000 IOPS for random reads and 32,000 IOPS for random writes (4KB, QD32). These figures ensure responsive performance even under heavy, concurrent request loads.

Interface and Form Factor Compatibility

The drive utilizes the ubiquitous SATA 6Gb/s interface and comes in a standard 2.5-inch, 7mm z-height form factor. This makes it a drop-in replacement for legacy hard disk drives (HDDs) and older SSDs in vast arrays of existing servers, storage appliances, and rack systems. Its compatibility ensures seamless integration and upgrade paths without requiring costly infrastructure changes, protecting prior investments while delivering a transformative performance boost.

NAND Technology: 64-Layer 3D TLC

Micron's 64-layer 3D TLC NAND is a proven, mature technology that offers an excellent balance of cost, density, endurance, and performance. Unlike QLC (Quad-Level Cell), TLC provides higher write endurance and consistent performance, which is essential for mixed-use scenarios. The 3D stacking architecture allows for greater capacity in a smaller physical space while improving reliability and power efficiency compared to planar NAND.

Endurance and Reliability

Endurance is a defining characteristic of the MAX series. The 480GB model is rated for 1.3 Drive Writes Per Day (DWPD) over a 5-year warranty period. This means you can write and rewrite the entire 480GB capacity 1.3 times every single day for five years without exceeding its rated endurance. In more concrete terms, this translates to a Total Bytes Written (TBW) rating of 1,138 Terabytes.

NAND Flash and Controller Synergy

The heart of the drive is the integration of Micron's in-house developed controller with their own 96L 3D TLC NAND. This vertical integration allows for deep optimization of firmware, resulting in enhanced error correction, improved bad block management, and consistent Quality of Service (QoS). Features like end-to-end data path protection and power-loss protection are engineered at this level, safeguarding data integrity during unexpected power events—a non-negotiable requirement in data center operations.

Mean Time Between Failures (MTBF) and Uncorrectable Bit Error Rate (UBER)

The drive boasts an industry-leading 2.5 million hours MTBF, a statistical projection of its reliability. Further safeguarding data integrity is an Uncorrectable Bit Error Rate (UBER) of less than 1 sector per 10^17 bits read. These figures underscore the enterprise-centric design, offering peace of mind for critical data storage.

Advanced Enterprise Features for Data Integrity

Beyond raw specs, the Micron MTFDDAK480TDT-1AW16ABDB 5300 MAX is packed with technologies that ensure data remains safe, accessible, and manageable in a multi-drive deployment.

Power Loss Protection: The Sentinel of Data

One of the most critical features for enterprise storage is full Advanced Power Loss Protection (PLP). The drive integrates dedicated power-loss capacitors (also known as tantalum capacitors) that provide hold-up energy in the event of a sudden power failure. This allows the drive's controller and firmware to complete any pending writes in the volatile cache, commit the data safely to the non-volatile NAND, and maintain metadata integrity. This prevents data corruption and ensures the drive can come back online cleanly after power is restored, a non-negotiable requirement for business continuity.

Sustained Read and Write Performance

The drive delivers sequential read speeds up to 530 MB/s, effectively saturating the SATA 6Gb/s interface for large, contiguous data transfers. Sequential write speeds are similarly robust. More importantly, its random performance—a key metric for server applications dealing with numerous small files and database transactions—is finely tuned. High levels of random read and write IOPS (Input/Output Operations Per Second) ensure that applications remain responsive even under concurrent access from multiple users or virtual machines.

Enhanced Error Correction & Data Path Protection

The onboard controller utilizes a strong Low-Density Parity-Check (LDPC) error-correcting code (ECC) engine. This sophisticated ECC corrects a much wider range of bit errors that can occur as NAND cells age or are subjected to environmental factors, significantly extending the drive's usable life and data retention. Combined with end-to-end data path protection, which guards against silent data corruption as information moves between the host, DRAM, and NAND, the drive delivers exceptional data fidelity.

Target Applications & Workload Suitability

The "Mixed Use" designation is not marketing jargon; it is a precise classification of the drive's optimal workload profile. The Micron 5300 MAX 480GB is engineered for scenarios where the ratio of reads to writes is balanced and unpredictable.

Ideal Deployment Scenarios

This drive excels as a boot drive for servers and hypervisors, where the OS and application logs generate constant small writes alongside frequent reads. It is perfectly suited for medium-duty database workloads, handling both queries (reads) and transactions (writes). In virtualized environments, it can support a number of virtual machines whose aggregated I/O pattern becomes mixed-use. It also serves well in streaming media servers (for metadata and OS), collaboration applications, and enterprise edge computing nodes.

Comparison to Read-Intensive and Write-Intensive Drives

It is crucial to distinguish this mixed-use drive from its siblings. A read-intensive (RI) SSD, like the 5300 PRO, is optimized for workloads with over 90% reads (e.g., static web content, video on demand). A write-intensive (WI) SSD is built for extreme write environments like logging or write caching. The 5300 MAX sits in the middle, offering high endurance for write-heavy phases without the premium cost of a WI drive, making it the most versatile and commonly deployed tier for general-purpose server use.

Capacity Point Rationale: The 480GB Sweet Spot

The 480GB capacity is a strategic offering. It provides ample space for a server operating system (e.g., Windows Server, VMware ESXi, Linux), hypervisor, core applications, and logs. It avoids the over-provisioning cost of larger drives when storage is primarily handled by a separate array or higher-capacity SSDs. This makes it a cost-effective performance accelerator for boot and application drives, allowing IT managers to strategically tier their storage for optimal performance and budget allocation.

Compatibility

The Micron 5300 MAX is rigorously tested for compatibility with major server OEM platforms and operating systems. It is designed to work flawlessly in systems from Dell, HPE, Cisco, Lenovo, and others, as well as with all major enterprise operating systems and hypervisors. This broad compatibility ensures it can be deployed with confidence in heterogeneous data center environments.
