MTFDKCC1T9TGP-1BK1JABHA Micron 7500 Pro 1.92 TB PCI-E SSD

Understanding Enterprise NVMe Solid State Drives

Enterprise NVMe Solid State Drives represent the pinnacle of storage technology, designed specifically for data centers, high-performance computing, and business-critical applications. Unlike consumer-grade SSDs, enterprise drives like the Micron 7500 Pro series are engineered for relentless 24/7 operation with exceptional endurance, consistent performance, and advanced data protection features.

The Evolution of Data Center Storage

The transition from SATA and SAS interfaces to NVMe (Non-Volatile Memory Express) has revolutionized enterprise storage. NVMe leverages the PCI Express bus to deliver significantly higher IOPS (Input/Output Operations Per Second) and lower latency compared to previous storage protocols. This performance leap is crucial for modern applications including artificial intelligence, real-time analytics, and high-frequency transaction processing.

NVMe vs. Traditional Storage Protocols

Traditional SATA SSDs typically max out at approximately 600 MB/s with queue depths limited to 32 commands. In contrast, NVMe SSDs support up to 64,000 commands in parallel, enabling the Micron 7500 Pro to achieve sequential read speeds up to 7,000 MB/s – more than 11 times faster than SATA limitations.

Micron 7500 Pro Series Key Features

The Micron MTFDKCC1T9TGP-1BK1JABHA 7500 Pro 1.92TB represents a balanced configuration within the 7500 Pro lineup, offering optimal performance for mixed-use workloads with exceptional quality and reliability.

Performance Specifications

This 1.92TB model delivers industry-leading performance with sequential read speeds up to 7,000 MB/s and write speeds up to 6,400 MB/s. Random performance reaches up to 1,400,000 IOPS for read operations and 350,000 IOPS for write operations, ensuring responsive performance under demanding workloads.

Endurance and Reliability Metrics

With a rated endurance of 3.5 Drive Writes Per Day (DWPD) over its 5-year warranty period, the 1.92TB model can withstand approximately 12.25 petabytes written (PBW). This exceptional endurance rating makes it suitable for write-intensive applications without compromising drive longevity.

Power Loss Protection

The drive incorporates advanced power loss protection circuitry that ensures data in transit is safely written to NAND memory during unexpected power interruptions. This enterprise-critical feature prevents data corruption and maintains data integrity across all operating conditions.

Hardware Encryption and Security

Built-in 256-bit AES encryption protects data at rest, with TCG Enterprise and TCG Opal 2.01 compliance for comprehensive security management. These features ensure that sensitive enterprise data remains protected throughout the drive's lifecycle, including during decommissioning.

Technical Architecture and Components

The Micron 7500 Pro leverages cutting-edge technology to deliver its exceptional performance and reliability characteristics, featuring a sophisticated controller and NAND architecture optimized for enterprise environments.

NAND Flash Technology

Utilizing Micron's industry-leading 176-layer TLC (Triple-Level Cell) 3D NAND, this drive achieves an optimal balance of performance, endurance, and cost-effectiveness. The advanced 3D NAND structure provides higher density and better performance per watt compared to previous generations.

Controller Architecture

The proprietary Micron controller features multiple ARM cores and a sophisticated NAND management system that includes advanced error correction, wear leveling, and garbage collection algorithms. This intelligent controller ensures consistent performance even during sustained write operations.

DRAM Cache Implementation

With integrated DRAM cache, the drive maintains fast access to mapping tables and frequently accessed data. The 1.92TB model includes sufficient DRAM to optimize performance across various workload types, from read-intensive to mixed-use scenarios.

PCI Express 4.0 Interface

Leveraging the PCIe 4.0 interface with NVMe 1.4 protocol support, the drive delivers double the bandwidth of PCIe 3.0 solutions. This interface enables the full performance potential of the NAND and controller architecture without bottleneck limitations.

Thermal Management

Enterprise workloads can generate significant heat, and the 7500 Pro incorporates dynamic thermal monitoring and throttling mechanisms to maintain optimal operating temperatures. The drive includes temperature reporting and adjustable thermal management policies to prevent performance degradation due to overheating.

Enterprise Use Cases and Applications

The Micron 7500 Pro 1.92TB SSD is engineered to excel across a wide spectrum of enterprise applications, delivering consistent performance where it matters most for business operations.

Cloud and Hyperscale Infrastructure

In cloud environments, the drive provides the consistent low-latency performance required for multi-tenant applications and virtualized infrastructure. Its high endurance rating ensures reliable operation under the constant workload demands of hyperscale data centers.

Database Management Systems

For OLTP (Online Transaction Processing) and OLAP (Online Analytical Processing) databases, the drive's high random IOPS capability significantly reduces query times and improves transaction throughput. The power loss protection feature is particularly critical for database integrity.

Virtualization and VDI

In Virtual Desktop Infrastructure (VDI) deployments, the drive supports high user density with fast boot times and responsive application performance. Its consistent performance profile prevents the "boot storm" performance degradation common in shared storage environments.

Enterprise-Grade Management and Features

Beyond raw performance, the Micron 7500 Pro incorporates comprehensive management capabilities and reliability features essential for data center deployment and maintenance.

NVMe Management Interface

The drive supports the NVMe-MI (Management Interface) specification, enabling out-of-band management through the SMBus system interface. This allows administrators to monitor drive health, update firmware, and manage drive security without operating system dependencies.

Firmware Management

Micron provides regular firmware updates to address security vulnerabilities, improve performance, and enhance reliability. The drives support live firmware updates in many configurations, minimizing downtime during maintenance windows.

Quality of Service (QoS)

Consistent latency performance is maintained through advanced QoS features that prevent "noisy neighbor" scenarios in shared environments. The drive delivers predictable performance with tight latency distributions even under mixed workload conditions.

End-to-End Data Protection

Advanced error correction and data integrity features protect data throughout the entire data path from host interface to NAND media. This includes parity protection for metadata and user data, ensuring data integrity across the complete storage stack.

Form Factor and Compatibility

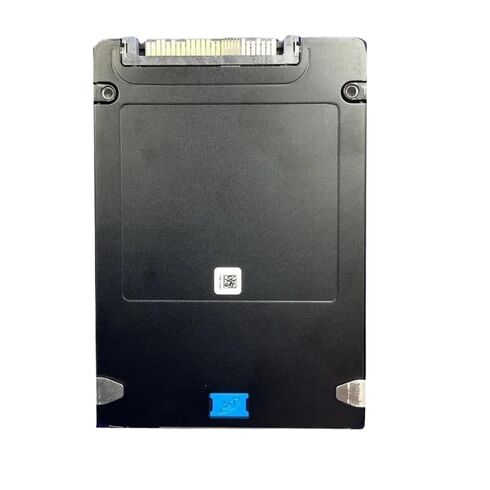

The Micron 7500 Pro 1.92TB utilizes the standard 2.5-inch U.3 form factor, providing broad compatibility with existing enterprise infrastructure while delivering next-generation performance.

U.3 Interface Advantages

The U.3 form factor represents an evolution in enterprise storage, combining backward compatibility with forward-looking capabilities. The single U.3 connector supports NVMe, SATA, and SAS protocols, providing deployment flexibility across different server generations.

Hot-Swap Capability

Designed for hot-swap replacement in compatible servers and storage systems, the drive enables maintenance and upgrades without system downtime. The standardized form factor ensures easy integration into existing server trays and storage enclosures.

Operating System

With broad industry compatibility, the drive supports all major operating systems including Windows Server, Linux distributions, VMware ESXi, and other hypervisor platforms. Standard NVMe drivers provide out-of-the-box functionality with optimized performance.

Data Center Deployment Considerations

The 1.92TB capacity point represents a sweet spot for many enterprise applications, balancing performance requirements with storage density. This capacity provides ample space for operating systems, applications, and working datasets while maintaining cost efficiency.

Detailed Performance Characteristics

The performance profile of the Micron 7500 Pro 1.92TB SSD is optimized for real-world enterprise workloads, with careful attention to both peak performance and sustained operation under load.

Random Workload Performance

Random performance metrics are crucial for database and virtualization workloads. The drive delivers up to 1,400,000 read IOPS and 350,000 write IOPS at low queue depths, ensuring responsive performance even during light load conditions.

Latency Consistency

Average read latency typically measures under 90 microseconds, while write latency remains below 15 microseconds under most conditions. These consistent low latency figures ensure predictable application performance without unexpected delays.

Mixed Workload Capability

In mixed read/write scenarios common to enterprise applications, the drive maintains balanced performance without significant degradation. The sophisticated controller architecture efficiently manages concurrent read and write operations while maintaining QoS targets.

Sustained Performance Analysis

Unlike consumer drives that may throttle significantly under sustained writes, the 7500 Pro maintains consistent performance through advanced thermal management and NAND management algorithms. This consistency is essential for production environments with continuous workload demands.

Reliability and Durability Specifications

Enterprise storage demands exceptional reliability, and the Micron 7500 Pro is engineered to meet the rigorous requirements of data center operations with comprehensive protection mechanisms and robust design.

Mean Time Between Failures (MTBF)

With a rated MTBF of 2.5 million hours, the drive demonstrates exceptional reliability for continuous operation. This rating reflects the quality of components and manufacturing processes employed throughout production.

Uncorrectable Bit Error Rate (UBER)

The drive achieves an uncorrectable bit error rate of 1 sector per 10^17 bits read, exceeding typical enterprise requirements. This exceptional error rate ensures data integrity even under demanding read-intensive workloads.

Environmental Specifications

Rated for continuous operation in data center environments with operating temperatures from 0°C to 70°C, the drive includes protection against non-operational shock and vibration. These specifications ensure reliable operation through shipping, installation, and daily use.

Data Retention

The drive maintains data integrity for up to 3 months at 40°C after removal from power, exceeding JEDEC standards for data retention. This characteristic is particularly important for archived data and disaster recovery scenarios.

Comparative Analysis and Positioning

Understanding where the Micron 7500 Pro 1.92TB stands relative to competing solutions and other models within Micron's portfolio helps inform purchasing decisions and deployment strategies.

Within Micron's Product Portfolio

The 7500 Pro series occupies the performance-optimized segment of Micron's enterprise SSD lineup, positioned above the 6500 ION series for value-oriented applications and below the extreme-performance 9500 series for the most demanding workloads.

Competitive Landscape

Compared to similar offerings from competitors, the Micron 7500 Pro distinguishes itself through its balanced performance profile, competitive endurance rating, and Micron's vertical integration advantage controlling both NAND production and controller design.
