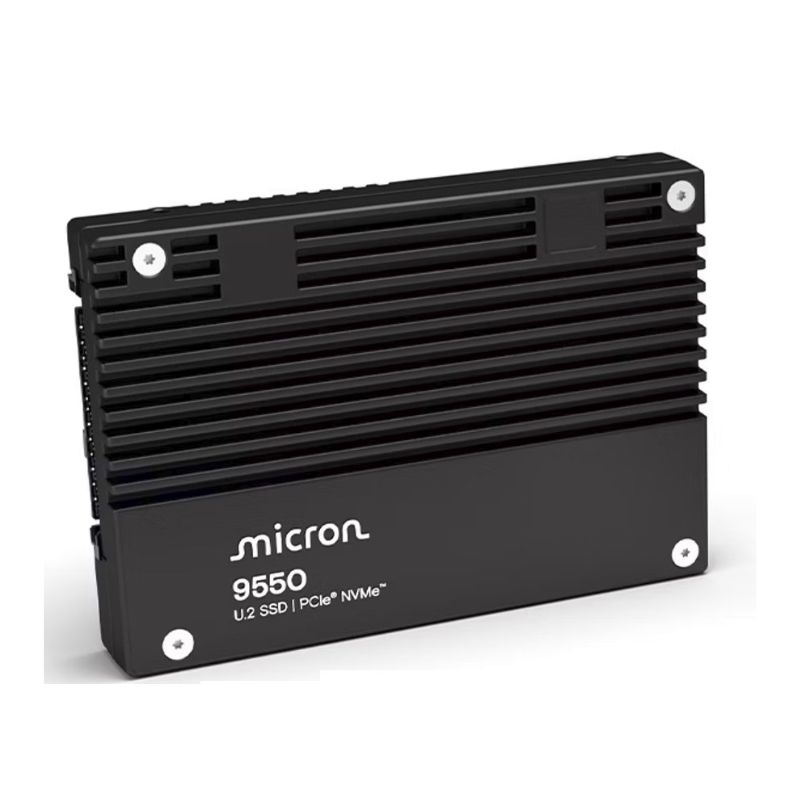

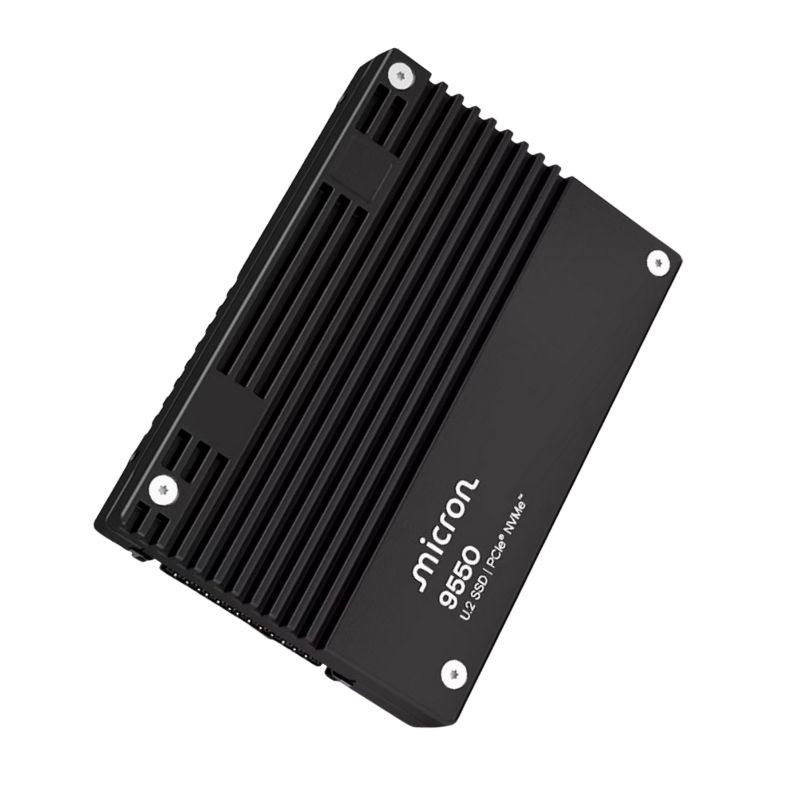

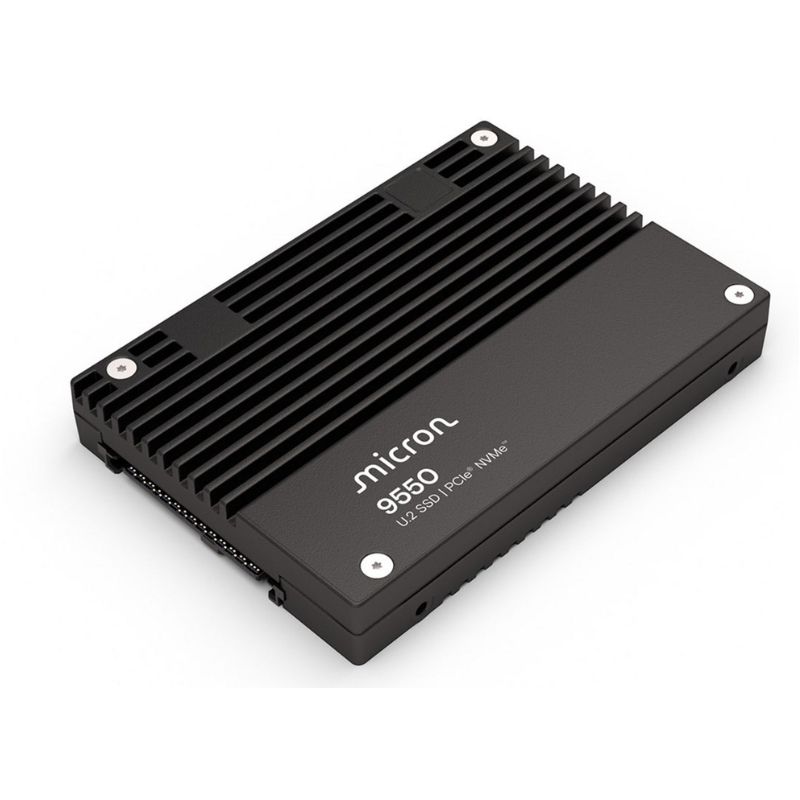

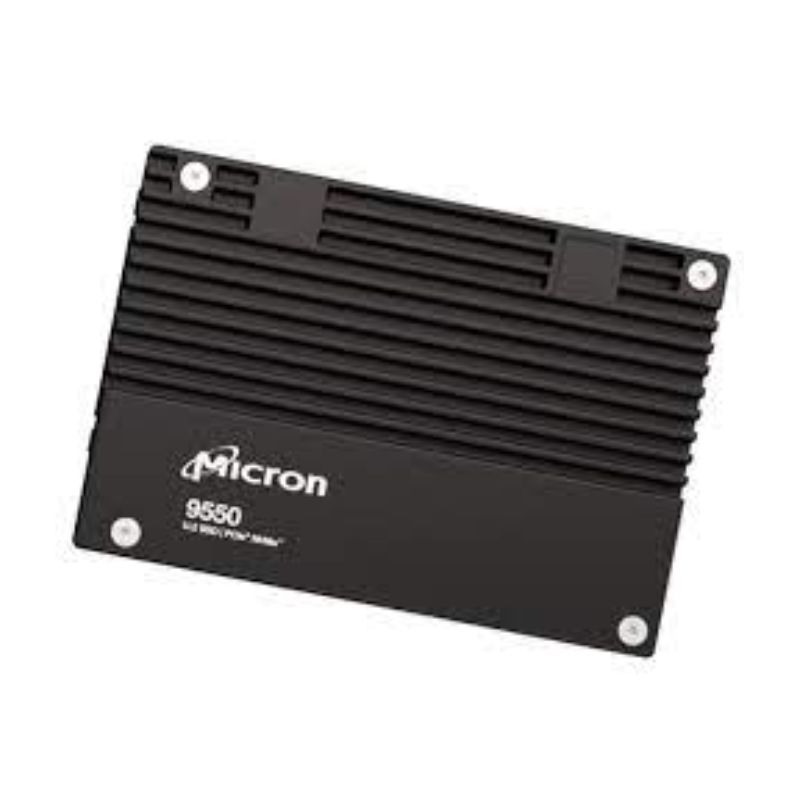

MTFDLAL25T6THB-1BK1DABYY Micron 9550 Max 25.6TB NVMe U.2 SSD.

Explore the MICRON 9550 Max 25.6TB NVMe U.2 Enterprise SSD

• Built for demanding enterprise workloads, the MICRON 9550 Max sets new benchmarks in performance and capacity. Designed with cutting-edge PCIe Gen5 NVMe interface and advanced 3D TLC NAND technology, this drive delivers consistent speed and endurance for data-intensive applications.

Manufacturer and Product Series Information

• Brand: MICRON
• Model Number: MTFDLAL25T6THB-1BK1DABYY
• Drive Type: Internal Solid State Drive.
• Product Series: 9550 Max Enterprise SSD Series.

Key Features and Specifications

• Storage Capacity: Massive 25.60TB for handling extensive enterprise data operations.
• Interface Type: PCIe Gen5 NVMe protocol for ultra-low latency and superior bandwidth.
• Form Factor: U.2 15mm — perfectly suited for enterprise rack-mounted storage arrays.
• NAND Flash: High-grade MICRON 3D TLC NAND ensuring reliability and endurance.
• MTTF: Rated at 2 million device hours for long-lasting performance.

Exceptional Performance Metrics

The MICRON 9550 Max is engineered to deliver blazing-fast read and write operations, ideal for mission-critical enterprise applications such as AI data pipelines, financial transaction processing, and cloud storage infrastructure.

• Sequential Read Speed: Up to 14,000 MB/s for rapid data access.
• Sequential Write Speed: Reaches 10,000 MB/s for high-volume data transfer tasks.
• Random Read: Delivers 2,800 KIOPS for performance-hungry environments.
• Random Write: Achieves 700 KIOPS ensuring smooth, consistent workload handling.
• 70/30 Mixed Read/Write IOPS: A balanced 1,300 IOPS optimized for enterprise usage patterns.
• Latency: Typical read latency of 60μs and write latency of 15μs for minimal delays.

Form Factor and Physical Build

The MICRON 9550 Max offers a compact and efficient design without compromising on capacity or performance.

• Dimensions: 69.85 mm (W) x 100.45 mm (D) x 15.00 mm (H).
• Form Factor: U.2 15mm — ideal for enterprise-grade servers and storage chassis.

Applications and Use Cases

Optimized for enterprise data centers, the 9550 Max series is perfect for:

• Database acceleration and high-speed transaction processing.
• AI/ML workloads and real-time analytics.
• Cloud infrastructure and virtualized environments.
• Streaming, media editing, and content delivery networks.

MICRON 9550 Max NVMe U.2 Enterprise SSD?

• Leverages the latest PCIe Gen5 interface for outstanding throughput.
• Massive 25.6TB capacity to accommodate large data repositories.
• Exceptional reliability with an impressive 2 million-hour MTTF rating.
• Delivers balanced read/write performance tailored for enterprise mixed-use cases.
• Ideal form factor for high-density server environments and storage systems.

Unleashing Enterprise Storage with Micron 9550 Max NVMe U.2 PCIe Gen5 SSDs

The evolution of enterprise data storage has reached new heights with the arrival of the Micron MTFDLAL25T6THB-1BK1DABYY 9550 Max 25.6TB NVMe U.2 15mm PCIe Gen5 NVMe SSD. Built to empower data centers and high-performance enterprise infrastructures, this cutting-edge SSD redefines storage with its remarkable capacity, exceptional reliability, and the groundbreaking speed of PCIe Gen5 NVMe technology. As modern business workloads demand unparalleled efficiency and scalability, NVMe U.2 SSDs like the Micron 9550 Max stand at the forefront, addressing intensive mixed-use applications with ease.

Key Features of the Micron MTFDLAL25T6THB-1BK1DABYY 9550 Max 25.6TB SSD

• Massive 25.6TB Storage Capacity for handling expansive enterprise datasets
• PCIe Gen5 x4 NVMe 2.0 interface delivering breakthrough data transfer rates
• U.2 15mm form factor ensuring easy integration into existing server and storage chassis
• Advanced Mixed-Use Endurance designed for high IOPS workloads and balanced read/write operations
• Enhanced data protection with Micron’s power-loss protection and end-to-end data path protection
• Full compatibility with modern enterprise and cloud data center architectures

Understanding NVMe U.2 PCIe Gen5 SSD Technology

The NVMe U.2 PCIe Gen5 SSD category represents the pinnacle of solid-state storage innovation. With PCI Express Gen5 doubling the data rates of its Gen4 predecessor, enterprise systems can achieve unprecedented performance metrics. The U.2 interface continues to be a preferred enterprise storage connector, providing hot-pluggability and compatibility with 2.5-inch drive bays in servers, storage arrays, and hyper-converged infrastructure appliances.

Advantages of PCIe Gen5 for Enterprise Storage

PCIe Gen5 introduces a host of performance benefits to enterprise environments, including:

• Increased throughput per lane: Up to 32 GT/s, enabling faster data exchanges and reduced bottlenecks
• Lower latency for mission-critical workloads and real-time analytics
• Future-proof scalability for rapidly expanding enterprise storage needs

The Significance of U.2 15mm Form Factor

The U.2 15mm form factor remains the industry standard for enterprise SSD deployments, ensuring easy hot-plugging, serviceability, and high-density storage configurations within rackmount servers and storage systems. The Micron MTFDLAL25T6THB-1BK1DABYY adheres to this form factor while offering an unprecedented 25.6TB capacity, making it a natural fit for applications requiring both performance and density.

Micron 9550 Max Series Overview

The Micron 9550 Max Series stands out as a high-capacity, high-performance enterprise SSD line tailored for mixed-use workloads. These drives are engineered for data centers supporting cloud infrastructure, AI analytics, online transaction processing (OLTP), and content delivery networks (CDN). By leveraging PCIe Gen5’s increased bandwidth, the 9550 Max Series improves overall system responsiveness while sustaining optimal data integrity and endurance levels.

Target Workloads for Micron 9550 Max SSDs

• Database management systems (Oracle, Microsoft SQL, MySQL, PostgreSQL)
• Cloud-native applications and virtualized server environments
• Artificial Intelligence (AI) and machine learning model training
• High-speed data analytics and business intelligence reporting
• Online transaction processing (OLTP) and e-commerce platforms
• Virtual Desktop Infrastructure (VDI) solutions

Performance Specifications of Micron MTFDLAL25T6THB-1BK1DABYY

The performance metrics of the Micron MTFDLAL25T6THB-1BK1DABYY position it as one of the most capable NVMe SSDs in its class:

• Sequential read speeds up to 14,000 MB/s
• Sequential write speeds reaching 9,000 MB/s
• Random 4K read IOPS up to 3,000,000
• Random 4K write IOPS up to 1,600,000
• Endurance rating of 3 DWPD (Drive Writes Per Day)
• MTTF (Mean Time To Failure) exceeding 2.5 million hours

Advanced Data Protection and Security Features

Enterprise environments require storage solutions that safeguard sensitive data, ensure continuous availability, and maintain operational efficiency. The Micron MTFDLAL25T6THB-1BK1DABYY 9550 Max incorporates several advanced data protection technologies:

End-to-End Data Path Protection

This feature ensures the integrity of data as it travels across the entire data path within the SSD, from host to NAND and back, reducing the risk of undetected data corruption in critical enterprise environments.

Power Loss Protection (PLP)

The integrated power loss protection safeguards in-flight data during sudden power interruptions by using capacitors that preserve volatile data until it can be safely written to NAND flash memory, minimizing data loss and downtime risks.

Advanced Encryption Support

With support for TCG Enterprise encryption standards, the Micron 9550 Max series protects sensitive enterprise data from unauthorized access, ensuring compliance with stringent security protocols across regulated industries like finance, healthcare, and government.

NVMe U.2 PCIe Gen5 SSDs in the Market

The enterprise storage market is witnessing rapid adoption of PCIe Gen5 NVMe U.2 SSDs as data volumes grow exponentially. Key competitors in this space include storage solutions from Intel, Samsung, Kioxia, and Solidigm. The Micron MTFDLAL25T6THB-1BK1DABYY 9550 Max stands out for its balanced combination of capacity, performance, endurance, and enterprise-grade reliability, making it a preferred option for mission-critical infrastructure.

Capacity Density in High-Performance Environments

At 25.6TB per drive, the Micron 9550 Max U.2 SSD provides unparalleled storage density in a compact 15mm form factor. This allows enterprises to achieve petabyte-scale storage configurations using fewer drives, lowering hardware acquisition costs, rack space, and power consumption while boosting operational efficiency.

PCIe Gen5 vs Gen4 Performance Scaling

The migration from PCIe Gen4 to Gen5 offers a substantial bandwidth upgrade, with Gen5 delivering up to 32 GT/s per lane compared to Gen4’s 16 GT/s. This translates into faster application response times, higher concurrent workload support, and improved performance scaling for cloud and AI workloads. The Micron MTFDLAL25T6THB-1BK1DABYY capitalizes on these improvements with performance metrics significantly ahead of comparable Gen4 models.

Integration and Compatibility in Modern Data Centers

Designed for seamless integration into enterprise infrastructure, the Micron 9550 Max 25.6TB U.2 SSD is compatible with a wide range of server platforms, storage arrays, and cloud hardware. Its adherence to the U.2 15mm form factor ensures plug-and-play installation within existing drive bays, facilitating non-disruptive upgrades from older SAS or NVMe Gen3/Gen4 SSDs.

Support for Virtualization and Multi-Tenant Applications

The drive’s high IOPS capabilities and low latency make it ideal for supporting virtualized environments and multi-tenant cloud applications where consistent performance across multiple workloads is critical. Its advanced queue management and NVMe 2.0 protocol support ensure optimal operation within hypervisor-managed environments like VMware vSphere, Microsoft Hyper-V, and Proxmox VE.

Compatibility with Leading Server OEMs

The Micron MTFDLAL25T6THB-1BK1DABYY is validated for use with server hardware from top-tier OEMs, including Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Cisco UCS platforms, ensuring hassle-free integration within mixed-vendor enterprise data centers.

Environmental Efficiency and Operational Resilience

Data centers increasingly prioritize energy efficiency and environmental sustainability. The Micron 9550 Max 25.6TB U.2 SSD achieves optimal performance-per-watt metrics while supporting data center ambient operating temperatures and stringent vibration and shock resistance standards. This enables continuous operation in high-density, mission-critical storage arrays without sacrificing reliability or performance.

Energy-Efficient PCIe Gen5 NVMe Design

Despite its groundbreaking performance, the drive maintains industry-leading power efficiency for a PCIe Gen5 NVMe SSD, reducing total cost of ownership (TCO) through lower cooling and power delivery requirements per terabyte of storage.

Enterprise-Grade Thermal Management

The Micron 9550 Max series integrates advanced thermal throttling and heat dissipation mechanisms to preserve operational stability under sustained workloads. This prevents performance degradation and extends the lifespan of the drive in continuous 24/7 operating conditions.
