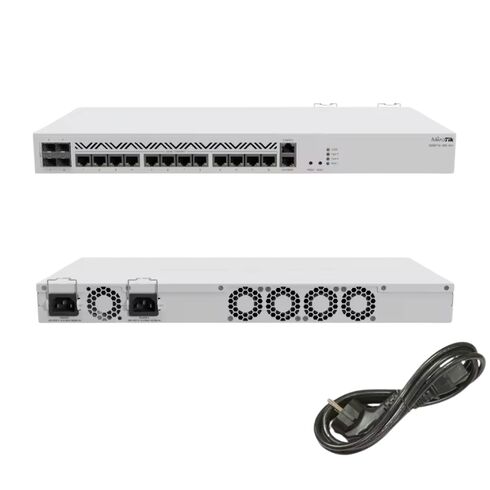

CCR2116-12G-4S+ Mikrotik 16GB Ethernet Ports Cloud Core Router

Mikrotik 16GB Ethernet Ports Router

The CCR2116-12G-4S+ Mikrotik Cloud Core Router is engineered for enterprise-grade networking, offering 16GB Ethernet ports, advanced processing power, and reliable connectivity for demanding infrastructures.

Manufacturer Details

• Brand: Mikrotik
• Model Number: CCR2116-12G-4S+
• Category: Cloud Core Router

Technical Specifications

Processor & Architecture

• Architecture: ARM 64-bit
• Processor: AL73400
• Core Count: 16
• Frequency: 2000 MHz

Switching & Operating System

• Switch Chip: 98DX3255
• RouterOS License: Level 6
• Operating System: RouterOS v7

Memory & Storage

RAM & Storage Capacity

• RAM Size: 16 GB
• Storage Capacity: 128 MB
• Storage Type: NAND

Reliability & Environment

• MTBF: ~200,000 hours at 25°C
• Tested Temperature Range: -20°C to 60°C
• IPSec Hardware Acceleration: Supported

Powering & Cooling

Power Supply Options

• AC Inputs: 2
• Input Range: 100–240V
• PSU Slots: 2
• Frequency: 47–63 Hz

Energy Consumption

• Maximum Power Usage: 83 W
• Without Attachments: 60 W

Cooling System

• Cooling Type: 4 Fans

Connectivity Options

Ethernet Ports

• 10/100/1000 Ethernet Ports: 13

Fiber Interfaces

• SFP+ Ports: 4

Peripheral Features

Additional Interfaces

• Serial Console Port: RJ45
• M.2 Slot: 1

MikroTik 16GB Ethernet Ports Cloud Core Router Overview

The MikroTik CCR2116-12G-4S+ is a next-generation cloud core router engineered to deliver enterprise-grade throughput, stability, and scalability for modern networking environments. Built on a powerful ARM 64-bit AL73400 CPU clocked at 2GHz, this routing platform is designed to handle intensive traffic loads, advanced routing protocols, and complex network infrastructures with ease. Featuring thirteen Gigabit Ethernet ports and four high-speed 10G SFP+ interfaces, the CCR2116 series addresses the growing demand for faster data transfer, reliable connectivity, and seamless network expansion.

This router category represents a leap forward in performance compared to previous MikroTik cloud core routers, offering enhanced processing power, improved energy efficiency, and superior hardware acceleration. Whether deployed in internet service provider networks, enterprise data centers, campus environments, or high-density server infrastructures, the CCR2116-12G-4S+ ensures consistent performance and minimal latency.

Advanced ARM 64-Bit Architecture

At the heart of the MikroTik CCR2116-12G-4S+ lies the AL73400 ARM 64-bit processor, delivering significantly higher throughput compared to traditional multi-core architectures found in older routing platforms. This modern CPU enables advanced packet processing, faster encryption, and improved handling of dynamic routing tables.

Optimized Multi-Core Performance

The multi-core design allows the router to process multiple data streams simultaneously, ensuring efficient load distribution across cores. This results in smoother network operations during peak traffic periods, making the router suitable for environments where large volumes of data are constantly transmitted.

Enhanced Routing Protocol Support

The powerful processor ensures seamless operation of protocols such as BGP, OSPF, MPLS, and VLAN configurations. Network administrators can implement complex routing policies without worrying about performance degradation.

Improved Encryption and Security Tasks

With hardware-accelerated cryptographic functions, the CCR2116 series enhances VPN throughput, secure tunneling, and firewall processing. This is especially beneficial for organizations requiring secure remote access and encrypted data transfers.

Comprehensive Connectivity with Ethernet and SFP+ Interfaces

The MikroTik CCR2116-12G-4S+ offers a robust port configuration designed to accommodate both traditional wired networks and high-speed fiber connections. With thirteen 10/100/1000 Ethernet ports and four 10G SFP+ slots, this router ensures flexible deployment across diverse network topologies.

Gigabit Ethernet for High-Density Networks

The multiple Gigabit Ethernet ports support high-speed wired connections for servers, switches, workstations, and access points. This enables seamless integration into existing infrastructures while maintaining reliable data flow.

10G SFP+ Ports for High-Speed Backbone Connectivity

The four SFP+ interfaces provide ultra-fast fiber connectivity, making the router ideal for backbone links, data center interconnections, and uplinks to core switches. These ports ensure minimal latency and maximum throughput for critical network segments.

Flexible Network Expansion

The combination of Ethernet and SFP+ ports allows organizations to scale their networks efficiently. As bandwidth demands grow, administrators can utilize fiber connections without replacing core routing equipment.

Enterprise-Grade Throughput and Traffic Management

Designed for demanding environments, the CCR2116-12G-4S+ delivers exceptional throughput that supports large-scale data transfers, heavy user loads, and high-performance applications. The router efficiently manages traffic flows, ensuring optimal performance even under extreme network conditions.

High Packet Processing Capacity

The router is capable of processing millions of packets per second, making it suitable for service providers and enterprises with high traffic volumes. This capability ensures consistent performance for real-time applications such as VoIP, video streaming, and cloud services.

Advanced Quality of Service Capabilities

QoS features enable precise control over bandwidth allocation, traffic prioritization, and congestion management. This ensures that critical applications receive the necessary resources for uninterrupted performance.

Load Balancing and Traffic Optimization

Integrated load balancing mechanisms distribute network traffic across multiple connections, improving reliability and maximizing available bandwidth.

RouterOS Flexibility and Advanced Network Control

The CCR2116-12G-4S+ runs MikroTik RouterOS, a feature-rich operating system that offers extensive control over network configurations. This platform provides tools for routing, firewall management, bandwidth shaping, monitoring, and automation.

Customizable Network Policies

RouterOS allows administrators to create detailed firewall rules, NAT configurations, and routing policies to meet specific network requirements.

Real-Time Monitoring and Analytics

Built-in monitoring tools provide insights into traffic patterns, resource utilization, and network health, enabling proactive management.

Automation and Scripting Support

The operating system supports scripting and automation, allowing repetitive tasks to be streamlined and network operations to be optimized.

Applications Across Diverse Network Environments

The CCR2116-12G-4S+ category is versatile and can be deployed in various scenarios, from enterprise networks to service provider infrastructures.

Internet Service Providers

ISPs benefit from high throughput, advanced routing capabilities, and scalable connectivity for managing large customer bases.

Enterprise Data Centers

In data centers, the router serves as a core or aggregation device, handling high-speed traffic between servers and storage systems.

Campus and Large Office Networks

Educational institutions and corporate campuses can leverage the router for centralized network management and high-speed inter-building connectivity.

Enhanced Security and Network Protection

Security is a crucial aspect of modern networking, and the MikroTik CCR2116 category includes comprehensive security features to protect against threats and unauthorized access.

Advanced Firewall Capabilities

RouterOS provides stateful firewall functionality, intrusion detection, and packet filtering to safeguard network resources.

Virtual Private Network Support

Support for multiple VPN protocols enables secure remote access and encrypted communications across distributed networks.

DDoS Mitigation Tools

Built-in protection mechanisms help detect and mitigate distributed denial-of-service attacks, ensuring network availability.

Optimized for Modern Network Workloads

With the increasing adoption of cloud services, virtualization, and high-bandwidth applications, the CCR2116-12G-4S+ is optimized to handle modern network workloads efficiently.

Support for Virtualized Environments

The router seamlessly integrates with virtualized servers and cloud infrastructures, providing reliable connectivity and performance.

High-Speed Data Transfers

The combination of Gigabit Ethernet and 10G fiber ports ensures rapid data movement across network segments.

Low Latency for Real-Time Applications

Optimized packet processing minimizes latency, benefiting applications such as video conferencing and online collaboration tools.
