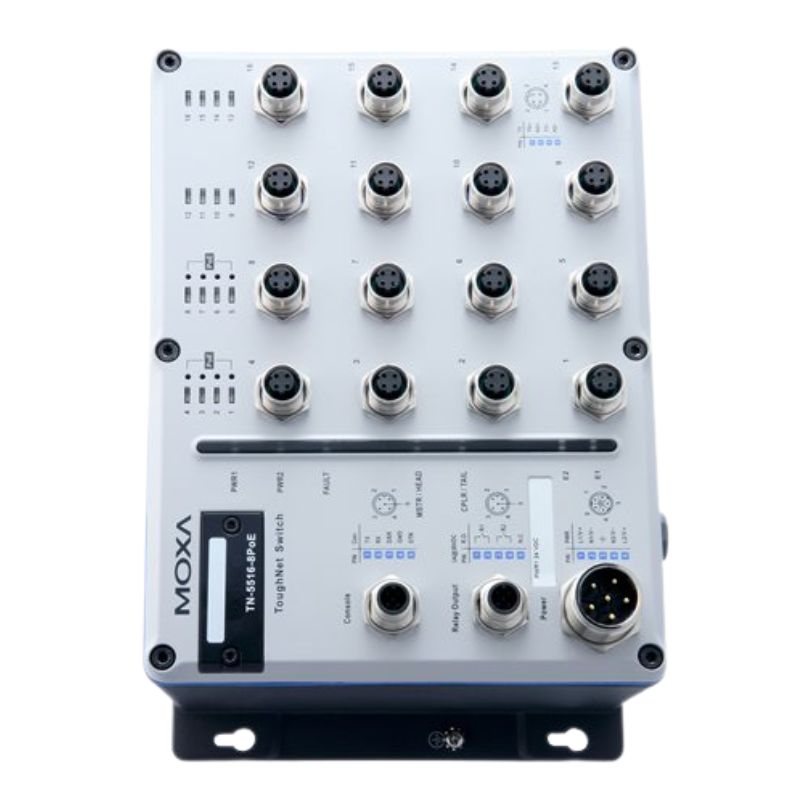

TN-5516-8POE Moxa 16 Ports En 50155 Managed Ethernet Switches.

Moxa TN-5516-8POE 16 Ports En 50155 Managed SwitchMoxa TN-5516-8POE is a high-performance managed Ethernet switch tailored for demanding industrial applications. Designed to comply with the EN 50155 standard, it ensures reliable network connectivity in rail and transport environments.

Key Specifications

• Manufacturer: Moxa
• Model Number: TN-5516-8POE
• Type: Ethernet Switch
• Port Configuration: 16 Ports
• PoE Support: 8 IEEE 802.3af PoE Ports

Network Performance & Reliability

The TN-5516-8POE provides exceptional network stability and redundancy, suitable for continuous operations in harsh environments.

Advanced Features

• EN 50155 compliance for rail applications
• Full Layer 2 managed switching
• Support for VLAN segmentation and QoS prioritization
• Redundant power input for uninterrupted operation
• High-speed data throughput for demanding industrial networks

Power over Ethernet (PoE) Capabilities

This switch delivers flexible PoE solutions, enabling connected devices such as IP cameras, wireless access points, and sensors to receive power directly through network cabling.

PoE Highlights

• 8 PoE ports compliant with IEEE 802.3af standard
• Automatic power allocation for connected devices
• Efficient energy management to reduce operational costs

Industrial-Grade Design

The TN-5516-8POE is engineered to withstand extreme conditions, making it ideal for transportation, energy, and outdoor industrial deployments.

Durability & Protection

• Wide temperature operation range: -40°C to 75°C
• Shock, vibration, and humidity resistance
• Rugged metal housing for long-term reliability

Advanced Management & Monitoring

Ensure efficient network administration with comprehensive management tools included with the TN-5516-8POE.

Management Features

• Web-based GUI for easy configuration
• SNMP and Telnet support for remote monitoring
• Real-time status monitoring and event logging
• Firmware upgrade and configuration backup options

Applications & Use Cases

Thanks to its robust construction and intelligent features, the TN-5516-8POE is suitable for multiple industrial scenarios:

Typical Deployments

• Railway signaling and onboard networks
• Industrial automation and factory networking
• Traffic monitoring systems
• Outdoor surveillance with IP cameras

Moxa TN-5516-8POE Managed Ethernet Switches Overview

The Moxa TN-5516-8POE series represents a robust solution in industrial networking, designed specifically for railway and mass transit applications in compliance with the EN 50155 standard. These managed Ethernet switches integrate 16 ports, with 8 ports supporting IEEE 802.3af Power over Ethernet (PoE), enabling seamless connectivity and power delivery to critical network devices such as IP cameras, access points, and wireless routers. By combining industrial-grade durability with intelligent network management, the TN-5516-8POE switches provide a reliable platform for transportation networks and other challenging industrial environments.

Industrial-Grade Design and EN 50155 Compliance

The TN-5516-8POE series is engineered to withstand harsh industrial conditions, including extreme temperatures, vibration, and electrical noise. Adhering to the EN 50155 standard ensures that these switches are suitable for railway rolling stock and other transportation applications where reliability and safety are critical. EN 50155 certification guarantees that the device operates within a wide temperature range, maintains power stability under transient voltage conditions, and resists mechanical shocks and vibration, making it ideal for deployment in trains, subways, and other high-demand transit systems.

Temperature Range and Environmental Tolerance

Designed for extreme industrial environments, the TN-5516-8POE switches can operate in a wide temperature range from -40°C to 75°C. This broad operating range ensures consistent network performance in both outdoor and indoor scenarios, whether in cold climates or high-temperature zones near mechanical or electrical equipment. The rugged housing, combined with conformal coating on internal PCBs, protects against dust, moisture, and corrosive elements, significantly extending the operational lifespan of the switch.

Port Configuration and IEEE 802.3af PoE Support

The TN-5516-8POE features 16 total Ethernet ports, of which 8 provide IEEE 802.3af Power over Ethernet. This capability eliminates the need for separate power cabling for connected devices, simplifying installation and reducing infrastructure costs. PoE support is critical in scenarios such as IP surveillance systems, Wi-Fi access point deployment, and intercom systems, where devices require both data connectivity and reliable power. Each PoE port intelligently negotiates power requirements to prevent overload and maximize energy efficiency across all connected devices.

Power Management and Load Distribution

The managed nature of the TN-5516-8POE allows precise power management and allocation. Network administrators can monitor and configure PoE settings for each port individually, optimizing energy usage and ensuring uninterrupted service for critical devices. Advanced PoE features include real-time power consumption monitoring, automatic port shutdown in case of overload, and prioritization of essential devices. This ensures that in high-demand scenarios, vital network endpoints continue to receive power without interruption.

Advanced Network Management Features

The TN-5516-8POE is a fully managed switch, providing extensive configuration and monitoring capabilities that are essential for industrial networks. Key management protocols include SNMPv1/v2c/v3, RMON, IEEE 802.1Q VLAN, IEEE 802.1p QoS, and IGMP snooping. These features allow network administrators to segment traffic, prioritize critical data streams, and reduce broadcast storms, enhancing overall network reliability and performance.

VLAN and Traffic Segmentation

Virtual LAN (VLAN) support on the TN-5516-8POE enables logical segmentation of the network, allowing operators to separate control, surveillance, and passenger Wi-Fi traffic. This segmentation reduces congestion and increases security by isolating sensitive operational data from general-purpose network traffic. VLAN configuration is fully manageable through the web interface or command-line interface (CLI), providing flexibility in complex deployments.

Quality of Service and Traffic Prioritization

With IEEE 802.1p-based Quality of Service (QoS), the TN-5516-8POE ensures that high-priority traffic, such as real-time video from IP cameras or voice over IP, is transmitted without delay. The switch can classify and prioritize packets based on port, VLAN, or traffic type, maintaining consistent performance for mission-critical applications in congested network environments. This is particularly important in railway and transportation systems where low-latency communication is crucial for operational safety.

Redundancy and Reliability in Industrial Networks

The TN-5516-8POE provides multiple redundancy protocols to ensure uninterrupted operation even in the event of network faults. It supports Rapid Spanning Tree Protocol (RSTP), MSTP, and Turbo Ring redundancy, allowing network designers to create resilient topologies with minimal downtime. Turbo Ring technology, specific to Moxa devices, enables sub-20ms recovery times in ring network configurations, ensuring continuous operation for critical transit systems where network failures can lead to significant service disruption.

Ring and Mesh Topologies

By leveraging ring and mesh network topologies, the TN-5516-8POE minimizes single points of failure. Ring topology allows automatic rerouting of traffic if a link fails, while mesh topology provides multiple paths for data to travel, further enhancing reliability. These redundancy mechanisms are essential for industrial applications, where downtime can lead to operational delays and safety risks. Network monitoring tools integrated with the switch allow administrators to detect and address faults in real time, maintaining seamless connectivity.

Security and Network Protection

In addition to robust network management, the TN-5516-8POE incorporates advanced security features. These include port security, MAC address filtering, 802.1X authentication, and access control lists (ACLs). By implementing strict security measures, the switch prevents unauthorized access, mitigates network attacks, and ensures that sensitive operational data remains protected. Industrial networks, especially in transportation and critical infrastructure, require these security features to maintain regulatory compliance and operational integrity.

Port Security and Access Control

Port security allows administrators to define which devices are permitted to connect to each port, preventing rogue devices from joining the network. MAC address filtering provides an additional layer of control by limiting connections based on recognized hardware addresses. Together with ACLs and 802.1X authentication, these features safeguard the network from unauthorized access while maintaining seamless communication for approved devices. This combination of physical and logical security measures ensures operational safety and continuity.

Ease of Deployment and Maintenance

The Moxa TN-5516-8POE is designed for ease of installation and maintenance in industrial environments. Its compact form factor fits standard DIN-rail mounting systems, while a wide input voltage range supports both DC and AC power supplies. Web-based management interfaces and CLI tools simplify configuration, firmware updates, and ongoing monitoring, allowing network engineers to maintain the network efficiently without requiring specialized tools. Additionally, LED indicators provide visual confirmation of port status, link activity, and PoE operation, enabling quick diagnostics in the field.

Integration with Existing Infrastructure

The TN-5516-8POE integrates seamlessly into existing industrial networks, supporting a wide range of Ethernet standards and backward compatibility with previous Moxa switch generations. Its compatibility with SNMP-based network monitoring tools allows integration with centralized management platforms, providing administrators with a unified view of the network. This reduces operational complexity and ensures smooth coordination with other network equipment, from routers and wireless access points to industrial controllers.

Applications in Transportation and Industrial Automation

These managed Ethernet switches are widely deployed in railway networks, mass transit systems, and industrial automation applications. Their PoE capabilities are especially useful for powering surveillance cameras along railway lines or inside train carriages, access points in stations, and signaling equipment requiring low-latency communication. Beyond transportation, the TN-5516-8POE is also suitable for factory automation, smart grid networks, and intelligent transportation systems, offering a reliable networking backbone for mission-critical applications.

Railway Communication Systems

In railway networks, continuous connectivity is essential for signaling, safety monitoring, and passenger communication. The TN-5516-8POE supports high-speed data transfer and resilient network architectures, ensuring uninterrupted communication between train cars, control centers, and station systems. Its EN 50155 compliance guarantees durability against vibration and temperature variations typical in railway environments.

Industrial IoT and Automation Networks

In industrial automation, PoE-enabled devices such as sensors, actuators, and cameras require reliable power and data connectivity. The TN-5516-8POE provides a stable and managed network environment, allowing for efficient monitoring and control of industrial processes. Advanced QoS and VLAN support facilitate the segregation of operational data, ensuring that critical automation signals are transmitted with minimal latency and maximum reliability.
