MS125-24-HW Cisco Meraki MS125 GbE Managed Switch 24-Port.
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Technical Specifications of the Cisco MS125-24-HW
Device Details
- Brand: Cisco
- Part Number: MS125-24-HW
- Device Type: Managed Switch with 24 Ports
- Enclosure Type: Wall-mountable or Desktop (1U)
- Subtype: 10 Gigabit Ethernet
Port Configuration
- 24 x 10/100/1000 Mbps RJ-45 Ethernet Ports
- 4 x 10 Gigabit SFP+ Ports
Performance and Capacity
Switching and Forwarding
- Switching Capacity: 128 Gbps
- Forwarding Rate: 95.23 Mpps
Advanced Features
- Supports up to 4094 VLANs
- MAC Address Entries Capacity: 16,000
- Jumbo Frame Support: Up to 9578 bytes
Management and Security
Remote Management Protocols
- SNMP
- DHCP Client
- Syslog Support
Authentication and Access Control
- RADIUS Authentication
- RBAC (Role-Based Access Control)
- SSO (Single Sign-On) Support
Additional Security Features
- STP BPDU Guard and Root Guard
- DHCP Snooping
- Access Control List (ACL) Support
Build and Connectivity
Physical and Electrical Details
- Power Device: Internal Power Supply
- Voltage Requirement: AC 120/230 V (47–63 Hz)
Connectivity Options
- 24 x 1000Base-T RJ-45 Ports
- 4 x 10Gbit LAN SFP+ Ports
Industry Standards and Compliance
Supported Protocols
- IEEE 802.1p (QoS)
- IEEE 802.1q (VLAN Tagging)
- IEEE 802.1w (Rapid Spanning Tree Protocol)
- IEEE 802.1x (Port-Based Network Access Control)
- IEEE 802.3ad (Link Aggregation)
Extra Functionalities
- Auto-negotiation and Crossover Detection
- Fanless Design with Security Lock Slot
- QoS (DSCP to CoS Mutation)

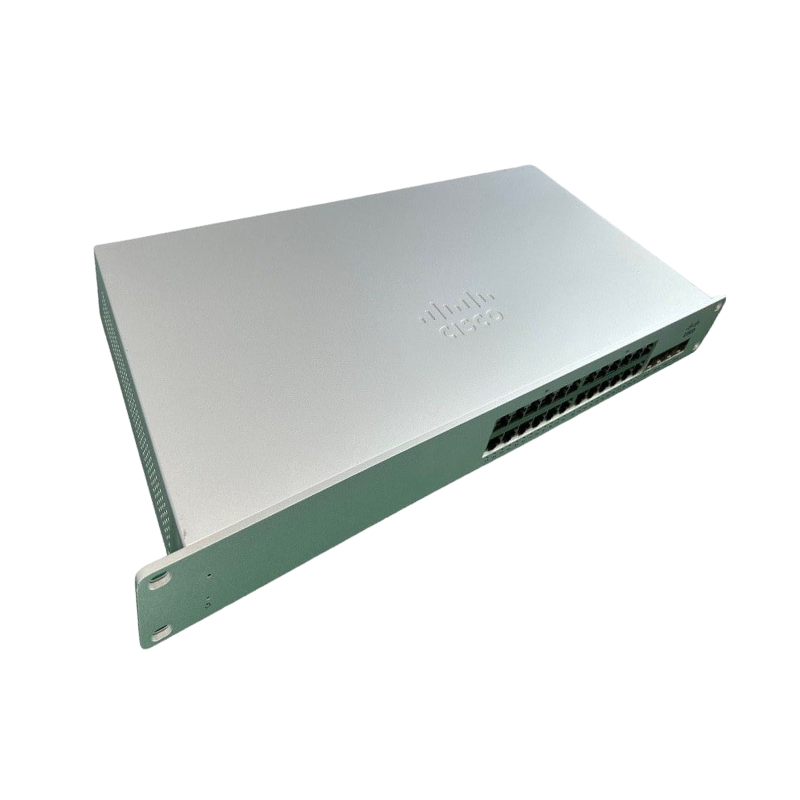

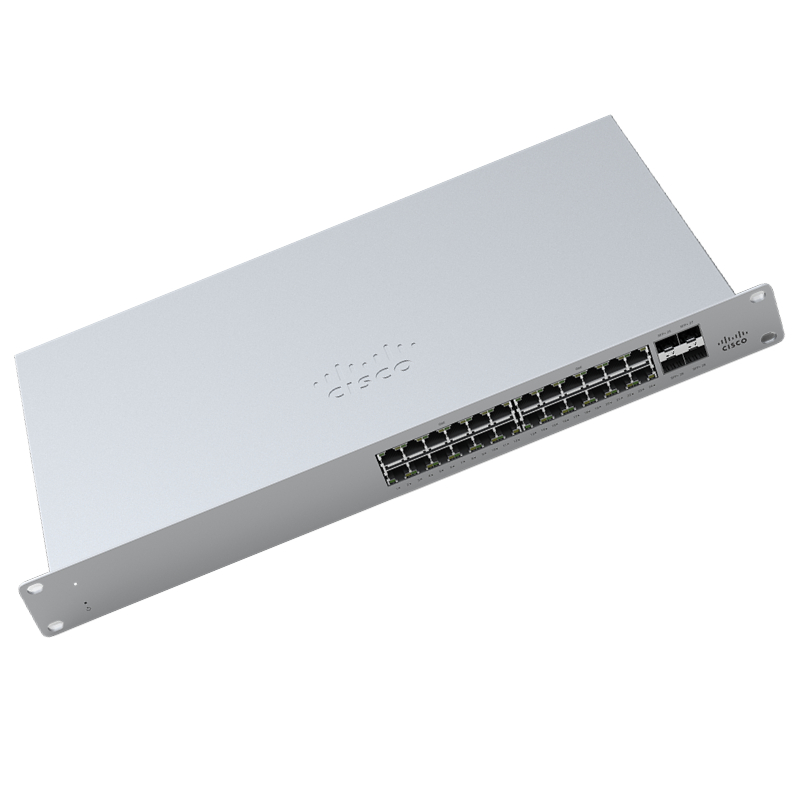

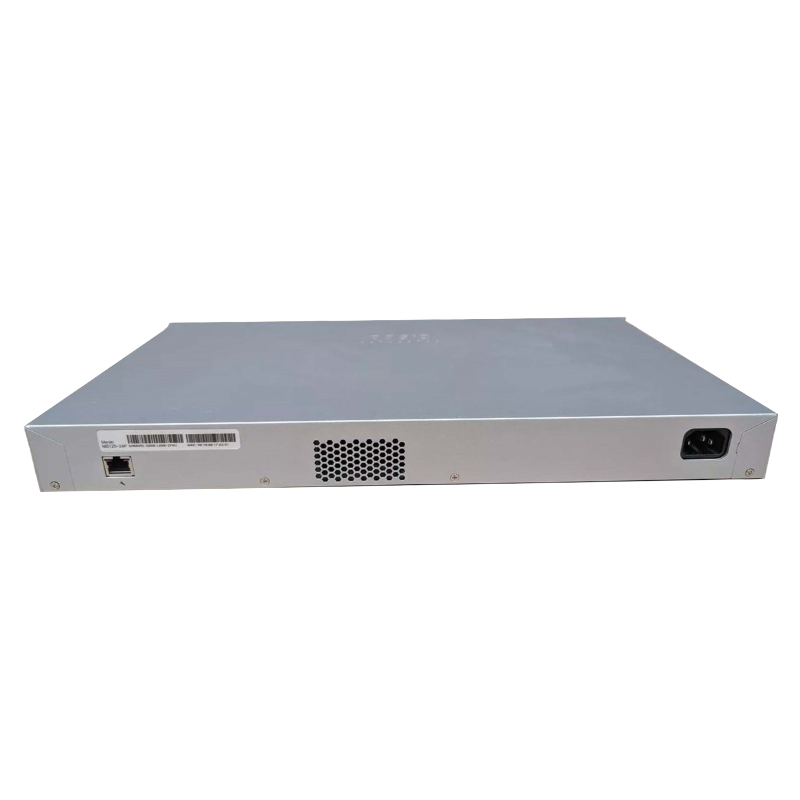

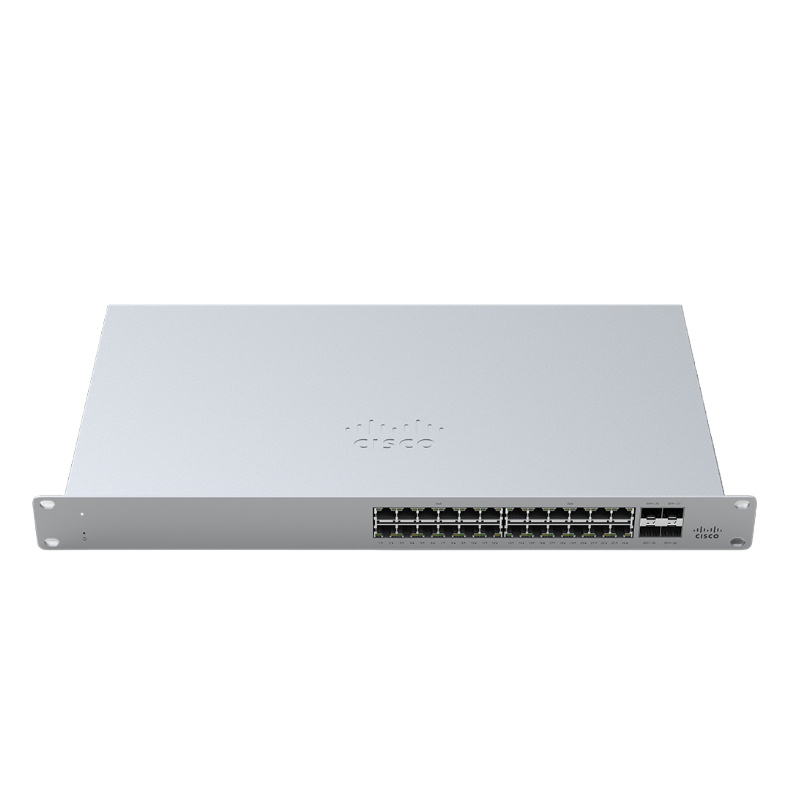

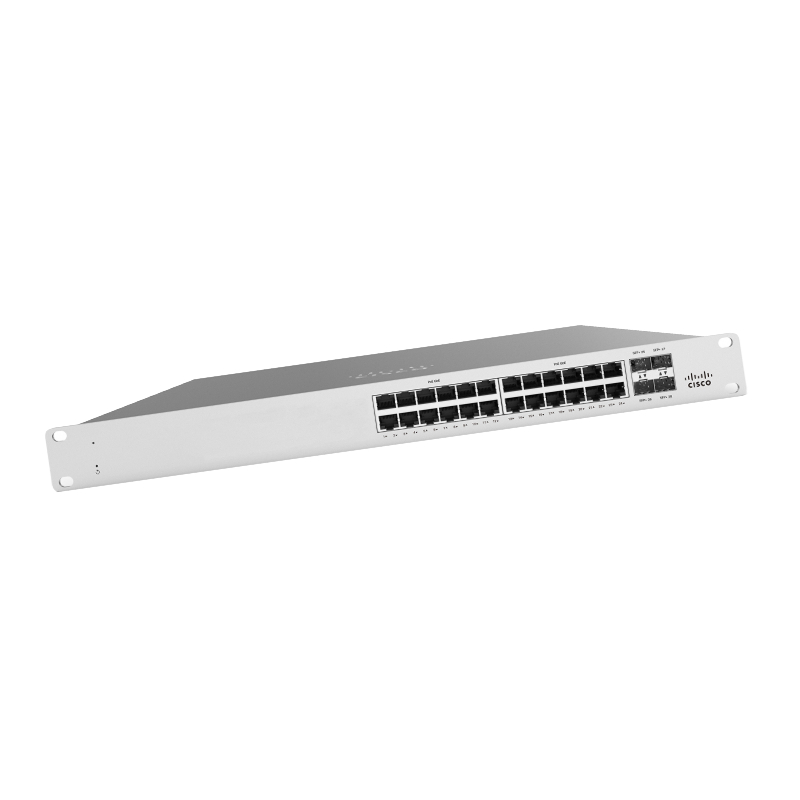

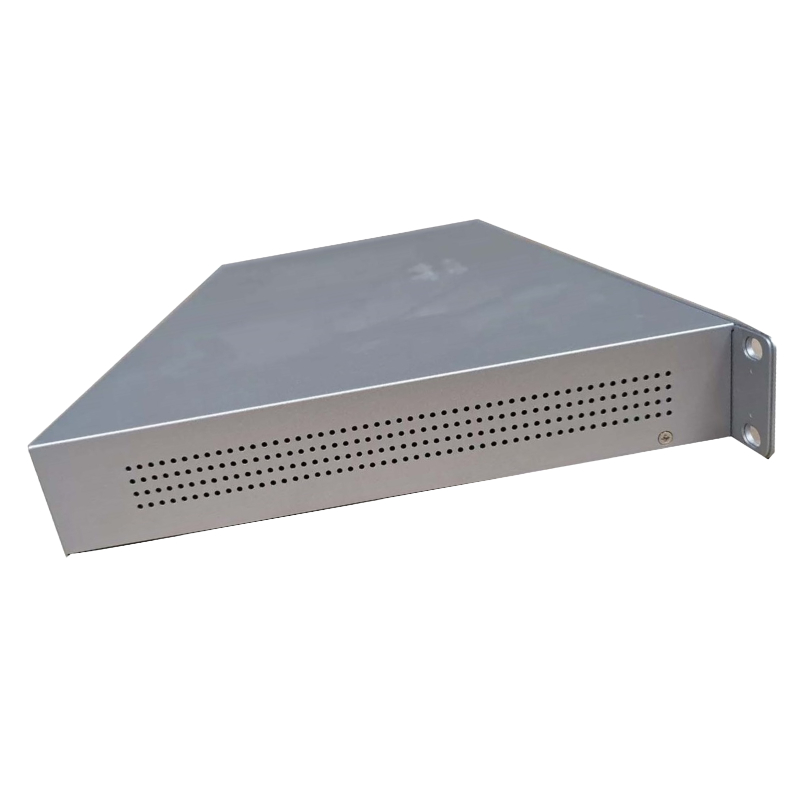

Cisco MS125-24-HW Meraki MS125 24-Port GbE Managed Switch
The Cisco MS125-24-HW Meraki MS125 24-Port GbE Managed Switch is a powerful, cost-effective solution for modern network environments. Designed to provide seamless connectivity and enhanced performance, this managed switch is ideal for businesses seeking reliability, scalability, and intuitive management features. It offers Layer 2 networking capabilities, ensuring efficient handling of local traffic with minimal latency and optimal security.
Key Features of the Cisco MS125-24-HW Meraki MS125
This 24-port Gigabit Ethernet (GbE) switch comes equipped with advanced features that support the evolving demands of enterprise and SMB networking. The Cisco MS125-24-HW integrates seamlessly into existing network architectures, providing robust tools for monitoring and management.
Cloud-Managed Networking
The MS125 is fully integrated with the Meraki dashboard, allowing administrators to manage, configure, and troubleshoot their networks from a centralized interface. The intuitive cloud-based system supports real-time updates, ensuring your network remains secure and functional.
Energy Efficiency
The Cisco MS125-24-HW is designed with energy-saving technologies to reduce operational costs. It complies with Energy Efficient Ethernet (EEE) standards, dynamically adjusting power usage based on activity levels.
Applications and Use Cases
The Cisco MS125-24-HW switch is versatile and suitable for a range of applications, making it a valuable addition to various network setups.
Enterprise Deployments
Large organizations can leverage the MS125's advanced features for improved network efficiency. Its robust management tools allow IT teams to oversee extensive setups with ease, while its scalability ensures smooth integration into growing networks.
Small and Medium Businesses (SMBs)
SMBs can benefit from the affordability and simplicity of the MS125-24-HW. Its plug-and-play capabilities and user-friendly dashboard make it ideal for businesses with limited IT resources.
Educational Institutions
Schools and universities require dependable networks to support student learning, faculty collaboration, and administrative tasks. The MS125-24-HW offers the performance and scalability needed to meet these demands.
- Supports high-density environments with multiple connected devices.
- Provides reliable connectivity for online learning and resource access.
- Easy management for IT administrators overseeing campus-wide networks.
Advanced Security Features
The Cisco MS125-24-HW ensures secure network operations with built-in features that protect against threats and unauthorized access.
Access Control
- 802.1X port security to authenticate devices before granting access.
- MAC address filtering to allow or block specific devices.
Data Protection
The switch includes advanced encryption protocols to safeguard sensitive data during transmission.
- SSL/TLS encryption for secure communication between devices.
- Segmentation through VLANs to isolate critical network segments.
Threat Detection
With its real-time monitoring capabilities, the MS125-24-HW can identify and respond to potential security breaches quickly.
- Alerts for unauthorized access attempts.
- Integration with network monitoring tools for enhanced visibility.
Scalability and Expandability
The Cisco MS125-24-HW is designed to grow with your business. Its modular architecture and compatibility with other Meraki devices make it a flexible choice for evolving networks.
Stacking Options
The switch supports stacking with other Meraki devices, allowing businesses to expand their networks without significant downtime.
- Seamless integration into larger network environments.
- Supports thousands of devices without compromising performance.
Future-Proofing
With regular firmware updates delivered via the Meraki cloud, the MS125-24-HW remains equipped to handle new technologies and standards.
- Automatic updates to address emerging security threats.
- Compatibility with future networking innovations.
