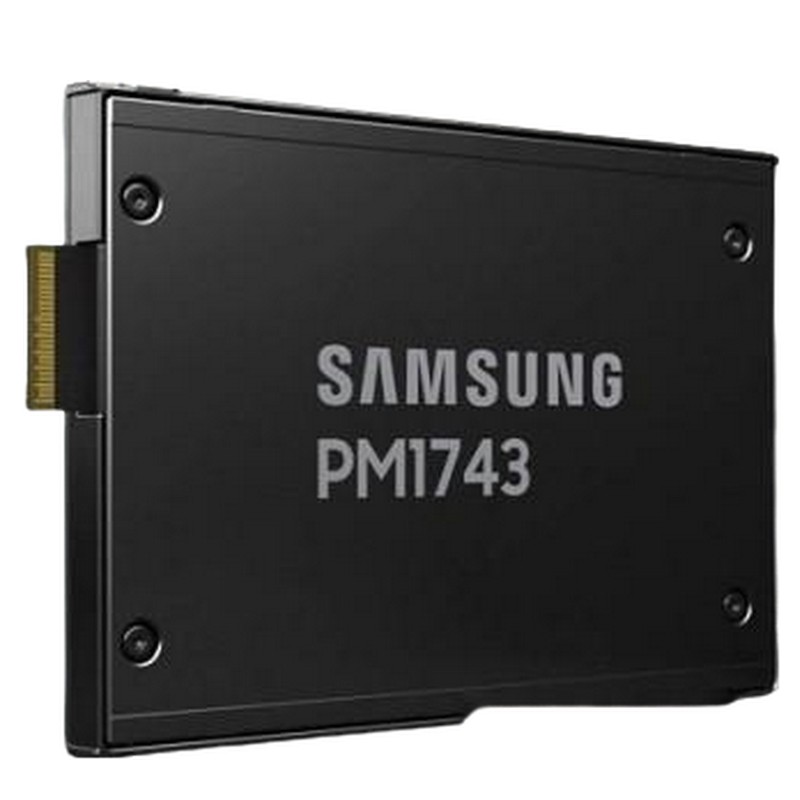

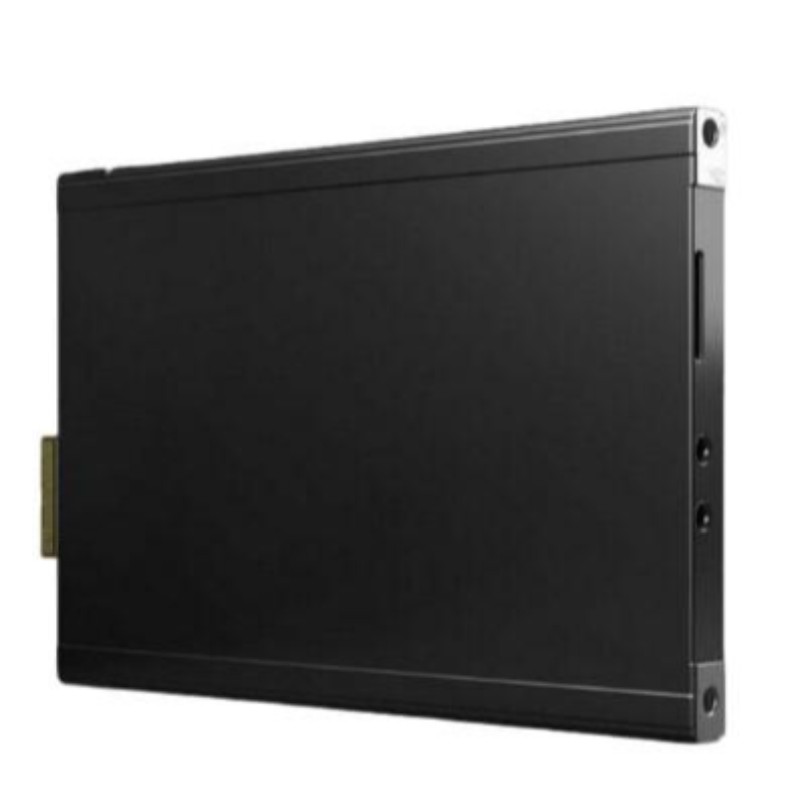

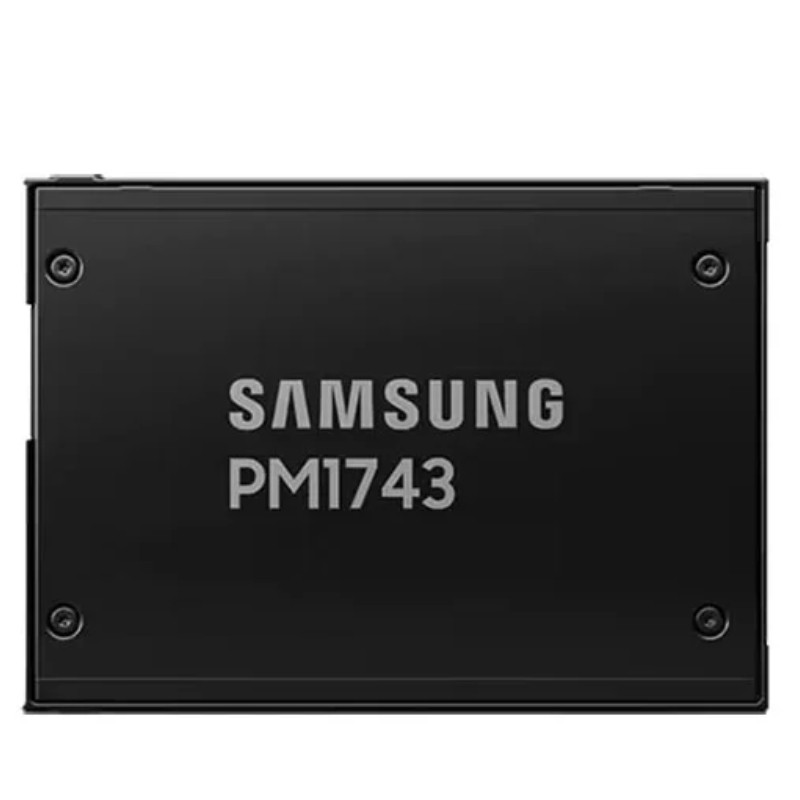

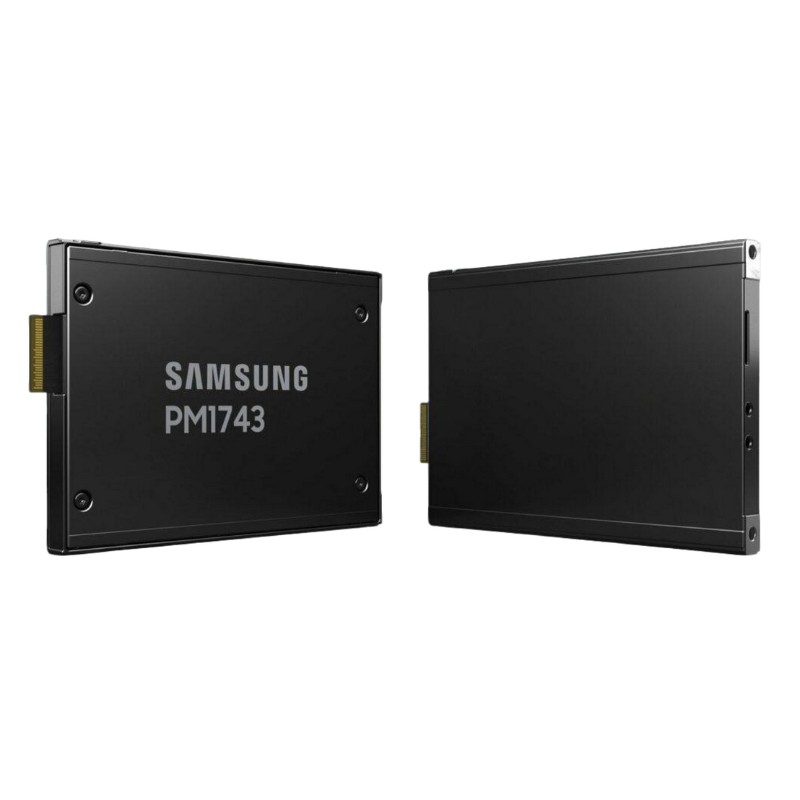

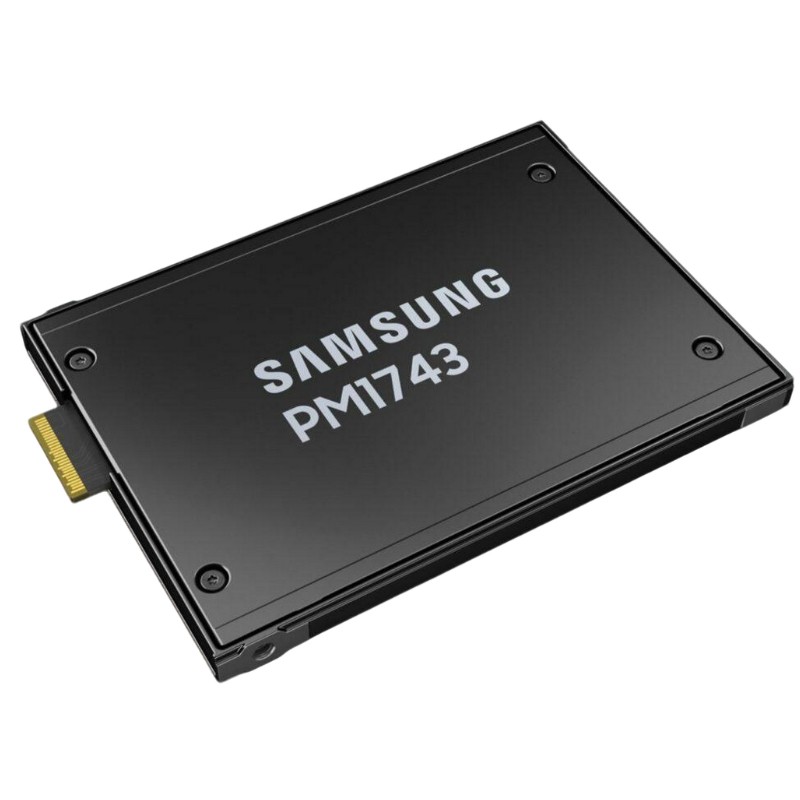

MZ3LO3T8HCJR-00AK0 Samsung PM1743 3.84TB PCIe 5.0 X4 NVMe SSD.

Advanced Enterprise Storage with PCIe Gen 5.0 NVMe

Unlock exceptional speed and reliability with the Samsung PM1743 3.84TB E3.S NVMe SSD, designed to meet the rigorous demands of data-intensive environments and next-gen enterprise systems.

Essential Attributes of the Samsung PM1743 SSD

• Brand: Samsung
• Model Number: MZ3LO3T8HCJR-00AK0
• Drive Category: Internal Solid State Drive
• Product Line: PM1743 Series

Cutting-Edge Interface and Design

• Interface Protocol: PCIe 5.0 x4 with NVMe support
• Drive Format: E3.S form factor for modern server bays
• Flash Architecture: Multi-Level Cell (MLC) NAND
• Integrated Encryption: Hardware-based data security

Performance Metrics Redefined

• Sequential Read Speed: Up to 14,000 MB/s
• Sequential Write Speed: Up to 6,000 MB/s
• Random Read IOPS (4KB): 2,500,000
• Random Write IOPS (4KB): 280,000
• Endurance Level: 7,008 Terabytes Written (TBW)

Enterprise-Grade Reliability Features

• Mean Time Between Failures (MTBF): 2.5 million hours
• Drive Writes Per Day: 1 full drive write cycle per day

Compact and Lightweight Construction

• Depth: 4.4 inches
• Height: 0.3 inches
• Weight: 4.13 ounces

Samsung PM1743 NVMe SSD

• Built on PCIe Gen5 architecture for ultra-fast bandwidth.
• Ideal for hyperscale data centers, AI workloads, and edge computing.
• Impressive endurance for write-intensive applications.
• Supports encryption to meet compliance and security standards.
• Optimized for reduced latency and increased throughput.

Designed for Future-Ready Infrastructure

• Whether you're upgrading a server or deploying a new cloud environment, the PM1743 SSD offers unmatched efficiency and robustness. With its E3.S form factor and PCIe 5.0 support, it enables unparalleled data access speeds and power efficiency.

Samsung PM1743 3.84TB PCIe 5.0 x4 NVMe SSD Overview

The Samsung PM1743 3.84TB PCIe 5.0 x4 NVMe Solid State Drive is a cutting-edge storage solution built for high-performance enterprise environments. Leveraging the power of the latest PCIe 5.0 interface, this drive delivers ultra-fast data transfer speeds, exceptional reliability, and robust endurance, making it ideal for data centers, high-performance computing (HPC), and mission-critical applications. The model MZ3LO3T8HCJR-00AK0 is specifically designed to meet the demanding needs of modern server architectures while ensuring optimized efficiency and security.

Advanced PCIe 5.0 Interface

One of the standout features of the Samsung PM1743 is its adoption of the PCIe 5.0 interface, which offers a bandwidth of up to 32 GT/s per lane—double that of PCIe 4.0. With four lanes (x4 configuration), users benefit from significantly enhanced data throughput, reducing latency and maximizing IOPS (input/output operations per second). This advanced interface supports next-generation workloads and is fully backward compatible with earlier PCIe standards.

Benefits of PCIe 5.0 for Enterprise Applications

• Faster response times for data-intensive tasks
• Improved scalability for server and storage configurations
• Enhanced virtualization support with rapid storage provisioning
• Energy-efficient performance per watt

Capacity and Form Factor

With a substantial 3.84TB storage capacity, the Samsung PM1743 model MZ3LO3T8HCJR-00AK0 is capable of handling extensive data workloads. This capacity ensures prolonged usage without frequent data migration or the need for additional drives. The drive is available in the 2.5-inch U.2 form factor, which makes it compatible with a wide array of server chassis and enterprise-grade storage enclosures.

Enterprise Storage Capacity Advantages

Storage capacity is a critical factor for IT infrastructures. The 3.84TB capacity allows organizations to:

• Host large databases and applications without performance degradation
• Reduce physical space requirements by consolidating storage resources
• Minimize downtime by avoiding frequent storage replacements or upgrades

Superior NVMe Performance

Utilizing the NVMe 2.0 protocol, the Samsung PM1743 delivers ultra-low latency and exceptional throughput. NVMe enables direct communication between the CPU and the SSD, bypassing legacy interfaces like SATA, thus removing bottlenecks in data processing. This design is particularly beneficial for performance-critical enterprise tasks.

Sequential and Random Read/Write Performance

With read speeds up to 13,000 MB/s and write speeds reaching 6,600 MB/s, the PM1743 redefines performance in the SSD space. Random IOPS are equally impressive, with read IOPS up to 2,500,000 and write IOPS around 250,000, supporting complex multitasking environments with ease.

Reliability and Endurance

Designed for 24/7 operation, the Samsung PM1743 boasts exceptional endurance metrics. With a Mean Time Between Failures (MTBF) of over 2 million hours and a high Drive Writes Per Day (DWPD) rating, users can rely on long-term performance even under constant use.

Power Loss Protection and Error Correction

This SSD includes Power Loss Protection (PLP) to safeguard data during unexpected shutdowns. Advanced ECC (Error Correcting Code) and end-to-end data protection mechanisms ensure data integrity across all levels of storage operations.

Security Features

Security is paramount in enterprise environments. The Samsung PM1743 includes Hardware-based AES 256-bit encryption and is compliant with TCG Opal 2.0 and IEEE 1667 standards. These security protocols enable secure boot, firmware authentication, and comprehensive data protection at rest.

Self-Encrypting Drive (SED) Capabilities

Self-encrypting drive capabilities ensure that data is automatically encrypted without impacting performance. This feature significantly simplifies regulatory compliance for industries like healthcare, finance, and government.

Compatibility and Integration

The Samsung PM1743 is designed to integrate seamlessly with major enterprise platforms. It supports popular server vendors and operating systems, ensuring a smooth deployment experience. Firmware updates are also supported via out-of-band management for maximum convenience.

U.2 Form Factor

U.2 SSDs provide hot-swappability and higher performance thresholds compared to traditional SATA drives. Enterprises can take advantage of better airflow and cable management within server racks using this form factor.

Applications and Use Cases

The Samsung PM1743 is suitable for a wide range of use cases, including:

• Cloud service providers (CSPs) requiring fast, scalable storage
• Database and transactional systems with high read/write demands
• Real-time analytics and big data platforms
• Virtual Desktop Infrastructure (VDI) deployments
• AI and ML workloads that demand high bandwidth and low latency

Thermal Management and Power Efficiency

Despite its powerful capabilities, the PM1743 remains efficient. Advanced thermal throttling mechanisms ensure optimal operation within safe temperature limits. Its low power consumption contributes to overall reduced Total Cost of Ownership (TCO) in large-scale environments.

Active and Idle Power Consumption

The drive consumes approximately 9.5W in active mode and drops to less than 4.0W in idle mode, helping reduce server power draw and cooling requirements.

Firmware and Software Tools

Samsung provides a suite of tools for managing and optimizing SSD performance. The Samsung SSD MZ3LO3T8HCJR-00AK0 Toolkit offers firmware management, drive diagnostics, and health monitoring. It also supports secure erase and performance tuning options for enterprise administrators.

SMART and Telemetry

The PM1743 supports Self-Monitoring, Analysis, and Reporting Technology (SMART), along with telemetry data reporting. These features assist IT staff in proactive maintenance and failure prediction, ensuring uninterrupted operations.

Environmental and Compliance Standards

The drive meets rigorous compliance and sustainability standards. It is RoHS compliant and conforms to energy-efficient requirements of modern data centers. Certifications include CE, FCC, and VCCI, ensuring reliability across global markets.

Low Environmental Footprint

Samsung’s production process emphasizes environmental responsibility. The PM1743 uses low-halogen components and packaging made from recycled materials, aligning with green IT initiatives.

Comparative Advantages Over SATA and SAS SSDs

Compared to SATA or SAS-based SSDs, the PCIe 5.0 NVMe PM1743 provides superior speed, latency, and efficiency. SATA’s 600 MB/s and SAS’s 12 Gbps limitations pale in comparison to the PM1743’s throughput, giving enterprises a clear performance advantage.

Transitioning from Legacy Interfaces

Enterprises looking to upgrade infrastructure can benefit from migrating to NVMe drives like the PM1743. The transition offers faster boot times, quicker data access, and better system responsiveness without overhauling the entire server architecture.

Future-Proof Storage Investment

The PM1743 is a future-proof solution tailored for evolving IT infrastructures. With emerging technologies such as PCIe 6.0 and CXL (Compute Express Link) on the horizon, investing in a PCIe 5.0 SSD ensures that organizations stay ahead of the curve in data performance and efficiency.
