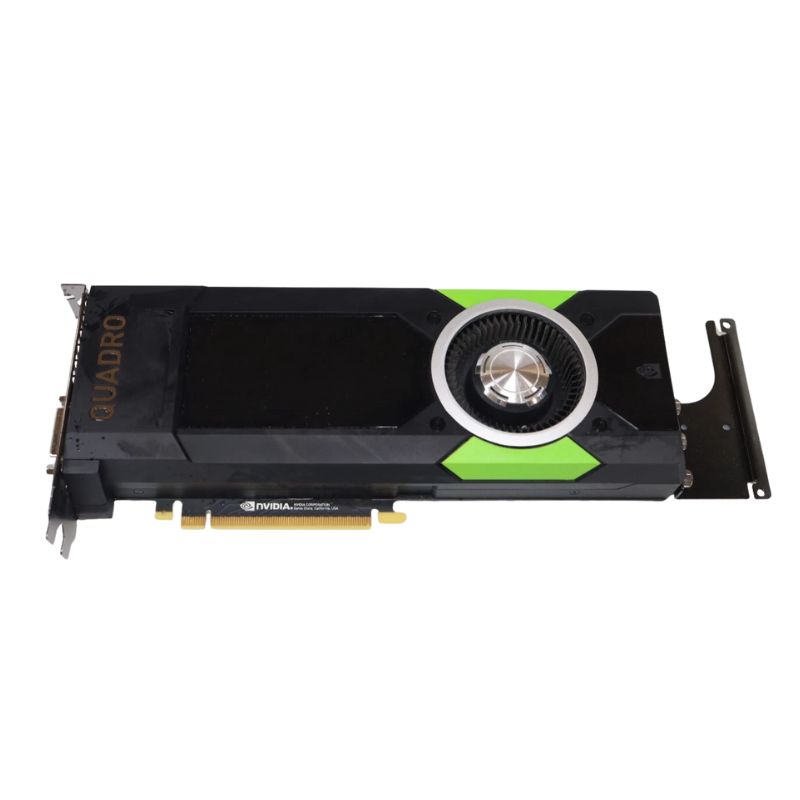

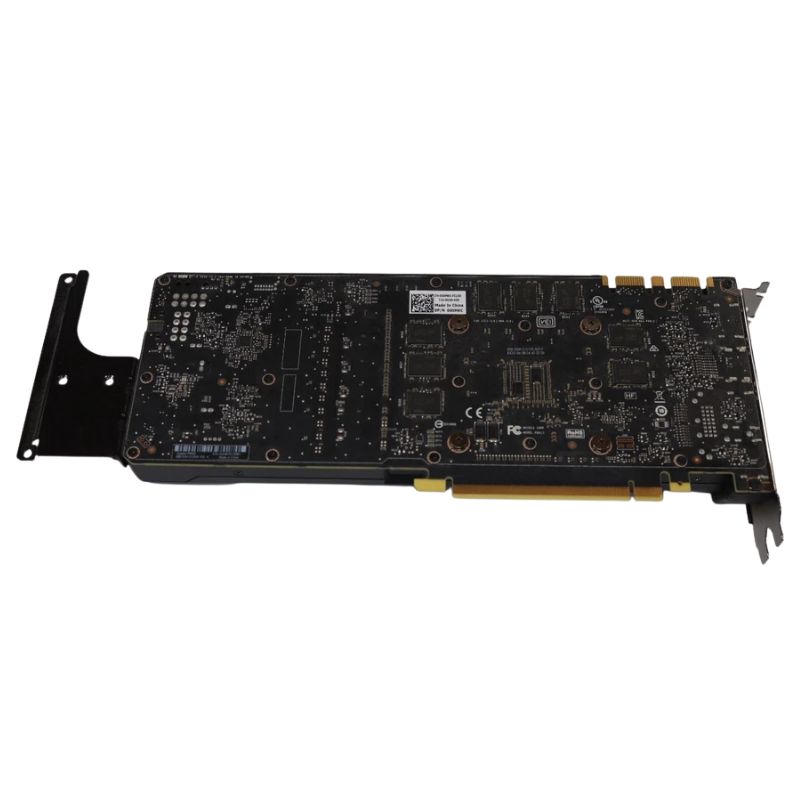

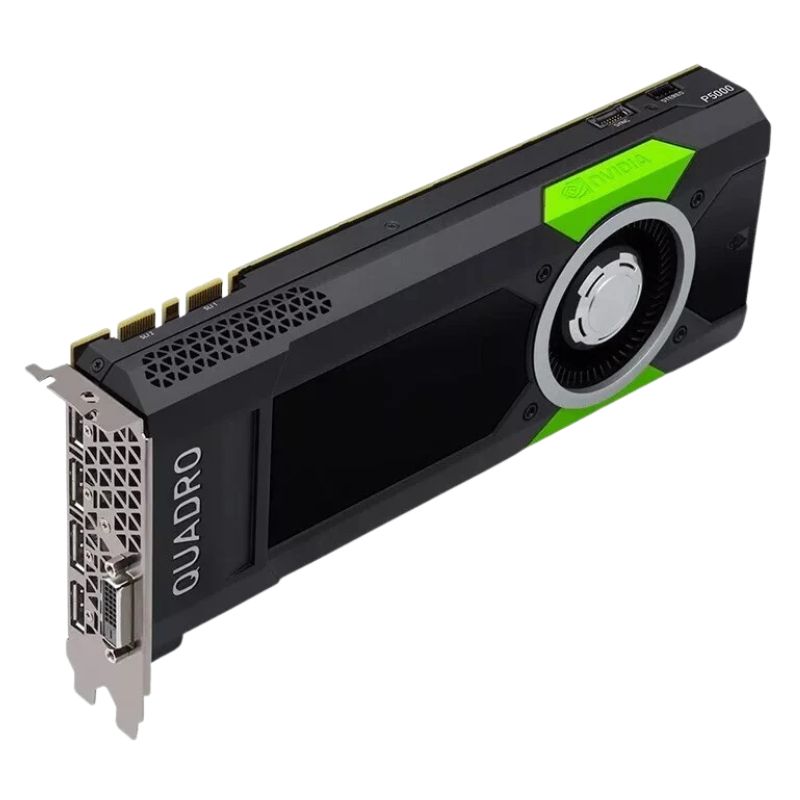

900-5G413-0100-000 Nvidia Quadro P5000 4x DisplayPort 16GB GDDR5 1x DVI PCI-e Card

Product Overview of NVIDIA 900-5G413-0100-000 Quadro P5000 Graphics Card

The NVIDIA 900-5G413-0100-000 Quadro P5000 video card is engineered for professionals who demand cutting-edge visual computing power. With 16GB of ultra-fast GDDR5X memory, 2560 CUDA cores, and robust rendering capabilities, it delivers exceptional performance for design, visualization, and advanced computational tasks. Built to handle complex workloads, it ensures seamless performance across multiple high-resolution displays.

Main Information

• Brand: Nvidia
• Part Number: 900-5G413-0100-000
• Model: Dell NVIDIA Quadro P5000
• Memory: 16GB GDDR5X with bandwidth up to 288.5 GB/s
• Bus Width: 256-bit memory interface

Key Advantages of NVIDIA Quadro P5000

• Massive 16GB GDDR5X memory for large datasets and complex models
• 2560 CUDA cores for highly parallel computing tasks
• Support for up to 5 simultaneous displays
• Reliable dual-slot form factor with robust cooling
• Professional-grade graphics performance for CAD, 3D rendering, and simulation

Rendering Specs

• CUDA Cores: 2560 parallel processing units
• Texture Mapping Units (TMUs): 160
• Render Output Units (ROPs): 64
• SM Count: 20
• Base Clock Speed: 1607 MHz
• Boost Clock Speed: 1733 MHz

Form Factor and Build

• The P5000 is constructed with a dual-slot full-height bracket design, making it compatible with a wide range of workstations. Its sturdy build ensures long-lasting reliability while maintaining efficient cooling.

Dimensions and Cooling

• Length: 10.51 inches (267mm)
• Thermal Solution: Active cooling system for sustained performance
• Bracket: Full-height, dual-slot configuration

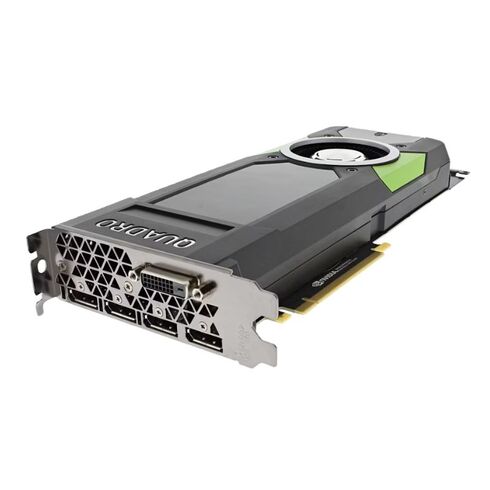

Available Output Ports

• 1 x DVI
• 4 x DisplayPort 1.4a

Power Consumption and Requirements

• With optimized power efficiency, the Quadro P5000 balances high performance with manageable energy needs, making it an ideal choice for professional workstations.

Power Specifications

• Maximum Power Draw: 180W
• Required Connectors: 1 x 8-pin PCIe power connector

Rendering and Graphics Configuration

• Designed for heavy-duty graphics processing, the Quadro P5000 integrates advanced architecture with powerful GPU cores. Its configuration ensures fluid rendering, accurate shading, and enhanced visual output for creative professionals.

The NVIDIA Quadro P5000 Professional Visual Computing

The NVIDIA Quadro P5000, identified by part number 900-5G413-0100-000, stands as a pinnacle of professional-grade graphics technology from the Pascal generation. Launched in October 2016, this graphics card was engineered to meet the intense demands of design, visualization, and content creation workflows. With its robust combination of 16 GB of high-speed GDDR5X memory, 2560 CUDA cores, and a sophisticated multi-display output system, the Quadro P5000 delivers the exceptional performance, reliability, and visual fidelity required by professionals across various industries. This card represents a careful balance of raw graphics power and single-precision compute performance, making it an ideal solution for everything from complex 3D rendering and engineering simulations to immersive virtual reality experiences.

Architecture and Core Performance

At the heart of 900-5G413-0100-000 the Quadro P5000 lies the advanced Pascal GPU architecture, built on a state-of-the-art 16nm FinFET process by TSMC. This architecture incorporates 7.2 billion transistors into a 314 mm² die, enabling groundbreaking efficiency and performance.

Pascal Architectural Advantages

The Pascal architecture introduces several key technologies that elevate professional workflows. Simultaneous Multi-Projection allows for the stereo rendering of geometry in a single pass, dramatically improving performance for VR applications. Dynamic Load Balancing efficiently allocates GPU resources between graphics and compute tasks in real-time, while Graphics and Compute Preemption provide finer control over time-sensitive tasks, ensuring a smooth and responsive user experience even with demanding, intermittent workloads.

Raw Computational Power

The P5000 is configured with 2560 CUDA Cores and operates with a base clock speed of 1607 MHz, which can boost up to 1733 MHz to handle peak loads. This processing muscle translates into a remarkable peak single-precision (FP32) performance of approximately 8.9 TFLOPS. this compute power are 160 Texture Mapping Units (TMUs) and 64 Render Output Units (ROPs), enabling a texture fill rate of 277.3 GTexel/s and a pixel fill rate of 110.9. This ensures that manipulating high-resolution textures and rendering complex scenes remains fluid and efficient.

Expansive Memory and Bandwidth

A defining feature of the Quadro P5000 is its generous 16 GB of GDDR5X memory, connected via a wide 256-bit interface. This vast memory pool is a critical asset for professional applications, providing ample space to hold massive datasets, high-resolution textures, and complex 3D models directly on the GPU. This eliminates the need for constant data swapping with system RAM, which can cause slowdowns and interruptions.

High-Speed Data Transfer

The GDDR5X memory, running at an effective data rate of 9 Gbps, generates a substantial memory bandwidth of 288.5 GB/s. This high bandwidth is essential for quickly feeding the GPU's cores with the data they need to process, minimizing bottlenecks and ensuring that performance remains high even when working with memory-intensive tasks such as seismic interpretation, scientific visualization, and rendering of photorealistic imagery. This combination of large capacity and high speed allows professionals to work interactively with projects that were previously hampered by hardware limitations.

Board Design and Physical Specifications

The Quadro P5000 is designed as a dual-slot, full-height expansion card, with physical dimensions of 267 mm in length, 111 mm in height, and a depth of 40 mm (including the PCIe interface). This form factor ensures broad compatibility with a wide range of standard workstation chassis.

Power and Cooling

With a Thermal Design Power (TDP) rated at 180 W, the card draws its power from a single 8-pin PCIe power connector. NVIDIA recommends a 450 W power supply unit to ensure stable and reliable operation. The cooling solution features an active fansink—a combination of a heatsink and a fan—that efficiently dissipates heat under load, maintaining optimal GPU temperatures and consistent performance during extended rendering or simulation sessions.

Connectivity and Multi-Display Capabilities

900-5G413-0100-000 The Quadro P5000 is exceptionally versatile in its display output configuration, making it an ideal solution for multi-monitor workstations and presentation environments. It is equipped with a comprehensive set of ports: one Dual-Link DVI-D port and four DisplayPort 1.4a outputs.

High-Resolution Output

This combination allows professionals to drive multiple high-resolution displays simultaneously. The card supports up to four 5K monitors at 60Hz, or dual 8K displays, and can push a single DisplayPort to a resolution of 7680x4320 (8K) at 30Hz. The DVI-D port supports a maximum resolution of 2560x1600 at 60Hz. With support for HDR color and 30-bit display output, the P5000 ensures that visual content is presented with the utmost color accuracy and depth, which is crucial for color-critical work in media and entertainment.

Advanced Display Technologies

NVIDIA complements the hardware with sophisticated software technologies for large-scale display management. NVIDIA Mosaic Technology enables a seamless desktop experience that can be scaled across up to 4 GPUs and 16 displays from a single workstation. For synchronized display walls, NVIDIA Quadro Sync II allows the image output of multiple P5000 cards (up to 32 displays from 8 GPUs) to be perfectly synchronized, eliminating tearing and other artifacts for immersive visualization and simulation environments.

Software, API, and Technology

The 900-5G413-0100-000 Quadro P5000 is built on a foundation of comprehensive software and API. ensuring broad compatibility with professional applications. It fully supports DirectX 12, OpenGL 4.6, OpenCL 3.0, Vulkan 1.3, and CUDA 6.

Professional Application Optimizations

As a Quadro card, it includes features and certifications specifically tailored for professional ISV (Independent Software Vendor) applications. This includes optimized drivers for CAD, DCC, and scientific software, ensuring stability and performance that GeForce cards cannot guarantee. Features like Quad Buffered Stereo Support in OpenGL provide a smooth and immersive 3D Stereo experience for professional applications, while the NVENC dedicated encode engines accelerate video encoding for editing and streaming workflows.

Ideal Use Cases and Industry Applications

900-5G413-0100-000 The powerful specifications of the Quadro P5000 make it a versatile tool suited for a wide spectrum of professional fields.

Design and Manufacturing

Designers and engineers can work with larger assemblies and more complex components, perform real-time design reviews with realistic materials and lighting, and integrate simulation directly into the design process. The card's power enables interactive manipulation of massive models in software such as Siemens NX, SOLIDWORKS, and Creo.

Media and Entertainment

Video editors can work in real-time with HDR and up to 8K content, while 3D artists and animators can build larger, more detailed scenes and leverage GPU-accelerated rendering with technologies like NVIDIA Iray to achieve photorealistic results faster. The card is also built to handle the complexities of modern VR content creation.

Architecture, Engineering, and Construction (AEC)

Architects and urban designers can create extensive, detailed models of buildings and cityscapes. The P5000 also powers immersive VR walkthroughs, allowing clients to experience a building at scale before construction begins, facilitating better design decisions and reducing costly rework.

Energy and Scientific Visualization

In sectors like oil and gas, 900-5G413-0100-000 the 16 GB of memory allows geoscientists to examine larger seismic data sets with higher levels of interactivity. The compute performance also accelerates reservoir simulations, speeding up time-to-solution for critical analysis.
