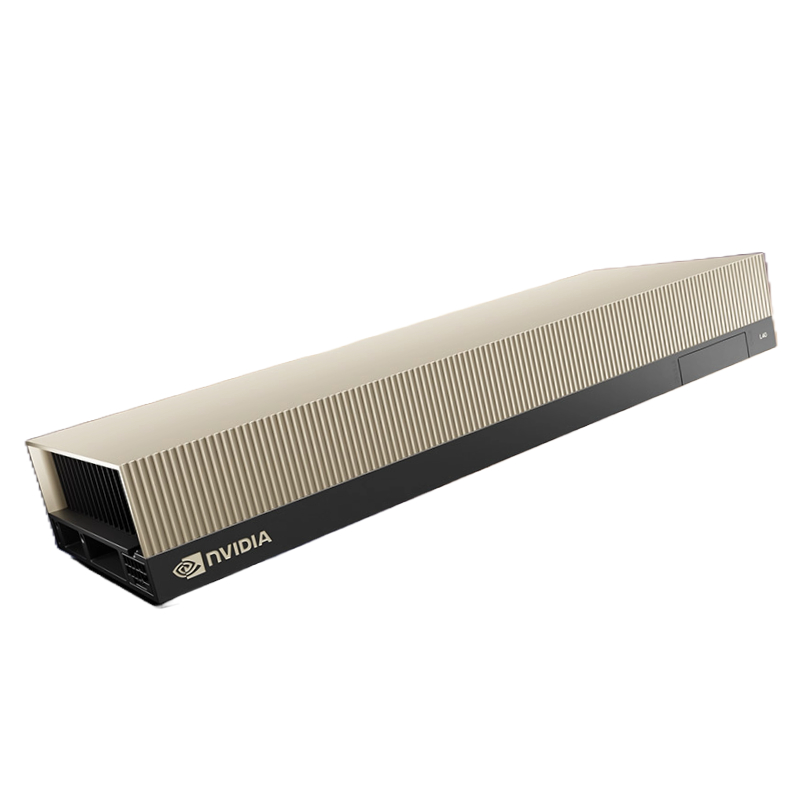

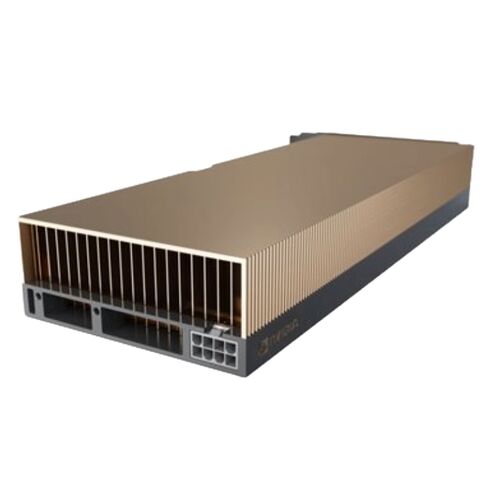

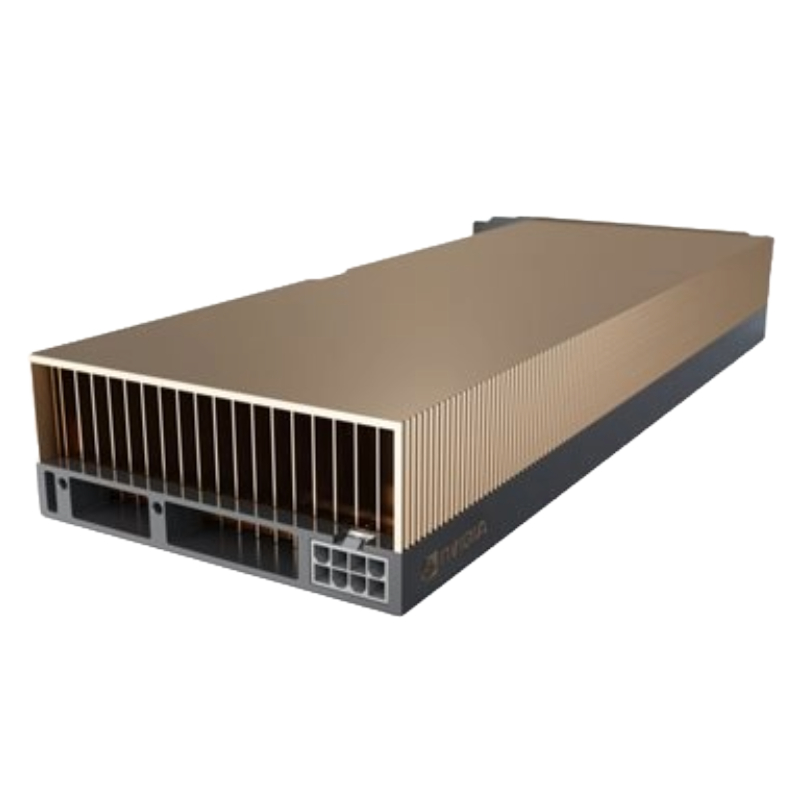

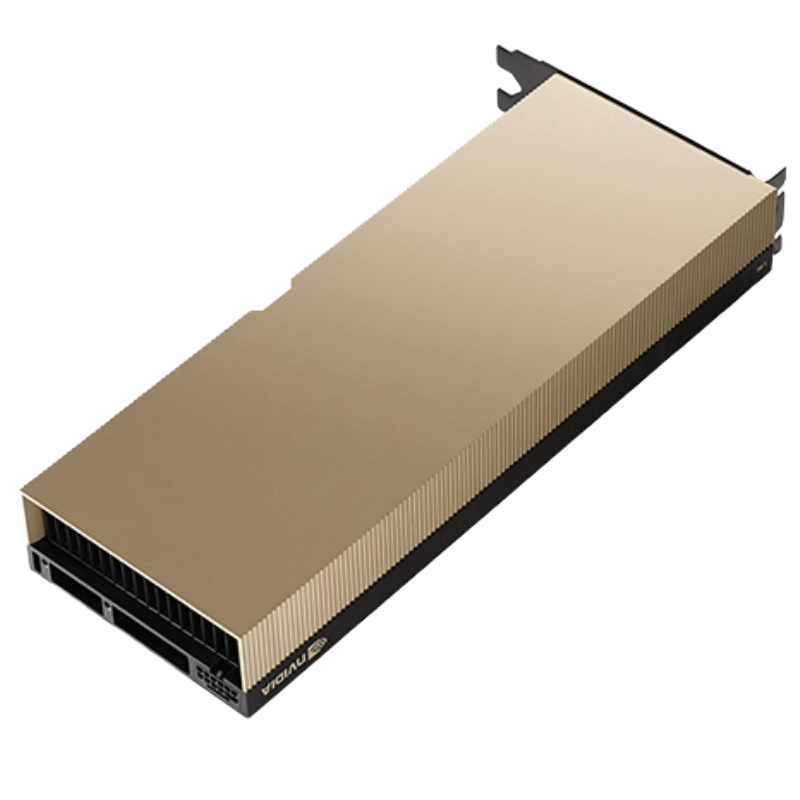

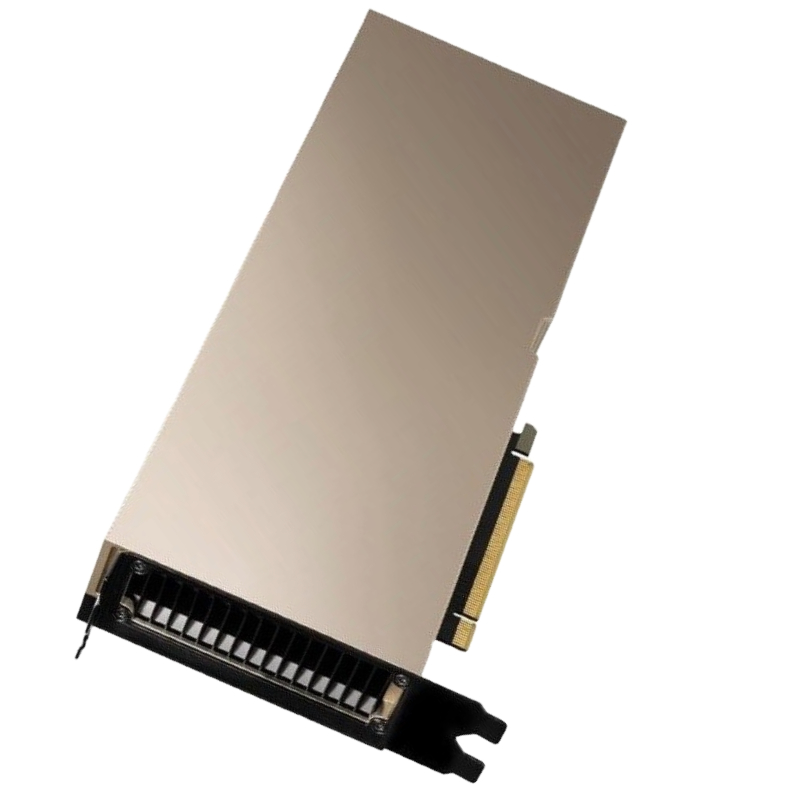

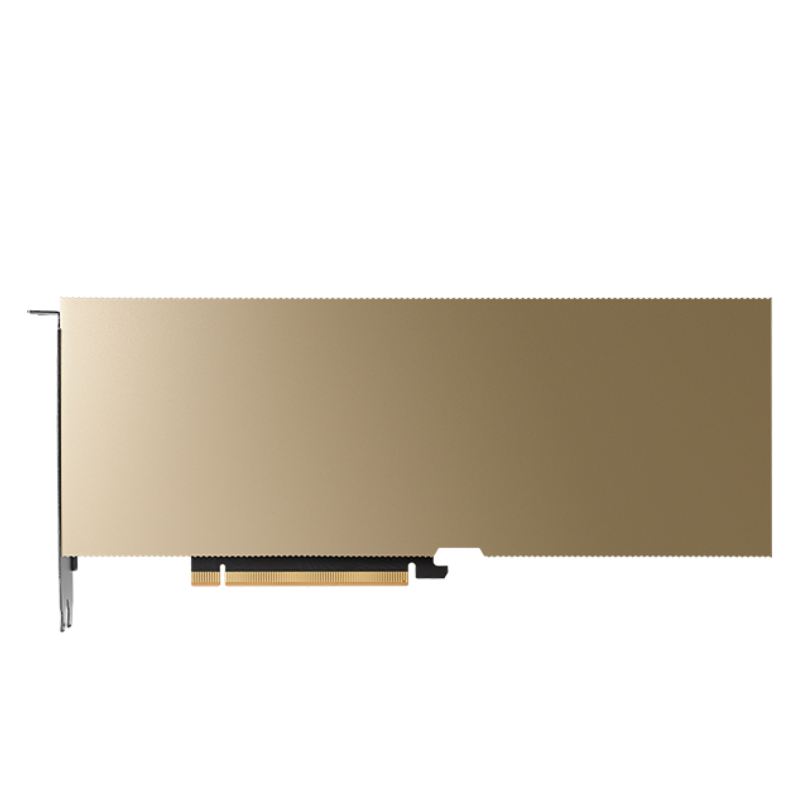

L40 Nvidia 48GB PCIe Gen4 Passive Graphic Card

Overview of Nvidia L40 Accelerator Graphics Processing Unit

The Nvidia L40 GPU is a high-performance graphics processing unit designed for advanced computing tasks. With 48GB of GDDR6 ECC memory and 18,176 CUDA cores, this Ada Lovelace architecture-based accelerator delivers exceptional speed and efficiency for professional workloads.

General Information

• Manufacturer: Nvidia
• Part Number: L40
• Product Type: Graphics Processing Unit (GPU)

Technical Specifications

• Architecture: NVIDIA Ada Lovelace
• Process Size: 4nm NVIDIA Custom Process (TSMC)
• Transistors: 76.3 Billion
• Die Size: 608.44 mm²

Core Components

• CUDA Cores: 18,176
• Tensor Cores: 568 (Gen 4)
• RT Cores: 142 (Gen 3)

Memory and Bandwidth

• GPU Memory: 48GB GDDR6 ECC
• Memory Interface: 384-bit
• Memory Bandwidth: 864 GB/s

Display and Resolution

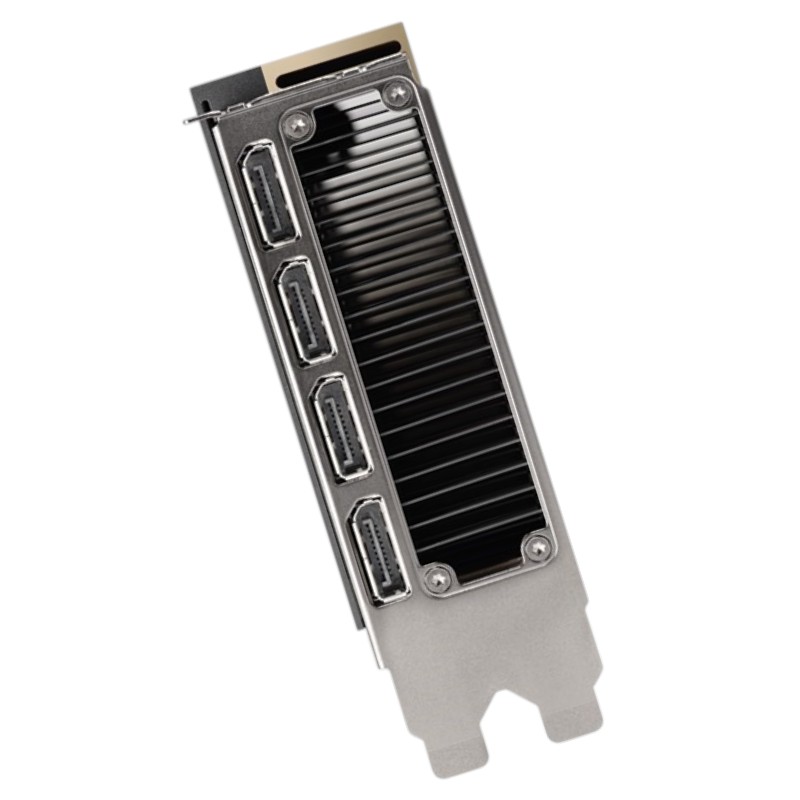

• Display Connectors: 4x DisplayPort 1.4a
• Max Digital Resolution:
  • 4x 5K at 60Hz
  • 2x 8K at 60Hz
  • 4x 4K at 120Hz
  • 30-bit Color Support

Form Factor and Cooling

• Dimensions: 4.4” H x 10.5” L
• Slot Type: Dual Slot
• Thermal Solution: Passive Cooling

Power and Connectivity

• Max Power Consumption: 300W
• Power Connector: 1x PCIe CEM5 16-pin
• Nebs Ready: Level 3
• Secure Boot: Root of Trust Supported

Software and API Support

• Supported Software: NVIDIA vApps, vPC, vWS (Early 2023)
• vGPU Profiles: 1GB, 2GB, 3GB, 4GB, 6GB, 8GB, 12GB, 16GB, 24GB, 48GB

Graphics APIs

• DirectX 12 Ultimate
• Shader Model 6.6
• OpenGL 4.6
• Vulkan 1.3

Encoding and Decoding

• NVENC/NVDEC: 3x Encode | 3x Decode
• AV1 Support: Encode and Decode Included

Compute APIs

• CUDA 12.0
• DirectCompute
• OpenCL 3.0

Additional Features

3D Vision

• Supports NVIDIA 3D Vision and 3D Vision Pro via optional 3-pin Mini-DIN bracket

Synchronization

• Frame Lock supported with optional NVIDIA Quadro Sync II

NVIDIA L40 Accelerator 48GB Ada GPU Architecture

The NVIDIA L40 Accelerator 48GB 18176 CUDA Cores GDDR6 PCI-E graphics processing unit represents a powerful enterprise-grade GPU platform engineered for professional visualization, artificial intelligence workloads, high-performance computing, digital content creation, and advanced rendering environments. Built on the innovative Ada Lovelace GPU architecture, the NVIDIA L40 accelerator delivers exceptional computational throughput, advanced ray tracing functionality, and scalable AI acceleration capabilities suitable for modern data centers, enterprise workstations, virtualization infrastructures, and cloud computing platforms.

The NVIDIA L40 GPU integrates 48GB of high-speed GDDR6 memory, enabling large-scale dataset processing, complex simulation handling, and demanding machine learning applications that require significant memory bandwidth and stability. The advanced PCI Express Gen4 interface provides increased communication throughput between the accelerator and host platform, helping enterprises optimize large-scale workflows involving graphics rendering, deep neural networks, video processing, engineering simulation, and scientific visualization.

Designed for professional enterprise deployment, the NVIDIA L40 accelerator combines massive CUDA core density with optimized thermal engineering, advanced tensor processing technologies, and robust virtualization capabilities. Organizations deploying AI inferencing models, generative AI applications, industrial digital twins, and immersive visualization environments can leverage the L40 GPU to accelerate productivity and computational efficiency.

Ada Lovelace GPU Design and Next-Generation Processing Capabilities

The Ada Lovelace architecture integrated into the NVIDIA L40 accelerator introduces substantial improvements in computational efficiency, ray tracing acceleration, AI tensor processing, and graphics rendering performance. Enterprise users benefit from improved energy efficiency, optimized data throughput, and advanced multi-workload consolidation capabilities across virtualized and bare-metal environments.

The GPU architecture includes specialized hardware engines for AI inferencing, neural rendering, ray tracing operations, and scientific computation. These technologies help organizations execute sophisticated AI pipelines while maintaining consistent latency and stable performance under sustained enterprise workloads.

The architectural enhancements of the NVIDIA L40 GPU enable accelerated execution of modern machine learning frameworks, including natural language processing, recommendation systems, image recognition, and generative AI model deployment. Data scientists and AI engineers can utilize the GPU for training and inferencing applications requiring high parallel processing efficiency.

Enhanced CUDA Core Configuration

The NVIDIA L40 accelerator features 18176 CUDA cores designed to handle parallel computational operations across AI, visualization, and simulation workloads. CUDA technology provides a scalable programming environment that allows developers to optimize applications for GPU acceleration using frameworks such as CUDA Toolkit, TensorRT, and GPU-optimized software libraries.

CUDA cores enable the L40 GPU to process massive quantities of parallel threads simultaneously, making it suitable for applications involving complex rendering calculations, physics simulation, molecular modeling, financial analytics, and AI inferencing. The high CUDA core count contributes significantly to enterprise-level throughput for computationally intensive tasks.

Fourth-Generation Tensor Core Technology

Tensor cores integrated into the NVIDIA L40 accelerator improve AI acceleration capabilities for deep learning operations, transformer-based models, and matrix-intensive computational tasks. These specialized processing units optimize mixed-precision operations and accelerate machine learning inferencing pipelines.

Organizations deploying generative AI platforms, recommendation engines, autonomous systems, and conversational AI applications can leverage tensor processing acceleration to reduce latency and improve throughput. Tensor cores also contribute to improved efficiency during model optimization and AI deployment scenarios.

Advanced Ray Tracing Engine Performance

Professional visualization workflows benefit from dedicated ray tracing hardware integrated into the NVIDIA L40 accelerator. The GPU supports advanced lighting simulation, realistic reflections, shadow rendering, and photorealistic visualization environments required for architecture, engineering, automotive design, media production, and industrial simulation.

Real-time ray tracing acceleration enables designers and engineers to create immersive visual environments with enhanced realism while reducing rendering times. The combination of CUDA cores and RT cores improves rendering performance across applications supporting RTX technologies.

48GB GDDR6 Memory Architecture and Bandwidth Optimization

The NVIDIA L40 accelerator incorporates 48GB of enterprise-grade GDDR6 memory engineered for high-bandwidth data processing, large-scale model deployment, and advanced rendering workflows. Large onboard memory capacity enables the GPU to process extensive datasets without excessive memory swapping or bottlenecks.

Professional applications involving high-resolution rendering, AI training, scientific modeling, and virtual desktop infrastructure benefit from the extensive memory resources available on the NVIDIA L40 platform. Large memory capacity also improves efficiency when handling multiple simultaneous virtualized workloads.

Enterprise Data Processing Efficiency

High-bandwidth memory architecture enables efficient handling of large AI models, simulation datasets, and graphics rendering tasks. Applications requiring large tensor datasets or complex computational pipelines can execute more efficiently with reduced latency and improved responsiveness.

The 48GB memory configuration supports demanding enterprise use cases including digital twins, industrial simulations, genomics research, weather modeling, and computational fluid dynamics. Engineers and data scientists can process large-scale workloads while maintaining consistent performance.

Memory Reliability for Mission-Critical Workloads

Enterprise GPU deployments require consistent memory stability and operational reliability. The NVIDIA L40 accelerator is engineered for data center environments where workload consistency, uptime, and computational integrity are essential for business operations.

Large memory capacity allows organizations to consolidate workloads across fewer GPUs, reducing infrastructure complexity while maintaining strong computational density. This helps optimize rack utilization and operational efficiency within enterprise computing environments.

AI Model Deployment Advantages

Generative AI and large language model applications often require substantial GPU memory resources for inference processing and model deployment. The NVIDIA L40 accelerator provides the memory capacity necessary for hosting large transformer models, multimodal AI applications, and enterprise AI services.

AI developers benefit from reduced memory constraints during deployment of advanced neural networks and large-scale inferencing systems. The GPU supports accelerated AI processing while maintaining scalability across enterprise infrastructure environments.

PCI Express Gen4 Interface and Data Center Connectivity

The NVIDIA L40 accelerator utilizes a PCI Express Gen4 interface that delivers increased bandwidth between the GPU and host server platform. PCIe Gen4 connectivity improves communication throughput for large datasets, rendering assets, AI model parameters, and visualization workloads.

Modern enterprise systems require high-speed communication between CPUs, GPUs, storage systems, and networking infrastructure. The PCIe Gen4 interface helps minimize bottlenecks while supporting accelerated data movement for computational workloads.

Server Integration Flexibility

The NVIDIA L40 GPU is compatible with a wide range of enterprise server platforms and workstation configurations supporting PCI Express Gen4 expansion capabilities. Organizations can deploy the accelerator within rack servers, AI appliances, rendering clusters, virtualization platforms, and professional workstations.

Flexible deployment options enable businesses to integrate GPU acceleration into existing infrastructure while scaling computational resources according to workload requirements. This flexibility supports hybrid cloud environments, private AI deployments, and distributed rendering infrastructures.

Optimized Data Throughput

High-bandwidth PCIe connectivity improves efficiency when transferring large AI datasets, 3D rendering assets, and simulation data between system memory and GPU resources. Reduced communication latency contributes to faster application responsiveness and improved computational throughput.

Applications involving real-time rendering, AI inferencing, and scientific modeling benefit from improved host-to-device communication pathways enabled by PCIe Gen4 technology.

Scalable Multi-GPU Infrastructure

Enterprise data centers frequently deploy multiple GPUs within clustered computing environments. The NVIDIA L40 accelerator supports scalable deployment architectures that enable organizations to expand computational capacity for AI training, rendering farms, and simulation workloads.

Scalable GPU environments improve workload distribution efficiency while enabling resource pooling across enterprise applications. Organizations can optimize infrastructure investments through flexible GPU scaling strategies.

Artificial Intelligence and Machine Learning Acceleration

The NVIDIA L40 accelerator is engineered to support advanced artificial intelligence and machine learning workloads across enterprise and cloud computing environments. AI-driven organizations require scalable GPU acceleration platforms capable of supporting inferencing, model optimization, and real-time analytics.

The combination of CUDA cores, tensor cores, and large GDDR6 memory capacity allows the NVIDIA L40 GPU to execute modern AI workloads efficiently while supporting large-scale enterprise deployment scenarios.

Generative AI Infrastructure Support

Generative AI applications continue to transform enterprise operations across healthcare, finance, manufacturing, research, and customer engagement industries. The NVIDIA L40 accelerator provides computational acceleration for large language models, image generation platforms, conversational AI systems, and multimodal inference engines.

Organizations implementing AI-powered automation and intelligent analytics platforms can utilize the L40 GPU to improve processing efficiency while supporting scalable AI deployment strategies.

Inference Optimization Capabilities

Inference processing requires low-latency computational resources capable of handling real-time requests efficiently. The NVIDIA L40 accelerator is optimized for inferencing applications involving natural language understanding, image recognition, recommendation systems, and autonomous decision-making platforms.

AI inference acceleration helps enterprises reduce operational latency while improving application responsiveness across customer-facing services and internal analytics environments.

Machine Learning Framework Compatibility

The NVIDIA L40 GPU supports leading AI and machine learning frameworks including TensorFlow, PyTorch, ONNX Runtime, RAPIDS, and NVIDIA AI Enterprise software ecosystems. Developers can optimize workflows using CUDA acceleration libraries and GPU-enabled software stacks.

Framework compatibility simplifies AI deployment while allowing organizations to leverage existing development environments and machine learning pipelines.

Professional Visualization and Rendering Workloads

The NVIDIA L40 accelerator is highly suitable for professional visualization workflows involving architectural rendering, product design, media production, engineering simulation, and immersive visualization technologies. Advanced graphics acceleration improves rendering performance while enabling real-time interaction with complex visual datasets.

Professional artists, engineers, and visualization specialists benefit from RTX-enabled rendering technologies that enhance realism and workflow efficiency.

Media and Entertainment Rendering

Media production environments require GPU acceleration for animation rendering, visual effects processing, cinematic content creation, and virtual production workflows. The NVIDIA L40 accelerator supports advanced rendering engines capable of delivering photorealistic results with improved rendering speed.

Content creators can utilize GPU acceleration to optimize production timelines while maintaining high-quality visual output across demanding creative projects.

Virtual Production and Real-Time Graphics

Virtual production workflows increasingly rely on real-time rendering technologies powered by advanced GPUs. The NVIDIA L40 accelerator enables immersive digital environments used in film production, simulation platforms, interactive media, and augmented reality applications.

Real-time graphics acceleration improves creative flexibility while reducing production complexity for modern media workflows.

Engineering and CAD Visualization

Engineering applications involving CAD modeling, simulation visualization, and digital prototyping require high-performance graphics acceleration. The NVIDIA L40 GPU supports advanced visualization software used in automotive, aerospace, industrial manufacturing, and architectural industries.

Enhanced rendering performance allows engineers to interact with complex models efficiently while improving design review processes and simulation accuracy.

Virtualization and Cloud GPU Deployment

The NVIDIA L40 accelerator supports enterprise virtualization environments requiring GPU resource sharing, virtual workstation deployment, and cloud graphics acceleration. Virtualized GPU infrastructure enables organizations to deliver high-performance computing resources to remote users and distributed teams.

Virtual GPU technologies help improve infrastructure utilization while supporting scalable cloud-based computing environments.

Virtual Desktop Infrastructure Support

Organizations deploying virtual desktop infrastructure environments can utilize the NVIDIA L40 accelerator to deliver GPU-accelerated applications to remote users. Professional visualization, AI development, and engineering applications benefit from centralized GPU resources within secure enterprise environments.

GPU virtualization enhances remote productivity while simplifying IT management and infrastructure deployment.

Cloud Rendering and AI Services

Cloud service providers increasingly deploy enterprise GPUs to support rendering services, AI inferencing platforms, and GPU-as-a-service environments. The NVIDIA L40 accelerator offers scalable computational density suitable for cloud-native infrastructure deployments.

Cloud GPU acceleration helps enterprises access advanced computing resources without maintaining extensive on-premises infrastructure.

Secure Multi-User Resource Allocation

Virtualized GPU environments require secure resource isolation and workload allocation mechanisms. The NVIDIA L40 accelerator supports enterprise virtualization technologies designed to optimize resource utilization while maintaining application performance consistency.

Organizations can allocate GPU resources dynamically according to workload demands and user requirements.

High-Performance Computing and Scientific Research

The NVIDIA L40 accelerator supports high-performance computing environments used for scientific research, engineering simulation, academic analysis, and industrial modeling applications. HPC workloads benefit from massive parallel processing capabilities and large memory resources.

Researchers and engineers can accelerate complex computational tasks involving simulations, data analysis, and predictive modeling.

Scientific Simulation Workloads

Applications involving molecular dynamics, genomics analysis, weather forecasting, seismic interpretation, and computational fluid dynamics require substantial GPU acceleration. The NVIDIA L40 accelerator helps improve simulation throughput while reducing processing times for research-intensive workloads.

GPU-accelerated scientific computing environments enable researchers to process larger datasets and execute more sophisticated analytical models.

Energy and Manufacturing Analytics

Industrial sectors including energy exploration, manufacturing optimization, and materials science increasingly rely on GPU-accelerated simulation environments. The NVIDIA L40 accelerator provides computational resources for advanced industrial analytics and predictive modeling applications.

Accelerated simulation technologies contribute to improved operational efficiency and faster product development cycles.

Financial and Data Analytics Processing

Financial institutions and analytics organizations utilize GPU acceleration for risk modeling, fraud detection, algorithmic trading, and large-scale data processing. The NVIDIA L40 accelerator supports parallel analytics operations involving extensive computational datasets.

GPU-accelerated analytics platforms help organizations improve decision-making speed and computational efficiency across data-intensive operations.

Thermal Engineering and Enterprise Reliability

Enterprise GPU deployments require efficient thermal management and long-term operational stability. The NVIDIA L40 accelerator is engineered for sustained workloads within data center and professional computing environments.

Optimized thermal design helps maintain consistent performance under intensive AI, rendering, and computational workloads while supporting energy-efficient operation.

Data Center Deployment Efficiency

Modern data centers prioritize computational density, energy optimization, and thermal consistency. The NVIDIA L40 accelerator is designed to integrate within enterprise server infrastructures supporting high-density GPU deployment strategies.

Organizations can improve infrastructure scalability while maintaining efficient power utilization and cooling management.

Continuous Enterprise Workload Stability

Mission-critical enterprise applications require consistent GPU performance across prolonged operational cycles. The NVIDIA L40 accelerator supports continuous workload execution for AI services, rendering farms, simulation clusters, and cloud computing environments.

Operational stability contributes to improved infrastructure reliability and reduced downtime within enterprise deployments.

Power Optimization Technologies

Advanced power management technologies integrated into the NVIDIA L40 GPU help optimize energy consumption while maintaining computational performance. Efficient GPU operation supports sustainability initiatives and reduces operational expenses within enterprise computing facilities.

Power-efficient acceleration technologies are increasingly important for large-scale AI infrastructure and modern data center environments.
