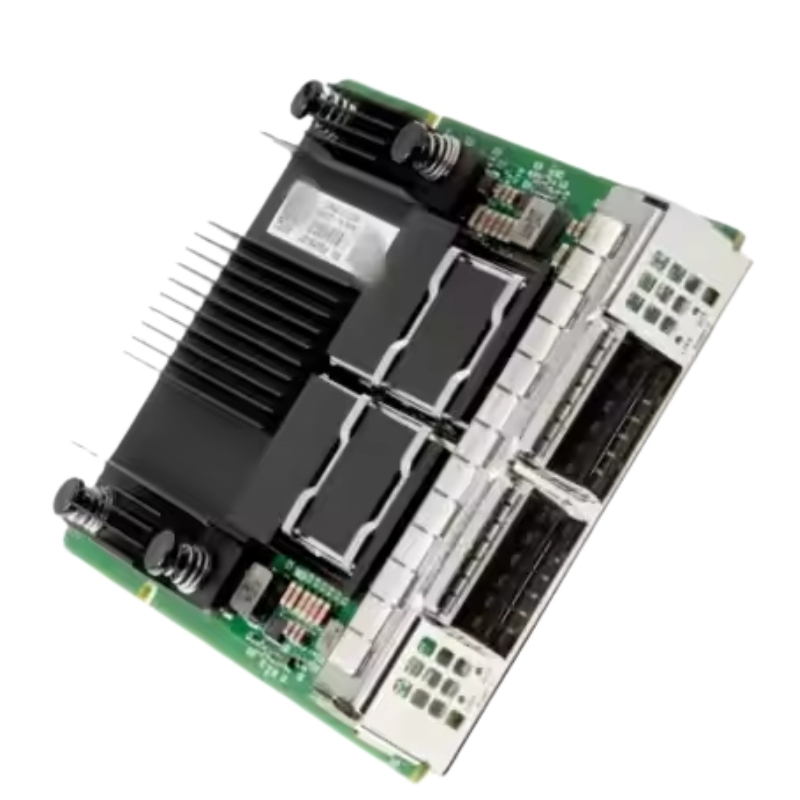

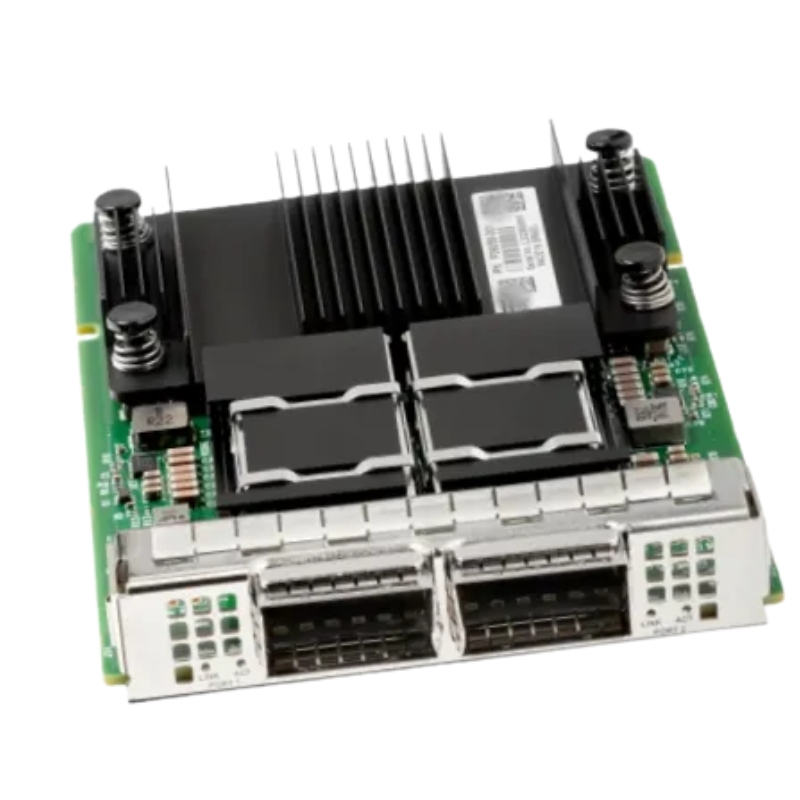

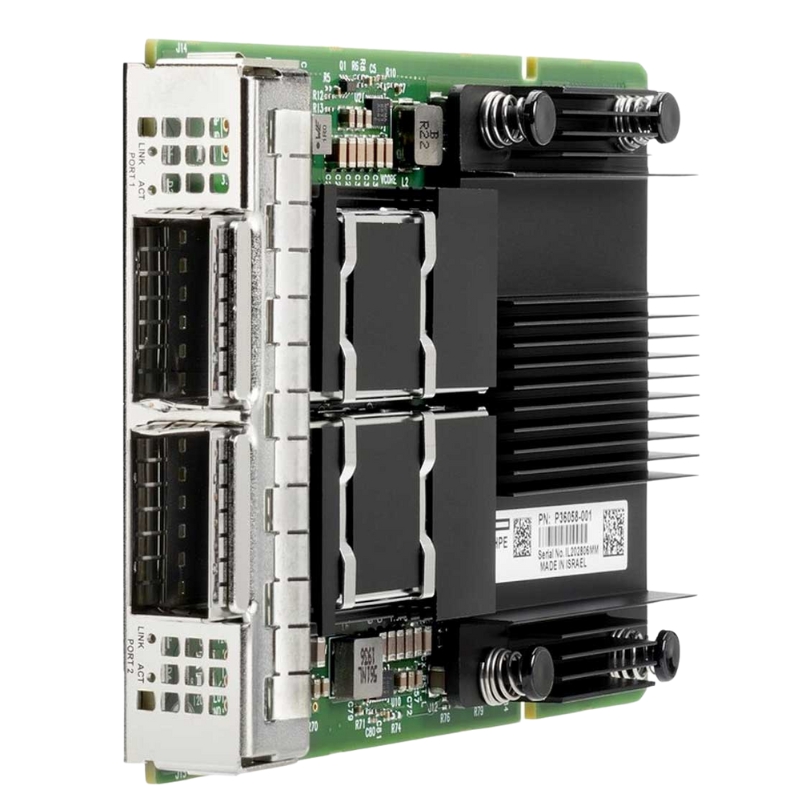

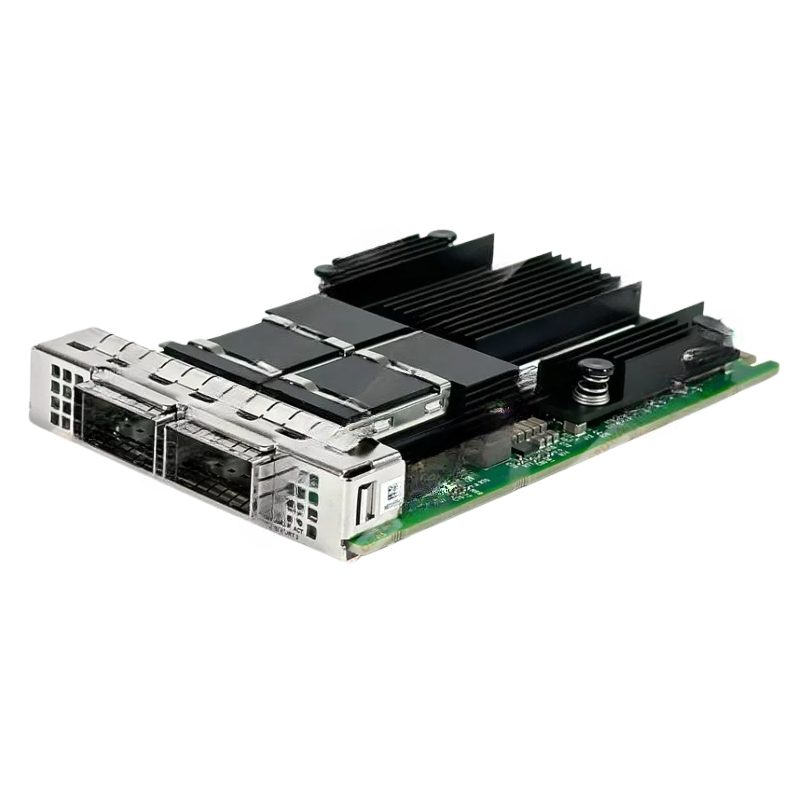

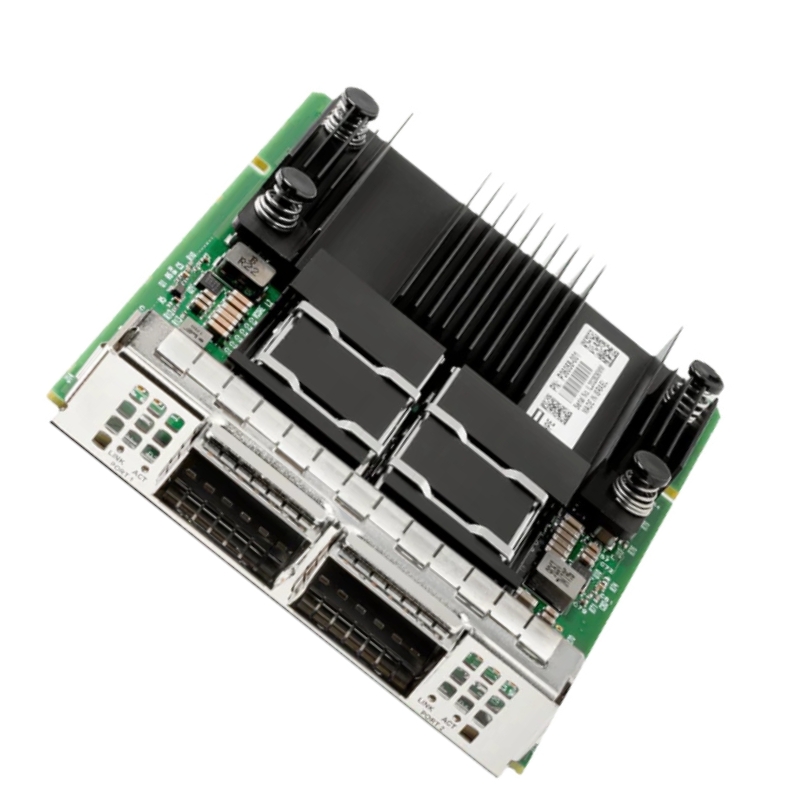

P36070-001 HPE InfiniBand HDR/Ethernet 2-Ports 200 GBPS QSFP56 PCI Express 4 x16 OCP3 Adapter.

P36070-001 HPE InfiniBand HDR/Ethernet 2-Ports 200 GBPS QSFP56 PCI Express 4 x16 OCP3 MCX653436A-HDAI Adapter

The P36070-001 HPE InfiniBand HDR/Ethernet 2-Ports 200 GBPS QSFP56 PCI Express 4 x16 OCP3 MCX653436A-HDAI Adapter is a high-performance network adapter designed for environments where the demand for bandwidth and low latency is critical. This adapter integrates the power of InfiniBand HDR (High Data Rate) and Ethernet technologies to provide 200 Gbps throughput across two ports, making it ideal for data centers, high-performance computing (HPC), and enterprise networking solutions. Below is a comprehensive breakdown of its features, benefits, and technical specifications, aimed at delivering enhanced connectivity solutions for modern data-driven applications and workloads.

Key Features of the P36070-001 Adapter

The P36070-001 HPE InfiniBand HDR/Ethernet Adapter offers exceptional performance and versatility with key features that meet the needs of demanding computing environments. It is designed to support high-throughput workloads, providing an advanced solution for systems requiring fast and reliable interconnects.

200 Gbps Throughput

One of the standout features of the P36070-001 is its impressive bandwidth capacity. It supports 200 Gbps throughput across two ports via InfiniBand HDR and Ethernet technologies. This high-speed data transfer capability is crucial for applications in machine learning, AI, big data analytics, and cloud computing where speed and efficiency are paramount.

Dual-Ports for Increased Flexibility

The adapter includes two QSFP56 ports, which enable efficient scaling and redundancy for mission-critical applications. With dual ports, it supports multiple connections for high-availability environments, ensuring optimal performance and uptime.

PCIe Gen 4 x16 Interface

The P36070-001 uses a PCI Express 4.0 x16 interface, providing fast communication between the adapter and the host server. PCIe Gen 4 offers double the bandwidth of PCIe Gen 3, which helps meet the demands of modern data centers with large-scale processing and high-bandwidth workloads.

OCP3 Form Factor

The adapter is designed in the OCP3 (Open Compute Project) form factor, which is optimized for high-density server configurations. OCP3 is a modular and open standard that enhances flexibility and adaptability in server hardware deployments, allowing organizations to scale their infrastructure efficiently.

Multi-Protocol Support

The P36070-001 supports both InfiniBand HDR and Ethernet protocols. This dual-protocol functionality enables flexible deployment in diverse environments, allowing organizations to choose the best networking protocol based on specific application requirements.

Applications of the P36070-001 Adapter

Due to its exceptional performance and versatile feature set, the P36070-001 HPE InfiniBand HDR/Ethernet Adapter is an excellent choice for a wide range of applications in high-performance computing, enterprise data centers, and other data-intensive environments.

High-Performance Computing (HPC)

For high-performance computing workloads such as scientific simulations, financial modeling, and AI model training, the P36070-001 provides the low-latency and high-throughput connectivity that these applications demand. By combining InfiniBand HDR with Ethernet support, it delivers fast interconnects that are critical for performance-sensitive HPC environments.

Data Centers

In enterprise data centers, this adapter plays a vital role in enabling the smooth flow of data between servers and storage systems. With dual-port and high-speed connectivity, it supports a variety of data center workloads, including cloud computing, virtualization, and storage area networks (SANs), ensuring low-latency, high-throughput communication for both internal and external network traffic.

Artificial Intelligence and Machine Learning

The P36070-001 is particularly well-suited for AI and machine learning environments, where data needs to be transferred at very high speeds between processors, storage, and GPUs. Its 200 Gbps throughput enables AI researchers to run more complex models and process large datasets quickly, reducing the time-to-insight in machine learning workflows.

Technical Specifications of the P36070-001 Adapter

Physical Dimensions

The P36070-001 HPE InfiniBand HDR/Ethernet Adapter comes with the following physical dimensions:

• Form Factor: OCP 3.0
• Dimensions: 167.65 mm x 68.58 mm (6.6" x 2.7")
• Weight: Approx. 0.5 lbs (227g)

Performance Metrics

• Maximum Throughput: 200 Gbps (2 ports)
• Latency: Sub-microsecond
• Maximum Queue Depth: 128K
• Supported Protocols: InfiniBand HDR, Ethernet
• Bus Interface: PCIe Gen 4 x16

Power and Heat Dissipation

• Power Consumption: 25W (Typical)
• Thermal Rating: 50-75°C (Operational)
• Thermal Dissipation: 85 BTU/hr

Compatibility

This adapter is compatible with a range of HPE servers and platforms, supporting both Linux and Windows operating systems. It is also fully compatible with various hypervisors and cloud infrastructure management tools, making it ideal for modern virtualized environments.

Installation and Configuration

Installing the P36070-001 HPE InfiniBand HDR/Ethernet Adapter is straightforward. It comes with clear instructions and is designed to be installed in a PCIe Gen 4 x16 slot. The dual-port adapter can be configured using standard HPE and third-party management tools. It supports both static and dynamic configurations for seamless integration into various network setups.

Software Support

The adapter supports a wide range of software tools, including:

• HPE Ethernet and InfiniBand Drivers
• RDMA (Remote Direct Memory Access)
• RoCE (RDMA over Converged Ethernet)
• IPoIB (IP over InfiniBand)

Configuration Tools

HPE offers several management and configuration tools for setting up and monitoring the P36070-001 adapter:

• HPE Integrated Lights Out (iLO)
• HPE OneView
• Third-Party InfiniBand Management Software

Benefits of Using the P36070-001 Adapter

Deploying the P36070-001 HPE InfiniBand HDR/Ethernet Adapter delivers numerous benefits to organizations operating in high-performance computing, data centers, and AI-focused environments.

Scalability

With its dual-port design and high-throughput capabilities, the P36070-001 offers unmatched scalability for growing businesses. Whether expanding cloud infrastructure or deploying AI models, this adapter can seamlessly integrate into large-scale environments.

High Availability

Thanks to its dual ports and multi-protocol support, this adapter ensures continuous availability for mission-critical workloads. It allows organizations to implement fault tolerance and redundancy in their network infrastructure, reducing the risk of downtime.

Reduced Latency

The low-latency performance of the P36070-001 is ideal for applications that require rapid data transfer, such as high-frequency trading, live data analytics, and real-time video processing. The sub-microsecond latency ensures fast communication between devices and systems, improving overall application performance.
