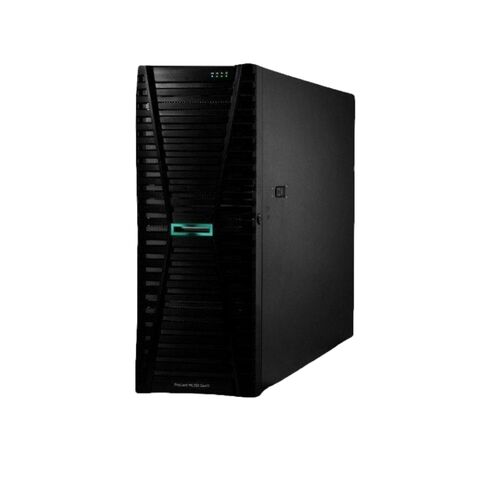

HPE Server Xeon 12-core Silver 4410y 2.0 Ghz 32(1x32)gb Ddr5 Sdram P53

General Specifications

• Manufacturer: Hewlett Packard Enterprise (HPE)
• Part Number: P53564-001
• Server Scalability: Supports 2-way configuration
• Product Form Factor: 4U Tower
• Hot-Swap Bays: 4 LFF bays, hot-swappable for seamless maintenance
• Model Name: HPE ProLiant ML350 Gen11

Processor & Chipset Details

• Processor Model: Intel Xeon Silver 4410Y
• Clock Speed: 2.0 GHz, with a Turbo Boost up to 3.9 GHz
• Core Technology: 12-core performance
• Chipset: Intel C741
• Socket Type: FCLGA4677
• Scalability: Supports up to 2 processors
• Advanced Processor Features:
• Intel QuickAssist Technology (QAT)
• Intel Hyper-Threading Technology
• Intel Turbo Boost Technology 2

Cache Memory

• Type: Intel Smart Cache
• Installed Size: 30 MB per processor

Memory Configuration

• Memory Type: HPE DDR5 Smart Memory (RDIMM)
• Installed Capacity: 32 GB, expandable up to 8 TB
• Memory Speed: Effective speed of 4000 MHz, rated at 4800 MHz
• Configuration: Dual Rank (2R), 288-pin DIMM
• Slots Available: 32 slots total; 17-32 reserved for two-processor setup
• Features: ECC, online spare memory, no mixing of different memory types

Storage Devices

• HDD/SSD: Not included as standard
• Optical Drive: Optional (DVD-ROM or DVD-RW available)

Storage Controller Specifications

• Controller: Embedded Intel VROC SATA
• RAID Levels Supported: 0, 1, 5, 10

Graphics Capabilities

• Graphics Interface: VGA
• Video Memory: 16 MB
• Max Resolution: 1920 x 1200 at 60 Hz (32 BPP)

Network & Communication

• Adapter Name: Broadcom BCM5719 Ethernet 4-port 1Gb Base-T
• Profile: OCP 3.0
• PCIe Version: 2.0 x4
• Power Requirement: 4.69 W

Expansion and Connectivity Options

• Hot-Swap Bays: 4 x 3.5" LFF hot-swap bays
• Expansion Slots:
• 4 x PCIe 5.0 x8 (full-length, full-height)
• 2 x PCIe 5.0 x16 (full-length, full-height)
• 1 x PCIe 5.0 x8 (half-height, half-length)
• 1 x internal microSD slot
• External Interfaces:
• 1 x Serial (rear), 1 x VGA (rear)
• 4 x USB 3.2 (front/rear/internal), 1 x USB 2.0 (internal)
• 4 x LAN (Gigabit Ethernet RJ-45, rear)
• 1 x DisplayPort (front)

Additional Features

• Included Accessories: Standard CPU heatsink, 3 standard fans, and SFF installation rails
• Compliance: AES, ACPI 6.1, PCIe 5.0, WoL, PXE, USB 3.2 Gen1, OCP 3.0 standards, and more
• Management Tools: HPE iLO, Intelligent Provisioning, iLO RESTful API, HPE GreenLake

Power Supply Information

• Power Supply Type: Hot-plug, 800W
• Redundancy: Optional 1+1 redundancy with an additional power supply
• Voltage: 120/230 V AC, 50/60 Hz
• Certification: 80 Plus Platinum

Dimensions & Weight

• Width: 6.85 inches
• Depth: 28 inches
• Height: 18.2 inches
• Weight: 60.45 lbs

HPE Xeon 12-core Silver 4410y / 2.0 Ghz Server with 32(1x32)gb Ddr5 Sdram, Smart Array Broadcom Bcm5719 Eth 1gb 4-port Base-t Ocp3 Adapter, Embedded Intel Vroc Sata Controller, 4lff, 1x 800w Fs Ps 4u Tower - P53564-001

Processor: 2.0 Ghz

The HPE Xeon 12-core Silver 4410y Server is equipped with a powerful processor that boasts a clock speed of 2.0 Ghz. This feature plays a crucial role in the overall performance and efficiency of the server, making it an excellent choice for businesses and organizations that require high processing power.

Enhanced Performance

One of the primary benefits of the 2.0 Ghz processor is its ability to deliver enhanced performance. With a higher clock speed, the processor can execute instructions and complete tasks at a faster rate compared to lower clock speed processors. This means that the server can handle complex calculations, data processing, and multitasking with ease. Whether you are running resource-intensive applications or handling large data sets, the 2.0 Ghz processor ensures smooth and efficient operations.

Improved Responsiveness

In addition to its performance capabilities, the 2.0 Ghz processor also contributes to improved responsiveness. This means that the server can quickly respond to user commands, delivering near-instantaneous results. When combined with fast storage solutions and a robust network infrastructure, this feature ensures that users can access and retrieve data without experiencing lag or delays.

Seamless Virtualization

Virtualization has become an integral part of modern server environments, allowing businesses to maximize their resources and streamline operations. The 2.0 Ghz processor excels in this area as well. It offers excellent support for virtualization technologies, enabling you to create multiple virtual machines and run diverse operating systems simultaneously. This level of flexibility opens up opportunities for businesses to consolidate their IT infrastructure, reduce costs, and improve overall efficiency.

Power Efficiency

While delivering exceptional performance, the 2.0 Ghz processor also prioritizes power efficiency. It is designed to optimize power consumption without compromising on processing power. This means that you can enjoy high-performance computing without worrying about excessive energy consumption or increased cooling requirements. The power-efficient nature of the processor not only reduces operational costs but also contributes to a greener and more sustainable IT environment.

Memory: 32(1x32)gb DDR5 SDRAM

The HPE Xeon 12-core Silver 4410y Server is equipped with 32GB of DDR5 SDRAM, utilizing a single 32GB module. This memory configuration offers several benefits that are vital for the smooth operation of the server, making it an ideal choice for businesses and organizations with demanding computing needs.

Enhanced Workload Performance

The large memory capacity of 32GB allows the server to handle heavy workloads efficiently. Complex applications, databases, and virtual machines require significant memory resources to operate smoothly. With 32GB of DDR5 SDRAM, the server can handle multiple tasks simultaneously without experiencing performance bottlenecks. This ensures that your critical business applications can run seamlessly, providing a smooth user experience and reducing downtime.

Faster Data Access

DDR5 SDRAM is the latest generation of memory technology, offering improved data transfer rates compared to its predecessors. This means that the HPE Xeon 12-core Silver 4410y Server can access data from memory at a faster rate, resulting in reduced latency and improved overall system responsiveness. Faster data access is particularly crucial for tasks such as real-time analytics, database operations, and high-traffic websites where quick access to large datasets is essential.

Future-Proofing

Investing in a server with 32GB of DDR5 SDRAM ensures future-proofing to a certain extent. As technology advances and software becomes more resource-intensive, having sufficient memory becomes increasingly important. By opting for a server with a large memory capacity, you can ensure that your system remains capable of handling future software updates and requirements without the need for immediate upgrades.

Reliability and Redundancy

The HPE Xeon 12-core Silver 4410y Server's memory configuration also offers reliability and redundancy benefits. By utilizing a single 32GB module, the server benefits from the fault-tolerant nature of ECC (Error-Correcting Code) memory. ECC memory can detect and correct single-bit errors, reducing the risk of data corruption and system crashes. This ensures that your critical data remains protected and the server operates reliably even under heavy workloads.

Additional Features: P53

The HPE Xeon 12-core Silver 4410y Server comes with an array of additional features, with the P53 being one of the highlights. This feature enhances the functionality and versatility of the server, providing numerous benefits for businesses and organizations.

Advanced Security

The P53 feature offers advanced security capabilities, ensuring that your data remains protected from unauthorized access. It includes robust encryption algorithms, secure boot options, and secure remote management interfaces. These security measures safeguard your sensitive information, making it an ideal choice for businesses that handle confidential data or operate in regulated industries.

Flexible Storage Options

The P53 feature also provides flexible storage options to meet your specific requirements. It supports various storage technologies such as solid-state drives (SSDs) and hard disk drives (HDDs), allowing you to configure your server to best suit your storage needs. Whether you need high-performance storage for demanding applications or ample capacity for data-intensive workloads, the P53 feature ensures that you have the flexibility to choose the storage solution that fits your business requirements.

Remote Management Capabilities

Efficient server management is crucial for ensuring optimal performance and minimizing downtime. The P53 feature offers robust remote management capabilities that allow you to monitor and control your server from anywhere in the world. It provides a comprehensive set of tools for system configuration, monitoring, and troubleshooting, enabling IT administrators to proactively address any issues that may arise. This remote management functionality saves time and resources by eliminating the need for physical access to the server.

Scalability and Expandability

The P53 feature also contributes to the server's scalability and expandability. It provides support for additional expansion slots, allowing you to add more peripheral devices or upgrade your server's capabilities as your business grows. Whether you need to connect additional storage devices, network cards, or specialized hardware, the P53 feature ensures that your server can accommodate future expansion requirements easily.

In conclusion, the HPE Xeon 12-core Silver 4410y Server offers impressive features that cater to businesses and organizations with demanding computing needs. The 2.0 Ghz processor delivers enhanced performance, improved responsiveness, seamless virtualization, and power efficiency. The 32GB of DDR5 SDRAM memory ensures enhanced workload performance, faster data access, future-proofing, reliability, and redundancy. The additional features, such as P53, provide advanced security, flexible storage options, remote management capabilities, scalability, and expandability. With these features combined, the HPE Xeon 12-core Silver 4410y Server offers a powerful and reliable solution for businesses seeking high-performance computing.
