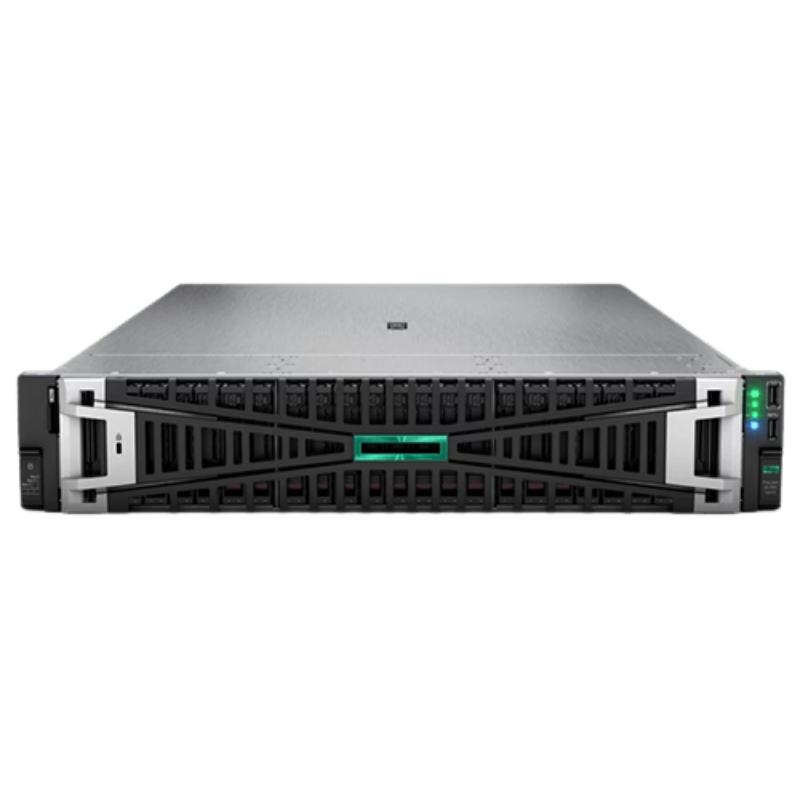

P60636-B21 HPE Gen11 DL380 4416+ 1P 32G NC 8Sff Server.

Product Overview

General Information

• Brand Name: HPE
• Manufacturer Part Number: P60636-B21
• Product Type: Server
• Product Name: ProLiant DL380 Gen11
• Product Line: ProLiant
• Product Series: DL380 G11

Processor and Chipset

CPU Specifications

• Processor: Intel Xeon Silver 4416+
• Base Clock Speed: 2 GHz
• Turbo Boost Speed: Up to 3.9 GHz
• Core Count: 20 cores
• Processor Quantity: 1 (upgradable to 2)
• Main Features: Hyper-Threading, Intel Turbo Boost Technology 2
• Chipset: Intel C741

Cache Memory

• Installed Size: 37.5 MB (L3 Cache)
• Cache Per Processor: 37.5 MB

Memory Specifications

• Installed Memory: 32 GB DDR5 SDRAM
• Maximum Memory: 8 TB
• Speed: 4000 MHz (effective), 4800 MHz (rated)
• Form Factor: DIMM 288-pin
• Total Slots: 32 (31 available)
• Features: Registered, Dual Rank, HPE SmartMemory
• Configuration: 1 x 32 GB

Storage Capabilities

Hard Drive

• No hard drive included

Storage Controller

• Type: RAID (OCP)
• Controller Interface: SATA-600, SAS 3.0, PCIe NVMe
• Model: HPE MR408i-o Gen11 SPDM
• Channels: 8
• RAID Levels: 0, 1, 5, 6, 10, 50, 60
• Buffer Size: 4 GB

Graphics and Display

• Graphics Controller: Integrated
• Video Memory: 16 MB
• Video Interfaces: VGA
• Monitor: Not included

Networking Features

• Ethernet Ports: 2 x 10 Gigabit Ethernet
• Ethernet Controller: Broadcom BCM57416
• Management Controller: Integrated Lights-Out 6 (iLO 6)
• Additional Features: Wake on LAN, PXE Support

Expansion and Connectivity

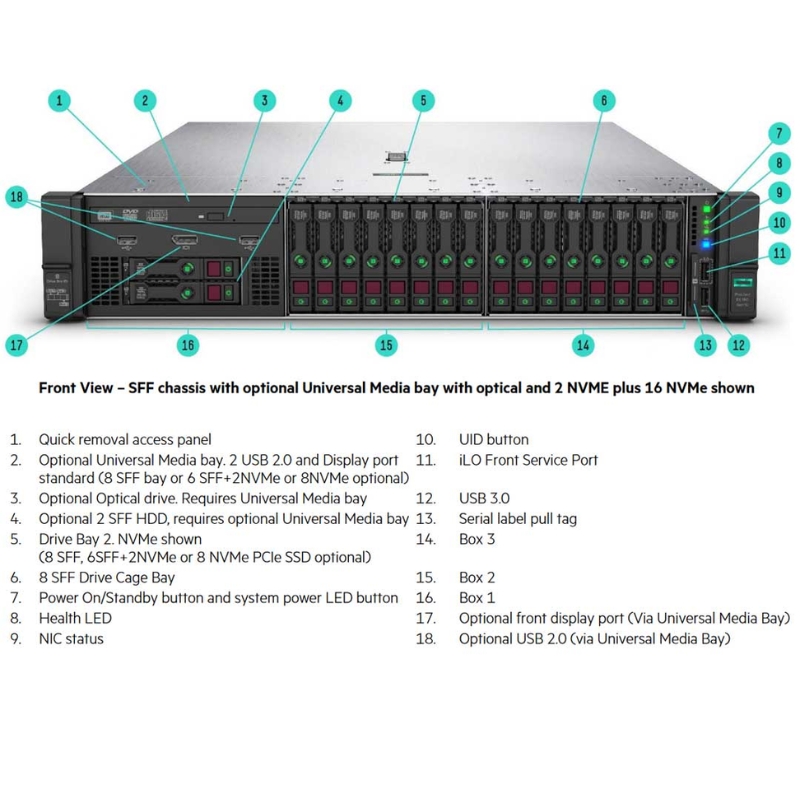

• Bays: 1 universal media bay, 8 hot-swap 2.5" SFF
• Slots: Multiple PCIe 5.0 slots for flexible upgrades

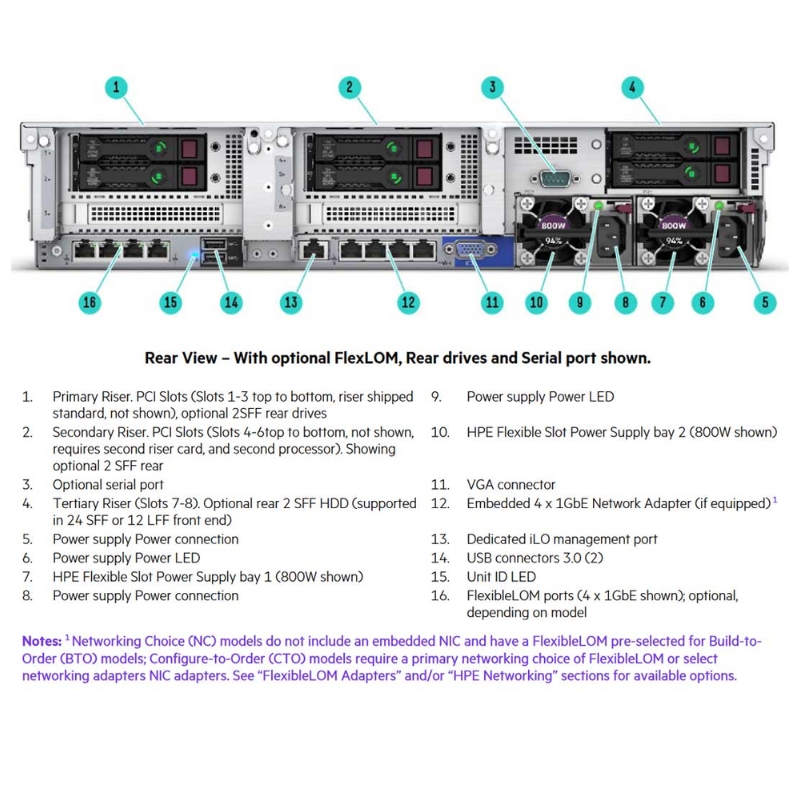

• Interfaces: USB 3.0, RJ-45 for iLO, VGA, 10 GbE LAN

Power and Efficiency

• Power Supply: Hot-plug, 800W (80 Plus Platinum certified)
• Redundancy: Optional 1+1 redundancy with second power supply
• Voltage: 100-240V AC

Sustainability

• Energy Star Certified: Yes (version 3.0)
• Compliance: AES, FIPS 140-2, WEEE, ACPI 6.3, ErP Lot 9

Dimensions and Weight

• Width: 17.6 inches
• Depth: 28.6 inches
• Height: 3.4 inches
• Weight: 35.27 lbs

HPE P60636-B21 DL380 Gen11 4416+ 1P 32G NC 8SFF Server

The HPE P60636-B21 DL380 Gen11 4416+ 1P 32G NC 8SFF Server is a cutting-edge enterprise-grade server designed to deliver optimal performance, scalability, and reliability. Equipped with the latest Gen11 architecture and powered by advanced Intel Xeon processors, this server is ideal for high-demand workloads such as virtualization, database management, and data analytics. The 8SFF (Small Form Factor) configuration ensures excellent storage density, while its modular design offers flexibility for future upgrades.

Benefits of the HPE P60636-B21 DL380 Gen11 Server

Performance Optimization

The server is built to maximize performance for demanding applications. The Gen11 platform incorporates the latest advancements in processor technology, delivering increased core counts and improved energy efficiency. With support for high-speed memory and storage options, users can expect reduced latency and faster data access.

Scalability and Customization

Designed with scalability in mind, the HPE DL380 Gen11 allows businesses to expand storage, memory, and processing power as their needs evolve. The 8SFF configuration supports hot-plug drives, enabling seamless upgrades and minimizing downtime during hardware changes.

Flexible Storage Options

Whether your organization relies on SAS, SATA, or NVMe drives, the HPE DL380 Gen11 supports a wide array of storage technologies. This flexibility ensures compatibility with various workloads, including data-intensive operations and high-speed transactional systems.

NVMe Storage for High-Speed Applications

With NVMe drive support, the server delivers ultra-fast data transfer rates, making it ideal for applications that demand rapid storage access, such as database management and real-time analytics.

Reliable Enterprise-Grade Security

HPE has integrated robust security measures into the DL380 Gen11 server, protecting critical data against potential threats. The server features a silicon root of trust, encrypted firmware, and secure boot capabilities, ensuring the integrity of your systems.

Silicon Root of Trust

This hardware-based security feature ensures that only trusted firmware and software can run on the server, preventing malicious attacks at the hardware level.

Advanced Management Tools

The HPE Integrated Lights-Out (iLO) Management system provides remote monitoring and administration tools, enabling IT administrators to efficiently manage the server from anywhere. Features such as health monitoring, firmware updates, and remote diagnostics enhance operational efficiency.

Virtualization

The HPE DL380 Gen11 is optimized for virtualization environments, supporting multiple virtual machines (VMs) and hypervisors. Its robust processing power and memory capacity ensure smooth operation of virtualized workloads, reducing infrastructure costs.

Database Management

With its scalable storage and high-speed processing capabilities, the server is an excellent choice for database management. It can handle large datasets efficiently, ensuring quick query processing and reliable data access for mission-critical applications.

AI and Machine Learning

The advanced hardware capabilities of the HPE DL380 Gen11 make it suitable for AI and machine learning workloads. Its support for GPUs and high-speed NVMe storage enables faster model training and inference processes.

Data Analytics

Businesses leveraging data analytics can benefit from the server’s ability to process and analyze massive datasets in real time. Its multi-core processors and expandable memory ensure optimal performance for analytics software.

Cloud Computing

The server is an excellent option for private and hybrid cloud deployments. Its flexibility, scalability, and security features align with the requirements of modern cloud infrastructures, providing businesses with a reliable foundation for their cloud strategy.

Future-Proof Investment

The modular design and upgradeable components of the HPE DL380 Gen11 make it a future-proof investment for businesses. Whether you need to increase storage, memory, or processing power, this server can adapt to your requirements, ensuring long-term value.

Unmatched Reliability

Built for enterprise environments, the server features robust components, redundant systems, and advanced monitoring tools that minimize downtime and ensure continuous operation. This reliability is critical for businesses with zero-tolerance for interruptions.

Global Support and Warranty

HPE provides comprehensive global support and warranty options for the DL380 Gen11. Customers can access expert assistance and replacement services to keep their infrastructure running smoothly.

Environmental Sustainability

Energy Efficiency

The HPE DL380 Gen11 is designed with energy efficiency in mind. Its advanced power management features and optimized components reduce energy consumption, helping organizations lower their operational costs and environmental impact.

Reduced Carbon Footprint

By using the latest in power-efficient technology, the server contributes to reduced carbon emissions. HPE’s commitment to sustainability ensures that businesses can align their IT infrastructure with environmental goals.
