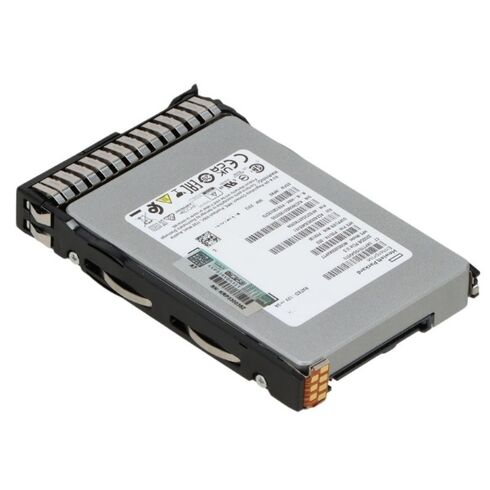

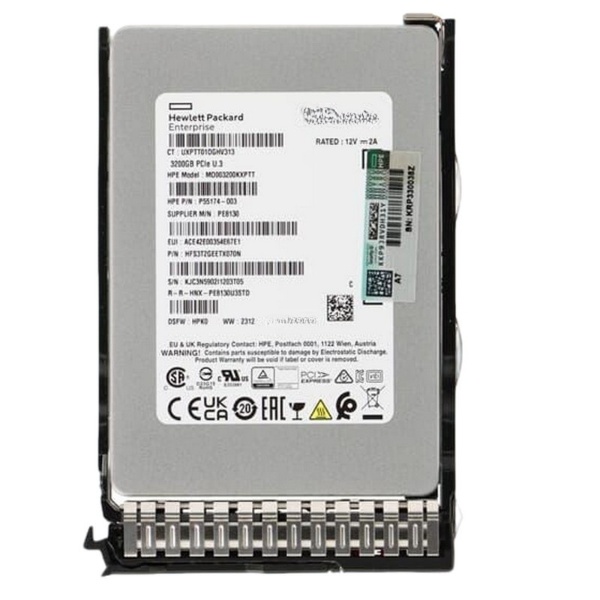

P61438-001 HPE 3.2TB SSD for Mixed Use PCI-Express

The HPE P61438-001 represents the pinnacle of enterprise storage technology, engineered specifically for demanding data center environments where consistent performance, exceptional endurance, and unwavering reliability are non-negotiable. This 3.2TB Mixed Use SFF (Small Form Factor) Solid State Drive leverages the high-speed PCI-Express interface to deliver breakthrough throughput and low-latency operation, making it an ideal solution for a wide spectrum of enterprise workloads, from transactional databases to virtualization and high-performance computing.

Capacity and Form Factor

The drive offers a usable capacity of 3.2 Terabytes (TB), formatted. This substantial capacity is housed in a 2.5-inch Small Form Factor (SFF) chassis, allowing for high-density storage deployments in standard server bays. The SFF design is critical for maximizing storage per rack unit in space-constrained data centers.

Interface and Protocol

Utilizing a PCI-Express 3.0 x4 lane interface, the P61438-001 bypasses the bottlenecks associated with traditional SATA or SAS interfaces. It operates using the NVMe (Non-Volatile Memory Express) protocol, which is specifically designed from the ground up for NAND flash memory. NVMe reduces command overhead and enables deep queue depths, resulting in significantly lower latency and higher IOPS (Input/Output Operations Per Second) compared to legacy protocols.

NAND Flash Technology and Drive Type

This drive is classified as a Mixed Use (MU) model. This classification indicates that it is engineered with a specific grade of 3D NAND flash memory and a robust controller that provides an optimal balance between read- and write-intensive operations. Mixed Use drives offer a higher endurance than Read-Intensive (RI) models and are designed for workloads where the write ratio is typically balanced, such as 50/50 read/write or 70/30 read/write.

Performance Characteristics

The performance profile of the HPE P61438-001 is what sets it apart in the enterprise storage landscape. It is designed to deliver sustained, predictable performance under heavy loads.

Throughput and IOPS

This SSD delivers exceptional sequential read and write speeds, capable of saturating the PCIe 3.0 x4 interface. In terms of random performance, it can achieve high levels of IOPS. For instance, at a queue depth of 16, it can deliver up to 800,000 random read IOPS and 200,000 random write IOPS, ensuring responsive performance for OLTP databases, virtualized environments, and other latency-sensitive applications.

Latency

One of the most critical metrics for enterprise storage is latency. The P61438-001 boasts exceptionally low read and write latencies, typically in the range of 100 microseconds for reads and 20 microseconds for writes. This ultra-low latency ensures that applications are not kept waiting for data, which directly translates to faster transaction times and improved user experience.

Endurance and Reliability

Enterprise drives are defined by their longevity and ability to withstand constant data writing. The P61438-001 is built to handle the rigors of 24/7 operation.

Power Loss Protection

A critical feature for any enterprise SSD is protection against sudden power loss. The P61438-001 is equipped with robust power-loss protection circuits, including onboard capacitors. In the event of an unexpected power failure, these capacitors provide enough hold-up energy to flush all data held in the volatile DRAM cache and complete any in-progress writes to the non-volatile NAND flash. This prevents data corruption and ensures transaction consistency.

End-to-End Data Protection

The drive employs end-to-end data path protection. This means that from the moment data enters the drive's interface until it is written to the NAND, and vice-versa when reading, it is protected by cyclic redundancy check (CRC) codes. This safeguards against data corruption that could occur due to transmission errors within the drive's internal architecture.

HPE Smart SSD Wear Gauge Technology

Integrated into the drive's firmware and accessible through HPE management tools like iLO (Integrated Lights-Out), the SmartSSD Wear Gauge provides a real-time, pre-failure alerting system. It monitors the drive's health, including the amount of spare blocks remaining and the overall wear percentage, allowing administrators to proactively plan for drive replacement before a failure can occur, thus maximizing system uptime.

Hot-Plug Capability

The 2.5-inch SFF form factor supports hot-plug functionality in compatible HPE server backplanes. This allows for the drive to be installed or replaced while the server is still running, facilitating maintenance and upgrades without incurring system downtime.

Use Cases and Application Workloads

The mixed-use endurance and high-performance characteristics of the P61438-001 make it suitable for a diverse set of demanding applications.

Database Servers

For OLTP (Online Transaction Processing) and OLAP (Online Analytical Processing) databases like Microsoft SQL Server, Oracle Database, and SAP HANA, the low latency and high random IOPS of this drive significantly reduce query times and accelerate transaction processing.

Server Virtualization

In virtualized environments using VMware vSphere, Microsoft Hyper-V, or KVM, the drive can host a large number of virtual machines and their associated VMDK/VHD files. Its high IOPS and consistent performance prevent I/O bottlenecks, leading to smoother operation and higher VM density per host.

Virtual Desktop Infrastructure (VDI)

VDI deployments, particularly during "boot storms" and "login storms," place immense random read and write demands on storage. The P61438-001 is ideal for hosting golden images and user data, providing a responsive desktop experience for end-users.

High-Performance Computing (HPC) and Analytics

Applications in scientific computing, financial modeling, and big data analytics often involve working with massive datasets. The high sequential read/write speeds of this SSD allow for rapid data ingestion, checkpointing, and results retrieval, accelerating time-to-insight.
