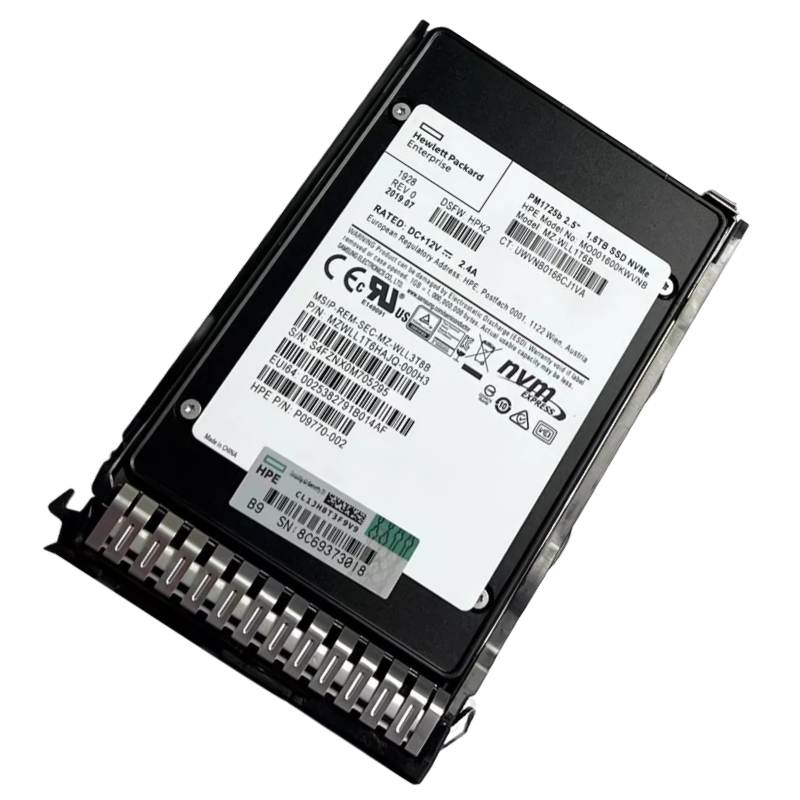

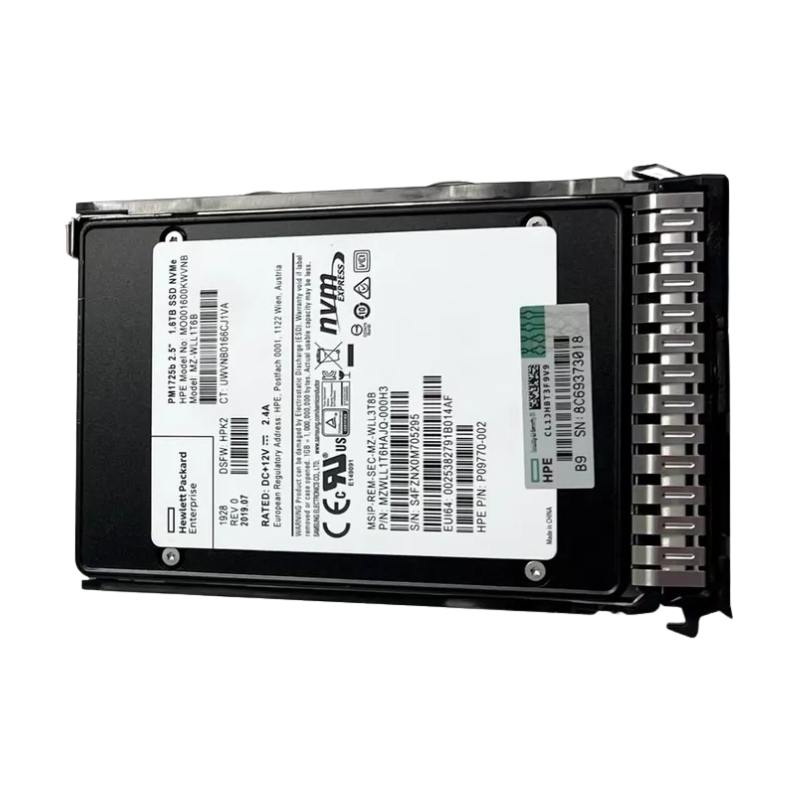

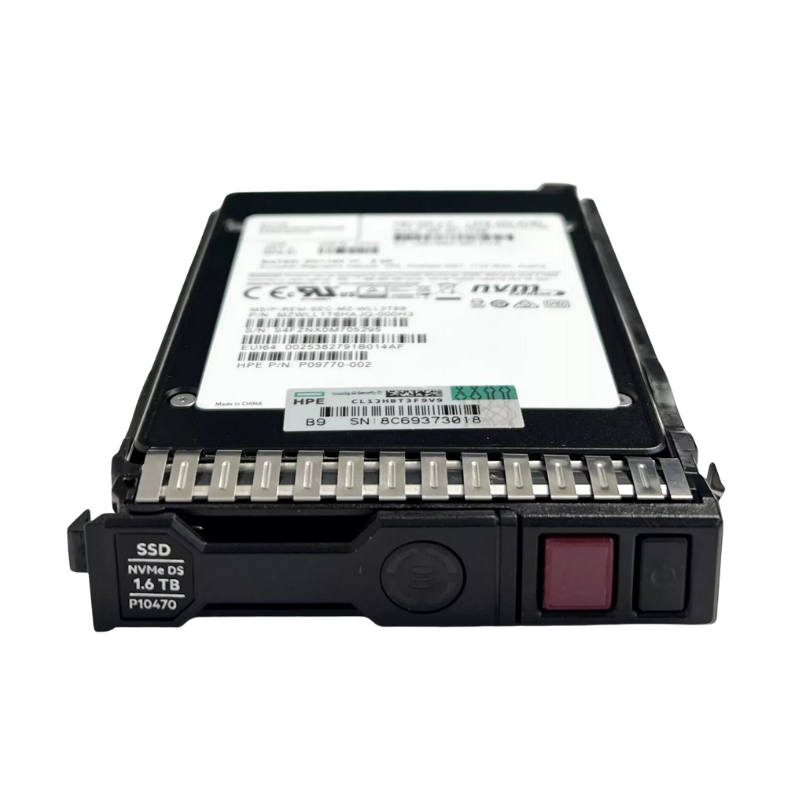

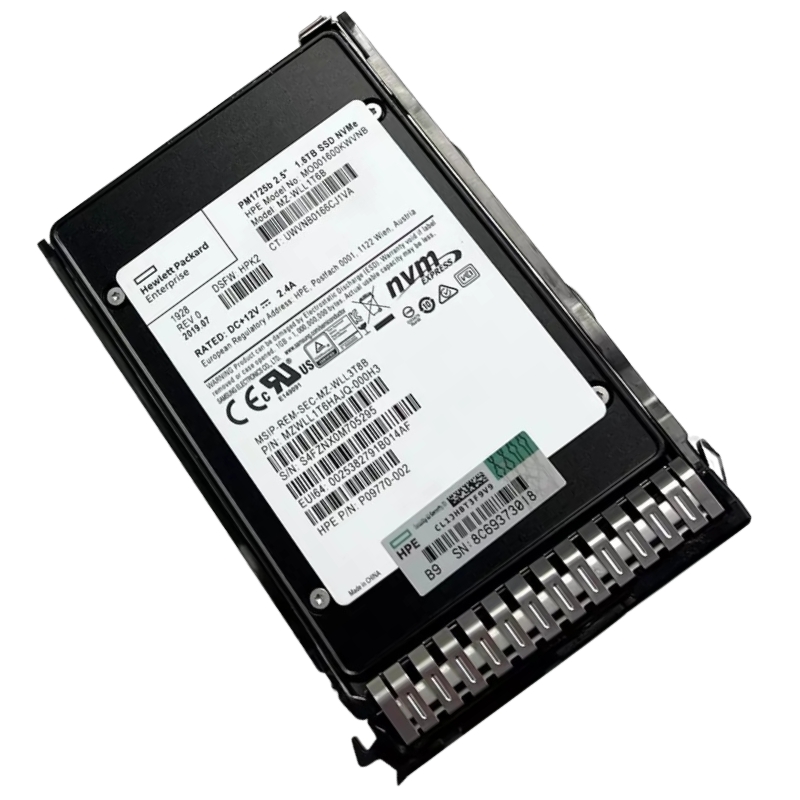

P65009-001 HPE 1.6TB Nvme Gen4 MU SFF BC U.3 SSD

HPE P65009-001 1.6TB NVMe SSD

The HPE P65009-001 represents a significant advancement in enterprise storage technology, delivering exceptional performance and reliability for modern data center environments. This 1.6TB NVMe Gen4 Mixed Use SSD is engineered to handle demanding workloads that require both high read and write performance, making it an ideal solution for server applications where consistent performance and low latency are critical.

Key Specifications

The HPE P65009-001 SSD features a comprehensive set of technical specifications designed to meet enterprise requirements. With a storage capacity of 1.6TB, this drive utilizes the latest NVMe 1.4c protocol and PCIe 4.0 interface to deliver maximum performance. The drive conforms to the SFF (Small Form Factor) BC U.3 standard, ensuring compatibility with modern server architectures while maintaining optimal power efficiency and thermal characteristics.

Capacity and Form Factor Details

This 1.6TB capacity point is specifically calibrated for enterprise workloads that require substantial storage while maintaining consistent performance. The 2.5-inch Small Form Factor (SFF) design allows for high-density deployments in rack servers and storage arrays. The U.3 interface provides backward compatibility with U.2 systems while enabling future-proof connectivity options.

Physical Dimensions

The drive measures 70mm x 100mm x 15mm (2.75" x 3.94" x 0.59") and weighs approximately 200 grams (0.44 lbs). This compact form factor enables high-density configurations in server environments where space optimization is crucial.

Environmental Specifications

Operating temperature range of 0°C to 70°C with a maximum non-operating temperature range of -40°C to 85°C. The drive can withstand operating shock of 20G for 2ms and non-operating shock of 1000G for 1ms, ensuring durability in demanding data center environments.

Performance Metrics

The HPE P65009-001 delivers mainstream performance optimized for mixed-use workloads, balancing both read and write operations efficiently. Leveraging PCIe Gen4 technology, this SSD provides significantly higher bandwidth compared to previous generations, enabling faster data transfer rates and reduced latency for critical applications.

Interface and Protocol Performance

Utilizing the PCI Express 4.0 x4 interface, the drive achieves theoretical bandwidth of up to 64,000 MB/s per direction when configured with x4 lanes. The NVMe 1.4c protocol implementation ensures optimal queue depths and efficient command processing, reducing CPU overhead and improving overall system performance.

Sequential Performance Metrics

The drive delivers exceptional sequential read performance of up to 6,800 MB/s and sequential write performance of up to 3,200 MB/s. These high-speed transfer rates enable rapid data movement for large file operations, database backups, and virtual machine migrations.

Random Performance Capabilities

For random operations, the P65009-001 achieves up to 1,000,000 IOPS for random read operations and up to 350,000 IOPS for random write operations. This high IOPS performance is particularly beneficial for database applications, virtualization environments, and other I/O-intensive workloads.

Latency Performance

The drive maintains consistent low latency with typical read latency of less than 90 microseconds and write latency of less than 15 microseconds. This predictable low latency ensures responsive application performance and meets the demanding requirements of real-time processing applications.

Endurance and Reliability

As a Mixed Use SSD, the HPE P65009-001 is engineered for workloads with balanced read/write ratios. The drive features a rated endurance of 5.84 Petabytes Written (PBW), equivalent to 1 Drive Write Per Day (DWPD) over its 5-year warranty period. This endurance rating makes it suitable for applications requiring consistent write performance over extended periods.

Error Correction and Data Integrity

Advanced error correction capabilities including end-to-end data path protection, power-loss protection, and sophisticated bad block management ensure data integrity throughout the drive's lifecycle. The implementation of LDPC (Low-Density Parity Check) error correction provides robust protection against data corruption.

Form Factor and Interface Compatibility

The HPE P65009-001 utilizes the SFF BC U.3 form factor, which represents the evolution of enterprise storage connectivity. This versatile interface supports NVMe protocol while maintaining backward compatibility with SAS and SATA infrastructures through appropriate interposers and cabling solutions.

U.3 Interface Advantages

The U.3 interface combines the benefits of NVMe performance with the flexibility of multi-protocol support. This single connector standard simplifies data center infrastructure by allowing the same backplane to support NVMe, SAS, and SATA drives, providing investment protection and deployment flexibility.

Physical Connector Specifications

The drive features a SFF-8639 connector (also known as U.3) with PCIe x4 lanes, SATA ports, and sideband signals for management. This comprehensive connector design enables seamless integration into existing infrastructure while providing migration path to full NVMe implementations.

Hot-Plug Capability

Full hot-plug capability allows for drive replacement and addition without system shutdown, ensuring continuous operation and minimal disruption to business-critical applications. The drive includes appropriate LED management for status indication and locate functionality.

Mixed Use Workload Optimization

The "Mixed Use" designation indicates that the HPE P65009-001 is specifically engineered for workloads that involve a balanced mix of read and write operations. This optimization makes it suitable for a wide range of enterprise applications where both data retrieval and data creation occur frequently.

Workload Characterization

Mixed Use SSDs are designed for workloads typically featuring 30% to 70% write operations. This includes database applications, virtualization platforms, collaboration software, and other enterprise applications where both read performance and write endurance are equally important.

Write Amplification Control

Advanced flash management algorithms minimize write amplification, extending the drive's lifespan and maintaining consistent performance under varying workload conditions. The drive employs sophisticated garbage collection and wear leveling techniques to optimize NAND flash utilization.

Power Efficiency

The HPE P65009-001 incorporates advanced power management features that optimize energy consumption without compromising performance. These features are particularly important in high-density server deployments where power and cooling constraints can impact overall system design.

Active Power Consumption

During active operation, the drive typically consumes between 12-15 watts under heavy workload conditions. Advanced power states allow for reduced consumption during periods of lower activity, contributing to overall data center energy efficiency.

Power State Management

Comprehensive support for NVMe power states including operational states PS0 through PS3 and non-operational states PS4 (sleep) enables granular power management. The drive can transition between power states rapidly, balancing energy savings with performance requirements.

Data Security Features

Enterprise-grade security features protect sensitive data throughout the drive's lifecycle. These security measures ensure compliance with organizational security policies and regulatory requirements.

TCG Enterprise Compliance

Full compliance with TCG Enterprise specification provides hardware-based security capabilities including authentication, access control, and encryption management. This standardized security framework ensures interoperability with enterprise security infrastructure.
